Трансформатор тока 200 А/50 мА Раздельный

 Introductions:

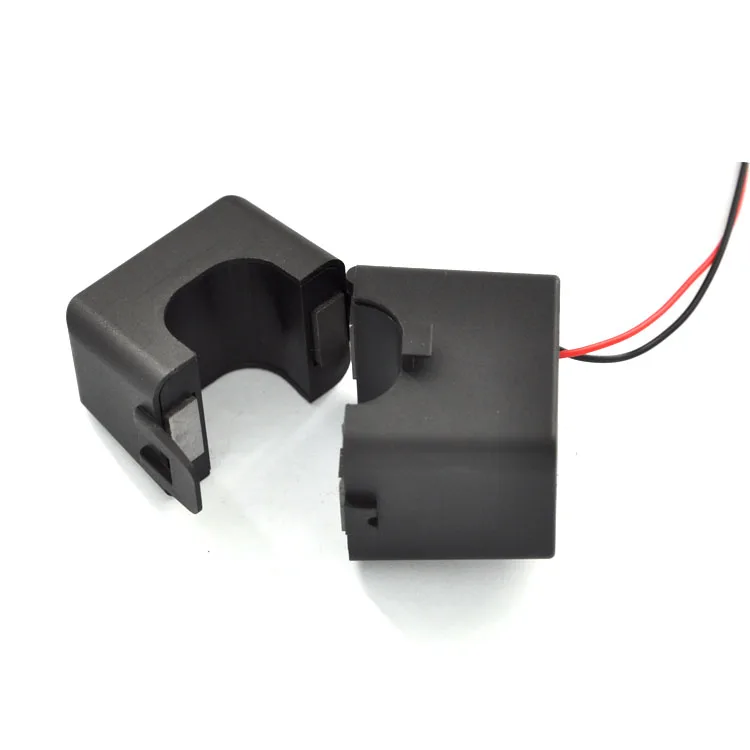

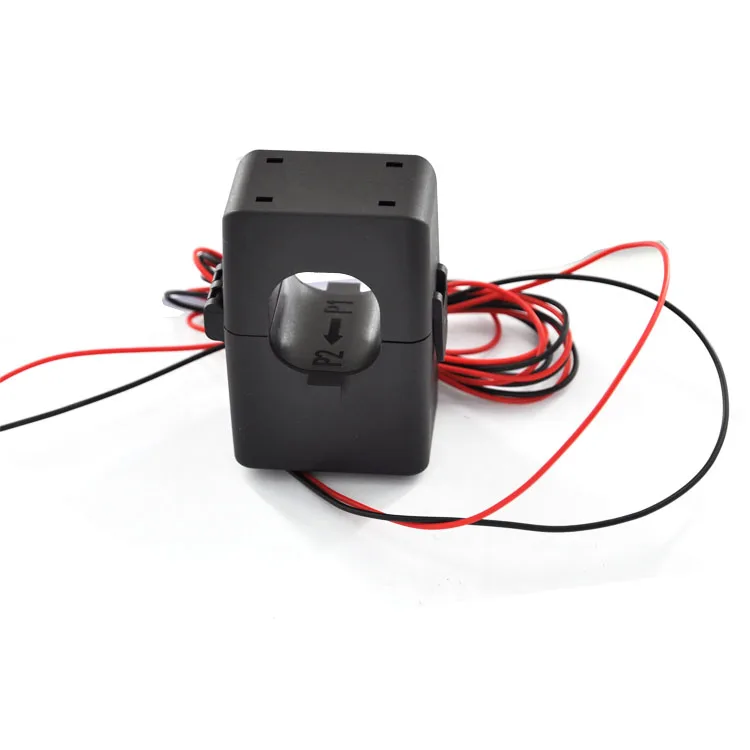

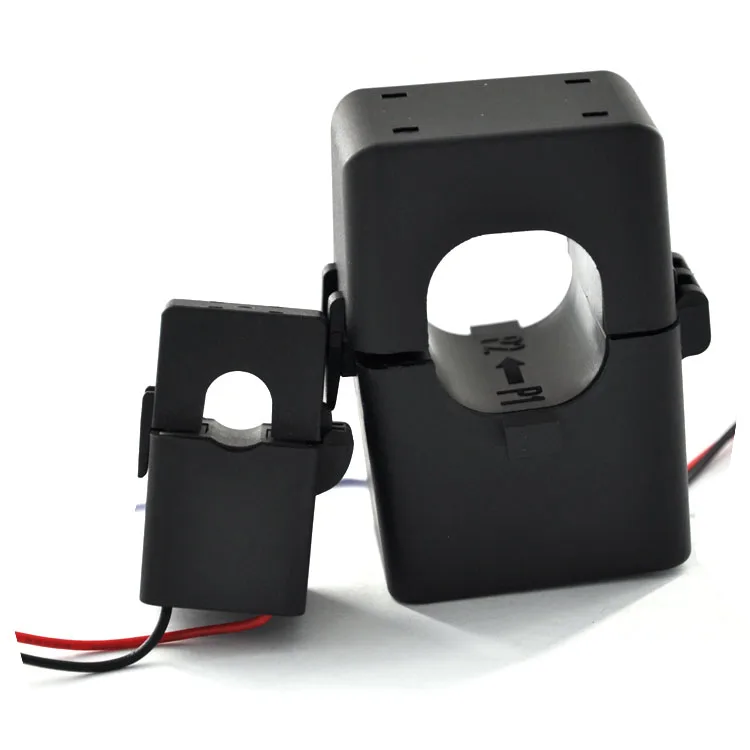

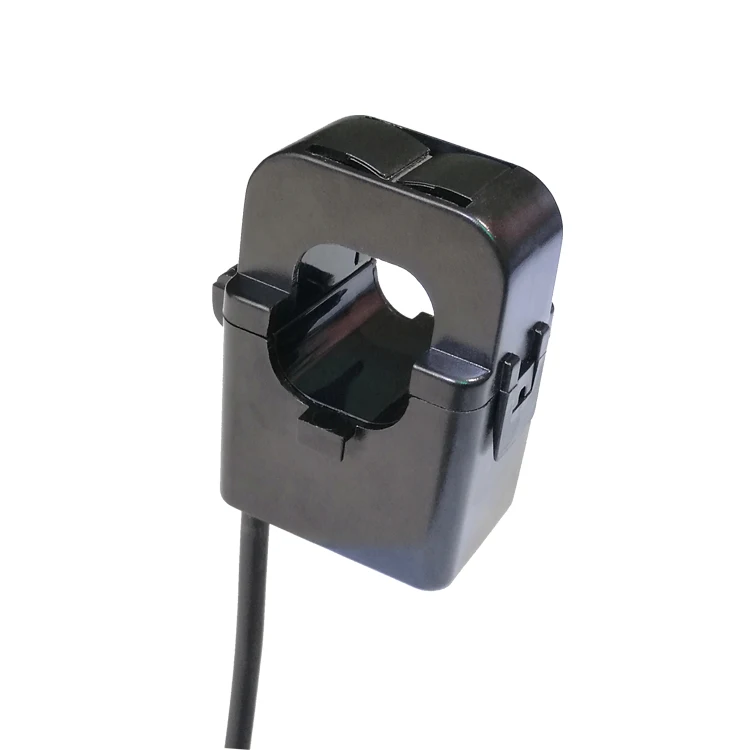

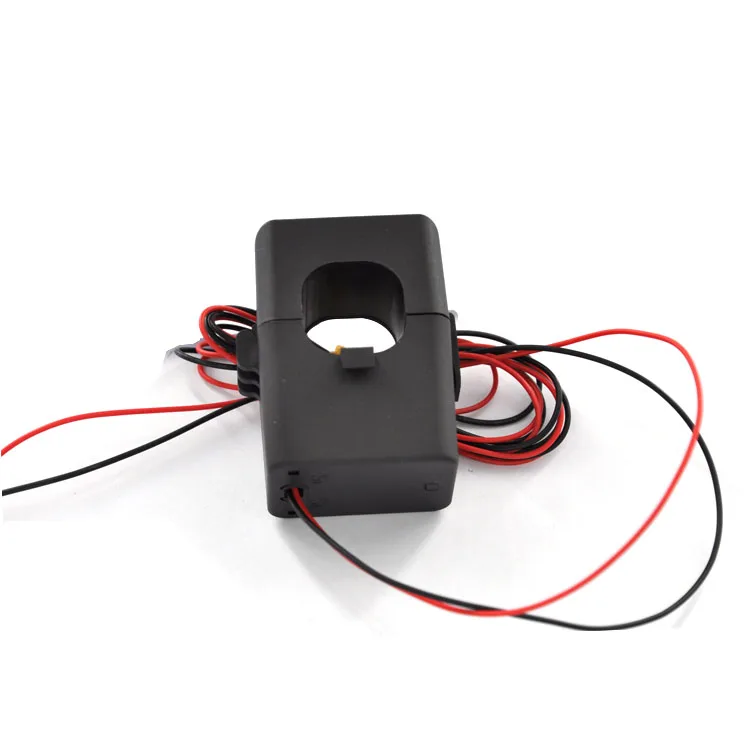

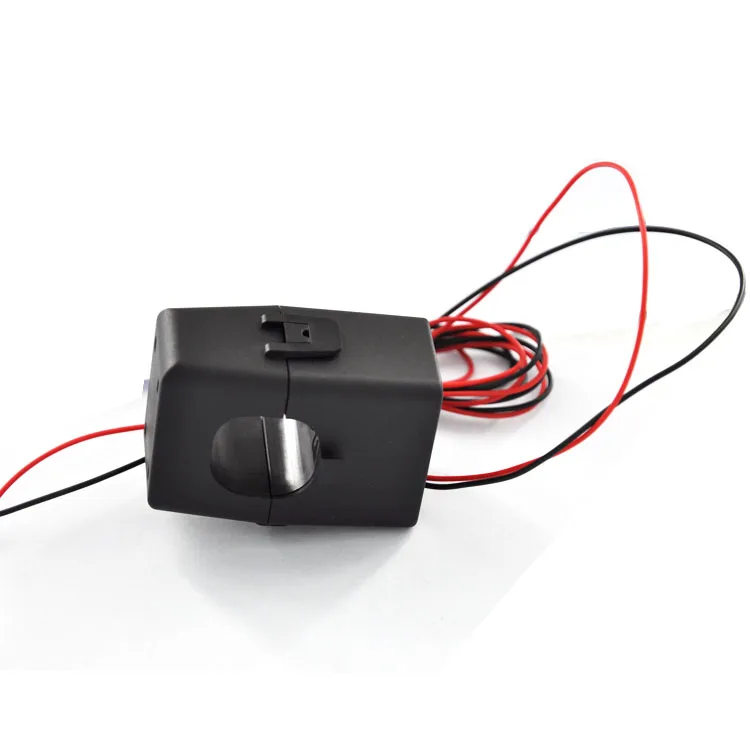

Open loop current transformer

Installation: Continuous line, no power failure

High precision and good linearity

Flame retardant (meet the UL94-V0)

Environmental protection (meet the RoHS)

Small weight and size

Guideline:

Chinese standard: GB1208-2006;

Industry standard: JBT 10665-2006.

Application:

Suitable for existing line modification and need to convert large current into small current for precise measurement or as an electrical safety protection.

Notes:

The primary current and secondary load connected to the transformer do not exceed the rated capacity, maybe cause reduced accuracy or saturation

Size:

  Note:This schematic diagram is the basic working principle of the transformer. We can design the transformer sampling circuit for the customer.

Specification:
