Automatic Servomotor Controlled Plastic Thermoforming machine
Product Description
Main Features:
1) The sheet is driven by pin chain and the pin chain is driven by servomotor. The feeding length could be adjusted by parameter setting through touch screen.
2) The stretching of plug inside of up mould is controlled by servomotor.
3) Mould adopts four pillars to fix the mould.
4) It adopts hydraulic system to drive the movement of the mould.
5) Fill oil automatically to lubricate mechanism movement at certain time.
6) Temperature controller modules to control up and down temperature area.
7) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.
8) Stable operation and reliable performance, low noise, high quality.
9) Machine frame adopts square bar to make it. Its lifespan will be longer.
10) The movement of heating oven is controlled by touch screen.
11) Waste sheet winder to collect the waste sheet.
Machine Technique Parameters:
| Model | FJL-SZ-680I | FJL-SZ-680II | FJL-SZ-750I | FJL-SZ-750II |
| Max.Forming Area | 650x320mm | 750x420mm | ||
| Max.No-Load Speed | 35Cycles/min | |||
| Running Method | Hydraulic | |||
| Oil Pump Motor Power | 7.5KW(Double Pump) | 15KW(Double Pump) | ||
| Cutting Method | Cutting in Mold | |||
| Feeding Pattern | Motor With Encode | Servomotor | Motor With Encode | Servomotor |
| Stretching Method | Motor | Servomotor | Motor | Servomotor |
| Suitable Material | PP,PS,HIPS,PET,PVC | |||
| Sheet Thickness Range | 0.2-2mm | |||
| Max.Forming Depth | 120mm | 150mm | ||
| Sheet Roll Dia. | 800mm | |||
| Heater Arrangement | Top + Bottom Heating With IR Ceramic Heater | |||
| Electrical Consumption | 40kw/h | 45kw/h | 50kw/h | 55kw/h |
| Overall Power | 100kw | 110kw | 120kw | 130kw |
| Air Consumption | 1.5-1.8m³/min,0.6-0.8Mpa | 2-2.5m³/min,0.6-0.8Mpa | ||
| Machine Size | L3650XW1590XH2500mm | L4000XW1730XH2600mm | ||
| Weight | 4.4T | 4.5T | 4.8T | 5T |
| Power Supply | 380V/50HZ/3P | |||

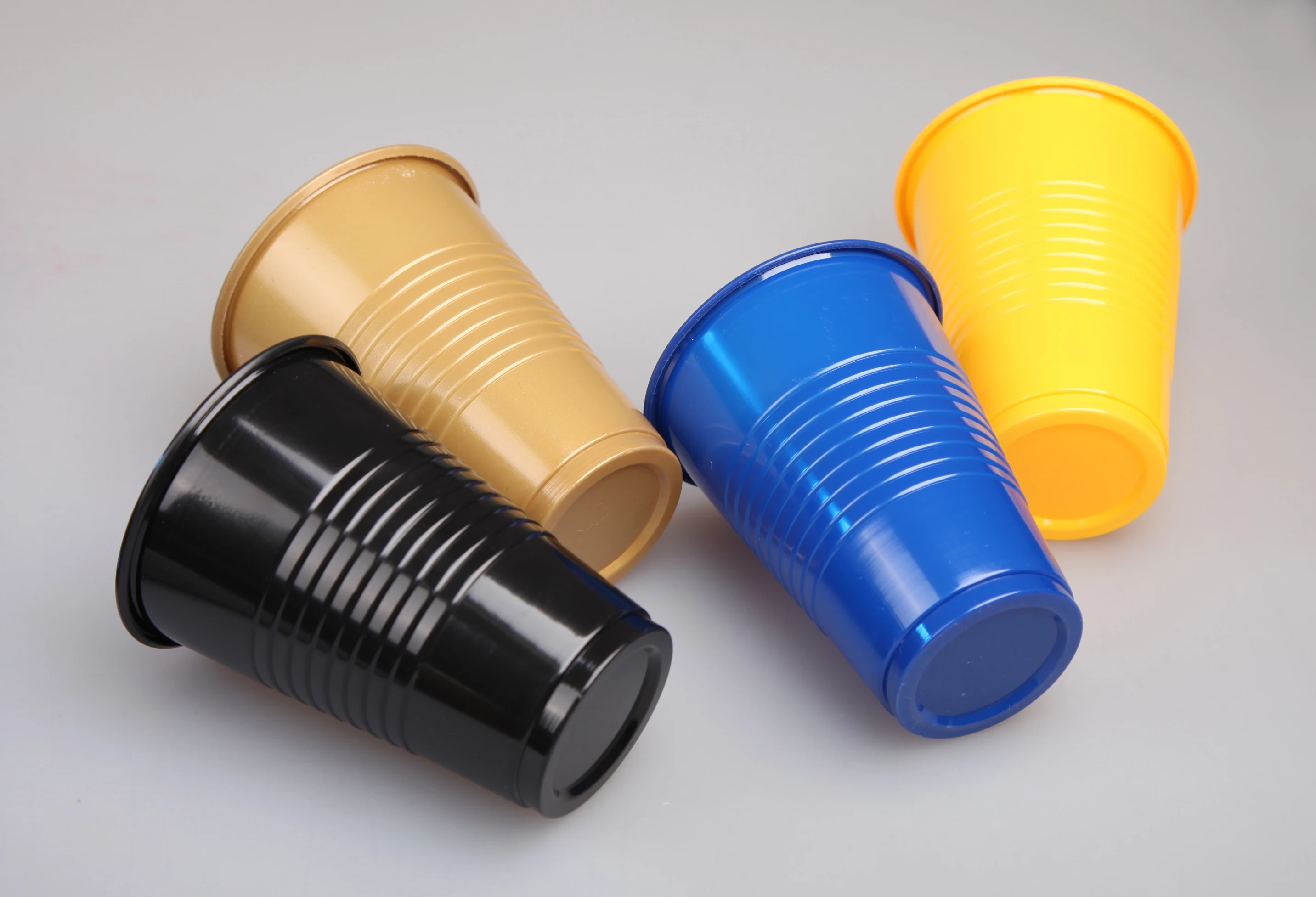

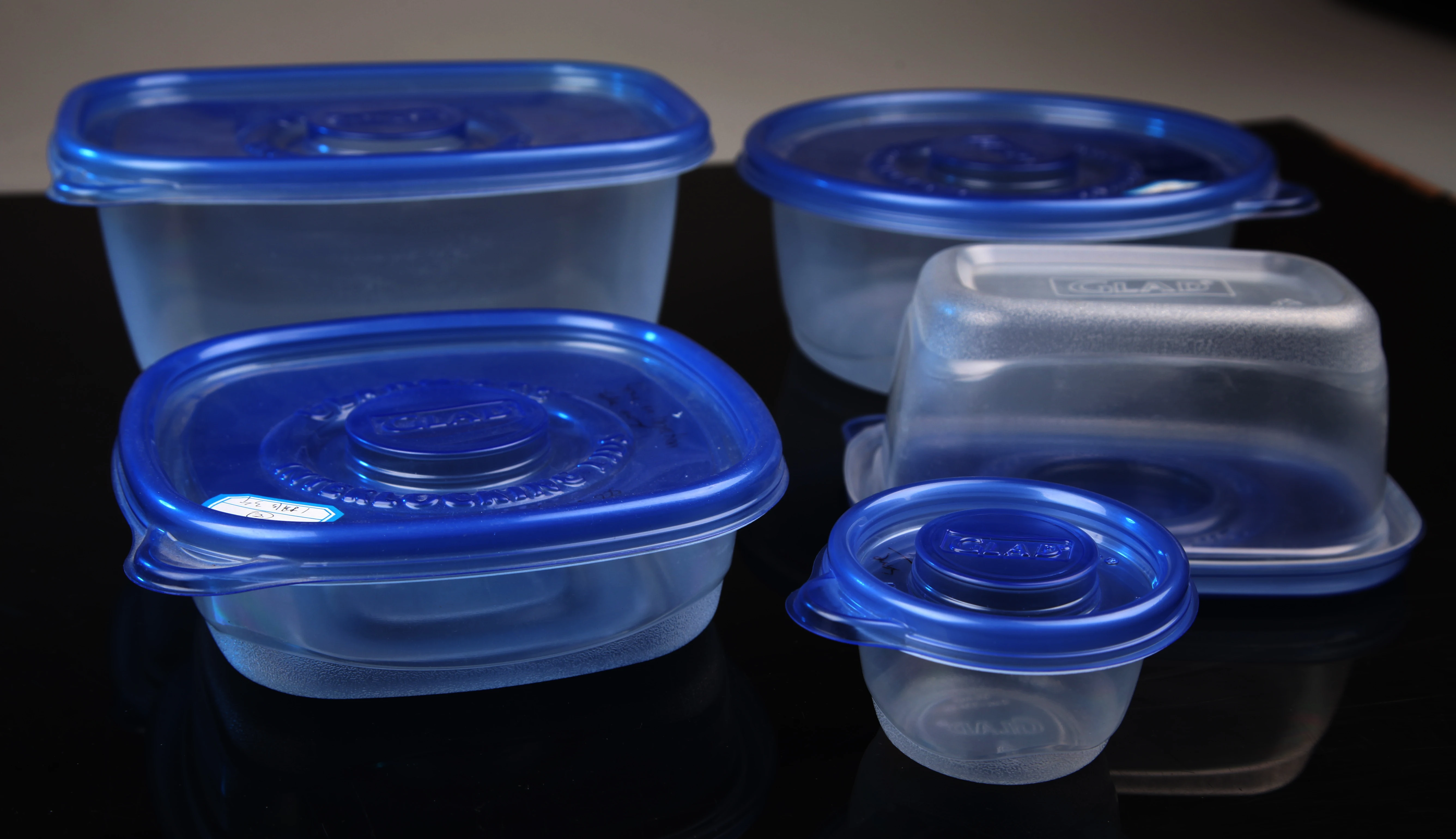

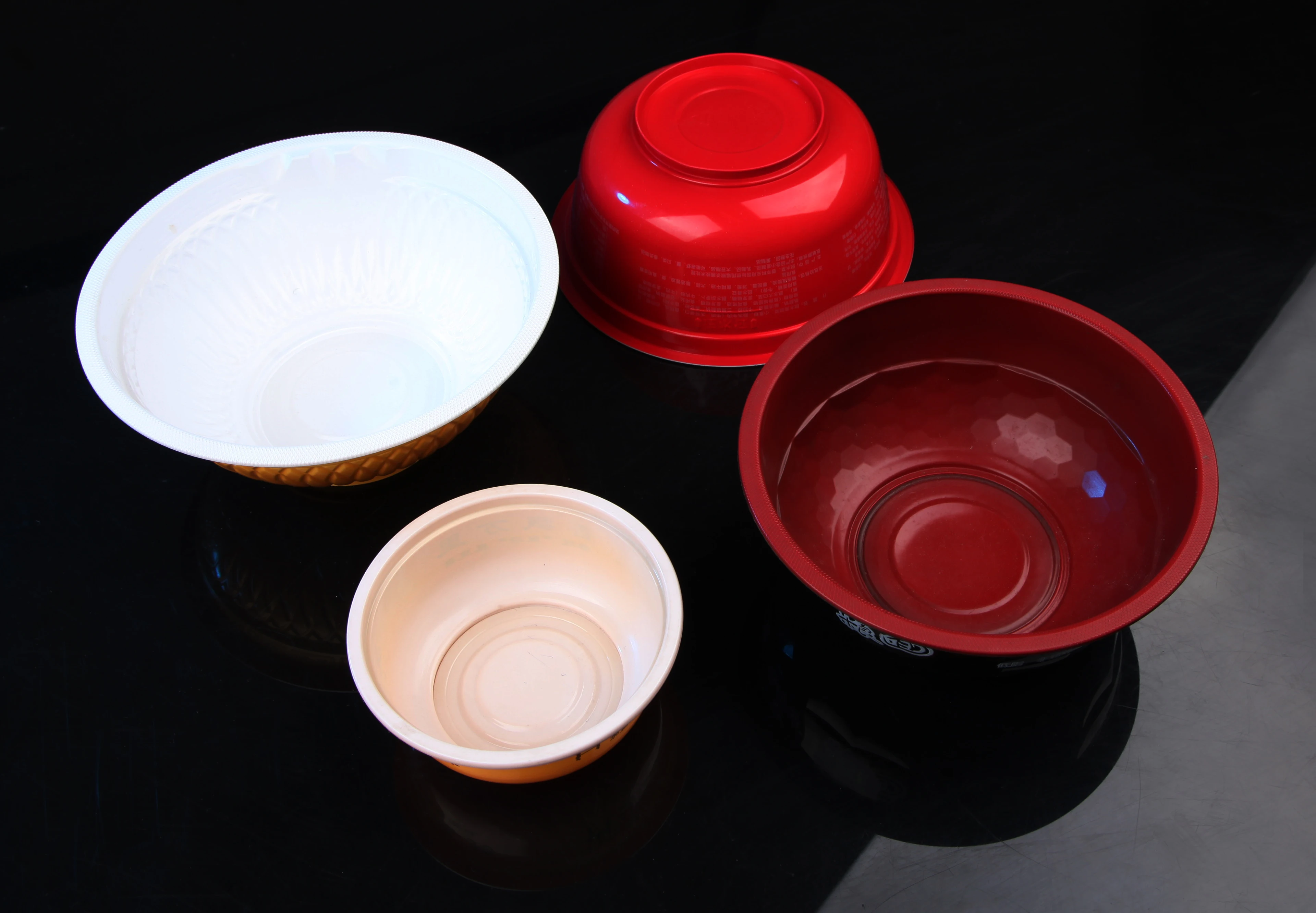

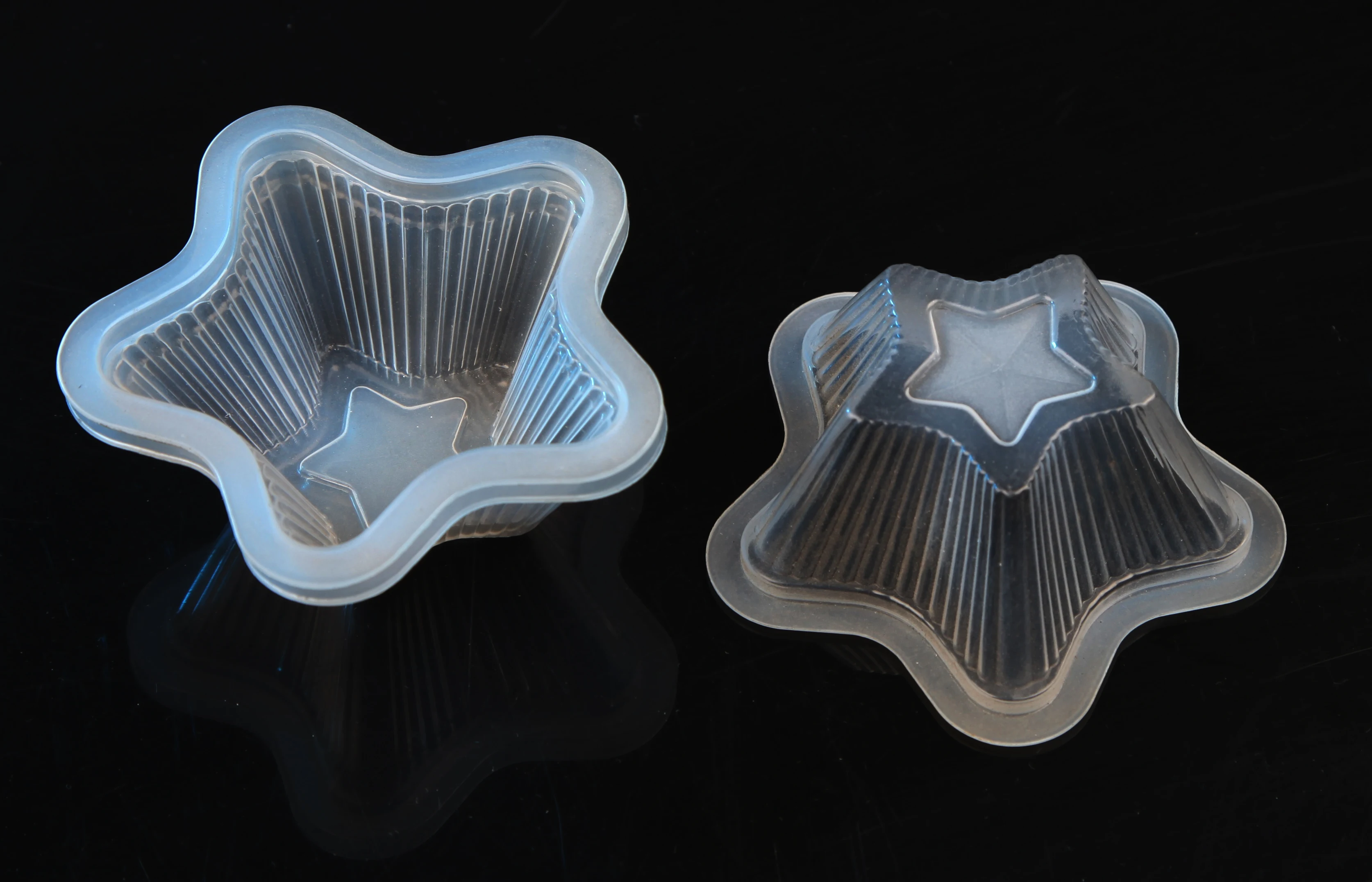

Samples of products:

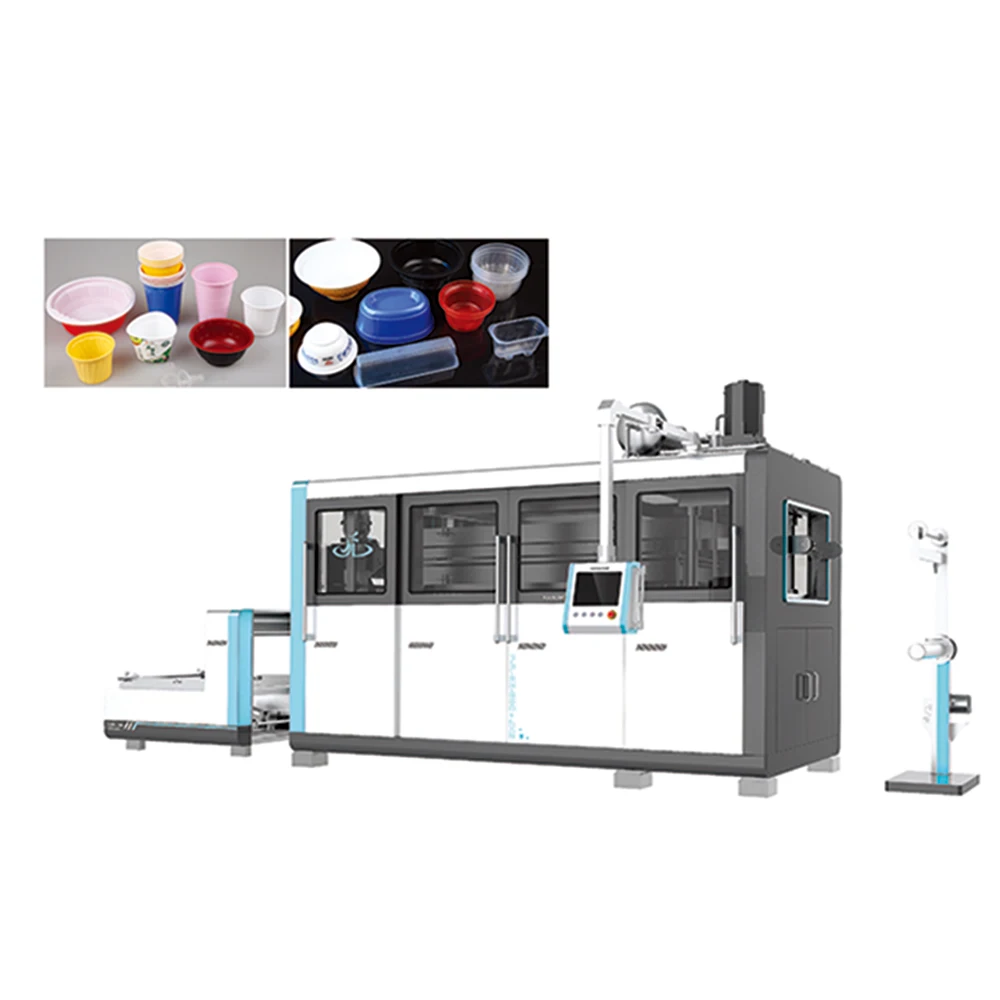

Machine details as follows:
