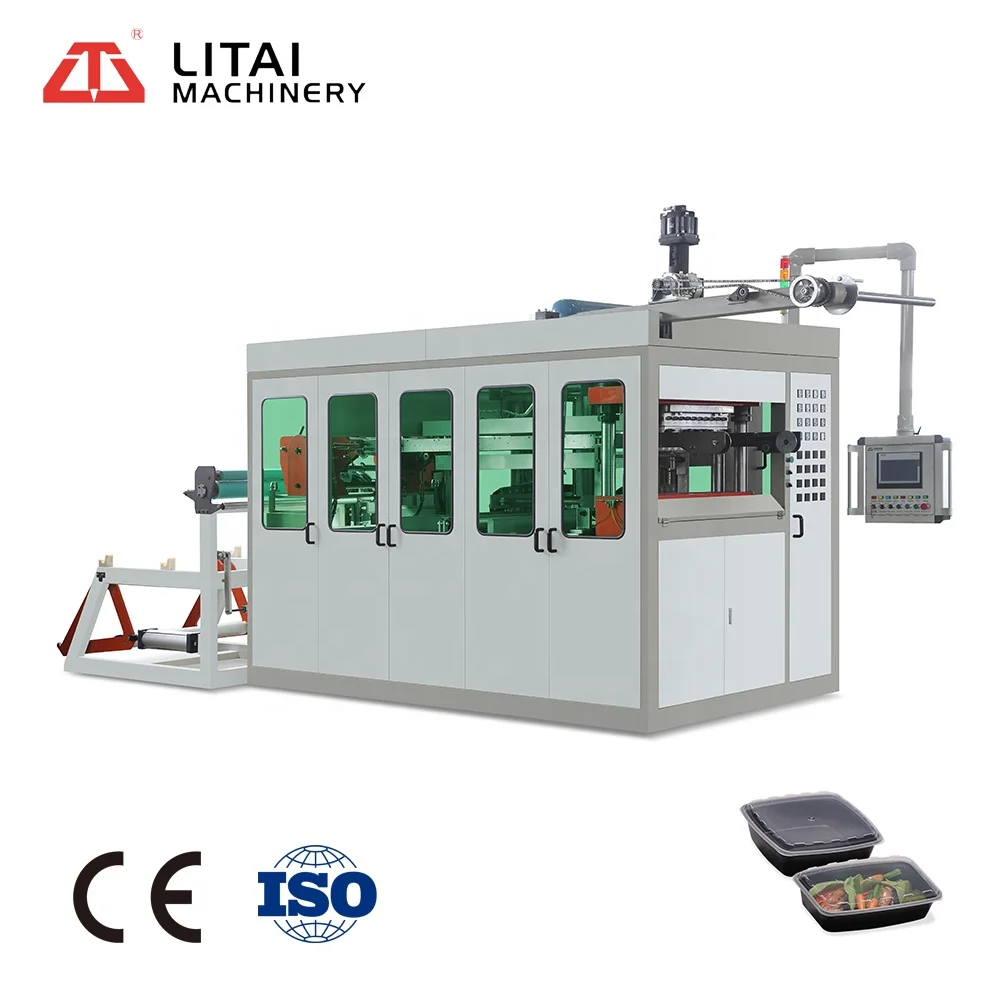

Carrier tape forming machine for SMD packaging
US $8000-$8500
Термоформовочные машины пластиковые стаканы горячий продукт 2020 завод по производству пищевых продуктов и напитков 380 В/50 Гц 0 3-1 8 мм
- Категория: >>>
- Поставщик: Ruian,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 47124.77 $* | 49480.4 $* |
| Aug-15-2025 | 46728.83 $* | 49064.16 $* |
| Jul-15-2025 | 39204.69 $* | 41164.62 $* |
| Jun-15-2025 | 45936.24 $* | 48233.84 $* |
| May-15-2025 | 39996.67 $* | 41996.77 $* |
| Apr-15-2025 | 45144.79 $* | 47401.93 $* |
| Mar-15-2025 | 44748.57 $* | 46985.88 $* |
| Feb-15-2025 | 44352.87 $* | 46570.98 $* |
| Jan-15-2025 | 43956.28 $* | 46154.99 $* |
Характеристики
Product Paramenters
Model | TQC-650B |
Max. Forming Area | 650*300mm |
Max. Forming Depth | 125mm |
Sheet Thickness | 0.3-1.8mm |
Sheet Width | 650mm |
Max. Forming Speed | 35 times/min |
Air Pressure | 0.6-0.8mpa |
Air Consumption | 2.0m³/min |
Water Consumption | 0.5m³/h |
Rated Power | 98Kw |
Used Power | 69Kw |
Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
Dimension | L8500*W2200*H2700mm |
Weight | About 5T |
MAIN ELECTRICAL COMPONENTS | ||
Touch Screen/PLC | SIEMENS (Germany) | |
Servo Motor | YASKAWA (Japan) | |
AC Contactor/Circuit Breaker | SCHNEIDER (France) | |
Proximity Switch | ROCKWELL (USA) | |
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve | YUKEN (Taiwan) | |
Intermediate relay | IDEC (Japan) | |
Intermediate relay base | OMRON (Japan) | |
Forming Valve | CKD (Japan) | |
Solenoid Valve | SMC (Japan) / Mindman (Taiwan) | |
Products Description
Application:
Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor. Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.
Sample:
plastic cup
We are a machine, the most competitive price, the most professional service, we have very advanced equipment, we can make plastic cups of different materials (in addition to ordinary materials, we can also make biodegradable and compostable plastic cups , Basically can meet your requirements), size, pattern plastic cup.

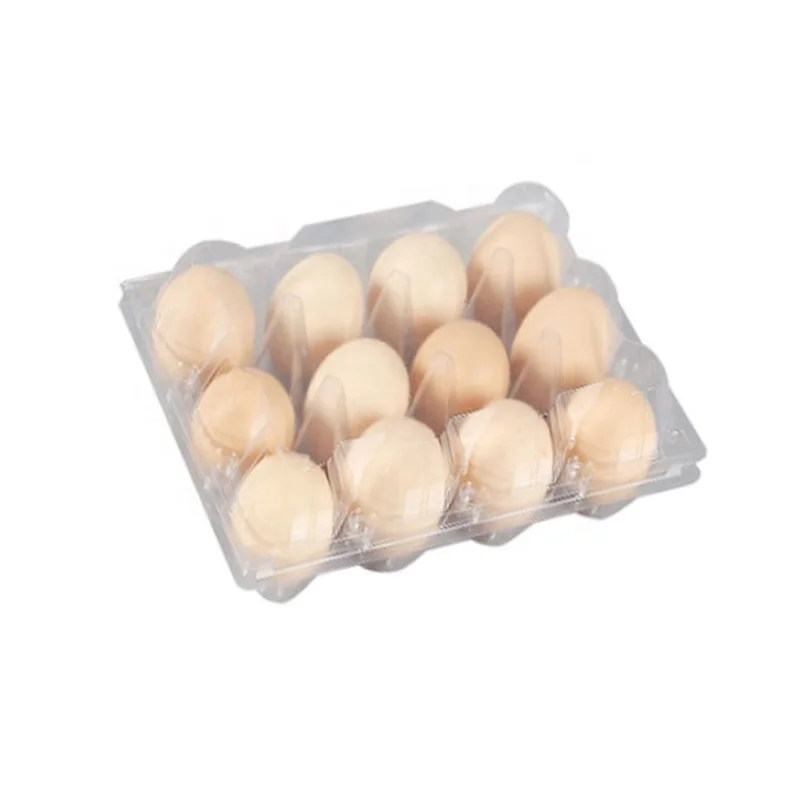

Egg tray
The egg tray can be made PET or PVC plastic material.
There are 4,6,8,9,10,12,15,30 cells tray.
The diameter of it is 4 cm , 4.3 cm, 4.6 cm.
It can be printed as your requirement.
There are 4,6,8,9,10,12,15,30 cells tray.
The diameter of it is 4 cm , 4.3 cm, 4.6 cm.
It can be printed as your requirement.
Disposable lunch box
Advance meal prep, diet portion control, healthy nutritious meals and to-go meals are super convenient to prepare in these durable food containers. The hard-plastic construction will ensure no cracks or breaking along the way. The leak proof lids will tightly seal the containers, preventing any annoying leaks or spills in your bag or freezer
Plastic fruit box
Our machine can manufacture 100% new food grade non-toxic and odorless material, which has high transparency and environmental friendliness.Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box shape does not change when stacking up.
Coffee cup lid
Our machine supports 100% biodegradable and compostable materials: our fiber thermal cover is made of 100% plant-based materials, which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!
plastic bowl
Elastic thermoforming is the preferred process for manufacturing plastic parts because it is ideal for producing large numbers of low-cost plastic parts with high tolerance accuracy, repeatability and almost no completion.
Touch screen :Delta
Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes.
Working station
Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.
Servo motor

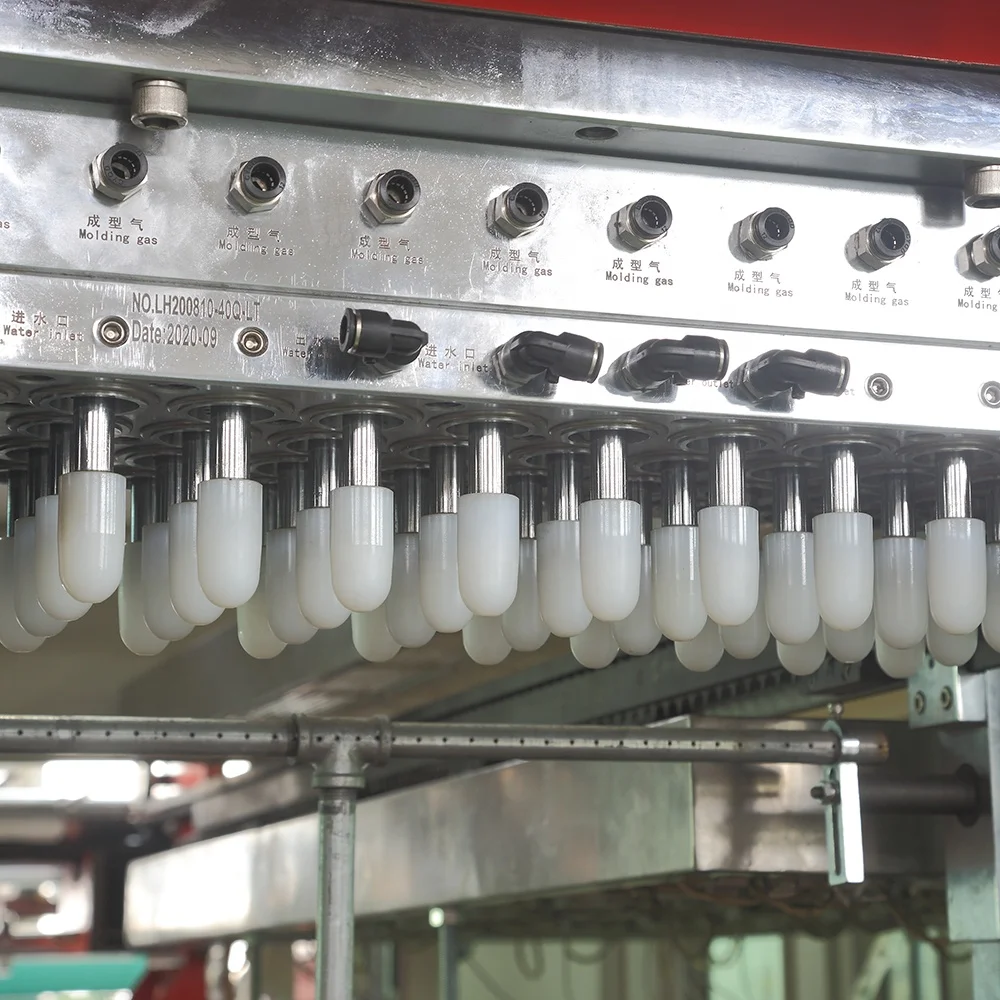

Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the servo motor also controls precisely sheet feeding to avoid wasting.
Hydraulic system
Hydraulic driven system can provide adequately movement speed and strongly punching power.
Hydraulic system
The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision.
Heater
The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.
Chain
Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.
Electric lubricating oil pump
The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rotating part of the machine get proper and reasonable lubrication.
Servo motor
Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3kw, which can ensure stable operation in the process of feeding.
SUMMARY OF MACHINE

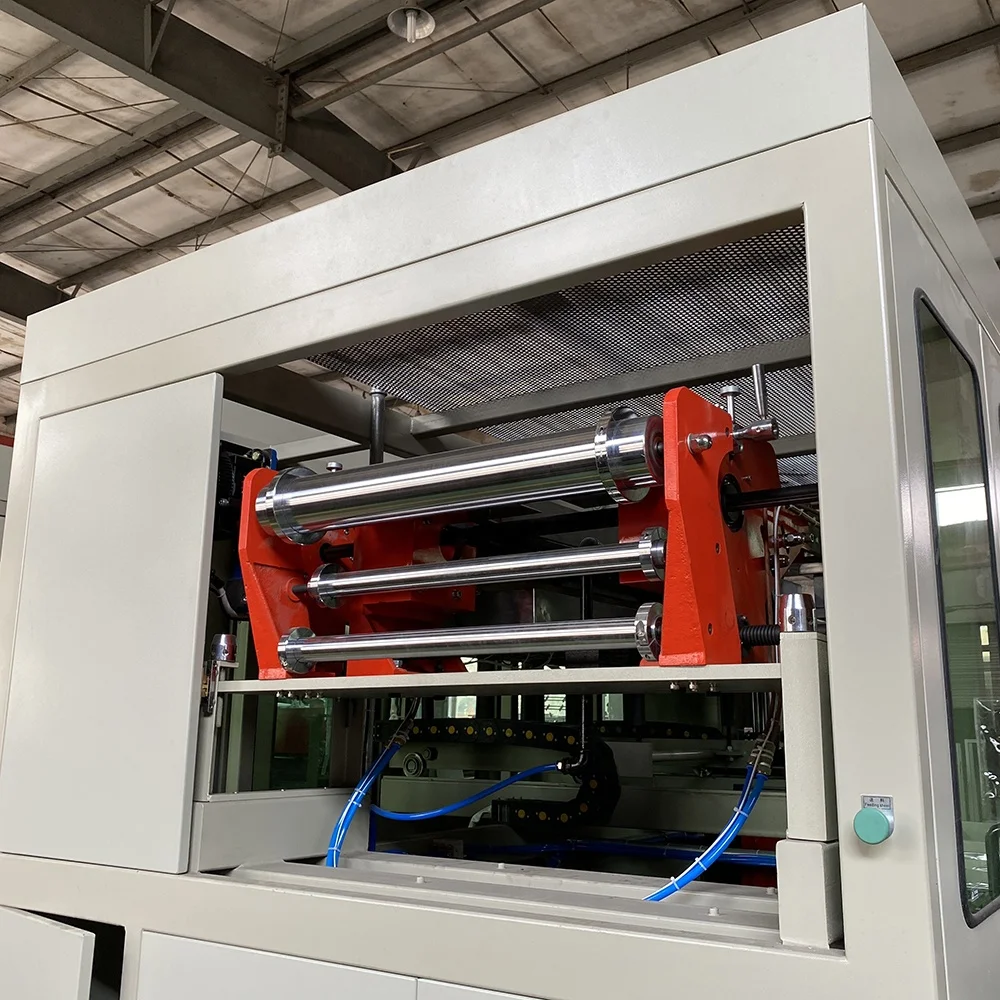

1.Automatic sheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.
2.Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
3.Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃.
4.Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine’s counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
Why Choose Us
Company Profile
About us
Rui‘’An Litai Machinery Co., Ltd. (formerly named as Rui'an Litai Factory which was established in 2000) is a professional manufacturer of a full complete production line of full-automatic plastic thermoforming machine, cup thermoforming machine, cup printing machine, sheet extruder, plastic vacuum forming machine, packing machine, plastic machine and other industrial machinery.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Certifications
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 13months calculated from the date of shipment from our factory.During warranty period,
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
