Openwrt MT7621 Enterprise Беспроводной двухдиапазонный WIFI OpenWrt Gigabit MT7621A чипсет PCBA ODM OEM sim 4g lte
- Категория: >>>
- Поставщик: Shenzhen,Huasifei,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 65.99 $* | 66.13 $* |
| Jul-15-2025 | 53.69 $* | 54.52 $* |
| Jun-15-2025 | 64.29 $* | 65.0 $* |
| May-15-2025 | 63.13 $* | 64.33 $* |
| Apr-15-2025 | 50.94 $* | 51.80 $* |
| Mar-15-2025 | 62.19 $* | 63.45 $* |
| Feb-15-2025 | 62.8 $* | 63.23 $* |
| Jan-15-2025 | 61.94 $* | 62.65 $* |
Характеристики
Product Description
Product Name | MTK MT7621 Enterprise Wireless Dual band WIFI OpenWrt Gigabit MT7621A chipset PCBA ODM OEM sim 4g lte router |
Country of use | (Europe / Middle East / Africa / Korea / Thailand) |
3G4G band | LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
Function | Support 3g4g direct SIM card, VPN / APN, QoS, etc |
For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules and update the price for you.
used new MT7621 wireless solution, performs better and more functions. Stable wireless performance, stronger Storage ability , the
Max transmission rate could be 1200Mbps(the 11ac PCIE mode is necessary) . 2.4G 300Mbps, 5G will be 880M(Max). Also supports 3G/4G
（3G/4G MINI-PCIE module is necessary）, it could also dial-up via the USB port（should mount the 3G/4G network card. Provide 2
USB2.0 interface, 1 Micro slot.
Mt7621 WiFi communication product is a WiFi communication equipment suitable for industrial environment. Mt7621 dual frequency dual core high-power router supports WiFi pice interface. Hardware: MTK (MediaTek) new dual core network chip mt7621 scheme is adopted, with the main frequency up to 880mhz. It can calmly face the application of various demanding CPU processing capacity, so that WiFi equipment can work stably in various complex industrial communication environments. WiFi equipment can adapt to a wide temperature range of - 40 ℃ to 80 ℃, and can be installed and deployed in various harsh outdoor working environments.

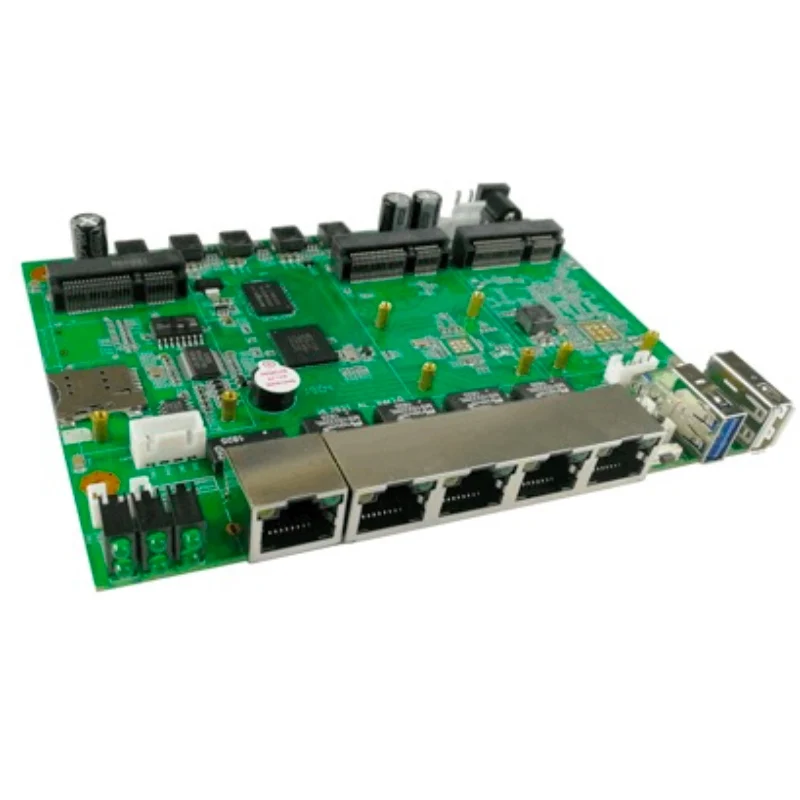

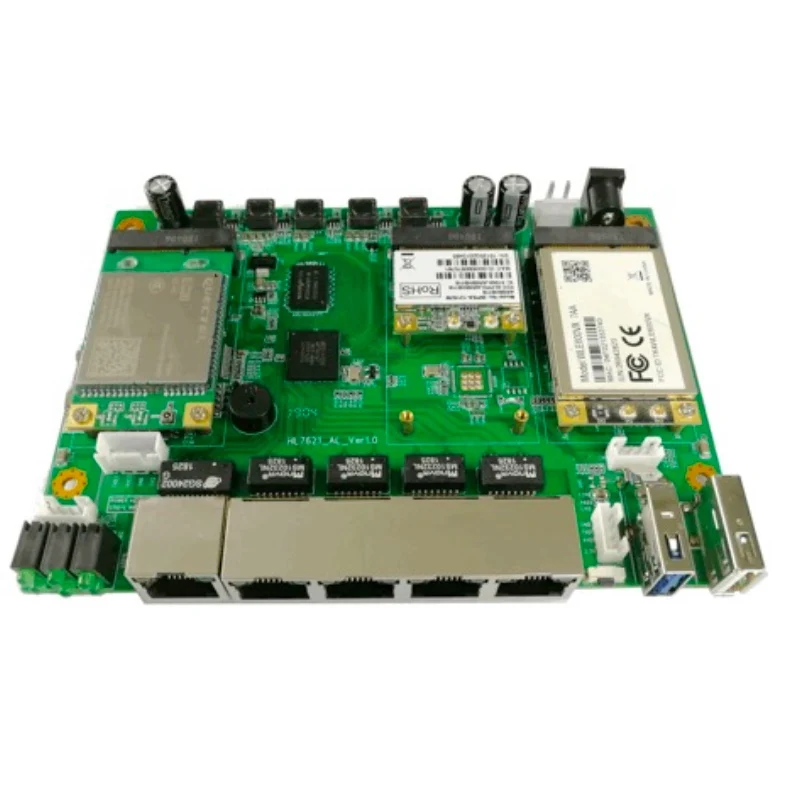

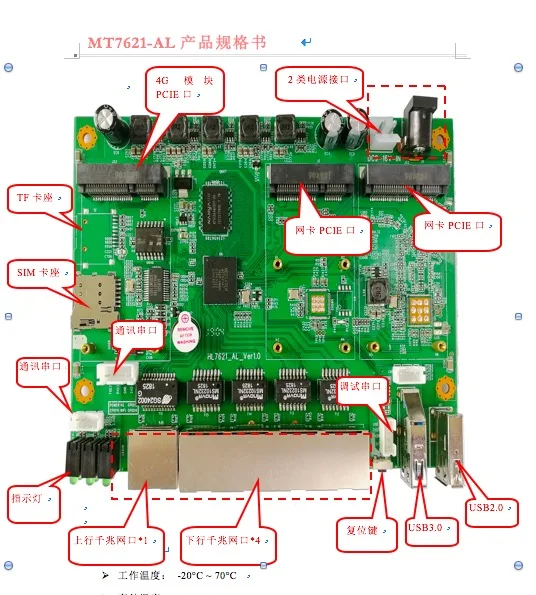

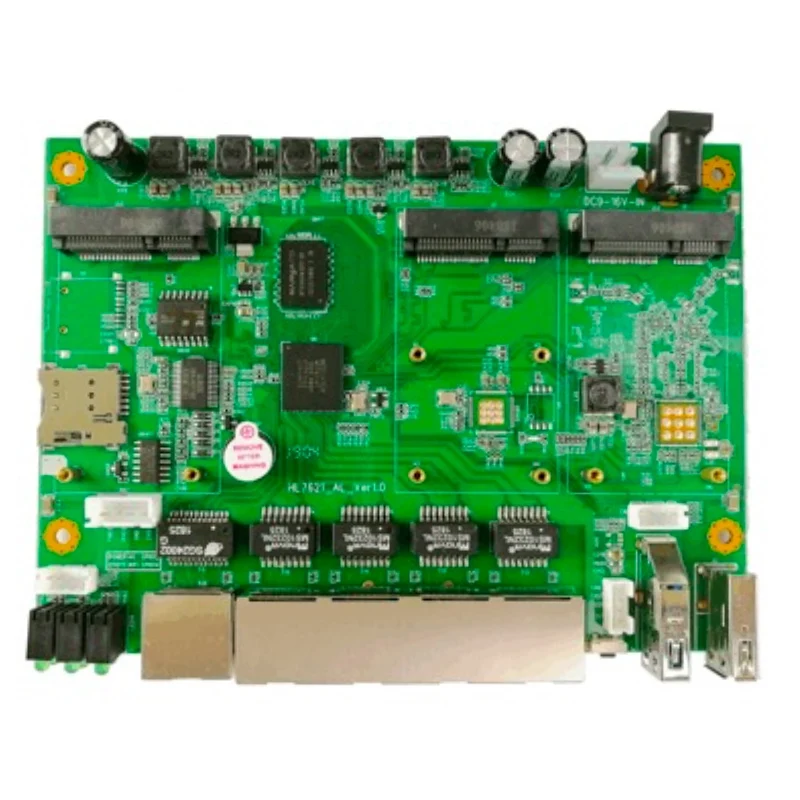

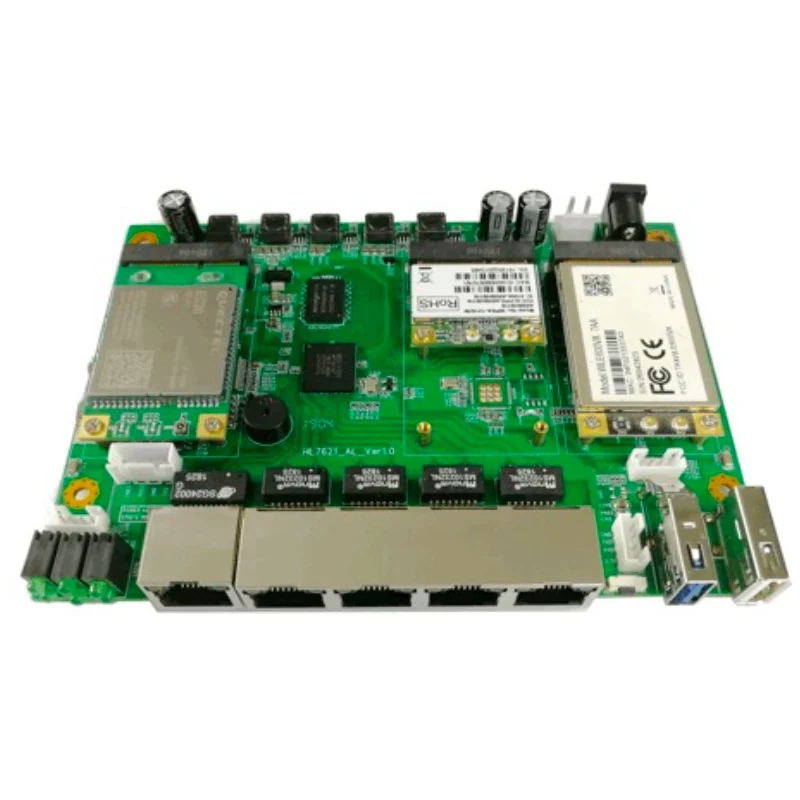

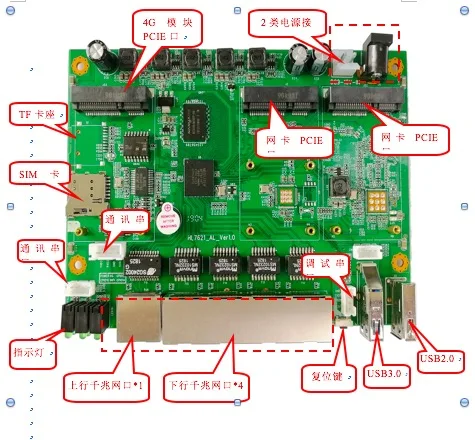

The main board interface provides five Ethernet interfaces, 2x USB interface and two PCIe interfaces.
The main board interface provides five Ethernet interfaces, 2x USB interface and two PCIe interfaces.
Hardware specification
Main chip
Mt7621 / dual core / 880mhz
Memory
DDR3 ram 128MB (up to 512MB)
FLASH
SPI flash 16MB (up to 64MB)
Extensible protocol standard
IEEE 802.11ac、IEEE 802.11a
IEEE 802.11n、IEEE 802.11g、IEEE 802.11b；
Scalable wireless rate
5G : 867Mbps
2.4G: 300Mbps
Extensible working frequency band
2.4GHz/5G
Extended antenna
2 * 5dBi omnidirectional antenna
Mesh port
5 10 / 100M / 1000m adaptive Wan ports, supporting automatic flip (auto MDI / mdix)
USB interface
USB3.0*1 USB2.0*1
Mini PCIe interface
Mini PCIe * 2 (extended WiFi interface)
4G module interface
Mini pie package interface * 1
Serial port *3
Debugging serial port * 1, communication serial port * 2
Indicator *6
Power light * 1, 4G light * 1, WiFi light * 1, other lights can be customized
Button
1 * reset button
The power adapter
DC 12V 2A
Size (L * w * h)
140mm*103mm
Software specification
Factory default settings
IP address: 192.168.1.1
User / password: root / root
Mt7621 / dual core / 880mhz
Memory
DDR3 ram 128MB (up to 512MB)
FLASH
SPI flash 16MB (up to 64MB)
Extensible protocol standard
IEEE 802.11ac、IEEE 802.11a
IEEE 802.11n、IEEE 802.11g、IEEE 802.11b；
Scalable wireless rate
5G : 867Mbps
2.4G: 300Mbps
Extensible working frequency band
2.4GHz/5G
Extended antenna
2 * 5dBi omnidirectional antenna
Mesh port
5 10 / 100M / 1000m adaptive Wan ports, supporting automatic flip (auto MDI / mdix)
USB interface
USB3.0*1 USB2.0*1
Mini PCIe interface
Mini PCIe * 2 (extended WiFi interface)
4G module interface
Mini pie package interface * 1
Serial port *3
Debugging serial port * 1, communication serial port * 2
Indicator *6
Power light * 1, 4G light * 1, WiFi light * 1, other lights can be customized
Button
1 * reset button
The power adapter
DC 12V 2A
Size (L * w * h)
140mm*103mm
Software specification
Factory default settings
IP address: 192.168.1.1
User / password: root / root
Company Introduction
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included POE switch, Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G wifi router. with 30 people R&D team and around 500 people in factory
