Контроллер BLDC RS232 высокопроизводительный контроллер с кодировщиком и обратной связью бесщеточный двигателя постоянного тока для

Описание и отзывы

Трекер стоимости

Характеристики

1.Wide input voltage .
2.Intelligent PID control loop.
3.Four works Mode: open loop control, closed loop speed control, closed loop torque
control.
4.External potentiometer, external 0-5 VDC analog or pulse command control mode.
5.Complete forward & reverse control, Four Quadrant operation, Support regeneration.
6.Enable control function.
7.Maximum current limit.
8.4 input port, the function may be defined as analog input, pulse input or digital input
function.
9.2 MOS tube drain open circuit output, General is 24 V 1 A output (up to 40 V 1 A), can be
used to loosen the brake or other components.
10.Over-current, overheating, overvoltage, undervoltage, short circuit and so on abnormal
condition such as start protection function.
11.LED status indicator, fault alarm output.
12.Use easy to plug terminal blocks, the operation is simple.

1. Power supply voltage: 10-50 VDC.

2.Continuous working current 50 A, Peak current up to 120 A 30 S.

3. + 5 VDC power supply (can supply to encoder): 5V DC 20 mA.

4. Analog input range: 0-5 VDC.

5,.Pulse input range: 50 hz - 5000 hz (corresponding to maximum speed)

Note:the minimum pulse frequency with different maximum speed Settings will have corresponding change.

6. Duty cycle input range 20% to 80% (f≤1KHZ, or default to 250 hz )

7. Digital output up to 40 V 1 A

8. 70 ℃ overheating protection to reduce the output, 80 ℃ stop output.

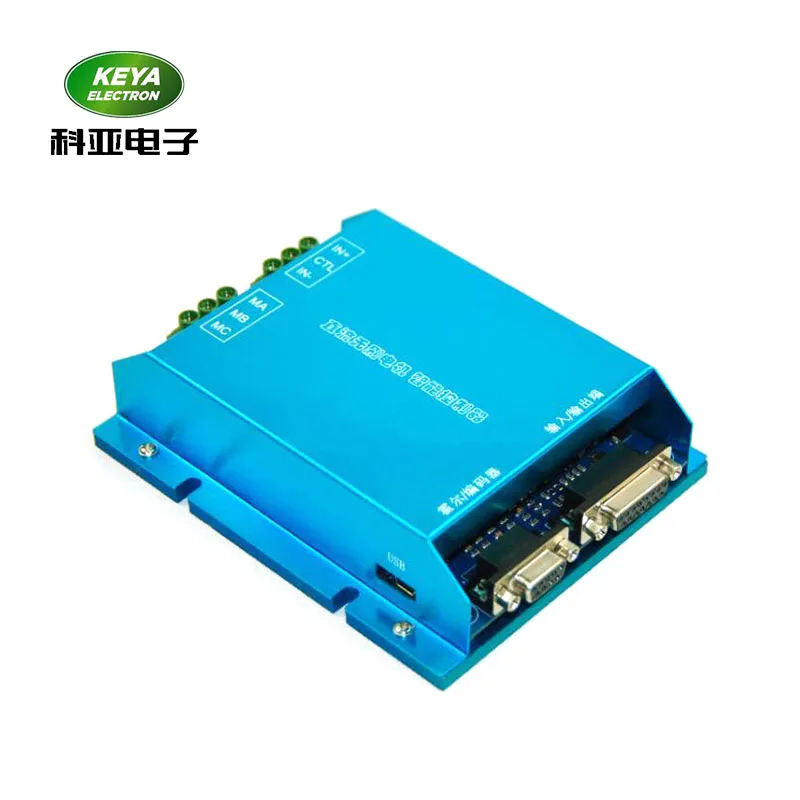

Product Name	24V High Performance BLDC Motor Controller with encoder feedback sine wave brushless dc bldc motor controller
MODEL	KYDBL4850-1E
VOLT	10-55VDC
CURRENT	50A
CONTROL	PWM.RS232,CAN-open,RC RADIO
WEIGHT	1KG
USED	logistics industry
NOTED	Encoder feedback
