Алюминиевая оконная рама стальная дверь формовочная машина
- Категория: Окна и двери, делая машину >>>
- Поставщик: Cangzhou,Forward,Roll,Forming,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7140.28 $* | 7497.33 $* |
| Aug-18-2025 | 7080.6 $* | 7434.55 $* |
| Jul-18-2025 | 5940.17 $* | 6237.44 $* |
| Jun-18-2025 | 6960.3 $* | 7308.22 $* |
| May-18-2025 | 6060.7 $* | 6363.31 $* |
| Apr-18-2025 | 6840.81 $* | 7182.34 $* |
| Mar-18-2025 | 6780.42 $* | 7119.72 $* |
| Feb-18-2025 | 6720.73 $* | 7056.7 $* |
| Jan-18-2025 | 6660.62 $* | 6993.40 $* |
Характеристики

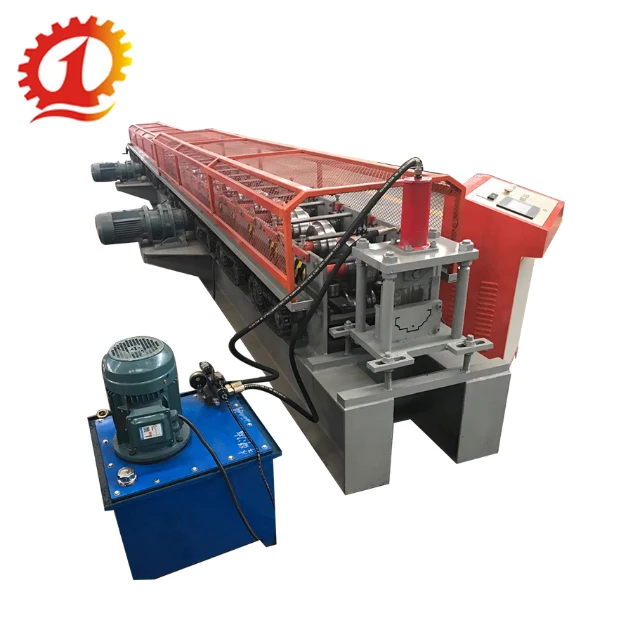

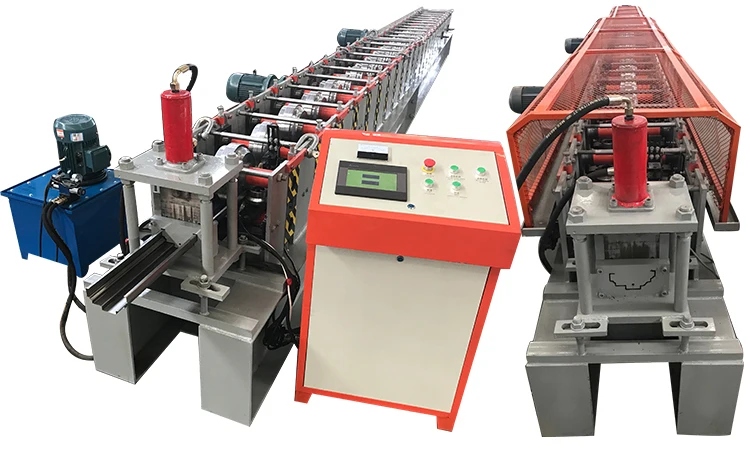

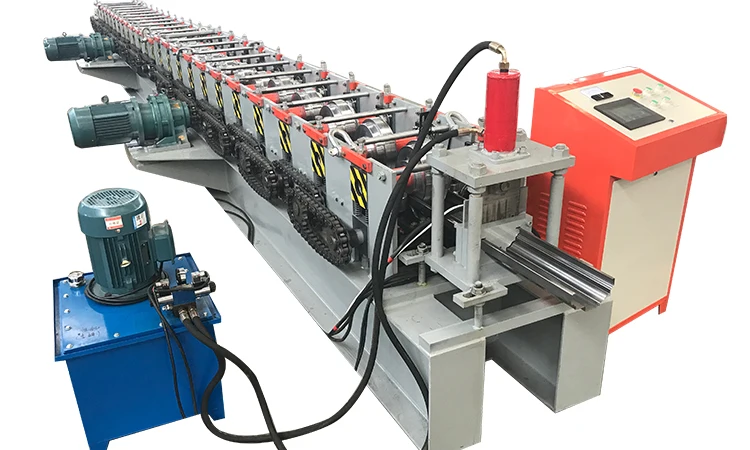

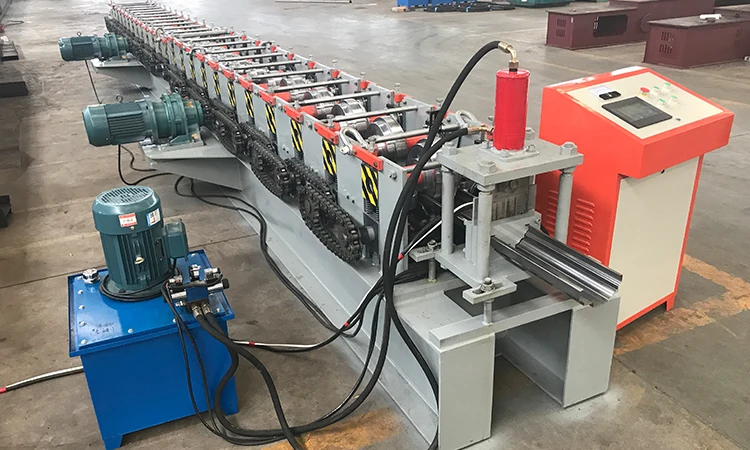

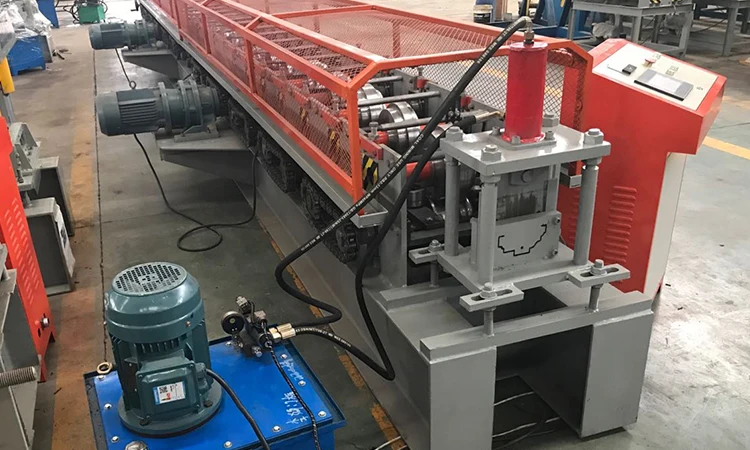

shutter slat aluminium window frame panel door making forming machine
Product Description
technical detail
Roller station | 12 Steps |
Shaft Diameter | 50mm, -0.01~-0.03(with key-way) |
Roller Material | Cr12 with key-way |
Heat Treatment | Vacuum quenching upto hardness 58℃ |
Fine Machining | CNC Lathe after vacuum quenching |
Machine Structure | 5mm under-frame and 20mm worktable |
Motor Power | 5.5KW(Lichao,Shanghai) |
Hydraulic pressure | 25 Mpa |
Operation | English Touch Screen |
Voltage Standard | 380V/3Phases/50Hz |
Production Speed | 0-30m/min |
Rollers
High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.
Using high qualiy thick shaft, the strength is more durable
Machine body
The main body of the body without welding, all the use of cast steel, prevent the host body deformation.
PLC Control System
Usually we prodvide the Delta PLC control system, but we can make that according to your need.
1.Main features of Roller Shutter Door Machine
The advantage of the roller shutter door machine as follows
1.beautiful profile
2.save place
3.easy operation save maintenance cost

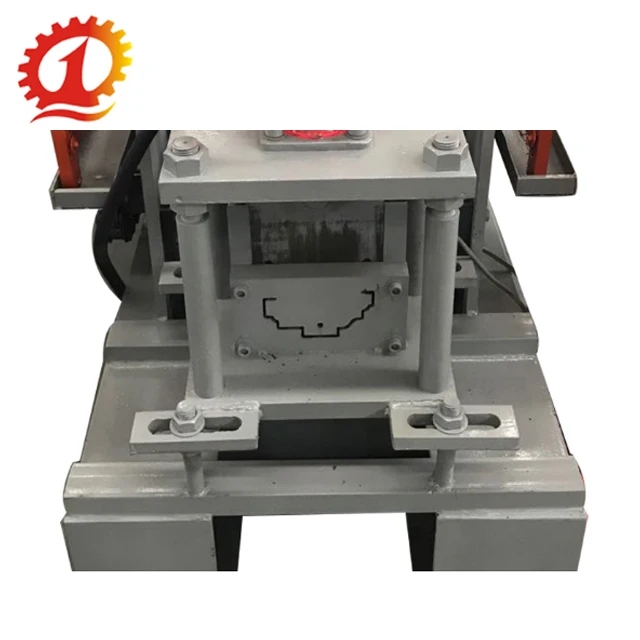

Production Line Sketch
Decoilin→Feeding&Flating→Roll Forming→Hydraulic Punching→Cutting →Table
Relational Production![-1.jpg]()
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
Company Information
Packaging & Shipping
Certification
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: tianjin port
4. Type of payment: by T/T or by L/C
5. Export: Australia,
Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
FAQ
1. What's your delivery time?
A1:Depending on the type of machine, duration of 1 days to 60 days from the date of order.
2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.
4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick u
Welcome to contact and visit us.Waiting for your cooperation sincerely.
