Умная электроника 775 двигатель постоянного тока 12в-36в 3500 -- 9000 об/мин шарикоподшипник большой крутящий момент высокая мощность низкий уровень
- Категория: DC Motor >>>
- Поставщик: Shenzhen,Smart,Electronics,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.9 $* | 0.24 $* |
| Aug-20-2025 | 0.50 $* | 0.27 $* |
| Jul-20-2025 | 0.30 $* | 0.55 $* |
| Jun-20-2025 | 0.30 $* | 0.15 $* |
| May-20-2025 | 0.40 $* | 0.17 $* |
| Apr-20-2025 | 0.51 $* | 0.32 $* |
| Mar-20-2025 | 0.68 $* | 0.81 $* |
| Feb-20-2025 | 0.92 $* | 0.95 $* |
| Jan-20-2025 | 0.6 $* | 0.50 $* |
Характеристики
Products Description
Smart Electronics 775 DC Motor 12V-36V 3500--9000 RPM Ball Bearing Large Torque High Power Low Noise

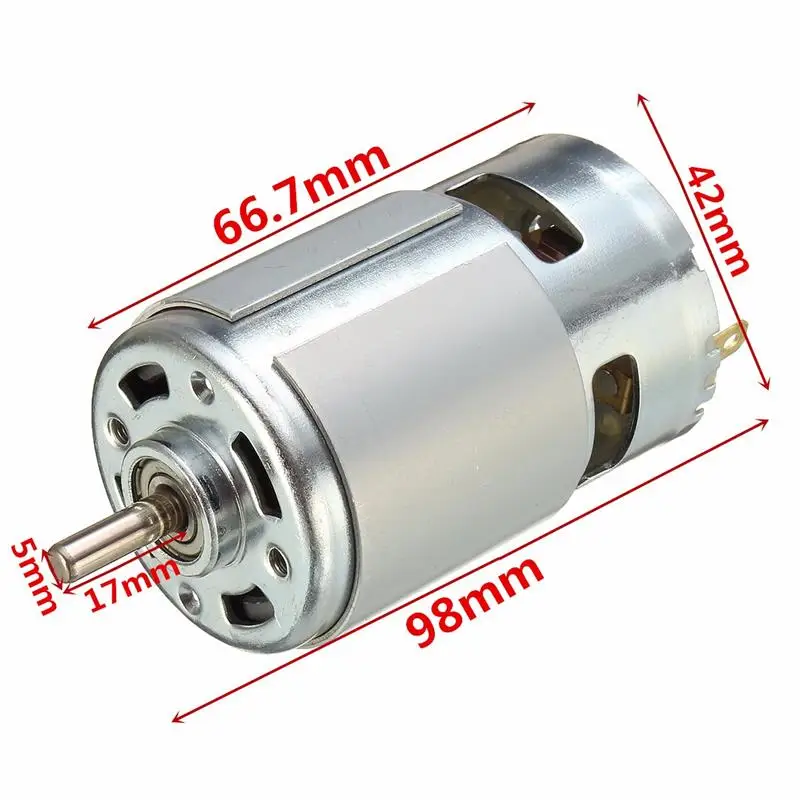

Specification:
* Brand new and high quality
* Shaft Diameter: Approx. 5 mm
* Shaft length: Approx. 17 mm
* Body length: Approx. 66.7 mm
* Front steps diameter: Approx. 17.4 mm
* Former high level: Approx. 4.7 mm
* Body diameter: Approx. 42 mm
* Motor Overall Length: Approx. 98 mm
* Diagonal installation pitch: Approx. 28.8 mm
* Mounting hole size: M4
* Mounting hole: 2
* Cooling fan: Yes
* Rated voltage: 24 V (Max. 36V)
* Current Rating: 0.16 A
* Rated Speed: 3500--9000 RPM
* Shaft Diameter: Approx. 5 mm
* Shaft length: Approx. 17 mm
* Body length: Approx. 66.7 mm
* Front steps diameter: Approx. 17.4 mm
* Former high level: Approx. 4.7 mm
* Body diameter: Approx. 42 mm
* Motor Overall Length: Approx. 98 mm
* Diagonal installation pitch: Approx. 28.8 mm
* Mounting hole size: M4
* Mounting hole: 2
* Cooling fan: Yes
* Rated voltage: 24 V (Max. 36V)
* Current Rating: 0.16 A
* Rated Speed: 3500--9000 RPM
Different voltage parameters:
* DC 12V, current 0.14A, speed 3500RPM
* DC 18V, current 0.15A, speed 4500RPM
* DC 24V, current 0.16A, speed 7000RPM
* DC 30V, current 0.17A, speed 8100RPM
* DC 36V, current 0.20A, speed 9000RPM

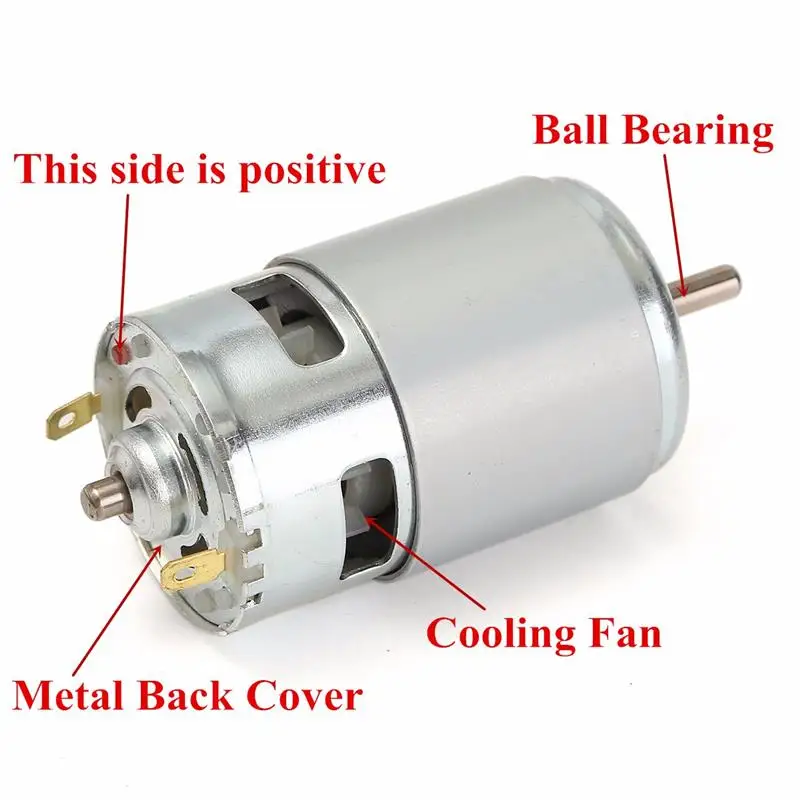

Features:
* The front is ball bearing and back-end is copper
* 5 groups winding
* At a voltage of 12V-24V , large torque, low noise
Note:
Please allow 1-2cm errors due to manual measurement
