Малая гидравлическая система для фермерского орошения буровая установка скважин с дизельным


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.87 $* 0.86 $*
Aug-19-2025 0.77 $* 0.2 $*
Jul-19-2025 0.77 $* 0.81 $*
Jun-19-2025 0.29 $* 0.46 $*
May-19-2025 0.96 $* 0.46 $*
Apr-19-2025 0.63 $* 0.95 $*
Mar-19-2025 0.51 $* 0.81 $*
Feb-19-2025 0.86 $* 0.6 $*
Jan-19-2025 0.2 $* 0.43 $*

Характеристики


Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. Main clients are around Southeast Asia,Mid East and South America. Welcome to visit our factory and sent inquiry to us.


2





Small hydraulic system farm irrigation water well drilling rig with diesel engine Introductions :


_01


HW160 160m hydraulic water well drilling rig Having hydraulic automatic feeding machanism, improve the drilling efficiency, reducelabor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod,convenient operation,safe and reliable.
Hoist with cage,forms the double support structure of the star wheel, can withsatnad strong shock.
The machine adopts taper clutch of national patent tecnology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance
HW230 230m hydraulic water well drilling rig Applications:
The drill is suitable for use in water well drilling, the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
can be selected acording to the underlying different alloy, diamond,compact drill for drilling,etc.
Level 3,2-9 drilling, sandy clay and rock formations ,etc.





Small hydraulic system farm irrigation water well drilling rig with diesel engine Parameters:


















































































































Drill hole depth


160m


Maximum opening diameter


75-220mm


Final hole diameter


75mm


Take the initiative to drill pipe


53/59*4200mm


Drill pipe diameter


50mm


Borehole inclination


90-75


Power (diesel engine)


13.2/2200kw/r/min


Structure weight/size


920kg/2400*950*1400


Vertical shaft


Vertical spindle speed


142 285 570r/min


Vertical stroke


450mm


Hoist


Single rope lift


9.6KN


Single rope winding speed


0.41 0.82 1.64m/s


Drum diameter


140mm


Diameter of wire rope


9.3mm


Wire rope capacity


27m


Rig


Rated load


2t


Effective height


6m


Tower leg specifications


73mm


Mud pump


Model


BW95


Flow


95L/min


Maximum pressure


1.2Mpa


Reciprocating frequency


93times/min


Suction pipe diameter


51mm*4.5m


High pressure water pipe diameter


32mm*6m

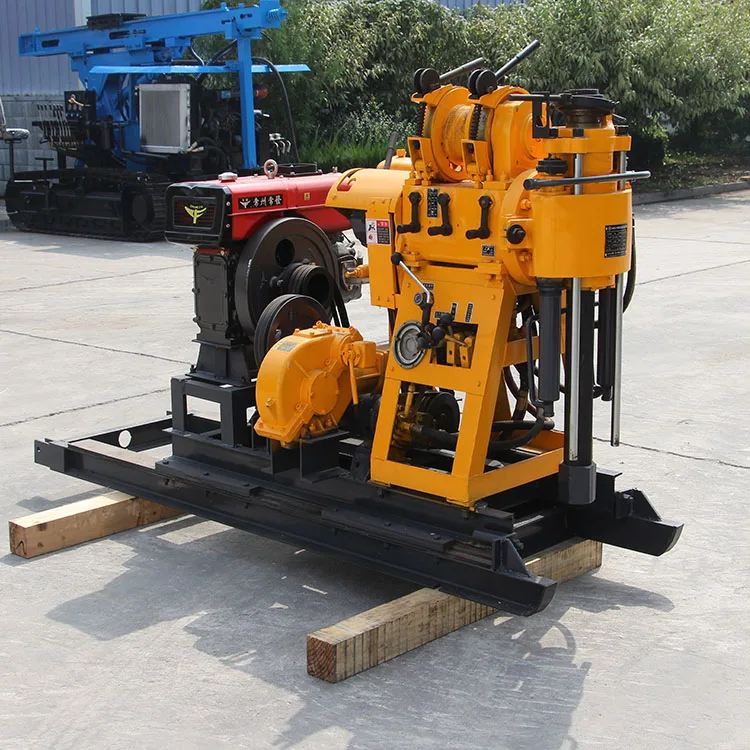

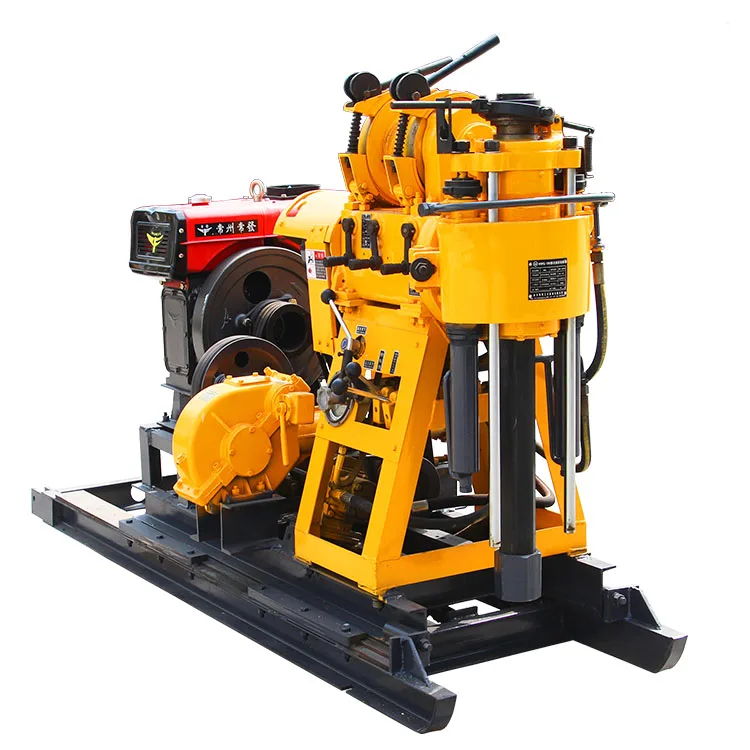

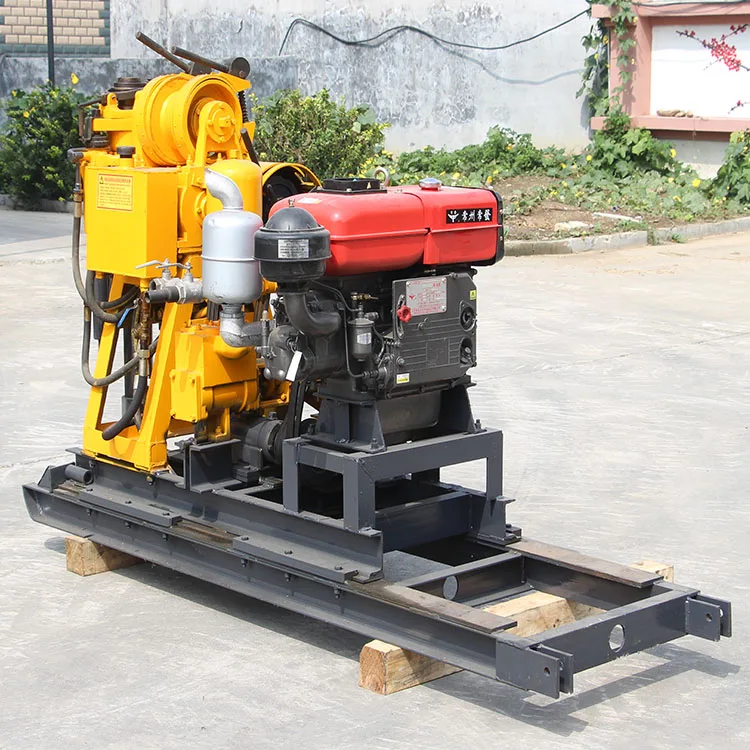

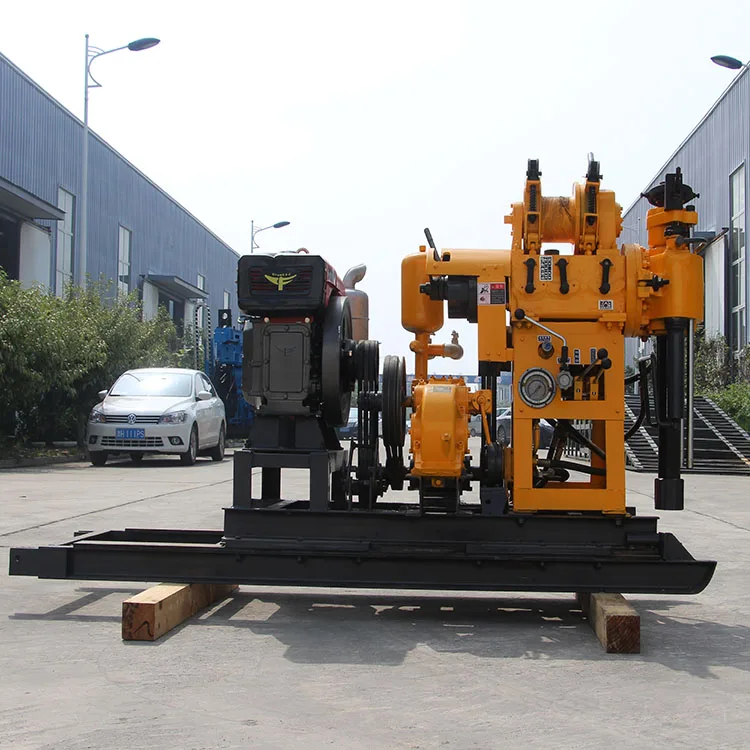

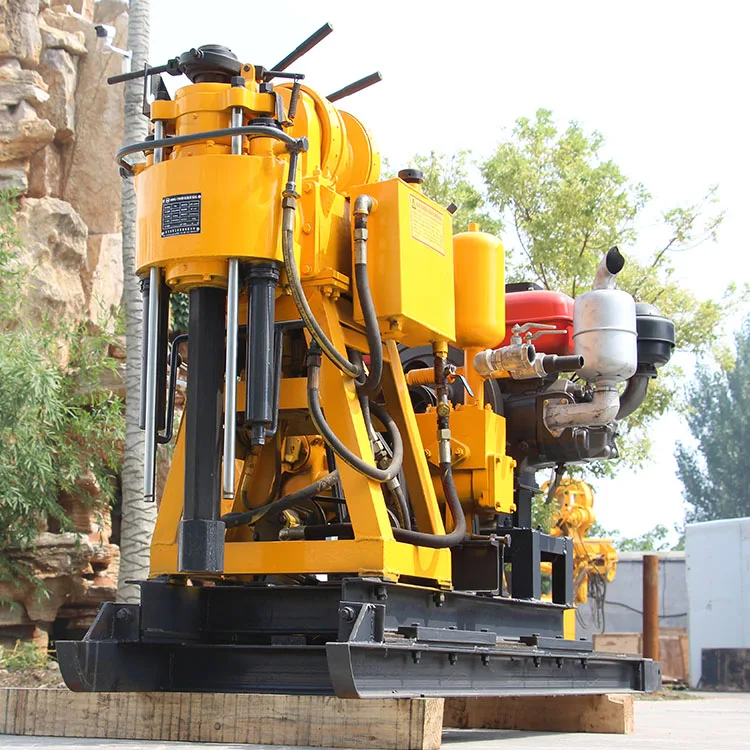

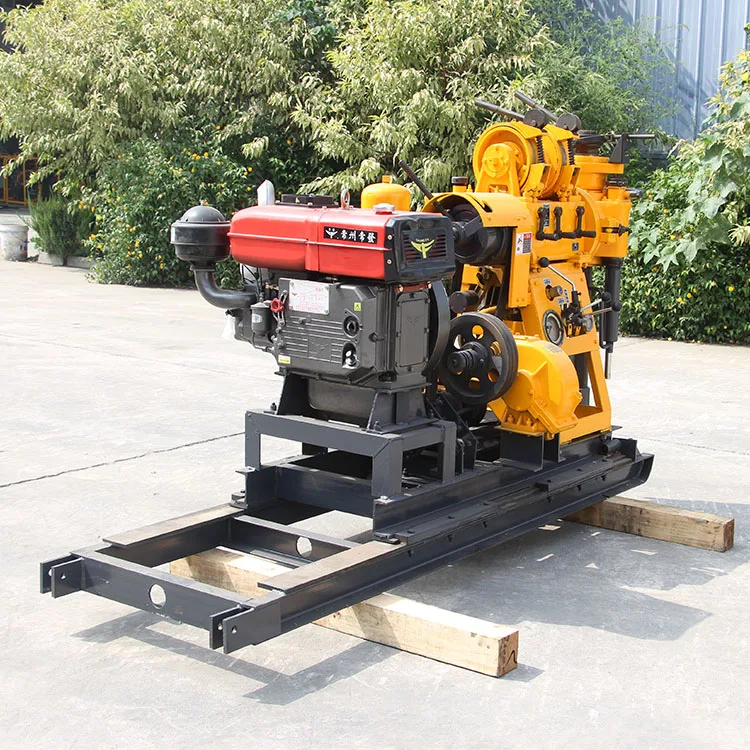

Small hydraulic system farm irrigation water well drilling rig with diesel engine Pictures:


_07_08_03_04_05_06_09





Small hydraulic system farm irrigation water well drilling rig with diesel engine Packages:


1.5





Small hydraulic system farm irrigation water well drilling rig with diesel engine Related Productions :


drilling machine.jpg


Company for Small hydraulic system farm irrigation water well drilling rig with diesel engine :


exhibition Factory





Customber visiting for Small hydraulic system farm irrigation water well drilling rig with diesel engine :


FireShot Capture 003





Certifications for Small hydraulic system farm irrigation water well drilling rig with diesel engine :
