Высокочастотный Гибридный солнечный инвертор HY series 3KVA 2400W 50A с ШИМ зарядным
- Категория: Солнечные инверторы >>>
- Поставщик: Foshan,Ouyad,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 171.91 $* | 174.76 $* |
| Jul-15-2025 | 139.14 $* | 142.98 $* |
| Jun-15-2025 | 169.47 $* | 172.32 $* |
| May-15-2025 | 167.76 $* | 170.81 $* |
| Apr-15-2025 | 134.36 $* | 137.39 $* |
| Mar-15-2025 | 165.99 $* | 168.47 $* |
| Feb-15-2025 | 163.29 $* | 166.12 $* |
| Jan-15-2025 | 162.6 $* | 165.75 $* |
Характеристики
HY series 3KVA 2400W 50A High Frequency Off Grid Hybrid Solar Inverter with PWM charger

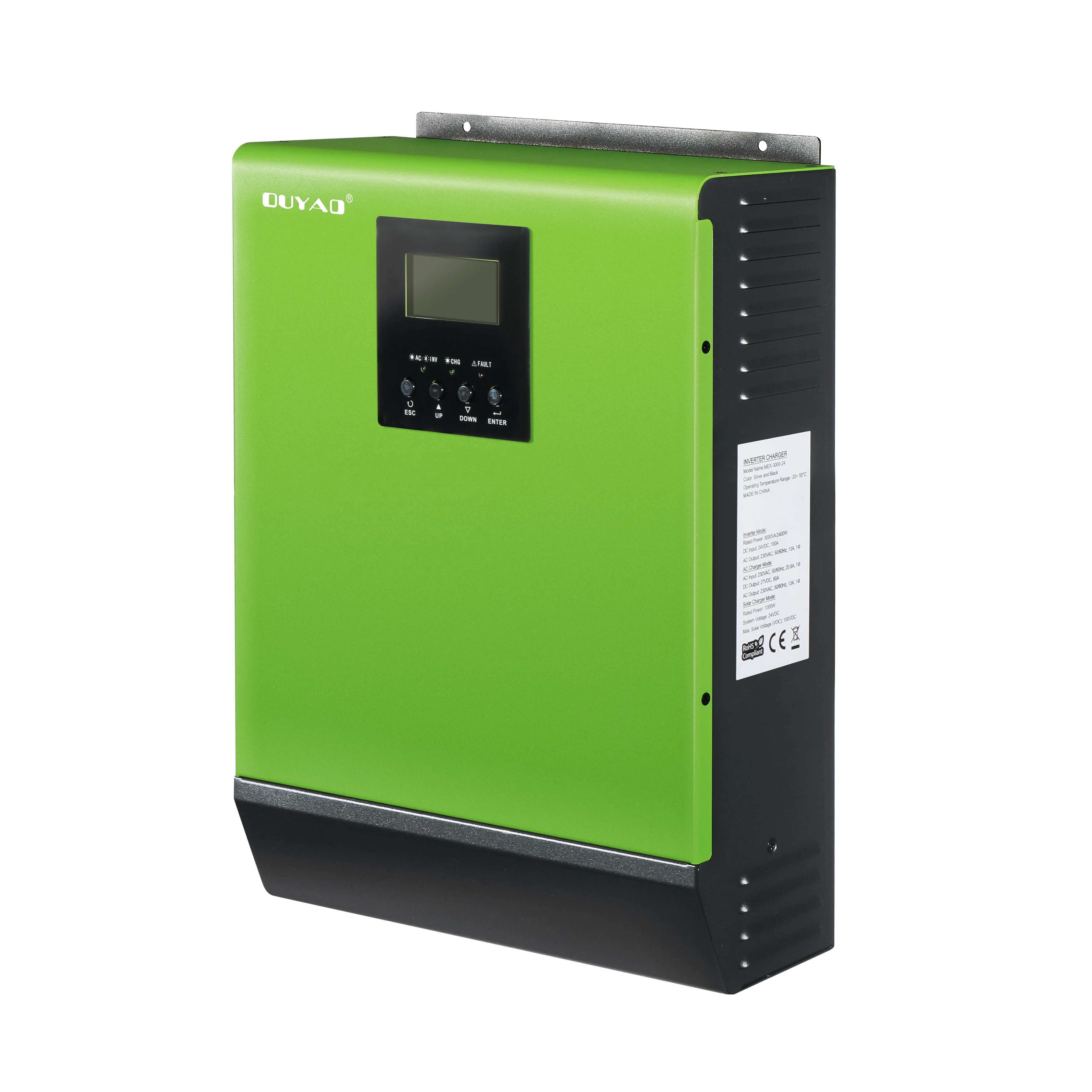

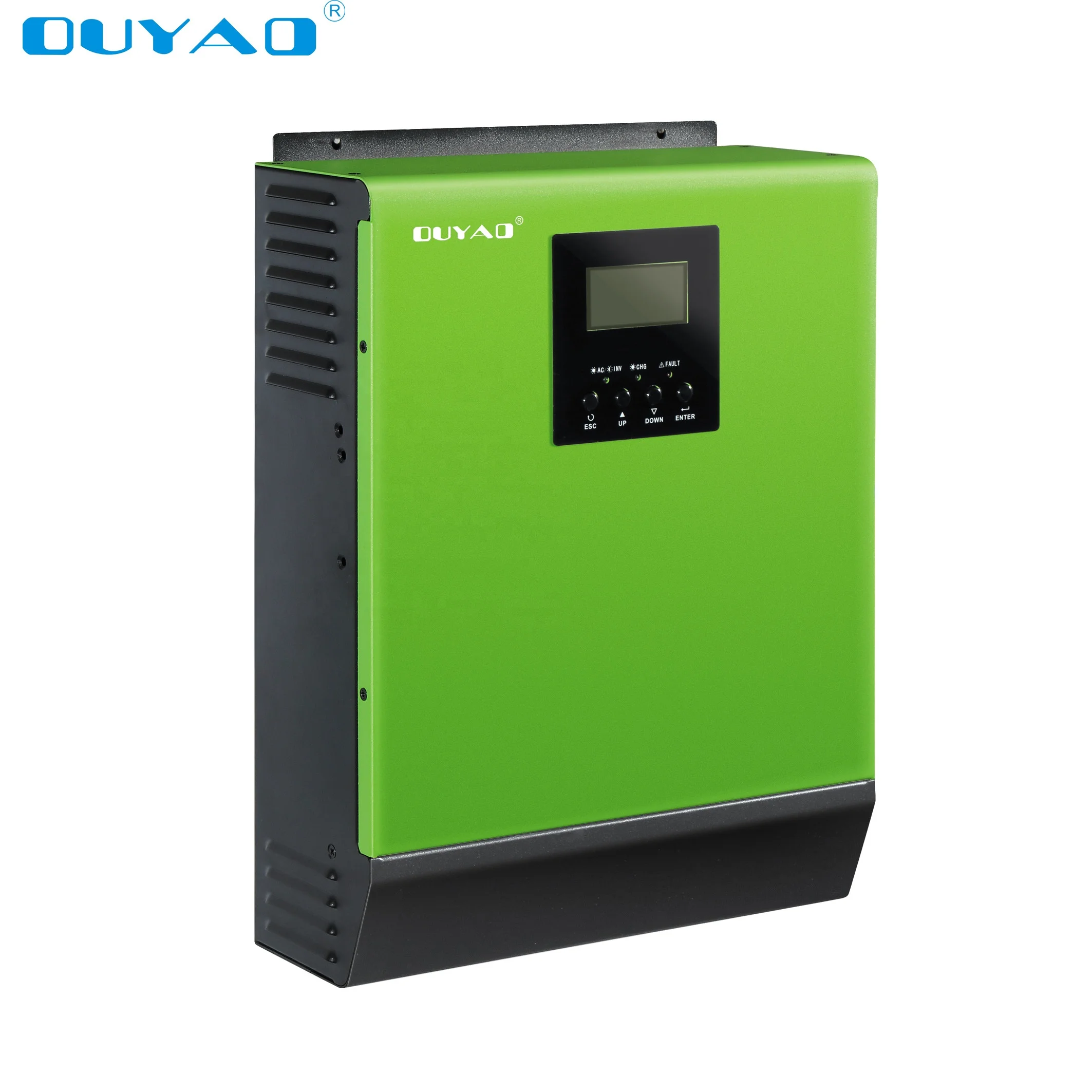

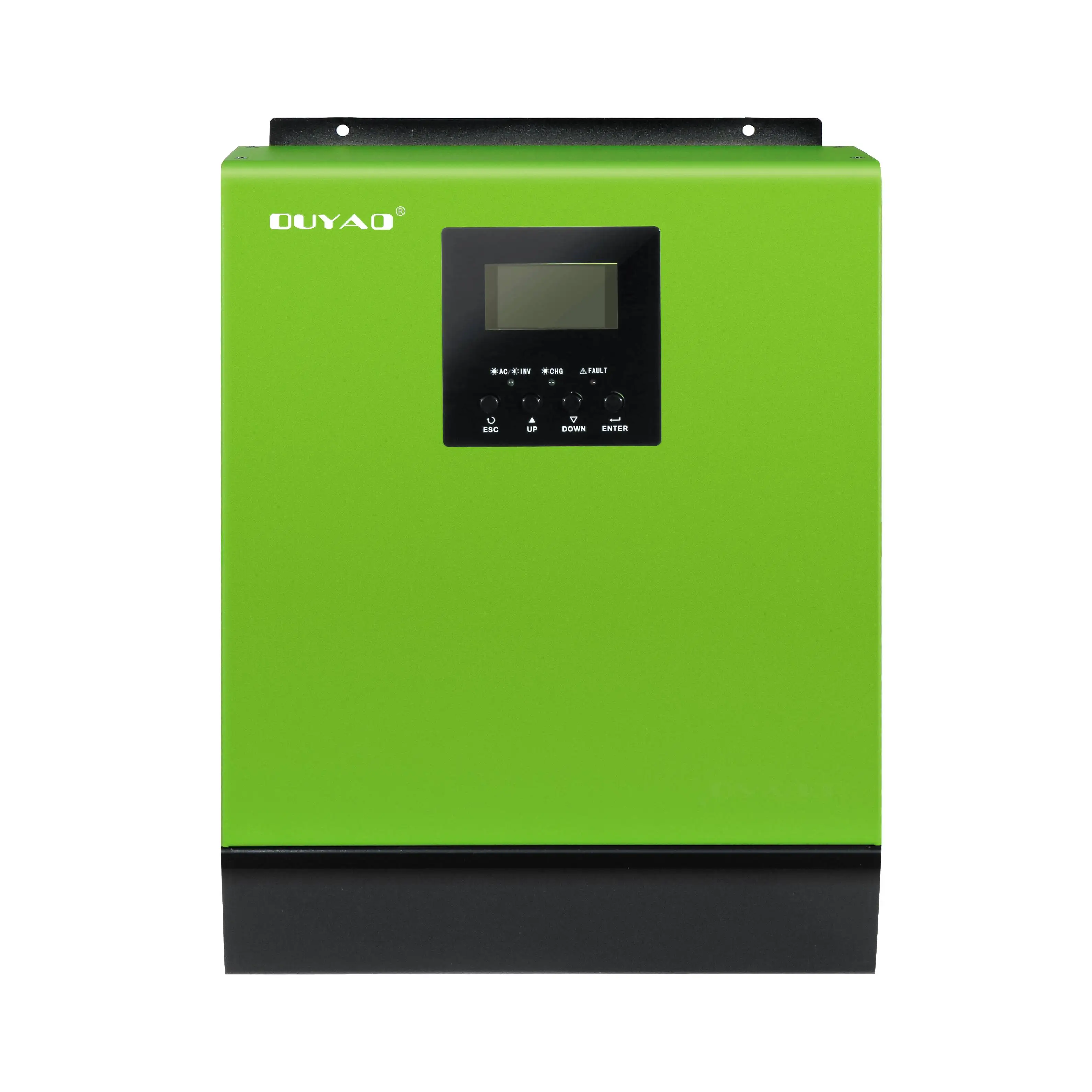

Picture :
Features:
* Pure sine wave inverter
* Selectable input voltage range for home appliance
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Auto restart while AC us recovering
* Overload and short circuit protection
* Battery equalization for optimized battery performance and lifecycle
*Cold start function
* Parallel operation with up to 6 units only available for 5KVA models
Specification:
Model No. | HY3022P | |
Rated power | 3000VA/2400W | |
Input | voltage | 230VAC |
selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |
Frequency range | 50Hz/60Hz (auto sensing) | |
Output | AC voltage regulation (Batt.mode) | 230VAC±5% |
Surge power (5 seconds) | 6000VA | |
efficiency (peak) | 93% | |
transfer time | 10ms(for personal computers); 20ms (for home appliances) | |
waveform | pure sine wave | |
Battery& AC charger | battery voltage | 24VDC |
floating charge voltage | 27VDC | |
overcharge protection | 31VDC | |
maximum charge current | 20A | |
MAX PV array power | 1500W | |
PWM range@ operating voltage | 60VDC | |
maximum PV voltage | 60VDC | |
Solar PWM charging current | 50A | |
maximum efficiency | 98% | |
standby power consumpsion | 2W | |
Physical | Dimension, D*W*H(mm) | 100*272*385 |
Net weight (kgs) | 7KG | |
operating Environment | humidity | 5%-95% relative humidity ( non-condensing) |
operating temperature | 0℃-55℃ | |
storage temperature | -15℃-60℃ | |
Drawing:

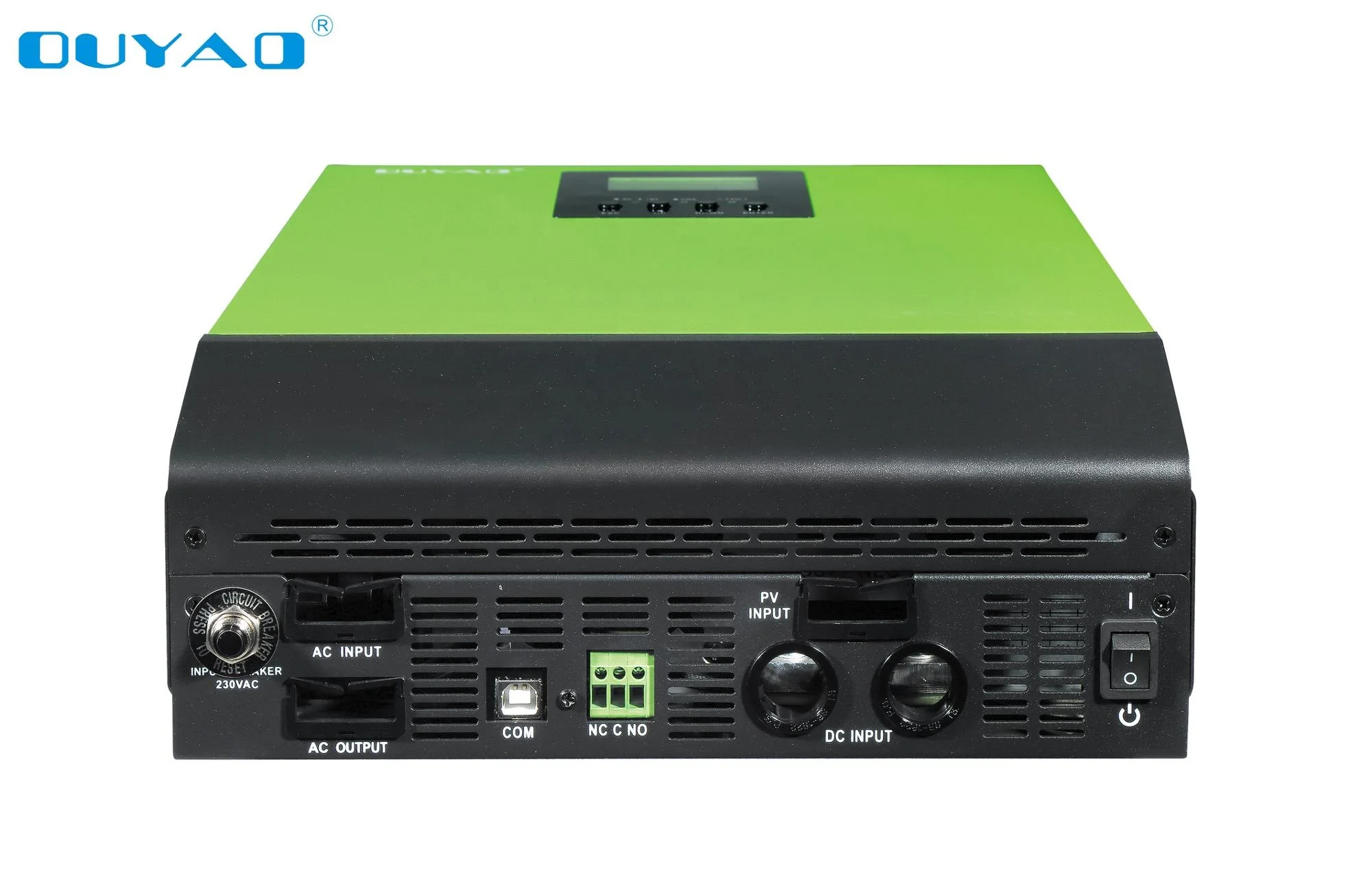

Products Detail:
Package:
Project Case:
Production line:
Factory power &Certifications:
FAQ:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily
