PHMTOOLS автоматический гибочный станок для
- Категория: Rebar Cutting Machine >>>
- Поставщик: Xingtai,Penghao,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.57 $* | 0.14 $* |
| Aug-16-2025 | 0.4 $* | 0.45 $* |
| Jul-16-2025 | 0.3 $* | 0.72 $* |
| Jun-16-2025 | 0.96 $* | 0.80 $* |
| May-16-2025 | 0.19 $* | 0.96 $* |
| Apr-16-2025 | 0.66 $* | 0.52 $* |
| Mar-16-2025 | 0.59 $* | 0.11 $* |
| Feb-16-2025 | 0.73 $* | 0.91 $* |
| Jan-16-2025 | 0.88 $* | 0.70 $* |
Характеристики
Product Description
cnc automatic stirrup bending machine from PHMTOOLS INC
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter diameter.
7. Bending scope of coiled steel bar ranges from 5mm to 12mm
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Hydraulic Controlling system.
Specification of Develop No.1 bender
| Automatic stirrup bending machine (hydraulic cutting ) | |||
| Processing diameter (single ) | 4-10 round bar ,4-8 rebar | Processing diameter (Double) | 4-6mm round bar and rebar |
| Bending angle | 180 degree | Center pin diameter | 16.18.20 |
| Maximum towing speed | 60m/min | Shape of stirrup | 100 types |
| Maximum bending speed | 800 degree / second | Working temperature | -5 ℃-40 ℃ |
| Size | 2500*890*1750mm | Length accuracy | ±1mm |
| Weight | 1100 kg | Angle accuracy | ±1degree |
| Color | Yellow (customized ) | Average power consumption | 4.5kw/h |
| Processing pieces | ≤2 pieces at same time | Total power | 15kw |
| Optional items :pay-off 2.5T ,pay-off 3T with brake ,automatic collector | |||
Details and advantages of our machine

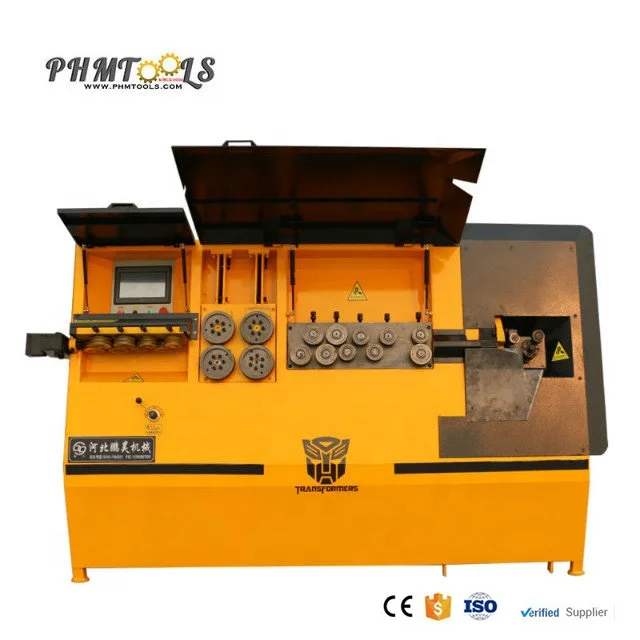

Display of Develop No.1 cnc steel bar bender
Competitive price with good quality
FAQ
Question 1 :Can you customize the machine for us?
PHMTOOLS:yes ,we are factory ,we can customize the machine depend your request .
Question 2 :Can your technician come to our country to install and adjust the machine?
PHMTOOLS:yes ,our technician can go to your country to help you install and adjust machine .
Question 3 :How long is the warranty?
PHMTOOLS:warranty 5 years for motor .In period of warranty ,we change the new parts for broken parts for free .
we provide technical support for long-life.
Question 4 :If the machine has a problem, how long will it get a reply?
PHMTOOLS:We will provide solutions within 24 hours.
Question 5 :What are spare parts equiped with machine ?
PHMTOOLS:The machine equip with two pieces cutter ,two pieces base blade ,two pieces bending shaft ,
two pieces bending cover and one tool box(include all tools you need when install machine )
Our transportation and delivery in container
Contact
Please don't hesitate to send us inquiry if you are interested ,we will provide our best service !
