Характеристики

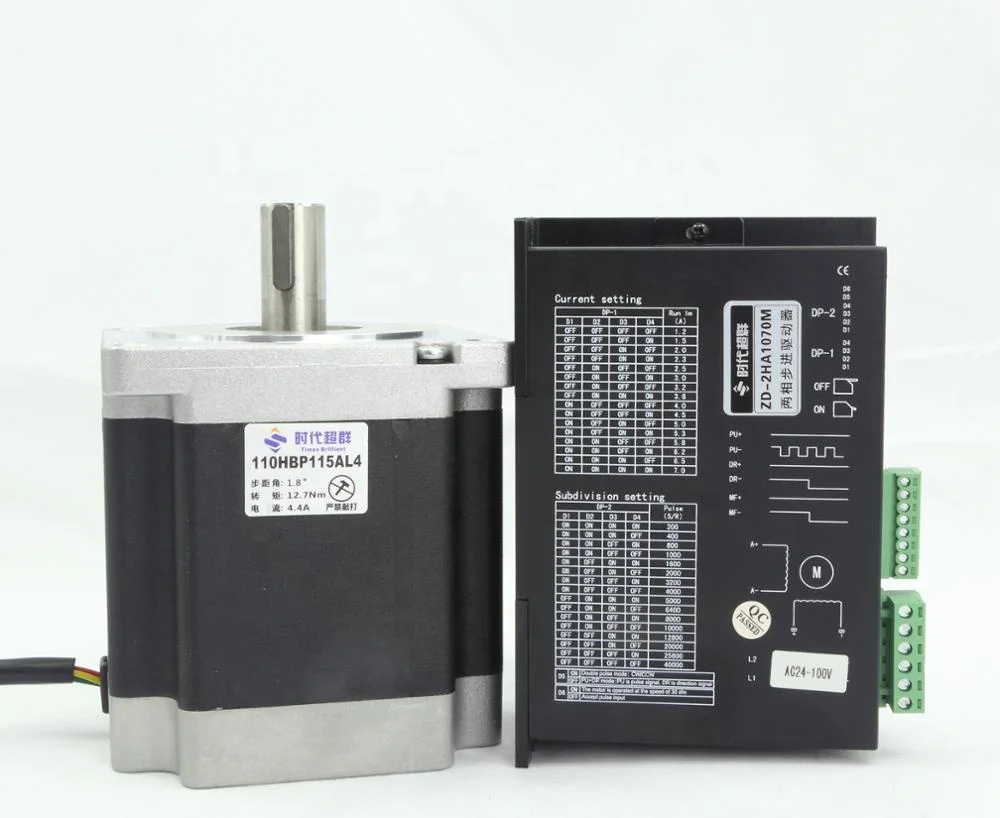

China supply 2phase nema 42 16Nm 20Nm stepper motor driver cnc motor kit
Product Description
Size

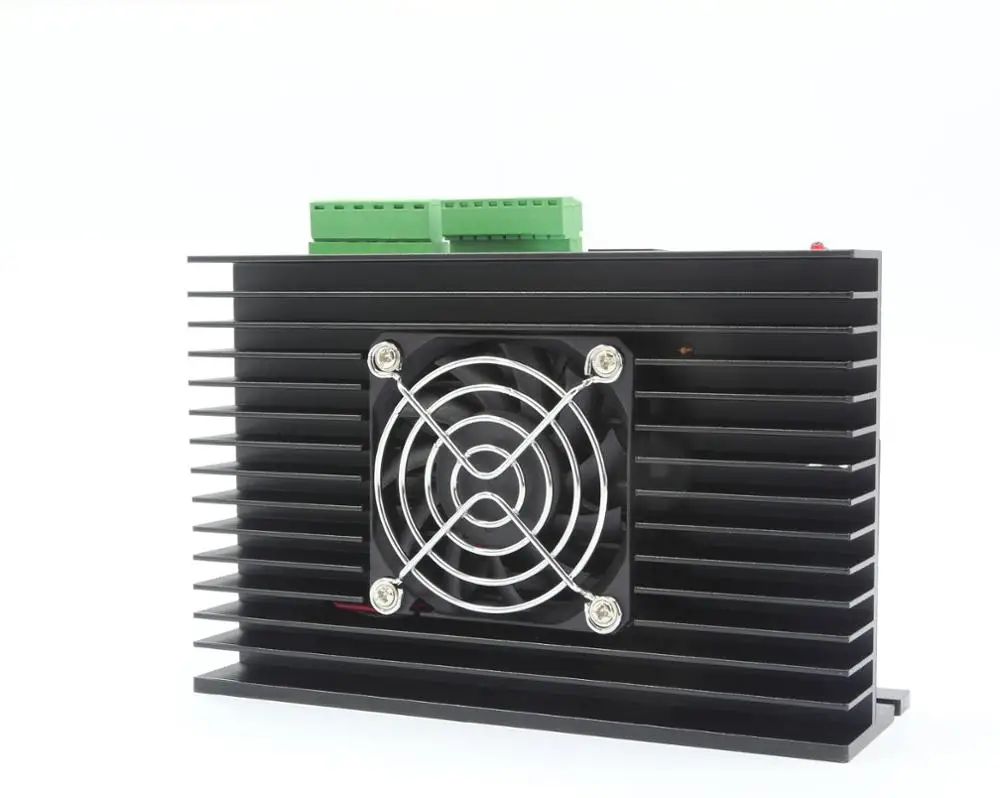

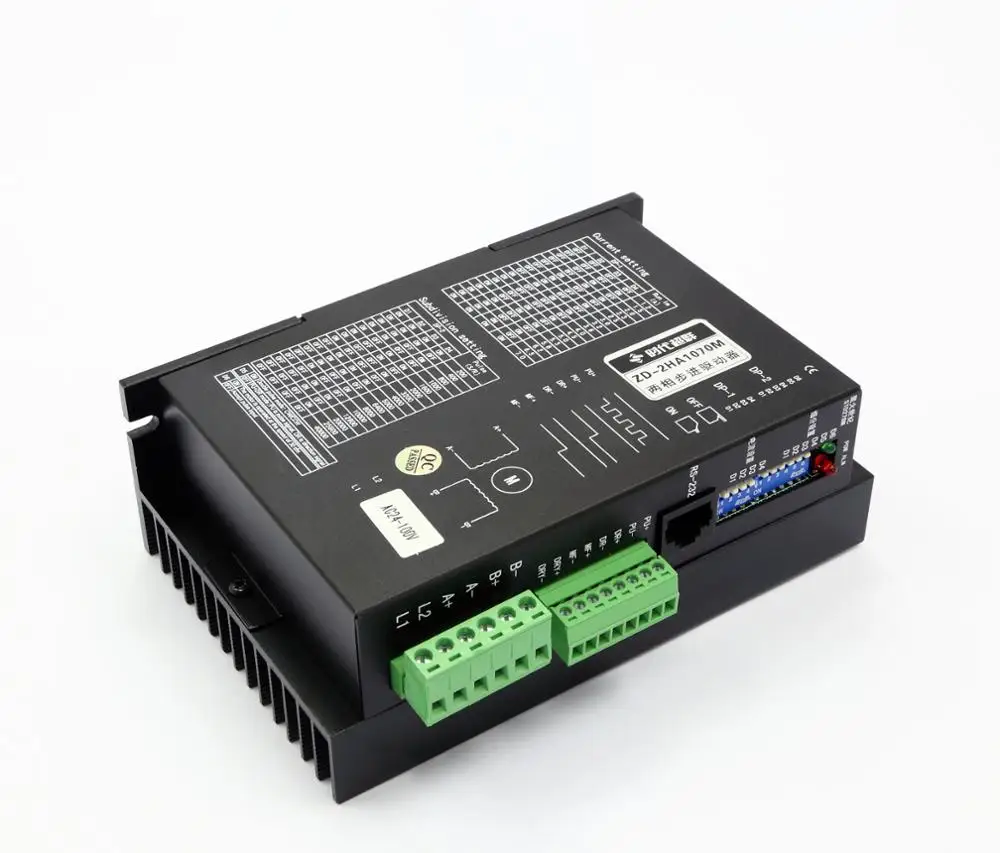

Driver ZD-2HA1070M
Product Instruction:
· high performance and low price
·2 phase driver
· subdivision is provided with 16 levels of constant Angle torque, and the highest resolution is 40000 pulse/revolution.
Other subdivisions can be customized
· maximum reaction frequency up to 200Kpps
· when the stepping pulse stops over 100ms, the coil current will be automatically reduced to half of the set current
· the driving current is adjustable from 1.2a/phase to 7.0a/phase in 16 levels
· single power input, voltage range: ac24-80v
· power off phase memory function
Automatic phase memory)
