Характеристики
Product Description
High speed deformed bar making machine/Cold Rolled Ribbed Steel Wire Line

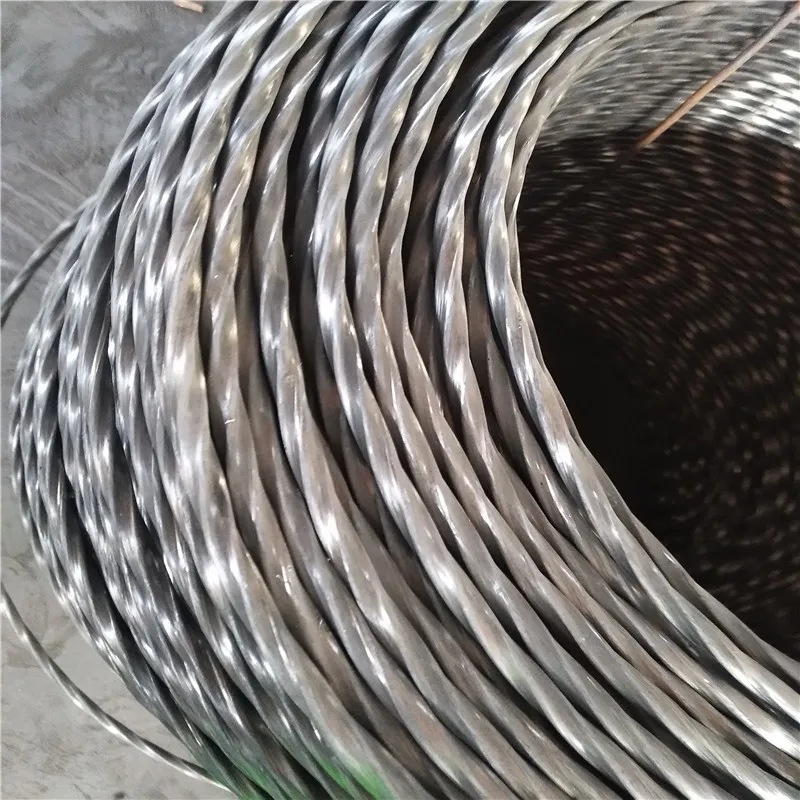

This Cold-rolled ribbed steel bar production line equipment is rolled coiled steel by cold rolling,cold rolling and then its surface to form three sides of a crescent reinforced by transverse ribs straightening, processed into a cast or prefabricated construction directly cold-rolled ribbed steel bars. This production line mainly rolls diameter of 4-12mm and ordinary low carbon tray bar or low alloy tray bar with multiple cold rolling and a ribbing rolling, which finally forms reinforcing steel with three-side crescent shape ribs. The raw material is hot-rolled low carbon wire rod tray bar. It's widely applicable to highway, airport, irrigation works, city planning and construction engineering.
Deformed bar making machine/Ribbed steel wire line advanta
(1) The unit uses drawing machine dedicated reducer, large torque, low noise, high
precision gears, transmission efficiency up to 95%. Universal gear ratio GB saving 40% or
more.

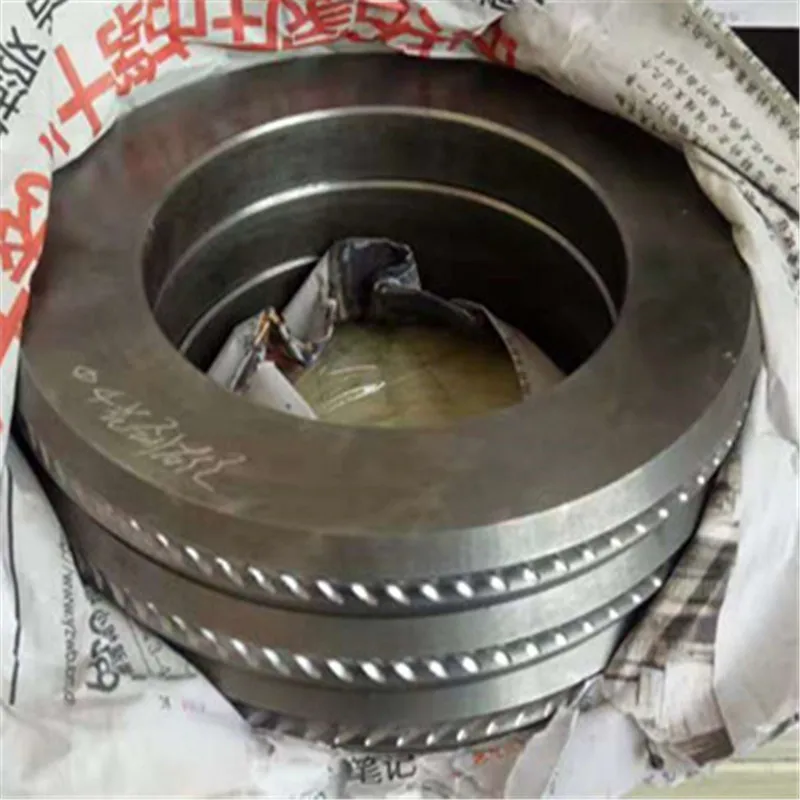

(2) can be replaced by big drum roll films, raw materials used in Japan manganese steel
casting made and durable. Reel diameter 800 or more, effectively reducing the steel
bending resistance, reducing the reinforcement damage and improve the quality of the
finished steel, improved production efficiency.
precision gears, transmission efficiency up to 95%. Universal gear ratio GB saving 40% or
more.
(2) can be replaced by big drum roll films, raw materials used in Japan manganese steel
casting made and durable. Reel diameter 800 or more, effectively reducing the steel
bending resistance, reducing the reinforcement damage and improve the quality of the
finished steel, improved production efficiency.
Specification: | ||||||||
inlet wire diameter | outlet wire diameter | |||||||
13.5mm | 12mm | |||||||
11-12mm | 10mm | |||||||
9-10mm | 8mm | |||||||
6.5mm | 6mm | |||||||
5.5mm | 4mm | |||||||
Motor capacity | 55KW+7.5KW | |||||||
Weight | 6ton | |||||||
wire spool | 1000kgs | |||||||
installed length | 15m | |||||||
For small wire ,we recommend chose this type ,the speed will be more fast ,the capacity will be higher.
The inlet wire diameter is less than 6.5mm.
