Недорогая ручная тележка с редуктором лучом простая
- Категория: Hoists >>>
- Поставщик: Zhongye,Crane,(Henan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.9 $* | 0.57 $* |
| Aug-15-2025 | 0.30 $* | 0.38 $* |
| Jul-15-2025 | 0.23 $* | 0.25 $* |
| Jun-15-2025 | 0.16 $* | 0.53 $* |
| May-15-2025 | 0.37 $* | 0.23 $* |
| Apr-15-2025 | 0.34 $* | 0.53 $* |
| Mar-15-2025 | 0.36 $* | 0.28 $* |
| Feb-15-2025 | 0.10 $* | 0.3 $* |
| Jan-15-2025 | 0.71 $* | 0.53 $* |
Характеристики
Product Description

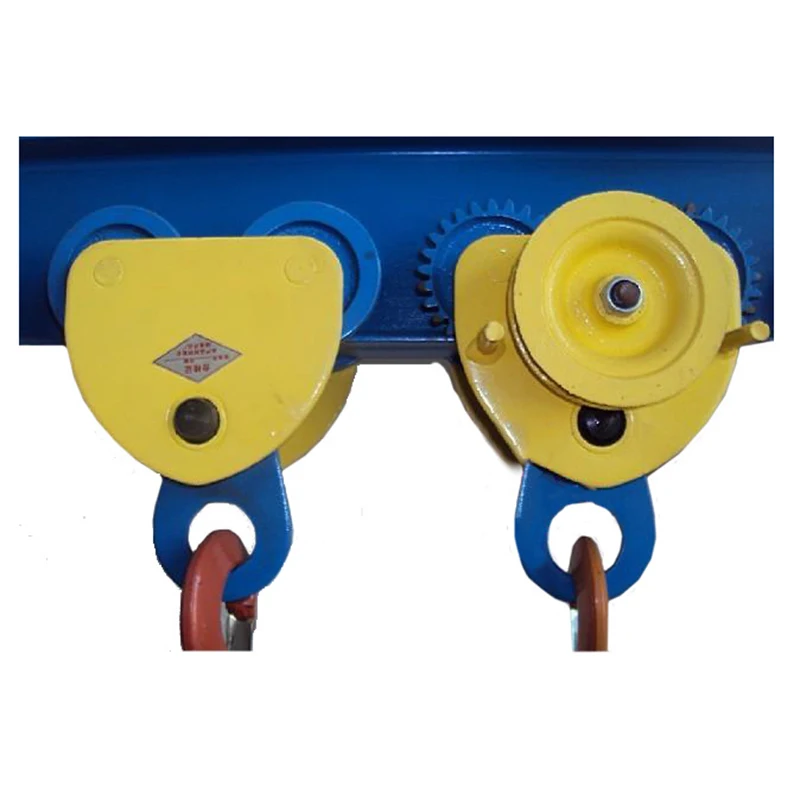

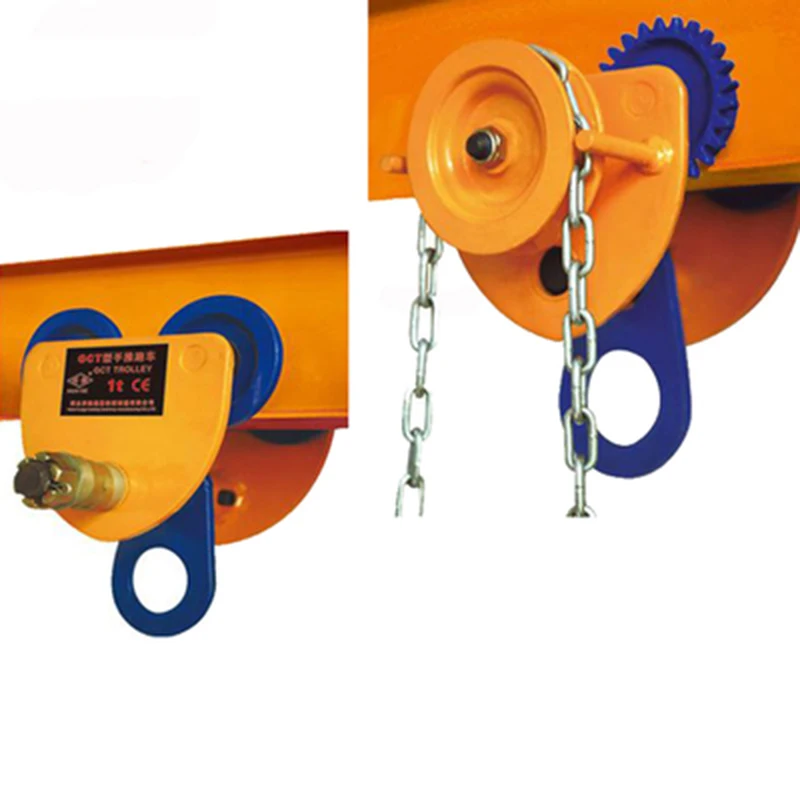

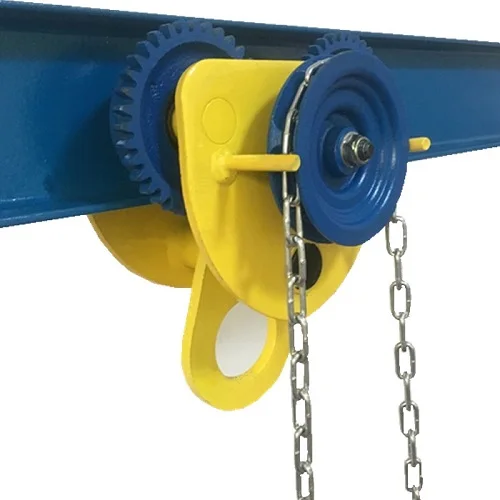

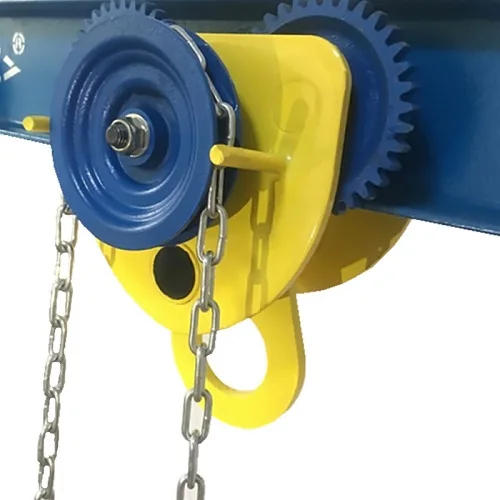

GCL-FK Handcart (GCL-FK Monorail car), as hand chain drive, walking the i-steel rail under the wing. Hang the chain or other hoisting machinery beneath the car, can be composed of manual lifting transportation car, can be composed of manual lifting transportation vehicles, device in straight and curve of monorail trolley lanes or manual single beam, bridge, hanging on the crane
GCT-FK type of cargo trolley with high strength alloy steel structure,ensure quadruple ecurity payload,dexterous and security.
GCL-FK Handcart is mainly used in factories, mines, docks, docks, warehouses, and machine room equipment installation, loading and unloading of goods, especially suitable for no power situation of equipment maintenance work.
1)No baffle, advanced structure and good appearance;
2)The wheel is equipped with rolling bearing, high transmission efficiency and small hands thrust;
3)With wheel rim, can travel on the smaller radius of gyration curve;
4)The car wheel spacing can be adjusted, suitable for a variety of beams.
Main Parameter
| Model | GCT-0.5FK | GCT-1FK | GCT-1.5FK | GCT-2FK | GCT-3FK | GCT-5FK | |
| lift capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | |
| Test load(KN) | 7.25 | 14.71 | 22.06 | 29.42 | 44.13 | 61.29 | |
| turning radius(m) | 0.85 | 1.0 | 1.1 | 1.1 | 1.3 | 1.4 | |
| Net weight(kg) | b | 5 | 9 | 11.5 | 14.5 | 23.5 | 36 |
| c | / | 10 | 12.5 | 15.5 | 25 | 38.5 | |
| Track width range(mm) | b | 50-220 | 58-220 | 66-220 | 66-220 | 74-220 | 90-220 |
| c | / | 165-305 | 165-305 | 165-305 | 178-305 | 178-305 | |
Detail image
Features:
1. Easily adjustable (round nuts) to fit a wide range of beam widths.
2. Adjustable to fit a wide range of beam profiles
3. Excellent rolling features due to machined steek wheel mounted on prelubricated,encaosulatd ball bearings
4. Standard anti-tilt and anti-drop devices.
5.Safety in use and convenience in maintenance.
6.Compact construction and small dimension.
7.Capacity from 1 to 5 tons,adjustable for a wide range of flange widths.
Application
