Высокая скорость 100 Вт ржавчина Лазерная Очистительная система машина для удаления покрытия оксида металла ipg 200W
- Категория: Очистная машина на волоконно-оптическом лазере >>>
- Поставщик: Jinan,Lxshow,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12376.66 $* | 12995.47 $* |
| Aug-16-2025 | 12272.62 $* | 12886.26 $* |
| Jul-16-2025 | 10296.29 $* | 10811.91 $* |
| Jun-16-2025 | 12064.53 $* | 12667.7 $* |
| May-16-2025 | 10504.35 $* | 11029.57 $* |
| Apr-16-2025 | 11856.96 $* | 12449.90 $* |
| Mar-16-2025 | 11752.17 $* | 12340.64 $* |
| Feb-16-2025 | 11648.24 $* | 12230.70 $* |
| Jan-16-2025 | 11544.10 $* | 12121.25 $* |
Характеристики

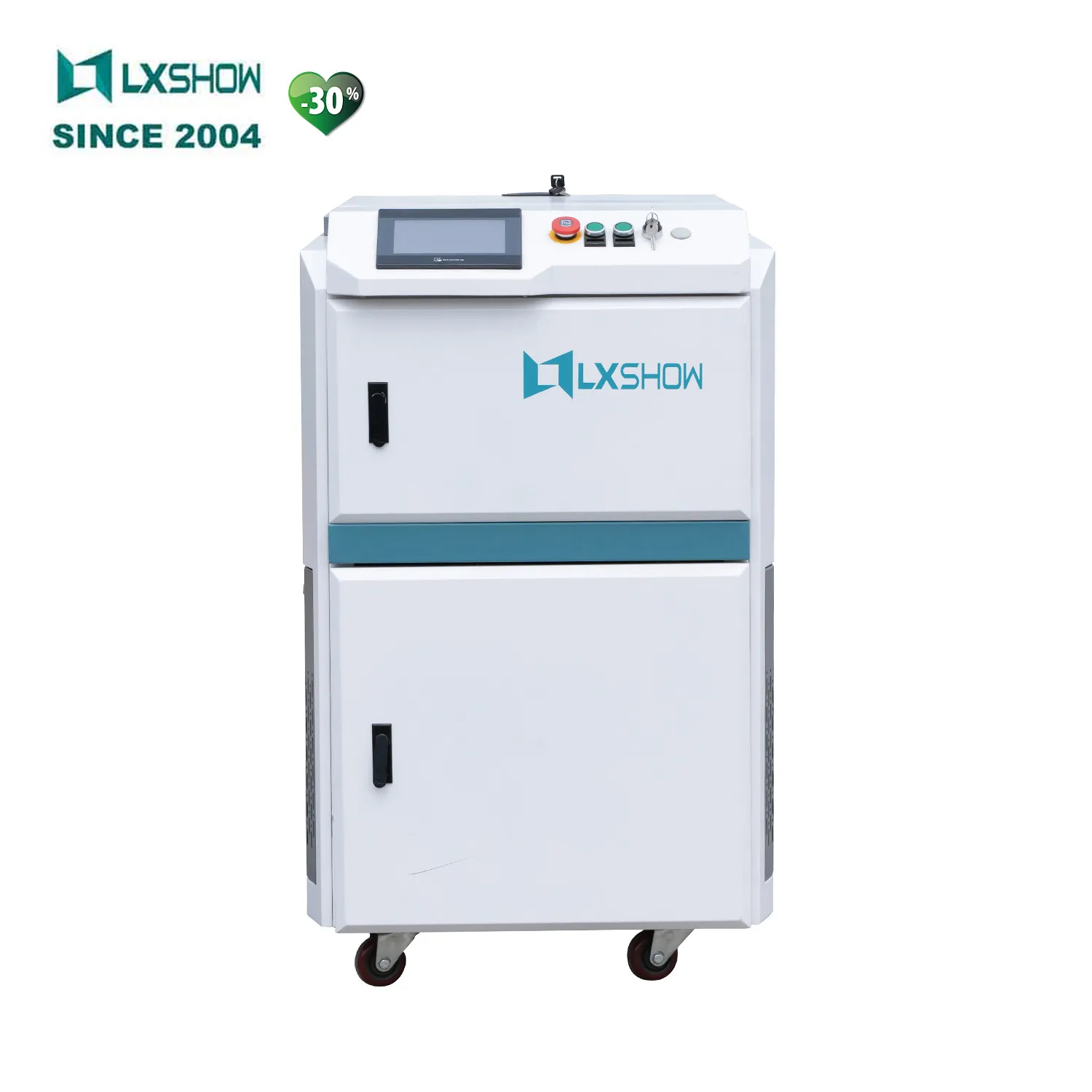

LXSHOW LASER CLEANING MACHINE
The LXSHOW laser cleaning machine, with a built-in laser cleaning gun head, can efficiently remove rust stains, oxides, and paint on various metal surfaces.
Product Description
Machine In Factory
We have our OWN FACTORY,
so we can provide you with a full range of services.
so we can provide you with a full range of services.
* FREE Visiting (Support Real-time video)
* FREE Training* FREE Testing
* FREE Samples
* FREE Training* FREE Testing
* FREE Samples
Frequently Asked Questions
1. What is the speed of the laser cleaning machine?Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2.Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox
3.The effect of paint and rust removal
Very good, you can refer to our video below
4.Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,
Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.What kind of objects can be cleaned?
oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
Equipment model | LXC-50W | LXC-100W | LXC-200W | LXC-350W | LXC-500W | LXC-1000W | |||||
Laser working medium | Yb-dopes fiber | ||||||||||
Laser power | 50w | 100w | 200w | 350w | 500w | ||||||
Laser wavelength | 1064nm | ||||||||||
Working temperature | 5-40℃ | ||||||||||
Optional | hand/automatic | ||||||||||
Scan width | 10-60mm | ||||||||||
Total power | 350w | 600w | 1000W | 1400W | 1800W | 2000W | |||||
Total Weight | 50kg | 150kg | 175kg | 175kg(Including Water tank) | 200kg(Including Water tank) | 200kg(Including Water tank) | |||||
Dimension | 700x1250x1030mm(about) | ||||||||||
Cooling method | air | air | air/water | water | |||||||
Pulse frequency | 20-100khz | 20-200khz | 20-50khz | ||||||||
Advantages
Features of Rust removal laser cleaning
The hand gun design is convenient for handling and transportation.
Non-contact cleaning, protecting component base against damage.
Requiring no chemical cleaning solution or consumables, can realize long-term continuous service and easy upgrade and daily maintenance.
Extremely high cleaning efficiency and time saving.
Non-contact cleaning, protecting component base against damage.
Requiring no chemical cleaning solution or consumables, can realize long-term continuous service and easy upgrade and daily maintenance.
Extremely high cleaning efficiency and time saving.
Simple operation
Stable laser cleaning system, requiring almost no maintenance.
Multiple lenses of different distances can be switched freely
Multiple lenses of different distances can be switched freely
Machine Parts
Each laser cleaning machine will be attached with goggles and protective mirror, optical fiber line can be customized according to customer needs,

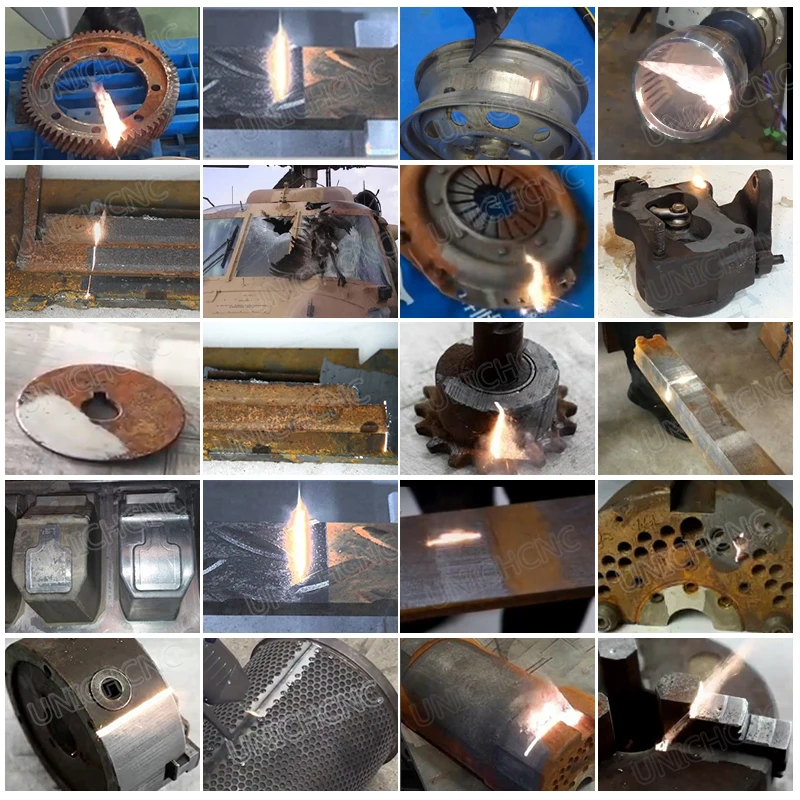

Cleaning Effect
HOW laser rust removal tool WORK？
* Powerful, very short, rapid and moving laser pulses produce micro-plasma bursts, shock waves and thermal pressure resulting in ublimation and ejection of the target material.
*A focused laser beam precisely vaporizes the target coating or contaminant.
* Process optimization of the laser beam produces maximum reaction with the target material for speed while, at the same time, does o safely and without harm to the base material.
* Metal surfaces are well-suited for many laser cleaning applications. Optimized beam settings will not metallurgically change or damage the laser treated surface. Only the coating, residue or oxide targeted for removal is affected as the laser beam is precisely adjusted not to react with the underlying metal surface.
* Laser beam power density is accurately and easily adjusted to achieve cleaning results impossible with all other
*A focused laser beam precisely vaporizes the target coating or contaminant.
* Process optimization of the laser beam produces maximum reaction with the target material for speed while, at the same time, does o safely and without harm to the base material.
* Metal surfaces are well-suited for many laser cleaning applications. Optimized beam settings will not metallurgically change or damage the laser treated surface. Only the coating, residue or oxide targeted for removal is affected as the laser beam is precisely adjusted not to react with the underlying metal surface.
* Laser beam power density is accurately and easily adjusted to achieve cleaning results impossible with all other
What materials can be cleaning?
A Metal surface cleaning
B Removal paint of metal surface
C stains cleaning on the surface
D Surface coating cleaning
E Pretreatment of welding surface cleaning
F Stone surface cleaning
G Rubber mold residue cleaning
It can meet a variety of cleaning needs
If you want to know the effective of the laser cleaner , you can click here to ask the customer service for a free cleaning sample;
or if you want to know if you can clean the materials you need, you can click here to ask the customer service
or if you want to know if you can clean the materials you need, you can click here to ask the customer service
What industry can laser cleaning machine be used in?
Ship Industry, auto Parts, rubber Mold, high-end Machine, tire molde track, environmental Protection Industry and others.
Company Profile
Jinan LXSHOW Machinery Co., Ltd.
is established in July 2004 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory. All machines , passed the European Union CE authentication. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1. Fiber laser welding / cleaning machine.
is established in July 2004 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory. All machines , passed the European Union CE authentication. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1. Fiber laser welding / cleaning machine.
2.Fiber laser cutting machine.
3.Laser marking machine(Fiber/CO2/UV/Green light)
3.Laser marking machine(Fiber/CO2/UV/Green light)
we promise:
*2 years warranty
*2 years warranty
*24- hour online customer service
*Free guidance throughout
Customer Evaluation
FAQ
Q1: What is the speed of the laser cleaning machine?
A1:Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
Q2:How long is the delivery time?
A2:Ordinary machines will be delivered in 3-7 days, and customized machines will take 12-14
days.
Q3:Is there any damage to the cleaning material?
A3:Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,relative damage of material, pulse type is less than continuous type.
Q4:Do you support customization?
A4:Yes, we will make customized service for you according to the different cutting materials and thickness.
Q5:I don't know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A5:We have a detailed user manual and video materials, you can learn. In addition, we provide door-to-door service.
A1:Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
Q2:How long is the delivery time?
A2:Ordinary machines will be delivered in 3-7 days, and customized machines will take 12-14
days.
Q3:Is there any damage to the cleaning material?
A3:Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,relative damage of material, pulse type is less than continuous type.
Q4:Do you support customization?
A4:Yes, we will make customized service for you according to the different cutting materials and thickness.
Q5:I don't know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A5:We have a detailed user manual and video materials, you can learn. In addition, we provide door-to-door service.
If you have other questions, you can click the pic below to contact our customer service
