Лампа для помех средней интенсивности тип B L864 авиационный свет FAA маяк самолета башня небоскребок сигнальные

Описание и отзывы

Трекер стоимости

Характеристики



Major functions&Features

• Professional photometric lens design, valid keeping light beam in the scope as required.


• Based on latest LED technology,extremely low power consumption,and high efficiency.


• Outdoor use with water proof, wind(≥240km/h) and corrosion resistance.


• No electromagnetic or audio interference.


• EMC compliance. Use constant current driver to extend LED lifespan.


• Optional functions: Built-in photocell, Flash rate adjustable, GPS flash synchronization.


• Offshore, IP rate: IP66, Anti - corrosion grade:Complies with ISO12944, C5M-H (Optional).

Specifications



International Standards	ICAO-Type A&B medium intensity aviation obstruction light standard FAA-L865 standard
Light color	White / White +Red	Light source	LED
Intensity	Day 20000±25% cd (White)	Work styles	Flashing
	Night 2000±25% cd (Red)
Vertical degree	≥3°	Horizontal degree	360°
Voltage	AC100V~AC240V/DC48V	Power consumption	Day ≤200W Night ≤30W
Light source power	≥900W	LED life	≥100,000 h
Flashing duration	Day:150ms Night:750 ms	On/off level	50-200Lux
Wind level:	240Km/h	Work temperature	-20°C ~ +55°C (AC100V~AC240V/DC48V) -40°C ~ +55°C(AC200V~AC240V/DC48V)
Work humidity	10% ~ 95% (No condensing)	Weight	Obstruction light:7kg Power box:13kg
Flashing rate	20/30/40/60 FPM(optional)	IP rate	IP65

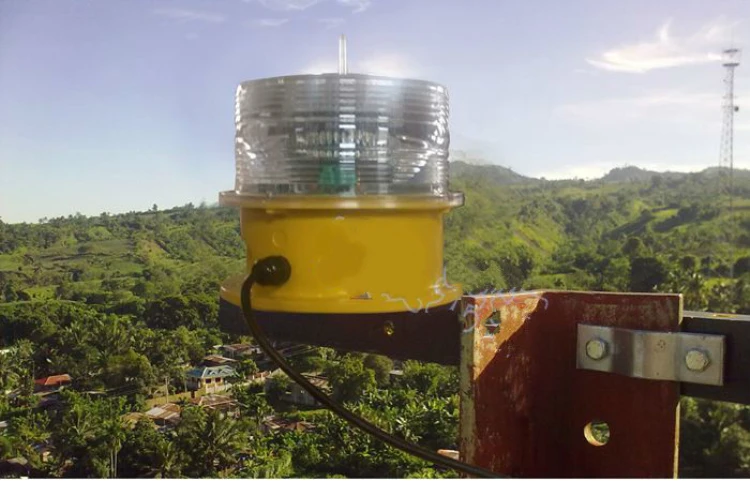

Installation and operation

• Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.


• Ensure the light mounted on horizontal position by gradienter.


• When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object.
