Характеристики

Product Description

Geocell with Textured Surface for Gravel Stabilizer

HDPE Geocell

Geocell is the cost effective method to increase loading capacity, soil structural integrity and the bearing capacity on steep embankments, surface slope stability and road construction applications. HDPE geocell is a kind of three-dimensional geosynthetics product. The space of HDPE geocell can be filled with some fill materials like soil, rocks, sand and others. In generally, HDPE geocell soil stabilization can be used in greenbelt, mountain and slope to prevent soil erosion effectively. With corrosion resistance and high load capacity feature HDPE geocell soil stabilization can be contracted and expanded very easily, easy to transport and install as well. In comparison to geogrid, geocell offers enhanced road base strength for asphalt and concrete pavements while reducing cost and construction time. BPM geosynthetics offers perforated and non-perforated HDPE geocell for your choice.

Notes:When you are ready to inquire hdpe geocell,pls specify your requirements firstly as follows:

1.Geocell Height(from 50mm to 200mm).

2.Welding Distance(from 330mm to 1000mm).

3.Seam Peel Strength(100N/cm,120N/cm,140N/cm,142N/cm).

4.HDPE Sheet Thickness(1.0mm,1.1mm,1.2mm,1.5mm,1.75mm)

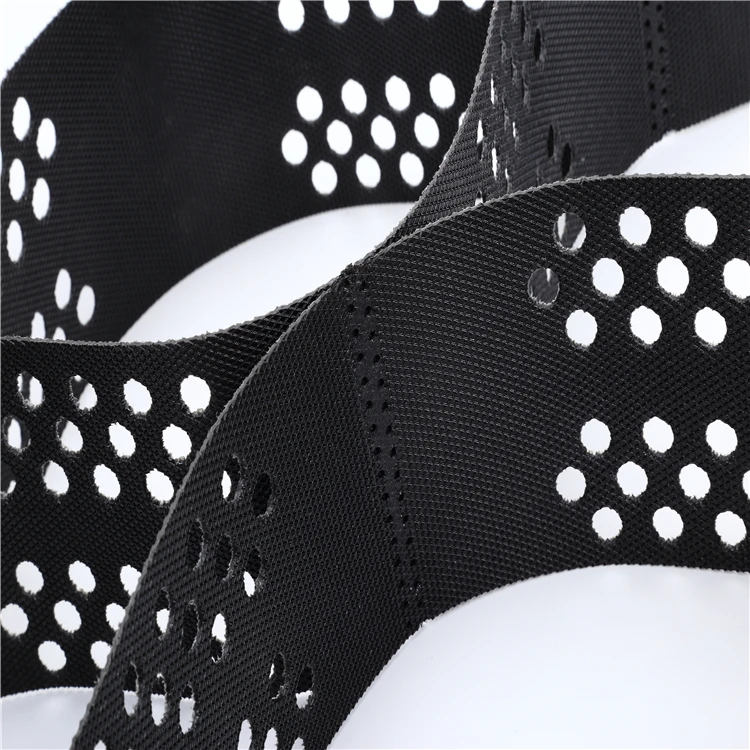

Enlarged Geocell Image

HDPE Geocell

The difference between flat surface geocell and textured surface geocell:

The textured geocell has higher friction coefficient with gravel or other filling materials ,enhancing its stability.

Geocell Specifications

Product Type	Height(mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Connection of Cells(N/cm)	Tensile Strength at Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20
Remarks: 1. This is a basic technical specification. 2. All of the technical indexes can be reached according to the customers' demand, and the other special standards will be carried out by agreement or contact.
