Product	Cellular Confinement System/ Geocell
Material of geocell	HDPE/Polymer Composite Alloys(PCA)
Color of geocell	Black/Green/Brown/Grey/White
Height(mm) of geocell	50-300
Thickess(mm) of geocell	1.0-1.7
Welding distance(mm) of geocell	330-1600
Seam peel strength(kN/m)of geocell	10-28

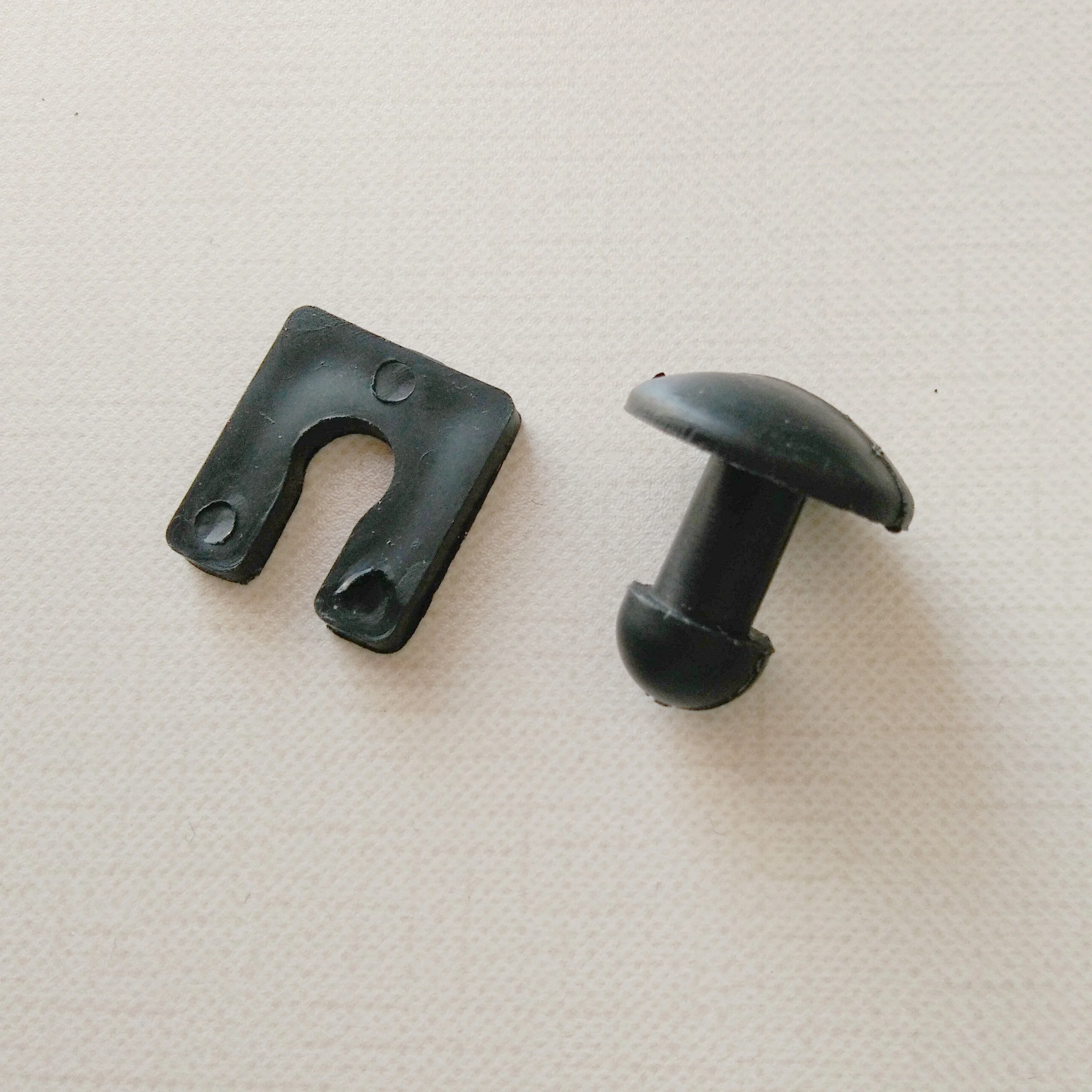

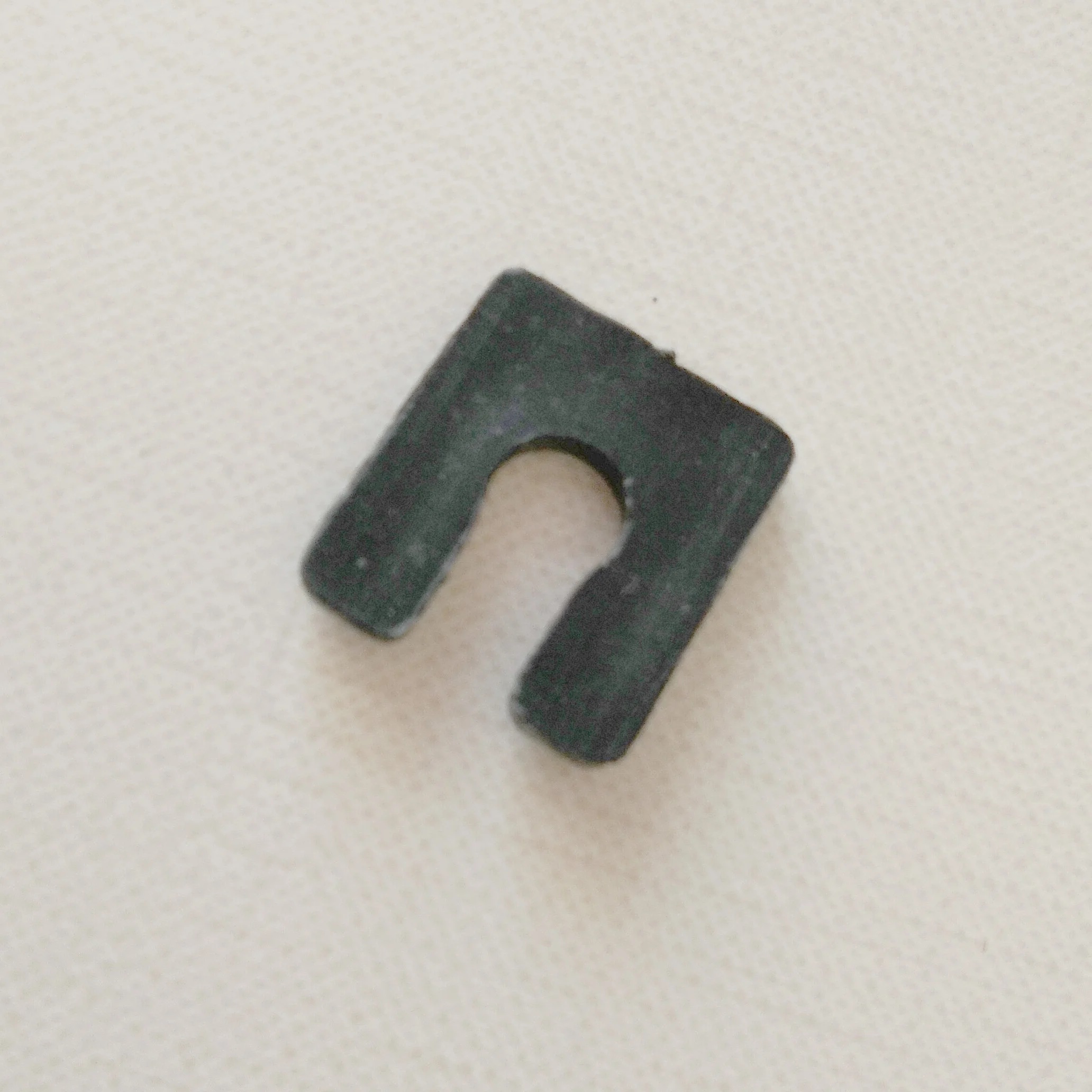

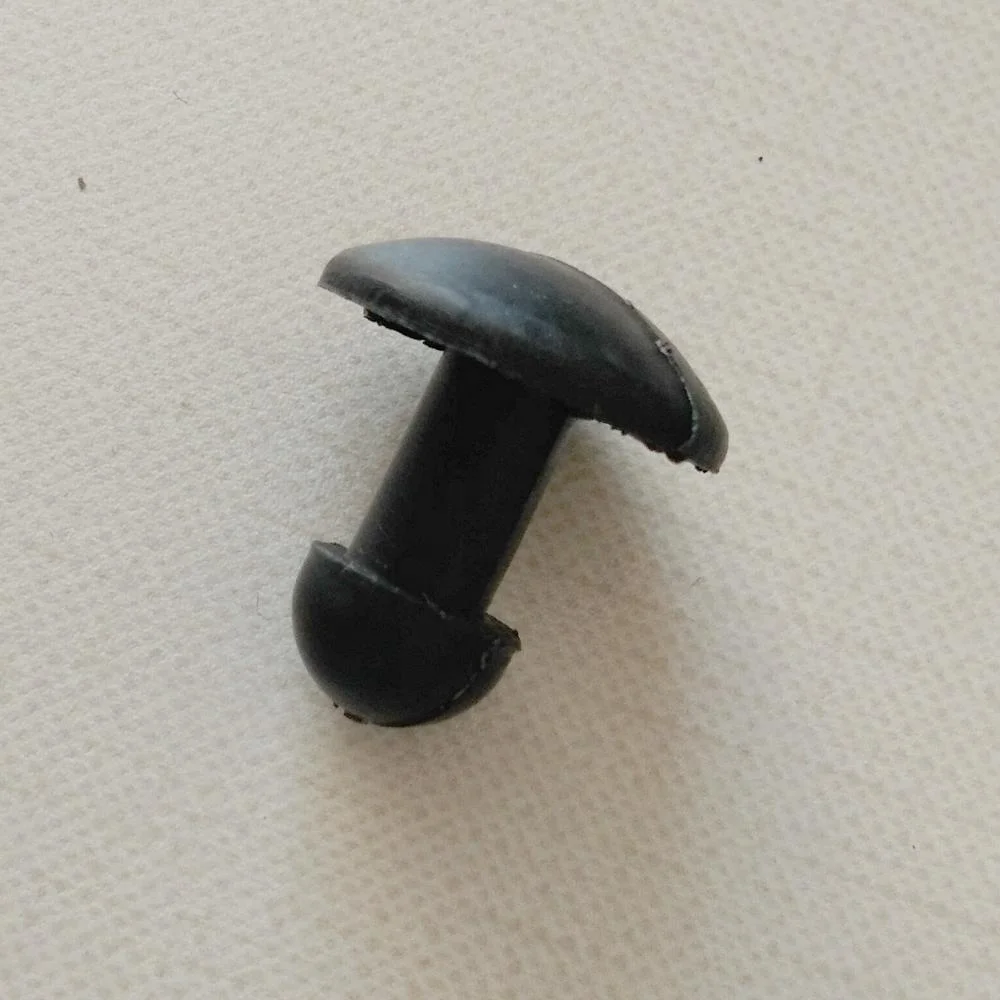

Plastic Geocell connector

[Brief Introduction]

Cellular Confinement System(CCS), better known as geocell, is a honeycomb shaped 3D network structure ultrasonically welded with plastic strips. It can be flat, textured or perforated according to customers’ need.



[Features]

• The material is light and durable, and it is acid and alkali resistant;


• It is expandable for convenient installation; and it is foldable for convenient transportation;


• It can distribute the vertical pressure into the cell wall, which can improve the load capacity   and reduce the thickness of the roadbed;


• It can reduce the lateral movement of the soil, so it is resistant to deformation.




[Application]

• Slope and Shoreline Protection---Solve the problem of slope surface soil stability and slope protection---roadway embankment, flood protection embankment, steep slope, bridge abutment, mountain roadside, prevent landslide especially in weathered forest, desert and marsh;


• Land Stabilization---Solving the stability problem of steep slope soil--- retaining wall, vegetated wall, non-vegetated wall, culvert headwall;


• The River Channel Protection---Solve erosion protection, lining stability and water flow control problems--- riverway, stormwater channel, ditch;


• Load Support---To solve the problem of load distribution, foundation stability and surface stability of weak foundation---roadbase stabilization for road, highway, railway, airport, sidewalk, parking lot, public square, etc.

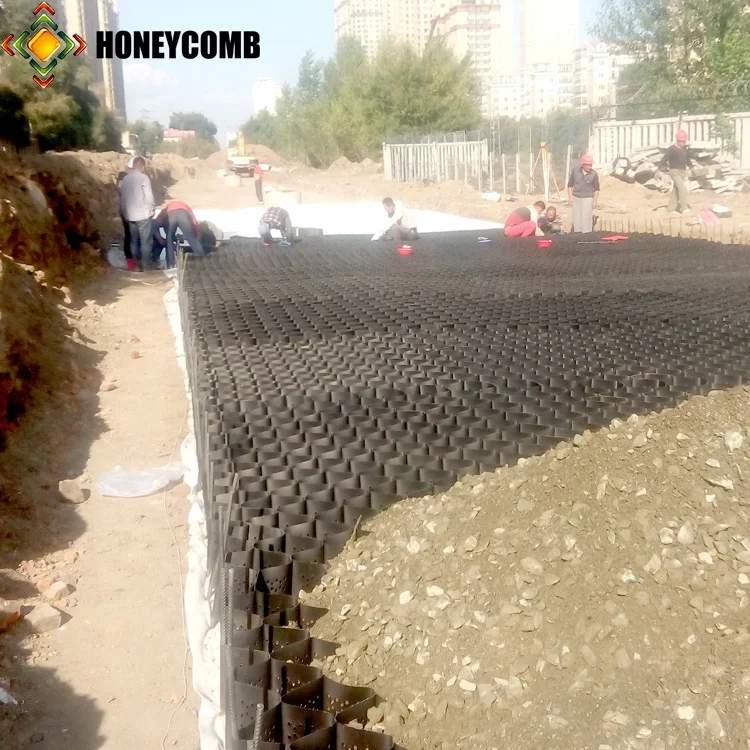

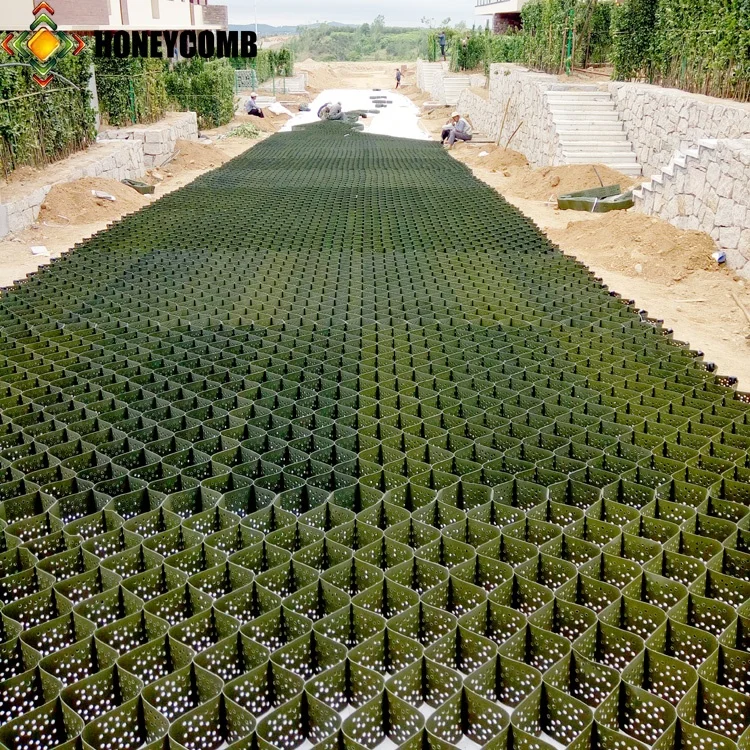

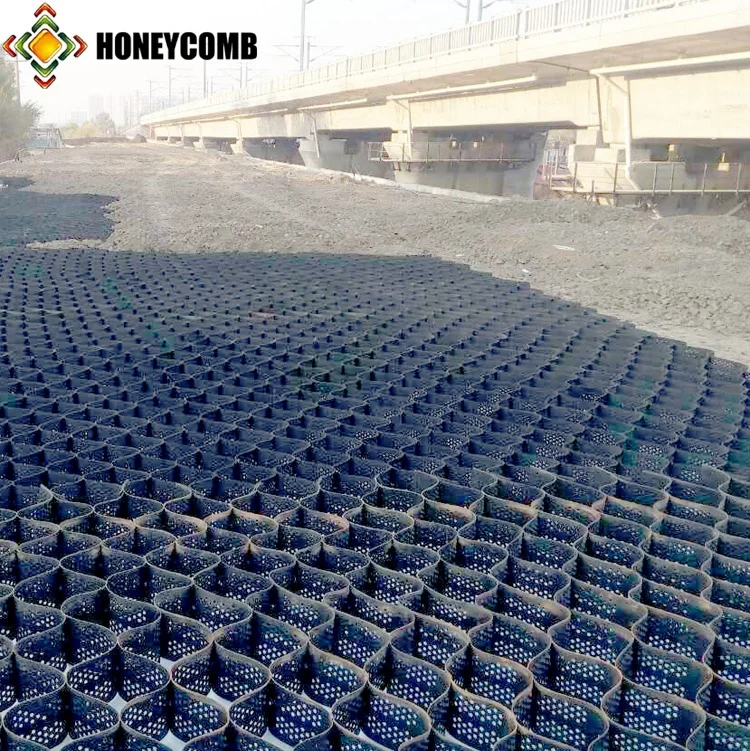

[Case study]







[Parameter]
Geocell implements Geosynthetic Material Geocell GB/T19274-2003



Item			Unit	Value
Dimensional deviation of geocell
Sheet Thickness	Smooth surface geocell		mm	1.0-1.25
	Textured surface geocell		mm	1.5-1.85
Geocell Height of geocell			mm	50-300
Welding Distance of geocell			mm	330-1600
Basic Performance of geocell
Environmental stress cracking F50 of geocell			h	≥80
Low temperature embrittlement point of geocell			℃	≤-50
Vicat softening temperature of geocell			℃	≥112
Oxidation induction time of geocell			min	≥20
Technical requirement of geocell
Tensile strength of geocell sheet			MPa	≥20
Seam peel strength of geocell			kN/m	10-28
Connection place of geocell group		Edge of geocell plate	N/cm	≥230
		Middle of geocell plate	N/cm	≥120

H=geocell height (thickness)

D=geocell welding distance

W=expanded panel width of geocell

L=expanded panel length of geocell

W'=expanded cell width of geocell

L'=expanded cell length of geocell



[Quality Assurance]

We test our geocells during production in our own testing laboratory to make sure that all the products can meet the standard specifications, technical parameters and customers’ requirements.

Test report of the geocell products issued by our own laboratory is available.

Third-party inspection on our geocell is allowed at the buyers’ cost.



[Packing]

Standard exporting package (plastic strips), on pallets or customized.

[About us]

Shandong Honeycomb Thai Environmental Protection Technology Co.,Ltd., located in Tai’an city, Shandong province, is a joint company associated by seven productive companies, which are specialized in PCA Cellular Confinement System products.



Instead of traditional reinforced concrete, our Cellular Confinement System (CCS) , better known as geocell, is made from advanced polymer composite material. It can be widely used in river slope protection, highway & railway infrastructure construction, sponge city construction, agriculture, urban construction, geological disaster prevention, etc.



We are committed to the design and construction solutions to provide our customers with the most suitable and economical professional products. We have the strongest productive capacity and supply ability in China. The company's predecessor has been devoted to the production, sales promotion, research and development of the cellular confinement system since 2011. At present, the company's engineering cases have covered Vietnam, South Korea and all provinces of China.



Why choose us?

l Raw material: imported HDPE/ PCA

l Large production capacity

l Professional production line and personnels

l Advanced technology

l Reliable quality control

l On-time delivery

l Customized dimension and package are allowed

l Machinery factory to support specific requests

l Professional engineers to help you with the project and choose the most suitable material

l OEM/ODM are allowed



Services you can get from us:



We will provide our partners with the best services in the industry to support the design, construction and installation of engineering projects.



Information provided

• Technical data binder/cd-rom


• Engineering analysis/technical overview


• Project case study


• Detailed construction instructions



Any inquiries or questions on our PCA Cellular Confinement System/HDPE Geocell, please contact us.
