1000 кг/ч полностью автоматическая производственная линия замороженного картофеля
- Категория: Машина для производства картофельных чипсов >>>
- Поставщик: Henan,Joyshine,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.97 $* | 0.68 $* |
| Aug-15-2025 | 0.72 $* | 0.81 $* |
| Jul-15-2025 | 0.5 $* | 0.30 $* |
| Jun-15-2025 | 0.17 $* | 0.33 $* |
| May-15-2025 | 0.77 $* | 0.3 $* |
| Apr-15-2025 | 0.38 $* | 0.83 $* |
| Mar-15-2025 | 0.38 $* | 0.15 $* |
| Feb-15-2025 | 0.0 $* | 0.42 $* |
| Jan-15-2025 | 0.13 $* | 0.43 $* |
Характеристики
Products Description

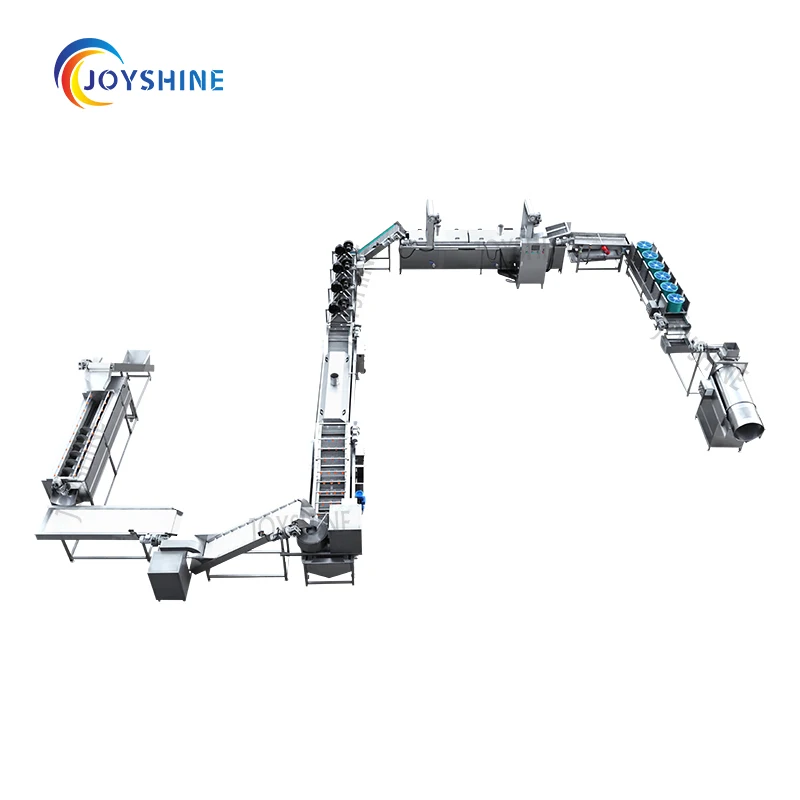

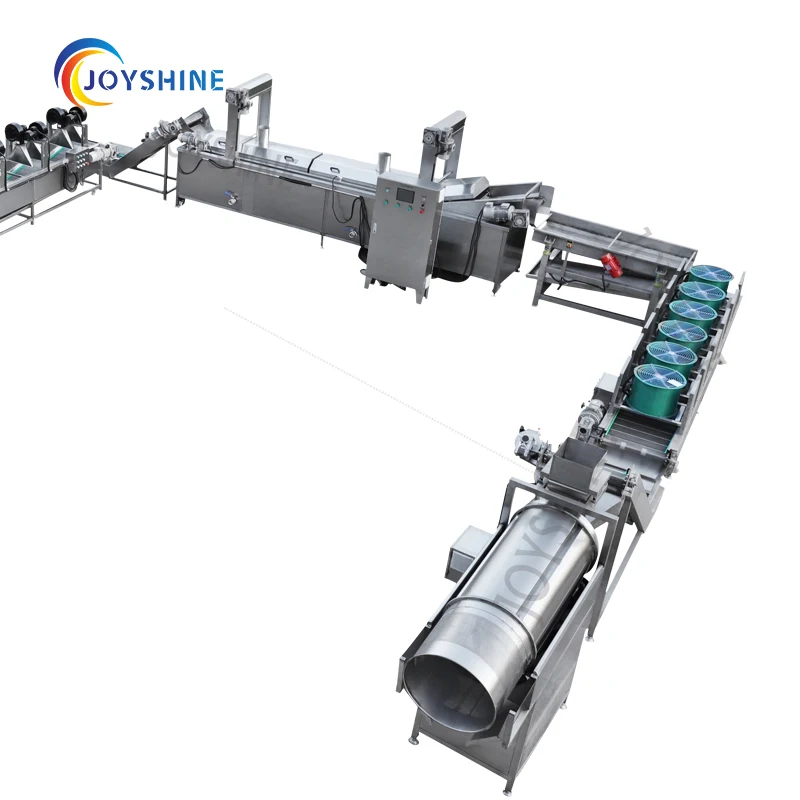

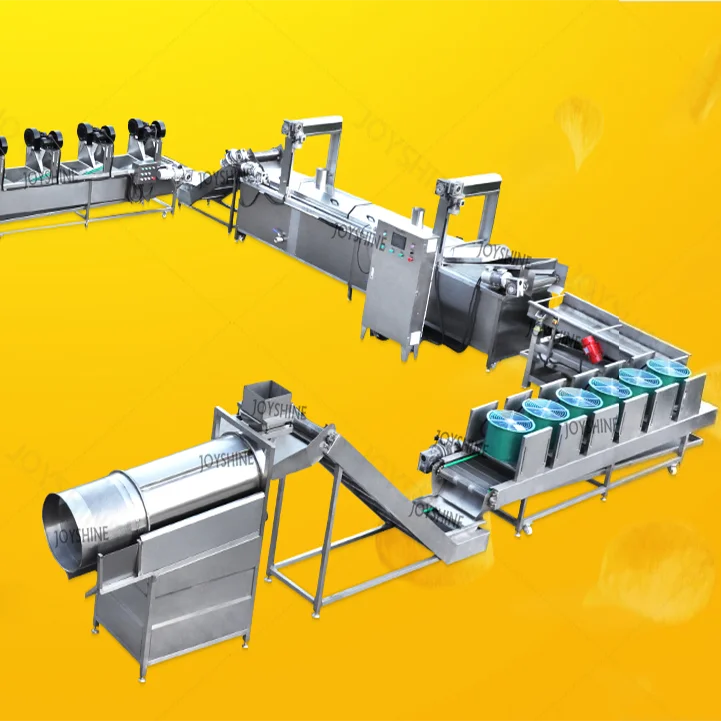

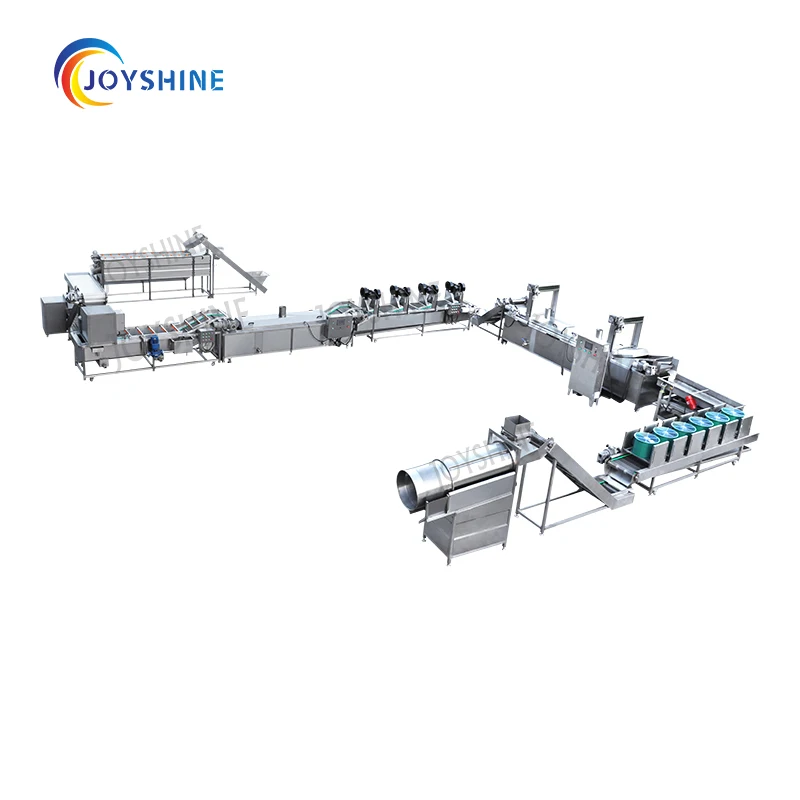

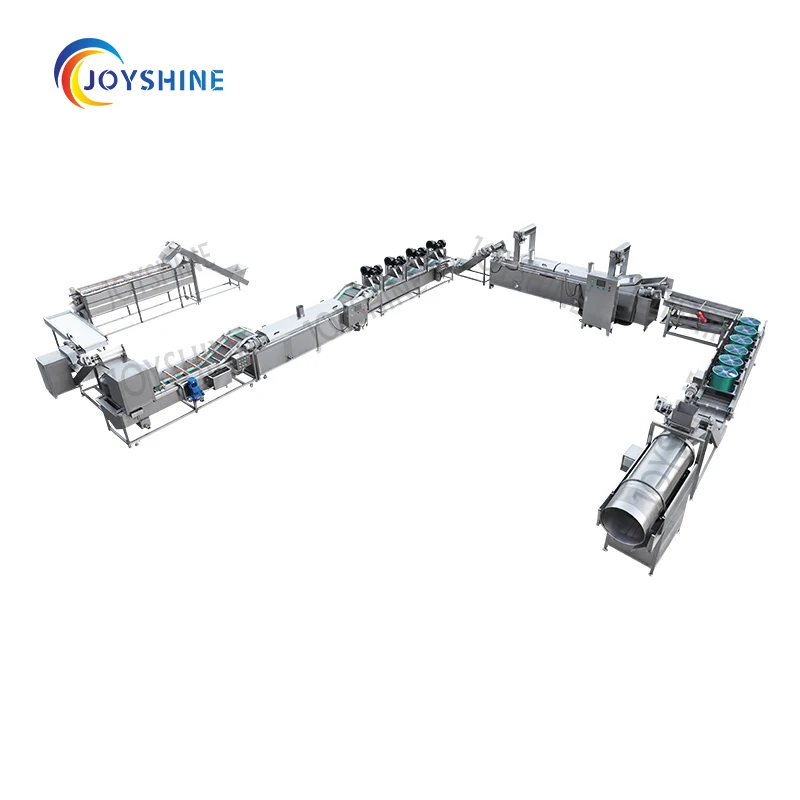

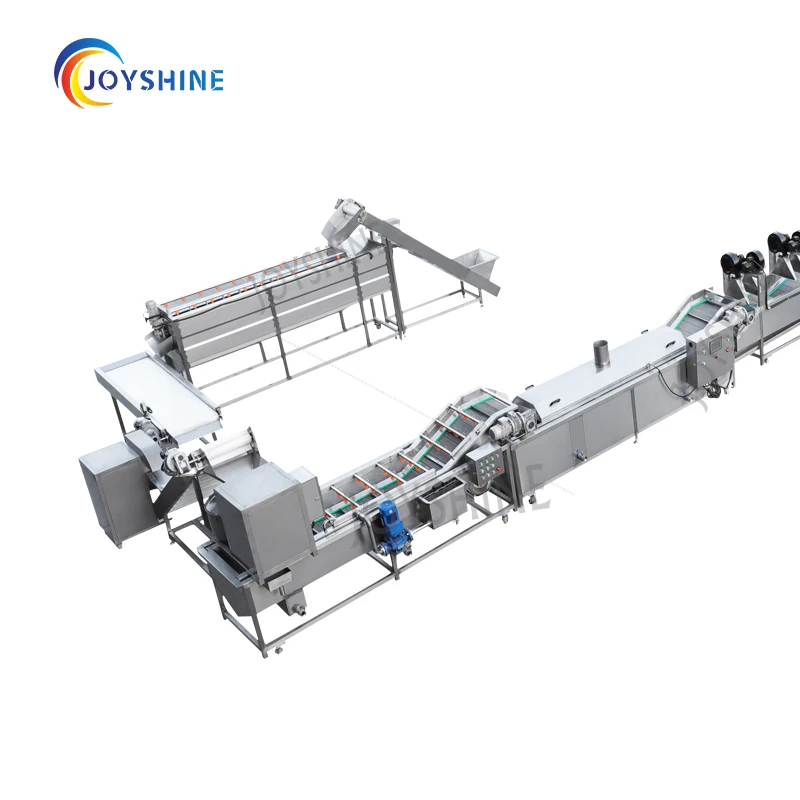

1000kg/h Fully Automatic Frozen French Fries Production Line For Sale
We are professional direct manufacturer of potato chips or french fries making machines in China. We have different solutions for different demands:
1: Different machines for making potato chips or french fries
2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output
3: Semi automatic or fully automatic processing machines
4: Electricity or gas heating source for blanching and frying machine
Fully Automatic Frozen French Fries Production Process:
No. | Machine Name | Function |
1 | Elevating Conveyor | For elevating and conveying potatoes into the next washing peeling machine |
2 | Potato Washing and Peeling Machine | Thoroughly washing and peeling the potatoes |
3 | Picking Line | For manually disposing the uncleaned places and selecting the defective potatoes |
4 | Potato Cutting Machine | Cutting the potatoes into strips, from 7*7 to 12*12mm |
5 | Potato sticks pre washing machine | water as buffer to prevent potato sticks breakage, and simply removing starch, meanwhile elevating potato sticks into next step |
6 | Chips roller picking machine | Automatically picking up the small or defective potato strips |
7 | Bubble Washing Machine | Through high pressure waterflow and water bubbles to impact and scrub the potato strips to wash off the starch |
8 | Blanching Machine | Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the potato strips |
9 | Air Drying Machine | Through high pressure wind blowing for pre-cooling and removing the excess water after blanching in short time, effectively prevent the fried oil jumped phenomenon |
10 | Elevating Conveyor | For elevating and conveying the potato strips into next frying machine |
11 | Continuous Belt Frying Machine | For quick frying the potato strips around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life |
12 | Vibrating Deoiling Machine | Through high frequency vibrating to achieve deoiling purpose, and also to convey the potato strips uniformly to go into the next machine |
13 | Air Drying Machine | Through high pressure wind blowing for pre-cooling and deoiling the potato strips |
14 | Elevating Conveyor | For elevating the french fries into next freezer |
15 | Freezing Machine | Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF |
16 | Automatic Packing Machine | For packing the finished frozen french fries |
Detailed Description
Fresh Potato Elevator
Potato Washing and Peeling Machine
Unqualified Potato Picking Line
Potato Cutter
french fries cutting potato chips slicing
Fries Pre-washing Elevator with Water Tank
Unqualified Fries Roller Picking Machine
Potato Chips and French Fries Washing Machine
Blanching Machine
Vibration De-water Machine
Air Drying Machine
Elevator Conveyor
transports fries into the fryer
Continuous Frying Machine
Vibrating De-oil Machine
Air-cooling Machine
Quick-freezing Equipment
Automatic Weighing and Packaging Machine
Suitable for large and small potato chips, banana chips and other processing workshop, we can make suitable solution according to your workshop area and your real situation!
