Характеристики
Product Description
50-300kg/h Fully Automatic Potato Chips Gas-heated Frying Line
Potato chips processing flow: Lifting machine——Washing and peeling machine——Picking line——Cutting machine——lifting machine——Rinsing machine——blanching line——Air-dryer dewatering line——Continuous Frying machine——Vibrating screen——Air-dryer deoiling machine——Seasoning machine——automatic packing machine—Finished product.
we can customize potato chips line with different production capacity, different heating methods according to your requirements, and provide complete solution and turnkey project.
General introduction of whole chip line
1. Raw materials needed : potato1100kg/h
2. Final product: potato chips 300kg/h.
3. Workshop area: approx. 60m (L)*10m (W)
4. Total power: 50kw/380v/50hz,3phase industrial voltage, can be customized according to your local industrial voltage.
5. Water consumption: approx.2-3t/h;
6. Oil consumption: approx. 40-50 kg/h;
7. Gas consumption: approx. or 120kg/h natural gas
2. Final product: potato chips 300kg/h.
3. Workshop area: approx. 60m (L)*10m (W)
4. Total power: 50kw/380v/50hz,3phase industrial voltage, can be customized according to your local industrial voltage.
5. Water consumption: approx.2-3t/h;
6. Oil consumption: approx. 40-50 kg/h;
7. Gas consumption: approx. or 120kg/h natural gas
8.The main componens brand can be customized.such as Electrical control system or PLC can be Schneider brand or motors can be choosen Siemens or SEW brand. Pumps can be customized CNP brand.it will be need extra cost.
Specification
No. | Description of Machine | Dimension (mm) | QTY (set) | Price(USD) for reference |
1 | Feeding machine | 2500*800*1300mm | 1 | $1780 |
2 | Washing and peeling machine | 2400*760*1650mm | 1~2 | $7800 |
3 | Picking line | 6000*600*750mm | 1 | $3200 |
4 | Lifting machine | 1500*800*135mm | 1 | $1400 |
5 | Cutting machine | 1100*560*900mm | 1 | $5200 |
6 | Rinsing machine | 6000*1200*900mm | 1 | $8280 |
7 | Blanching machine | 11000*1200*1850mm | 1 | $19500 |
8 | Air-dryer dewatering machine | 6000*1200*1450mm | 1 | $8200 |
9 | Hot air drying machine | 5000*1200*1150mm | 1 | $14500 |
10 | Continuous Frying machine | 11000*1200*1850mm | 1 | $39800 |
11 | Vibrating screen | 2000*1000*950mm | 1 | $2800 |
12 | Air-dryer deoiling machine | 6000*1200*1150mm | 1 | $8200 |
13 | Liquid sauce coating machine | 2000*1050*1400mm | 1 | $9000 |
14 | Elevator | 1500*800*1450mm | 1 | $900 |
15 | Hot air drying machine | 8000*1200*1200mm | 1 | $14500 |
16 | Elevator | 1500*800*1450mm | 1 | $900 |
17 | Seasoning machine | 2200*900*1750mm | 1 | $3860 |
18 | Chips Picking Conveyor | 3500*1200*950mm | 1 | $1900 |
19 | Twins automatic weighing packing machine | 4000*2500*3800mm | 1 | $44500 |
20 | Nitrogen gas generator | 1000*1000*1150mm | 1 | $8000 |
Total price(FOB) USD | 21 | $150000~200000 |
Details Images
1.Feeding machine
(1) use: It can separate the stones and sand from the potatoes and lift the potato into peeling machine.
(2) features: SUS 304, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
Size: 2500*600*1500mm
Power: 0.75KW/380v/50Hz
Mesh belt width: 600 mm
Frame: 50*50*2mm rectangle stainless steel square tube
(2) features: SUS 304, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
Size: 2500*600*1500mm
Power: 0.75KW/380v/50Hz
Mesh belt width: 600 mm
Frame: 50*50*2mm rectangle stainless steel square tube

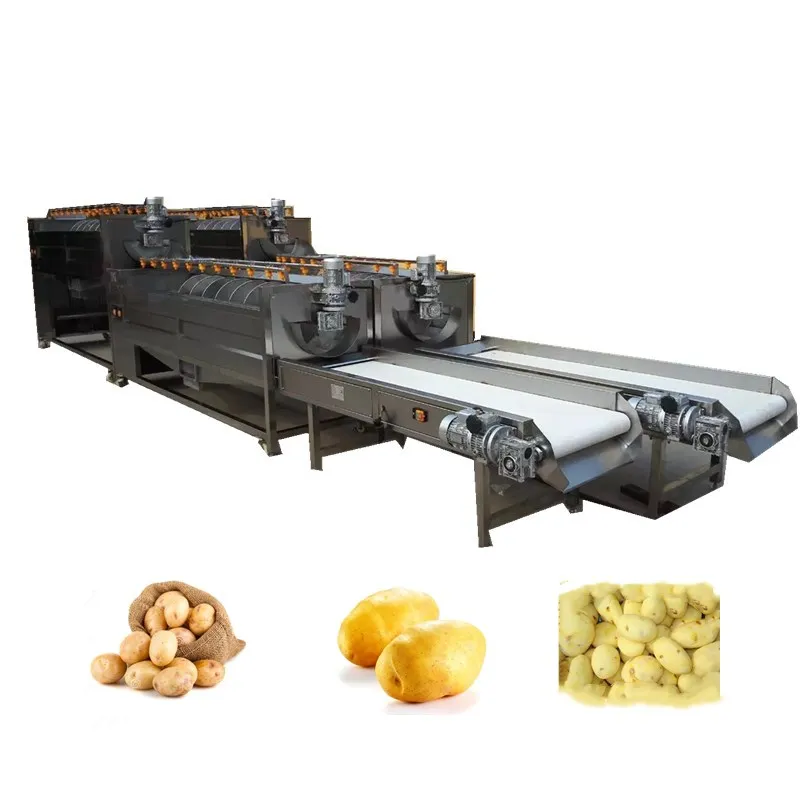

2.Washing and peeling machine
(1) use: wash and peel potatoes continuously.(2) features: the two peelers are arranged by one higher and one lower, spiral discharger to achieve continuous production,
imported nylon brush roller, durable, stainless steel frame structure.
(3) technical parameters:
Dimensions:2300*760*1650mm, brush roller length:2000 mm
Power: 3.75kw /220v/3phase.
Brush roll: 9 nylon brush rollers.
(4) material disposition
Spiral teeth: stainless steel plate bending production
Other material: 304 stainless steel plate, welding and shearing and bending.
3.Slicing machine
(1) use: after cleaning the peeled potatoes ,cut potato into chips .
(2) features: US Technology, blade durable, smooth operation. large capacity, good cutting effect.
(3) technical parameters:
Dimensions: 1100*660*900mm
Power: 1.5kw /380v/ 50Hz
Cutting thickness:2mm
capacity: 1200kg/h
(4) material disposition
Frame material: 304SUS
(2) features: US Technology, blade durable, smooth operation. large capacity, good cutting effect.
(3) technical parameters:
Dimensions: 1100*660*900mm
Power: 1.5kw /380v/ 50Hz
Cutting thickness:2mm
capacity: 1200kg/h
(4) material disposition
Frame material: 304SUS
4.Rinsing machine
(1) use: rinse the potatoes after slicing and remove the starch on the surface
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions: 6000*1200*900mm
Conveyor belt width:1000mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw /380v/ 50Hz
Water pump power: 3kw
Capacity: 1000-1500kg/h
Frame: 50*50*2mm rectangle stainless steel square tube
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions: 6000*1200*900mm
Conveyor belt width:1000mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw /380v/ 50Hz
Water pump power: 3kw
Capacity: 1000-1500kg/h
Frame: 50*50*2mm rectangle stainless steel square tube
5.Blanching machine
(1)use: in 85-92℃water blanching for 5-6 minutes(2) features: steam heating, accurately control the blanching temperature, with the overall lifting function, easy to clean and
convenient for maintenance.
(3) technical parameters:
Dimensions: 10000*1200*1850mm
Conveying power: 0.75kw /380v/ 50Hz
Conveyor belt width:1000 mm,
Pump power:3kw
Cover lifting power:1.1kw
Heating method: steam or heated by LNG gas
(4) material disposition
Drive motor: Variable frequency control speed
Conveyor belt: stainless steel chain mesh belt
Frame: 50*50*2mm rectangle stainless steel square tube
6.Air-dryer dewatering machine
(1) use: to remove the surface excess water of the fries, but also can quickly cool the chips down.
(2) features: Strong air blower , quickly blow off the waterof chips, easy to fry.
(3) technical parameters:
Dimensions: 6000*1200*1150mm.
Total power: 4.5kw /380v/ 50Hz, transmission: 0.75kw, fan:12sets Conveyor belt width: 1000 mm,
Drive motor: Variable frequency control speed
Conveyor belt: stainless steel mesh belt
Frame: 50*50*2mm rectangle stainless steel square tube
(2) features: Strong air blower , quickly blow off the waterof chips, easy to fry.
(3) technical parameters:
Dimensions: 6000*1200*1150mm.
Total power: 4.5kw /380v/ 50Hz, transmission: 0.75kw, fan:12sets Conveyor belt width: 1000 mm,
Drive motor: Variable frequency control speed
Conveyor belt: stainless steel mesh belt
Frame: 50*50*2mm rectangle stainless steel square tube

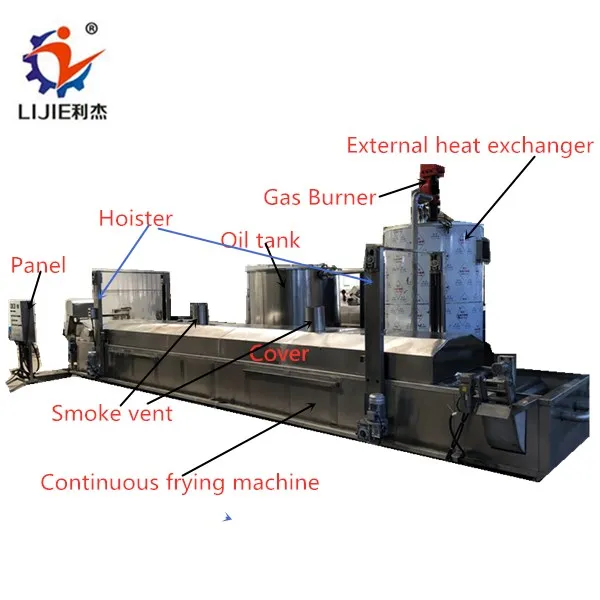

7.Continuous Frying machine
(1) use: It can fry the potato chips continuously.
(2) features: external heater, with oil storage tank, with a coarse filter, with smoke hood, the temperature of 0-240 ℃ can be
adjusted, frying time variable, frequency speed regulation. With external burner& heat exchanger, more safe, less energy, Longer service life.
(3) technical parameters:
Dimensions:11000*1200*2100mm
Conveying power: 1.5kw/380v/50Hz
oil pump:2kw*2Ssets.
lift power: 2.2kw
Gas heating power:800000kcal,
Conveyor belt width: 1000 mm,
Fuel consumption:70m³/h natural gas or 60 kg LP gas.
Drive motor: variable frequency adjustable speed
Frame: 50*50*2mm rectangle stainless steel square tube.
(2) features: external heater, with oil storage tank, with a coarse filter, with smoke hood, the temperature of 0-240 ℃ can be
adjusted, frying time variable, frequency speed regulation. With external burner& heat exchanger, more safe, less energy, Longer service life.
(3) technical parameters:
Dimensions:11000*1200*2100mm
Conveying power: 1.5kw/380v/50Hz
oil pump:2kw*2Ssets.
lift power: 2.2kw
Gas heating power:800000kcal,
Conveyor belt width: 1000 mm,
Fuel consumption:70m³/h natural gas or 60 kg LP gas.
Drive motor: variable frequency adjustable speed
Frame: 50*50*2mm rectangle stainless steel square tube.
8.Seasoning machine
(1) use: mix different flavors with potato chips by rotating the drum.
(2) features: automatic mixing, mixing speed can be adjustable, and mix seasoning evenly.
(3) the technical parameters:
Installation dimensions: 2200 *900 * 1750 mm
Total power: 0.75 kw / 380 v / 50 hz
Drum diameter: 750 mm,
(2) features: automatic mixing, mixing speed can be adjustable, and mix seasoning evenly.
(3) the technical parameters:
Installation dimensions: 2200 *900 * 1750 mm
Total power: 0.75 kw / 380 v / 50 hz
Drum diameter: 750 mm,

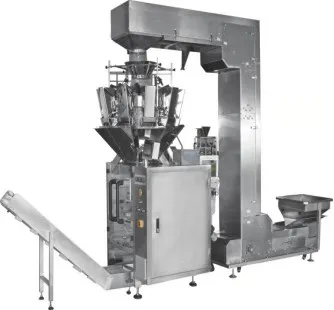

10. Twins 14-scale Automatic weighing packing machine
(1) use: Automatic feeding, metering, bag filling, automatic sealing, date printing, Nitrogen filling, with two packing main units.
(2) features: high precision, higher efficiency ,smooth running, stainless steel frame structure, easy maintenance, easy cleaning.
(3) technical parameters:
Power:3kw/220v/50hz
Dimension:5658*2610*3650mm
Capacity:80-120bags/min
(4) material disposition
Stainless steel 304
(2) features: high precision, higher efficiency ,smooth running, stainless steel frame structure, easy maintenance, easy cleaning.
(3) technical parameters:
Power:3kw/220v/50hz
Dimension:5658*2610*3650mm
Capacity:80-120bags/min
(4) material disposition
Stainless steel 304
Company Profile
Zhucheng Lijie Food Machinery Co., Ltd is located in Zhucheng City, Shandong Province. Our products mainly sold to the United States, Singapore, Russia,kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and 1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them to provide best service for our clients.
Our company's main products include Frying machine, potato chips frying (frozen) processing equipment, fruit & vegetable washing machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot, and cooking equipment, etc.
Our company's main products include Frying machine, potato chips frying (frozen) processing equipment, fruit & vegetable washing machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot, and cooking equipment, etc.
FAQ
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food machinery.Especially for snack food processing production line.
2.What's the price of your machines?
You can inquiry to us directly.
3.What is your payment terms?
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .And help customer to produce good quality food according customer’s detailed formula.
We are a professional manufacturer of food machinery.Especially for snack food processing production line.
2.What's the price of your machines?
You can inquiry to us directly.
3.What is your payment terms?
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .And help customer to produce good quality food according customer’s detailed formula.
