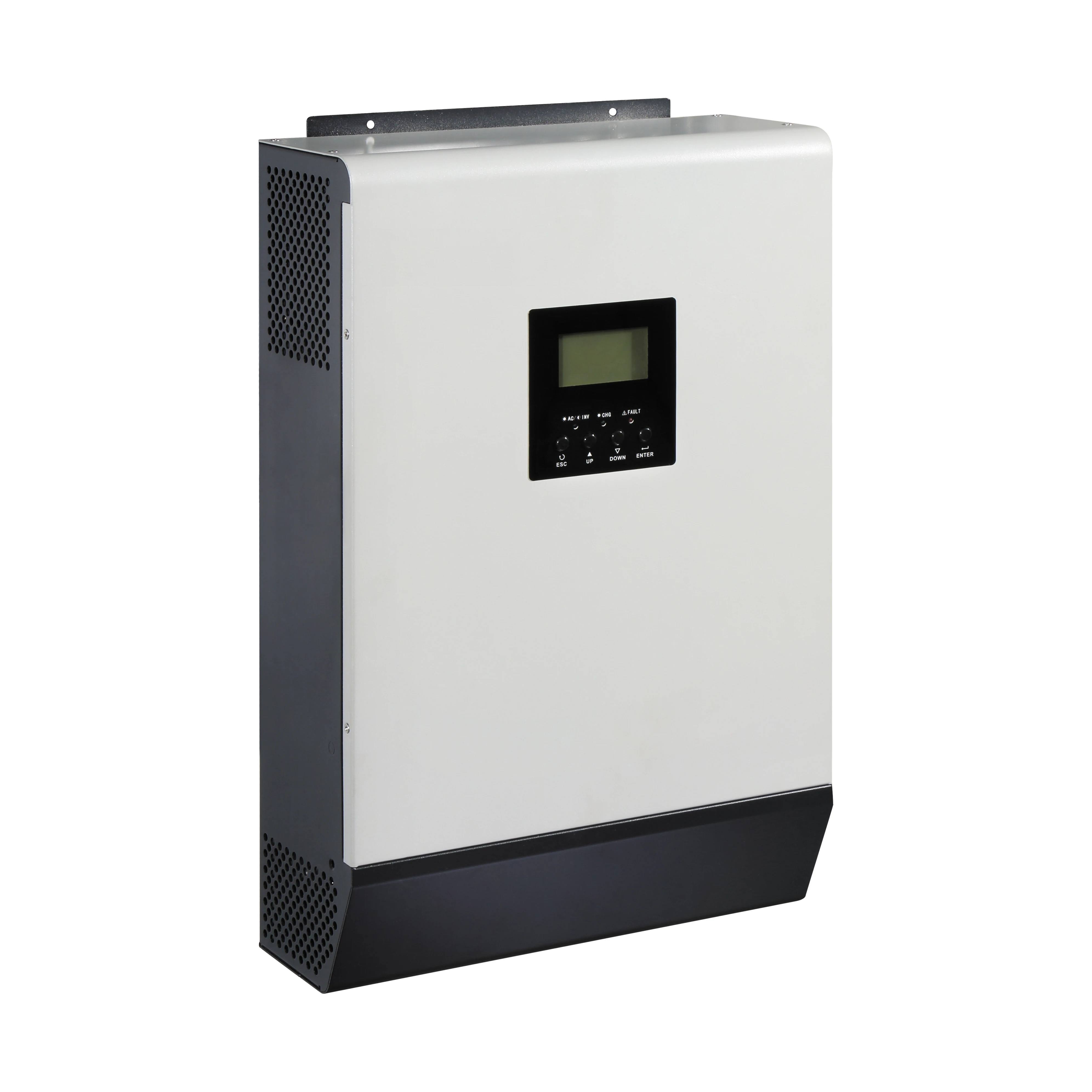

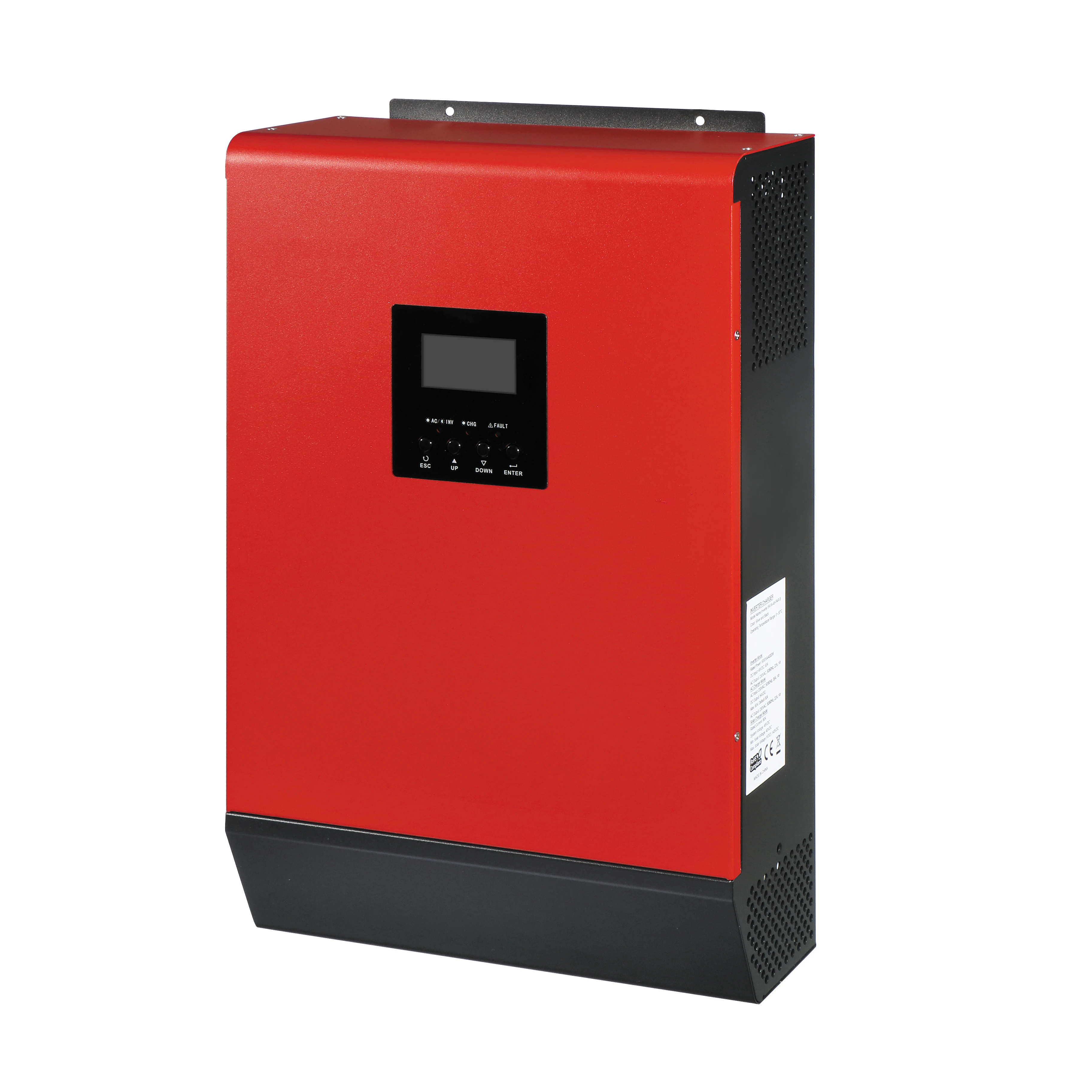

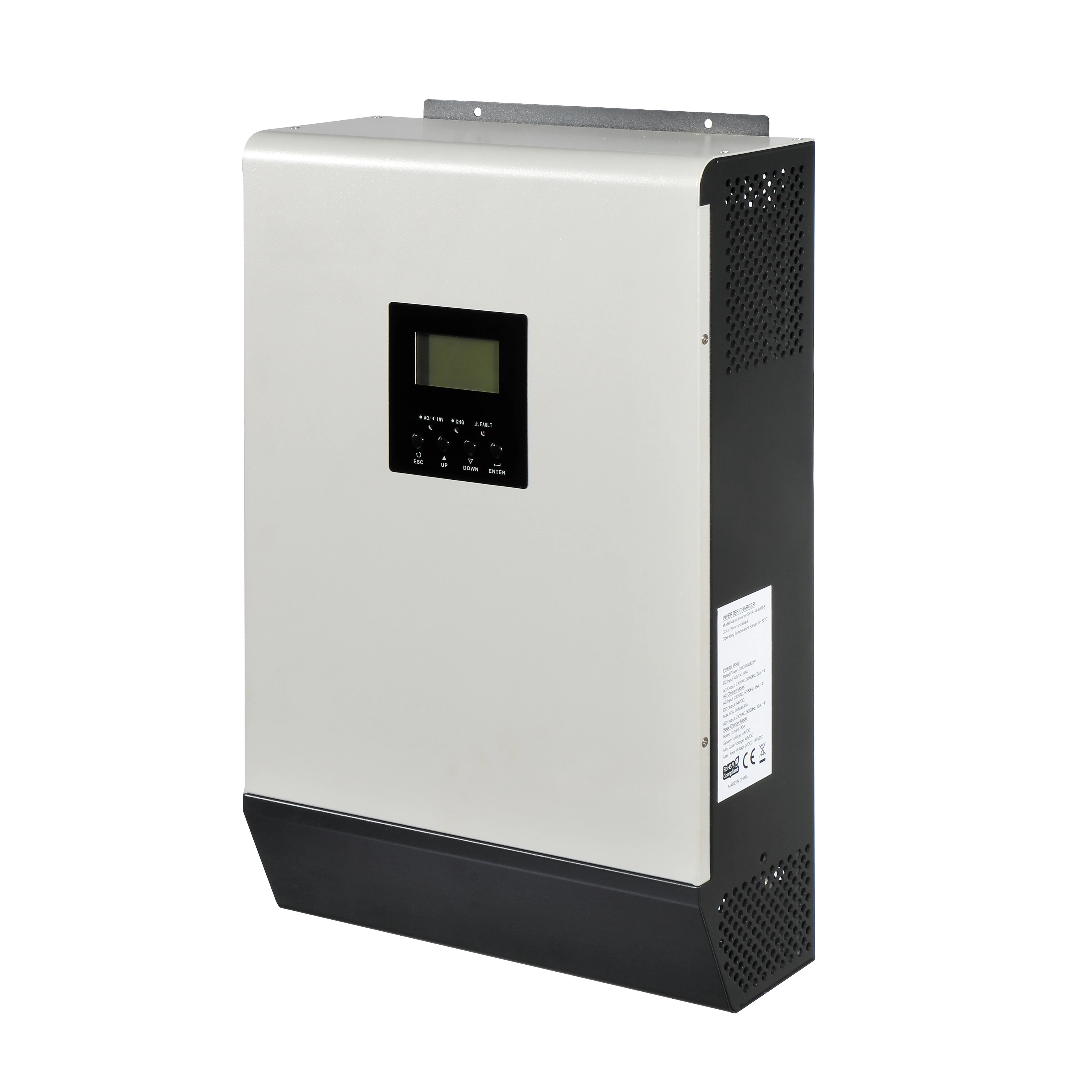

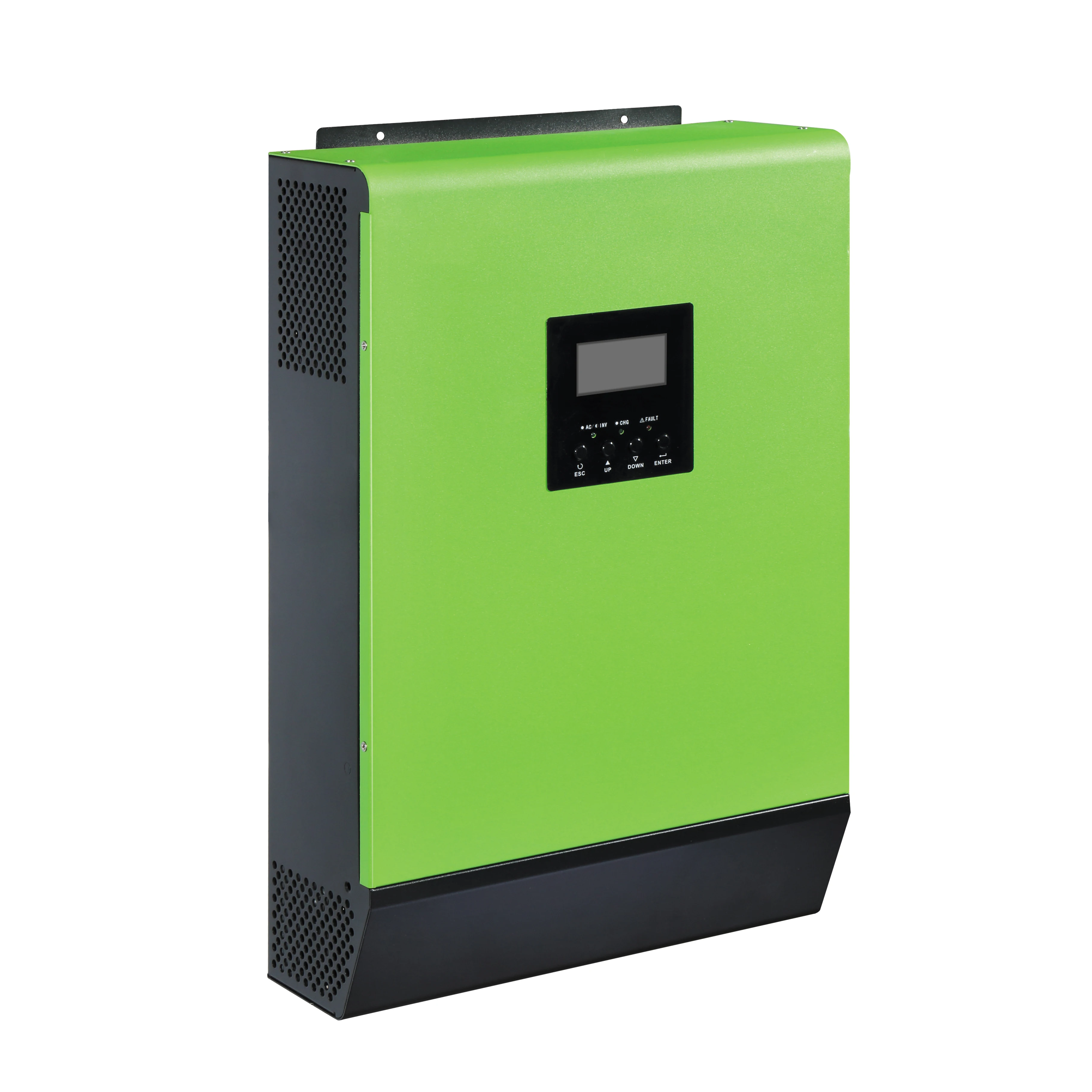

Параллельная функция солнечного инвертора MKS
- Категория: Солнечные инверторы >>>
- Поставщик: Foshan,Ouyad,Electronic,Co.,Ltd.Foshan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 36152.80 $* | 37960.90 $* |
| Aug-15-2025 | 35848.58 $* | 37640.46 $* |
| Jul-15-2025 | 30076.81 $* | 31580.41 $* |
| Jun-15-2025 | 35241.9 $* | 37003.96 $* |
| May-15-2025 | 30684.32 $* | 32218.45 $* |
| Apr-15-2025 | 34633.72 $* | 36365.98 $* |
| Mar-15-2025 | 34329.14 $* | 36045.91 $* |
| Feb-15-2025 | 34026.99 $* | 35727.64 $* |
| Jan-15-2025 | 33722.22 $* | 35408.40 $* |
Характеристики
Product Description
Specification
1. High efficiency pure sine wave inverter(PF=1);Wide PV input range (120Vdc - 450Vdc) 80A MPPT SCC;Intelligent 3 stage 80A AC
battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range ( 90V ac ~280Vac ) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.

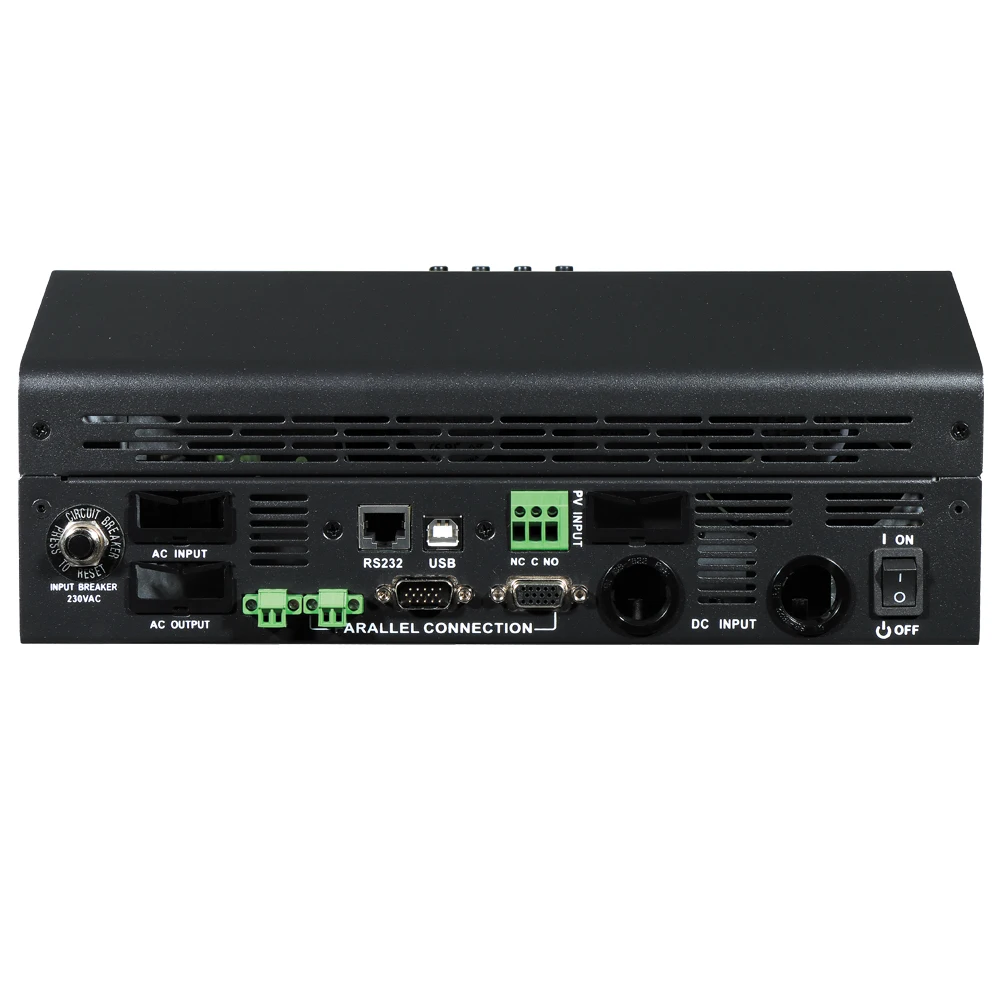

6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.
8. This series inverters can work without batteries when there is the sun.
9. Parallel operation with up to 9 units.
battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range ( 90V ac ~280Vac ) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.
8. This series inverters can work without batteries when there is the sun.
9. Parallel operation with up to 9 units.
Technical Specifications | ||
Model | MKS II-5KW | |
Rated power | 5000VA/5000W | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(for personal computers) | |
90-280VAC(for home appliances) | ||
Frequency Range | 50Hz/60Hz( auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Battery Mode) | 230VAC±5% | |
Surge power | 10000VA | |
Efficiency (Peak) | 90%-93% | |
Transfer time | 10 ms(for personal computers) | |
20 ms(for home appliances) | ||
Wave form | pure sine wave | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 66VDC | |
SOLAR CHARGER &AC CHARGER | ||
Max PV Array Open Circuit Voltage | 500VDC | |
Max PV Array Power | 5000W | |
MPPT Range @operating Voltage | 120-450VDC | |
Max Solar Charge Current | 80A | |
Max AC Charge Current | 80A | |
Max total Charge Current | 80A | |
PHYSICAL | ||
Dimension, LxWxH(mm) | 120x295x468 | |
Net weight(kgs) | 11 | |
standby power consumpsion | 2W | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (non-condensing) | |
Operating Temperature | -10℃ to 50℃ | |
Storage Temperature | -15℃ to 60℃ | |
