Генератор переменного тока AVR Gavr 20A автоматический стабилизатор напряжения Stamford инструменты для марафона Mecc Alte
- Категория: Generators >>>
- Поставщик: Fuzhou,Baishan,Baba,Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12.76 $* | 13.88 $* |
| Aug-16-2025 | 12.35 $* | 13.99 $* |
| Jul-16-2025 | 10.76 $* | 11.29 $* |
| Jun-16-2025 | 12.35 $* | 13.59 $* |
| May-16-2025 | 10.98 $* | 11.12 $* |
| Apr-16-2025 | 11.41 $* | 12.31 $* |
| Mar-16-2025 | 11.69 $* | 12.64 $* |
| Feb-16-2025 | 11.26 $* | 12.42 $* |
| Jan-16-2025 | 11.74 $* | 12.78 $* |
Характеристики
We have AVR-20A AVR in our regular stock!

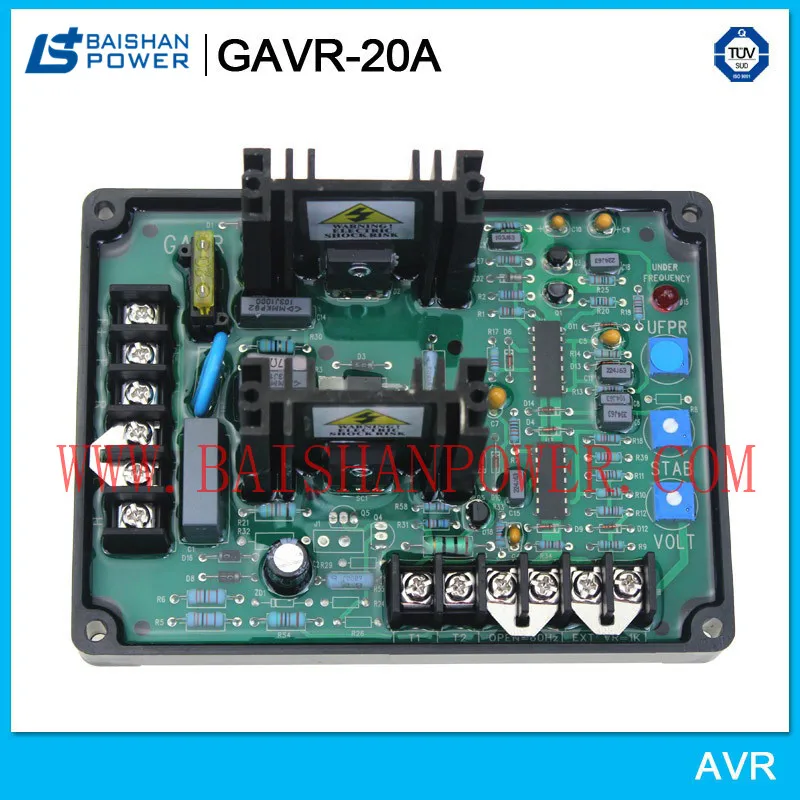

AVR GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip- Switch Programmable be Valtage alternator generator , which is suitable for brushless generator.
Generator Universal AVR GAVR 20A Automatic Voltage Regulator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
| Technical sepcification | |||
| Sensing/Power input | Voltage | Jumper selectable 95-132V ac or 190-264V ac | |
| Frequency | 50-60 Hz nominal | ||
| Phase | 1 | ||
| Voltage | Max 90V ac at 207V ac input | ||
| Magnetic Field Output | Current | Continuous 3A Intermittent 5A within 10 seconds | |
| Resistance | 15 ohms minimun | ||
| Pressure Regulating Accuracy | <±1% RMS with 4% engine governing | ||
Advantages
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
