Характеристики
Related Products
100kw 135HP Boat Marine Diesel Generator Electric start Powered Engine 6CT8.3–GM115 Stamford Alternator
Specification
Model | Voltage | HZ | P.F （COS￠） | Prime power |
CCFJ100Y-ELC | 110、230、400V | 50/60Hz | 0.8 | 100KW/133HP |
Engine Model | 6BT5.9-GM115 | |
Number of Cylinders | 6cylinders | |
Cycle | 4 stroke | |
Aspiration | Turbocharged and Heater Exchange | |
Bore×Stroke | 102mm x120mm | |
Displacement | 5.9L | |
Fuel Consumption at 100% Load | 207g/kw.h | |
Starter Motor | DC24V, | |
Alternator | Stamford/Marathon/Leroysomer/Eleclink | |
Prime power | 100KW | |
Frequency/speed | 50/60Hz | |
Exciter type | Brushless | |
Power factor | 0.8 | |
Voltage adjust range | ≥±5% | |
Voltage regulation NL-FL | ±0.5% | |
Insulation Grade | H | |
Protection Grade | IP23 | |
Phase | Three phases | |
Smartgen control panel data | ||
Controller Brand | Deepsea /ComAp /Smartgen | |
Controller Display | Output frequency Engine speed Battery voltage Engine run-time (Hours) Note: 1. The engine coolant temperature displayed by water temperature gauge 2. The engine oil pressure displayed by oil pressure meter 3. Generator current displayed by current meter, to change switch for each phase displayed separately | |
Generator Set | Fuel System | Control system | Alternator | Low environment temperature |
8h/12h/24hours fuel tank | AMF function | PMG excitation | Water heater | |
Dual wall base fuel tank | ATS | Space heater | Oil heater | |
Outside fuel tank | Multiple generator automatic synchrorising | Battery heater |
Details Pics

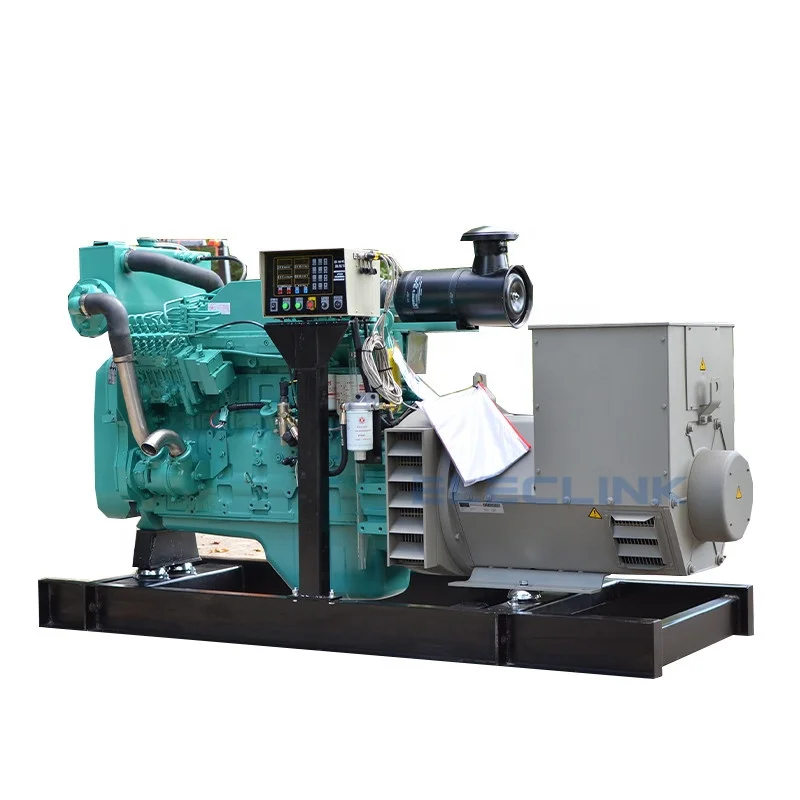

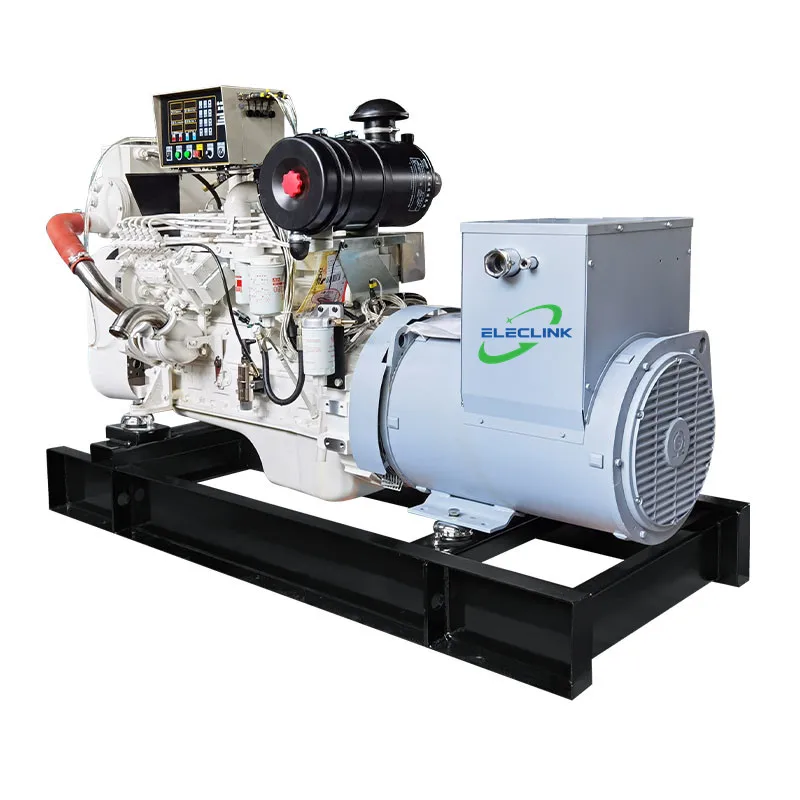

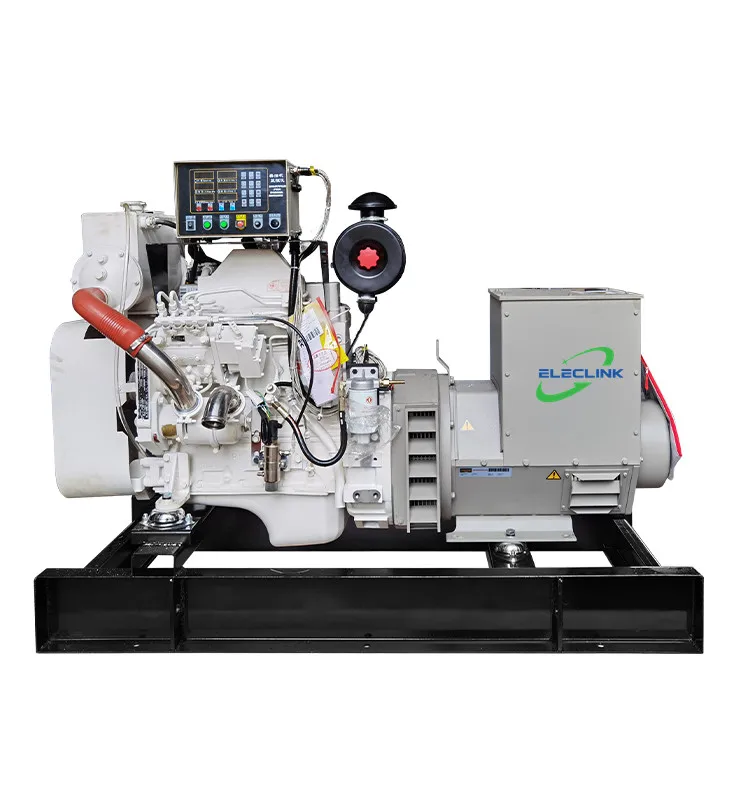

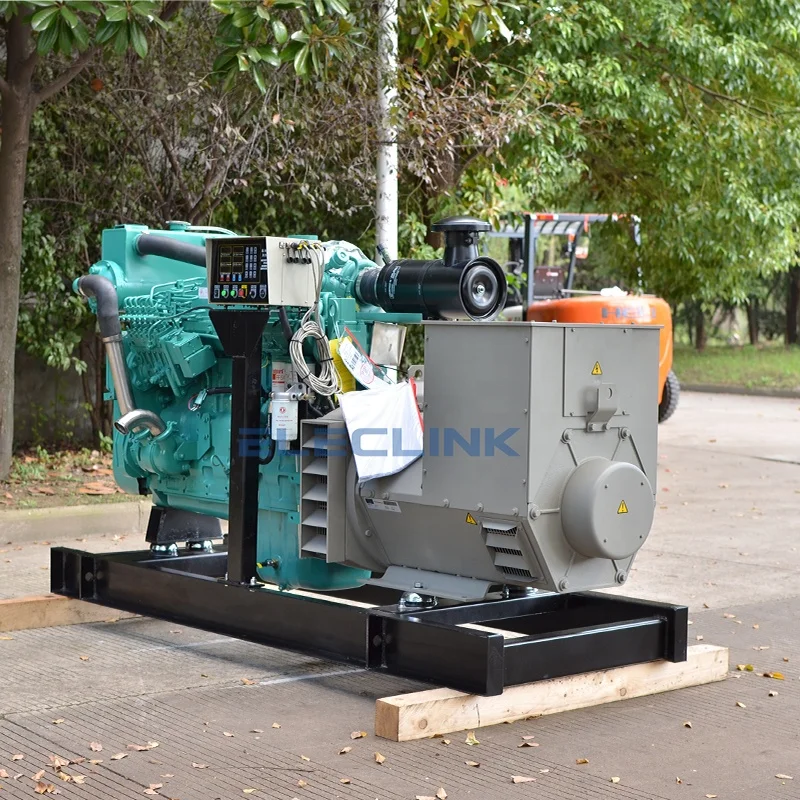

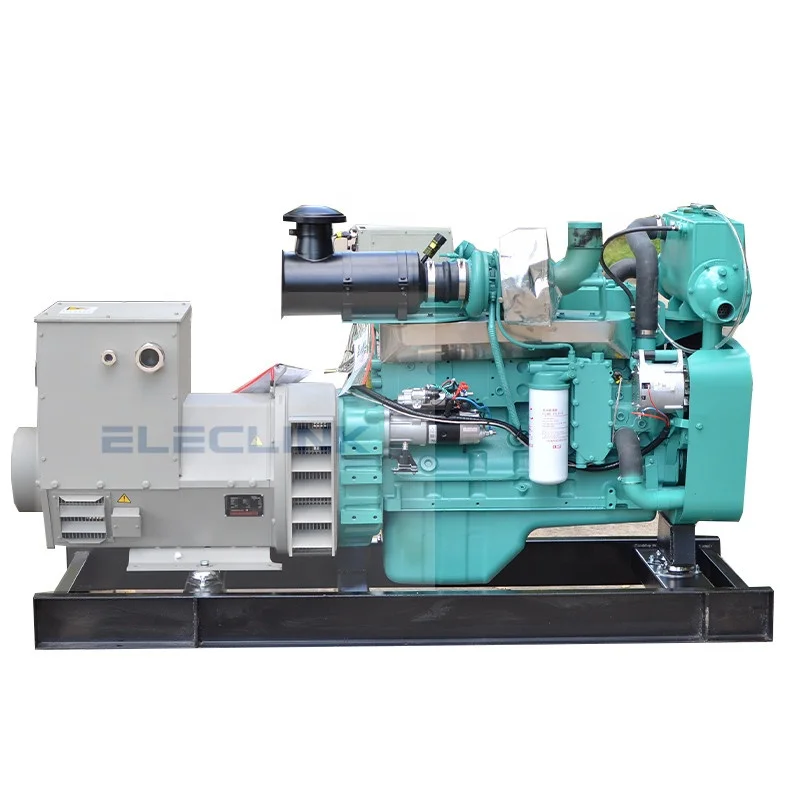

Product Display
Company Profile
Who we are
For more than ten years we have been manufacturing generators by our brand name Eleclink power at Taizhou factory in Jiangsu province ,China. The components of these generators belong to the best international brands such as Volvo Penta,, Cummins,Perkins, Deutz, MTU, Yuchai, Stamford, Leroy Somer, Mecc Alte, ComAP, DeepSea . The generators are collected in a high-class factory, with an area of 3000 m², and a yearly production capacity of 2000 generators
Products
We meet the different needs for the power generators market sectors. Power generators range from 2kva to 3500 kVA as high speed engines (1800 RPM or 1500 RPM) , also we provides the customer with the full solutions for his needs such as electrical panels (ATS, Synchronization panel, MDB) and all of the panels are built by Eleclink power within our facility, also other solution for gensets accessories are available, such as fuel tanks and fuel system, additional to that we are providing full solution for our customer by turn key solution, supplying and installing the gensets and all of the required accessories to customer site.
Services
We provide integrated engineering services to our customers from initial designs to final accreditation. We also provide after sales support and spare parts.
For more than ten years we have been manufacturing generators by our brand name Eleclink power at Taizhou factory in Jiangsu province ,China. The components of these generators belong to the best international brands such as Volvo Penta,, Cummins,Perkins, Deutz, MTU, Yuchai, Stamford, Leroy Somer, Mecc Alte, ComAP, DeepSea . The generators are collected in a high-class factory, with an area of 3000 m², and a yearly production capacity of 2000 generators
Products
We meet the different needs for the power generators market sectors. Power generators range from 2kva to 3500 kVA as high speed engines (1800 RPM or 1500 RPM) , also we provides the customer with the full solutions for his needs such as electrical panels (ATS, Synchronization panel, MDB) and all of the panels are built by Eleclink power within our facility, also other solution for gensets accessories are available, such as fuel tanks and fuel system, additional to that we are providing full solution for our customer by turn key solution, supplying and installing the gensets and all of the required accessories to customer site.
Services
We provide integrated engineering services to our customers from initial designs to final accreditation. We also provide after sales support and spare parts.
