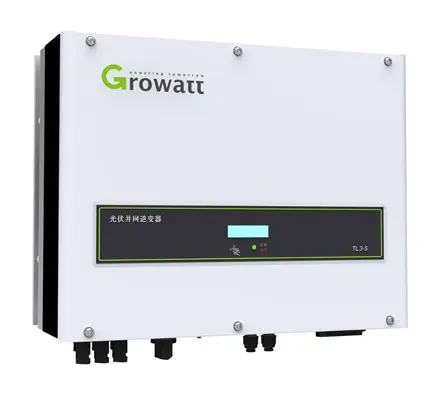

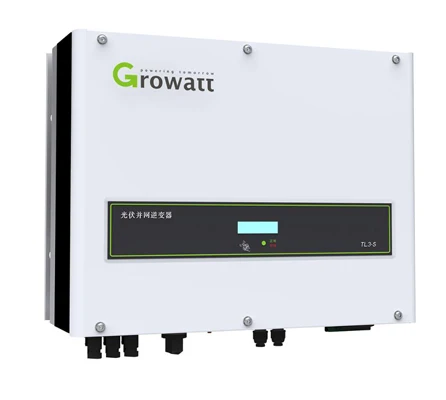

Инвертор для солнечной сети Growatt постоянный ток 10 кВт 15 20
- Категория: >>>
- Поставщик: Hefei,Sunway,Solar,Energy,Tech.Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 774.52 $* | 813.65 $* |
| Aug-15-2025 | 767.63 $* | 805.33 $* |
| Jul-15-2025 | 644.78 $* | 676.15 $* |
| Jun-15-2025 | 754.29 $* | 792.45 $* |
| May-15-2025 | 657.83 $* | 690.92 $* |
| Apr-15-2025 | 741.17 $* | 778.80 $* |
| Mar-15-2025 | 735.3 $* | 772.55 $* |
| Feb-15-2025 | 728.48 $* | 764.22 $* |
| Jan-15-2025 | 722.47 $* | 758.33 $* |
Характеристики
Model | 8000TL3-S | 9000TL3-S | 10000TL3-S | 11000TL3-S5500M | ||||
Max. recommended PV power (for module STC) | 9600W | 10800W | 12000W | 13200W | ||||
Max. DC voltage | 1000V | 1000V | 1000V | 1000V | ||||
PV voltage range | 160V-1000V | 160V-1000V | 160V-1000V | 160V-1000V | ||||
Nominal voltage | 600V | 600V | 600V | 600V | ||||
MPP voltage range at Full Power | 360V-850V | 400V-850V | 450V-850V | 450V-850V | ||||
Max. input current | 11.5A/11.5A | 11.5A/11.5A | 13A/13A | 13A/13A | ||||
Number of independent MPP trackers/strings per MPP tracker | 2/1 | 2/1 | 2/1 | 2/1 | ||||
Output (AC) | ||||||||
Rated AC output power | 8KW | 9KW | 10Kw | 11Kw | ||||
Max. AC apparent power | 8.8kVA | 9.9kVA | 11kVA | 12.1kVA | ||||
Max. output current | 13.3A | 15A | 16.7A | 18.3A | ||||
AC nominal voltage; range | 230V400V: 320-478V | 230V400V: 320-478V | 230V400V: 320-478V | 230V400V: 320-478V | ||||
AC grid frequency; range | 50Hz,60Hz / 5Hz | 50Hz,60Hz / 5Hz | 50Hz,60Hz / 5Hz | 50Hz,60Hz / 5Hz | ||||
Displacement power factor, configurable | 0.8leading… 0.8lagging | 0.8leading… 0.8lagging | 0.8leading… 0.8lagging | 0.8leading… 0.8lagging | ||||
THDi | <3% | <3% | <3% | <3% | ||||
AC grid connection type | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | ||||
