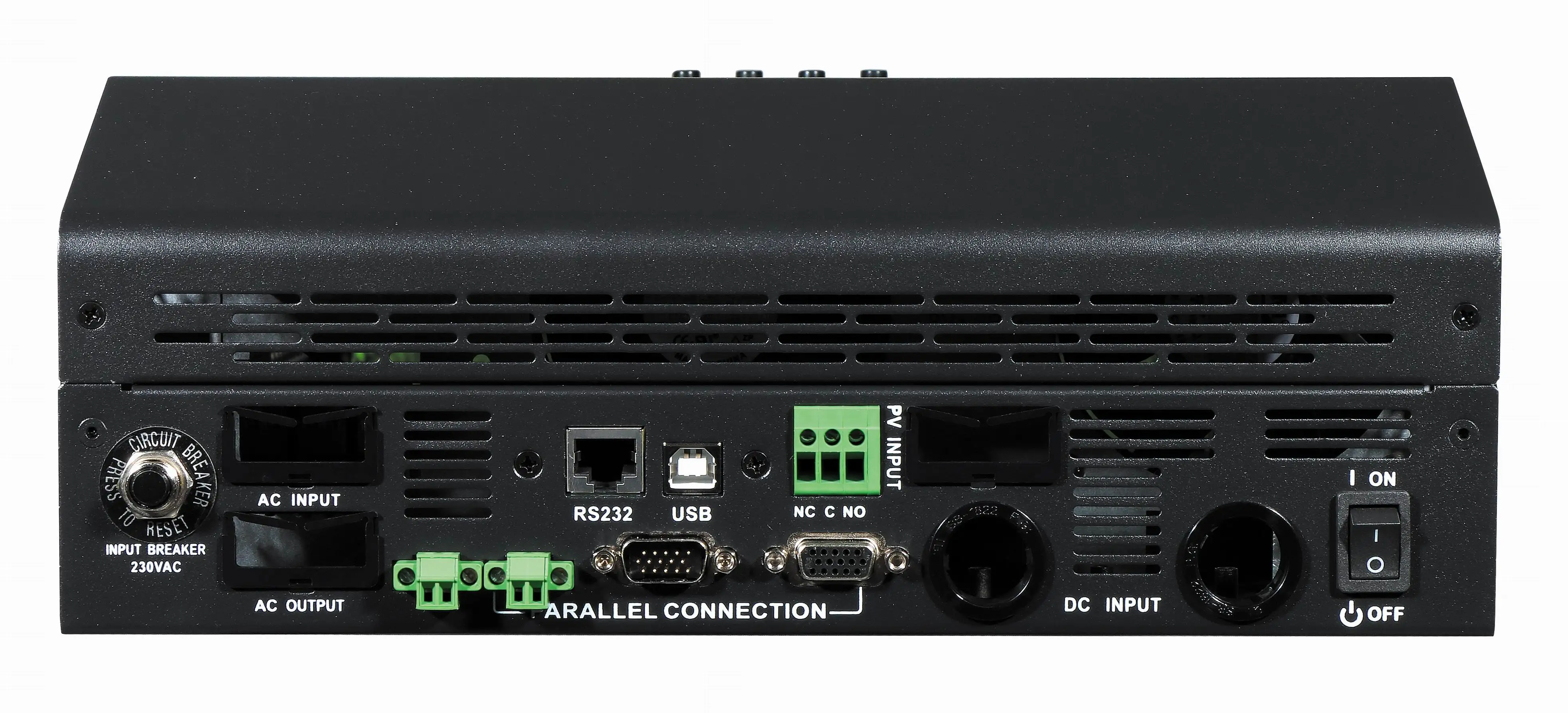

Автономный Гибридный солнечный инвертор без батареи MKSII 5 ква кВт 48 в 80 А mppt
- Категория: Солнечные инверторы >>>
- Поставщик: Foshan,Ouyad,Electronic,Co.,Ltd.Foshan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 52781.38 $* | 55420.95 $* |
| Aug-15-2025 | 52338.47 $* | 54955.59 $* |
| Jul-15-2025 | 43910.36 $* | 46106.84 $* |
| Jun-15-2025 | 51451.77 $* | 54024.37 $* |
| May-15-2025 | 44798.95 $* | 47038.26 $* |
| Apr-15-2025 | 50564.43 $* | 53092.25 $* |
| Mar-15-2025 | 50120.13 $* | 52626.69 $* |
| Feb-15-2025 | 49676.7 $* | 52160.39 $* |
| Jan-15-2025 | 49233.78 $* | 51695.14 $* |
Характеристики
Product Description
Specification
Model | MKSII-5K | |
Rated Power | 5000VA/5000W | |

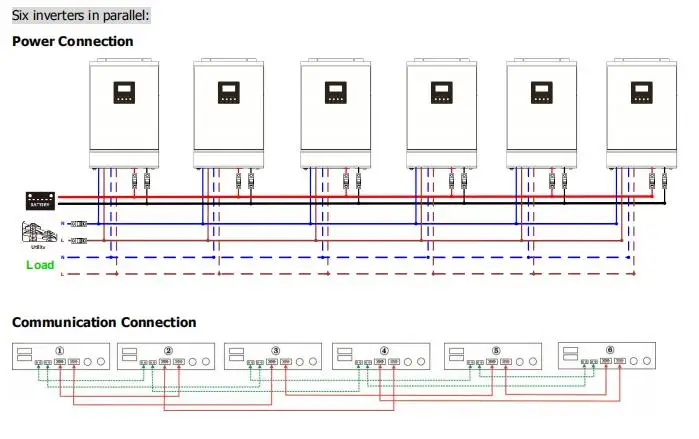

Parallel Capabilty | Yes， 9 units | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(For Personal Computers) ； 90-280VAC(For Home Appl lances) | |
Frequemcy | 50Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 10000VA | |
Efficiency(Peak) | 90% | |
Transfer Time | 10ms(For Personal Computers) ； 20ms(For Home Appliances) | |
Waveform | Pure SineWave | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 66VDC | |
SOLAR CHARGER & AC CHARGER | ||
Maximum PV Array Power | 4500W | |
MPPT Range@ Operating Voltage | 120VDC-430VDC | |
Maximum PV Array Open Circut Voltage | 450VDC | |
Maximum Solar Charge Current | 80A | |
Maximum AC Charge Current | 80A | |
Maximum Charge Current | 80A | |
PHYSICAL | ||
Dimension， DxWxH(mm) | 120*295*468 | |
Net Weight(kgs) | 11 | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humid ty(Non-condensing) | |
Operating Temperature | 0C-55°℃ | |
Storage Temperature | -15°C-60°C | |
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | OUYAD |
Model Number | MKSII 5KVA |
Input Voltage | 48VDC/ 230VAC |
Output Voltage | 230V AC |
Output Current | 80A |
Output Frequency | 50HZ/60HZ |
Output Type | Single, Triple |
Size | 155*295*455mm |
Type | DC/AC Inverters |
Inverter Efficiency | 93% |
Certificate | CE |
Warranty | 1 YEAR |
Weight | 13KG |
Name | hybrid solar inverter without battery MKSII 5kva 5kw can parallel |
Frequency | High frequency |
Capacity | 5KVA 5000W solar inverter |
Controller type | MPPT hybrid solar inverter |
Rated DC input voltage | 48V |
Battery | With or Without battery |
Parallel | support max. 9pcs in parallel |
Output waveform | Pure Sine Wave Solar Inverter |
Warranty | 1 Year |
OEM | SUPPORT |
Packing & Delivery
1pc/paper carton.
Company Profile
Company info. & Advantages
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
