Превосходная производительность превосходное качество колесный погрузчик для
- Категория: >>>
- Поставщик: Shandong,Hekuang,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 32606.8 $* | 34236.42 $* |
| Aug-16-2025 | 32332.29 $* | 33949.42 $* |
| Jul-16-2025 | 27126.36 $* | 28482.91 $* |
| Jun-16-2025 | 31784.74 $* | 33373.52 $* |
| May-16-2025 | 27674.95 $* | 29058.71 $* |
| Apr-16-2025 | 31236.81 $* | 32798.91 $* |
| Mar-16-2025 | 30962.0 $* | 32510.22 $* |
| Feb-16-2025 | 30688.97 $* | 32222.56 $* |
| Jan-16-2025 | 30414.20 $* | 31935.14 $* |
Характеристики
Product Description

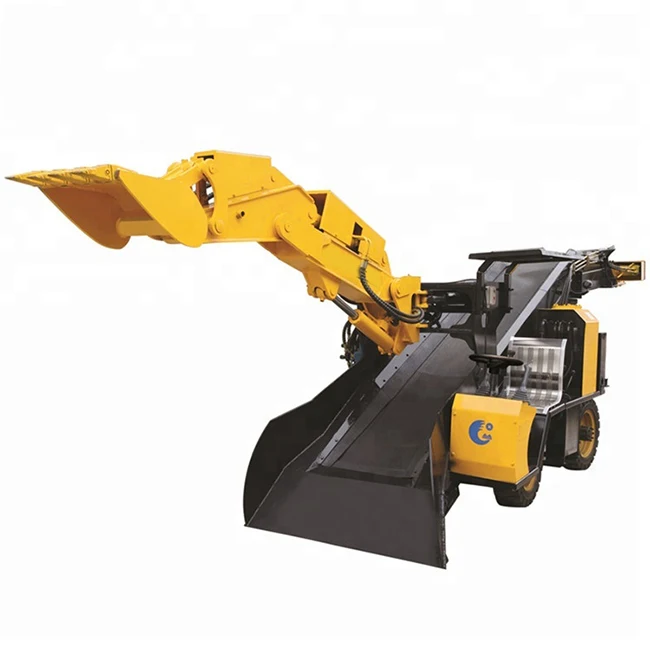

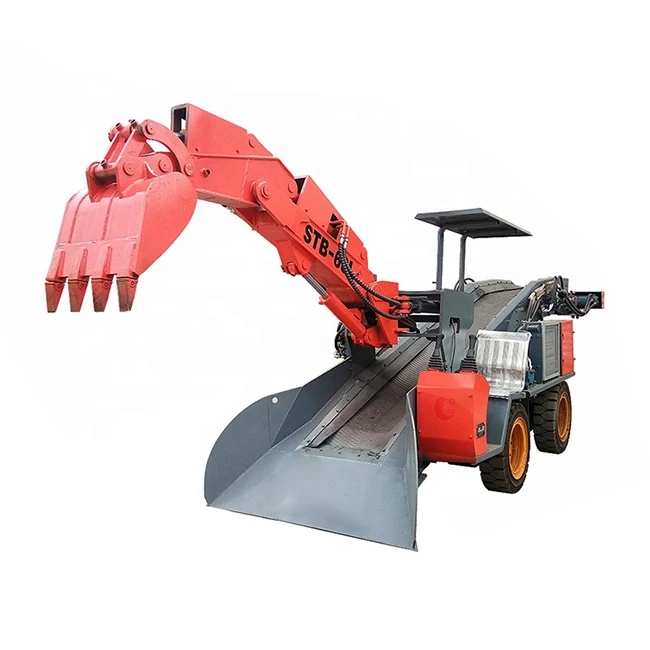

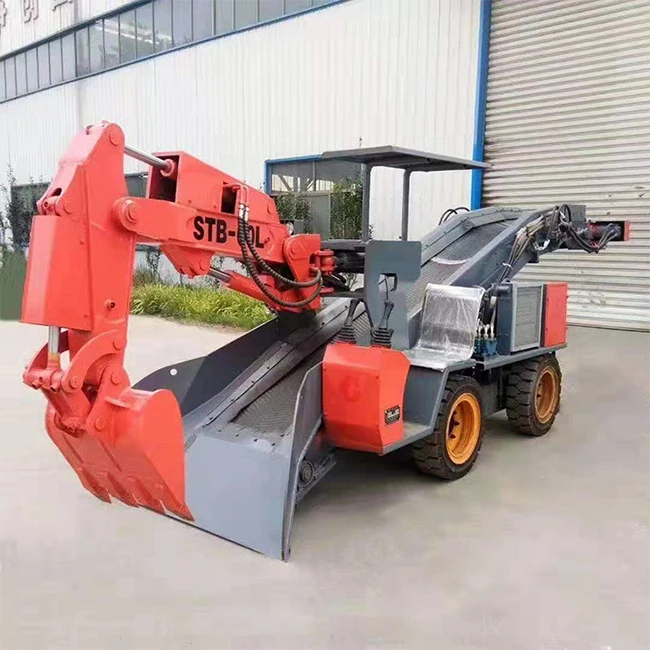

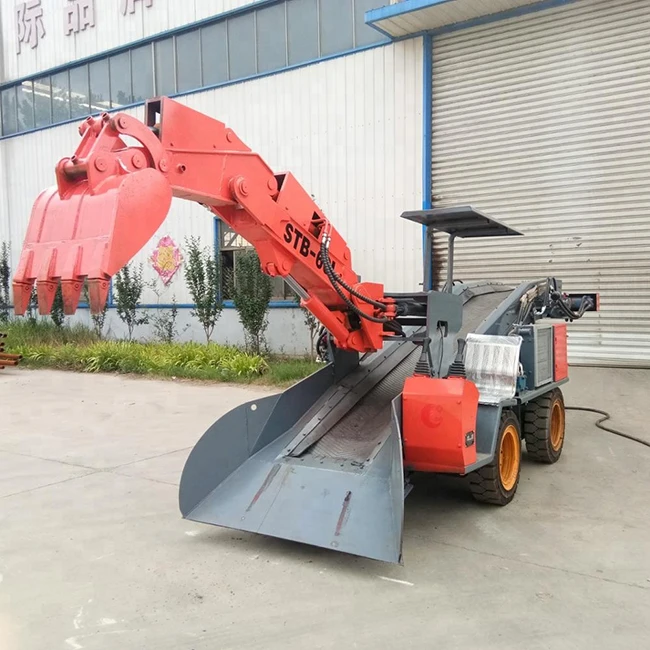

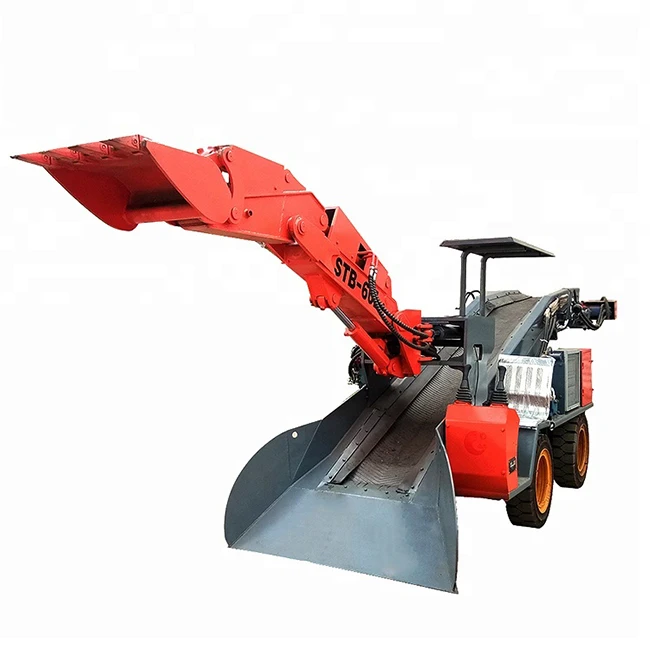

Superior performance,excellent quality Wheel mucking loader for mining
Mucking Loader also called hagloader or excavator loader (commonly known as: grilled slag machine), is a continuous high efficiency mining equipment.
The product is extensively used in mine slope and the vertical shaft of each kind of section of excavating roadway loading operation, and phosphate rock ore, iron ore, fierce and so on all kinds of ores mining loading operation, at the same time, the product also was widely used in building the railway tunnel, and road tunnel, diversion engineering, etc. Various kinds of tunneling engineering.
The product is a four-wheel drive, with large driving force, wide extraction range, full-section loading rock, no dead corners, no need manual auxiliary cleaning. The product is a chain conveyor material, completely replacing the belt to conveying material, and using life increased more than 30 times.
The product adopts module production to facilitate downhole installation work, small body, compact structure, low gravity center, flexible maneuverability and stable work. It is an irreplaceable model of narrow section.
Electric Power Wheel Mucking Tunnel Loader machine coal rock mucking loader for mine
| Type | ZWY-STB-60L | ZWY-STB-100L |
| Loading capacity(m3/h) | 60 | 100 |
| Min.turning radius(mm) | 4500 | 4500 |
| Gradient(°) | <15(hard ground) | <15(hard ground) |
| Traveling speed(m/min) | 2-4.5m/min | 2-4.5m/min |
| Ground clearance(mm) | 200 | 210 |
| Nominal working pressure(Mpa) | 16/25 | 16/25 |
| Motor Power(kw) | 18.5/22 | 22/30 |
| Max.materials by size(L*W*H)MM | 810*580*500 | 810*580*500 |
| Applicable section(W*H)M | 2.0*2.0 | 2.2*2.2m |
| Weight(T) | 6.2 | 8.6 |
| Overall dimension(L*W*H) | 5800*1650*1700 | 5800*1700*1650 |
FAQ
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of the deposit.
Q: What is the Payment terms ?
A: TT Or L/C.
Q: What is the warranty of the products ?
A: One year.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: Where is the products are used?
A: The products are used for mining in the tunnel of coal mine or metal mine or non-metal mine.
Q: What is the drive mode of your products ?
A: The products drive mode is electric drive.
Q: Can the products be installed dual power –diesel engine and electric power ?
A: Yes,we can make the products with diesel engine and electric power
.
Q: What is the usage of the products ?
A: The products are multiple function integrating walking, digging,collecting,conveying,discharge.
