Двигатель финального привода sunward для мини-Экскаватора SWE08B SWE17B SWE18B SWE18UB SWE25B SWE30UB SWE40UB SWE50B SWE60B
- Категория: Earth-moving Machinery >>>
- Поставщик: Cruking,Engineering,Equipment,(Xiamen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 19040.4 $* | 19992.91 $* |
| Aug-15-2025 | 18880.61 $* | 19824.6 $* |
| Jul-15-2025 | 15840.95 $* | 16632.0 $* |
| Jun-15-2025 | 18560.52 $* | 19488.95 $* |
| May-15-2025 | 16160.25 $* | 16968.86 $* |
| Apr-15-2025 | 18240.14 $* | 19152.81 $* |
| Mar-15-2025 | 18080.48 $* | 18984.82 $* |
| Feb-15-2025 | 17920.25 $* | 18816.41 $* |
| Jan-15-2025 | 17760.60 $* | 18648.23 $* |
Характеристики
High Operating Efficiency sunward 1 ton 7.2kw Mini Crawler Excavator SWE08B Price For Sale
Product Description
The standard automatic idle function can automatically reduce and increase the speed according to the load, reduce the fuel consumption during the idle period, save the fuel cost for the customer, and optimize the radio with technology function.
Parameters
| Parameter List | |||
|---|---|---|---|
| Type of cab | Canopy | ||
| Bucket capacity,std. | 0.022m³ | ||
| Bucket width | 320mm | ||
| Machine weight | 1010kg | ||
Dimensions | Overall length | 2640mm | |
| Overall height | 2250mm | ||
| Overall width | 750mm | ||
| Ground clearance | 131mm | ||
Engine | Brand | Imported Brand | |
| Model | 2TNV70-PSU | ||
| Displacement | 0.57L | ||
| Output | 7.2kW/2400rpm | ||
Working ranges
| Max. cutting height | 3085mm | |
| Max. loading height | 2305mm | ||
| Max. digging depth | 1825mm | ||
| Max. digging reach | 3180mm | ||
| oom swing angle(left/right) | 73°/53° | ||
| Front swing radius | 1221mm | ||
| Tail swing radius | 750mm | ||
| Max. digging force(Arm) | 5.8kN | ||
| Max. digging force(Bucket) | 9.4kN | ||
| Track | Type | Rubber track | |
| Track width | 180mm | ||
Undercarrige | Track length | 1299mm | |
| Length to center of rollers | 975mm | ||
| Lenhth to center of track | 560/820 mm | ||
| Travelling speed(High/Low) | 2.9/1.5 km/h | ||
| Gradeability | 30° | ||
| Dozer size | Width | 750/1000 mm | |
| Height | 190mm | ||
| Lifting capacity (Height/Depth) | 225/225 mm | ||
Hydraulic pumps | Type | 3 Gear pump | |
| Displacement | 3*9.6L/min | ||
Hydraulic pressur | 2*16MPa | ||
| Fuel tank capacity | 10L | ||
| Hydraulic oil tank capacity | 9.5L | ||

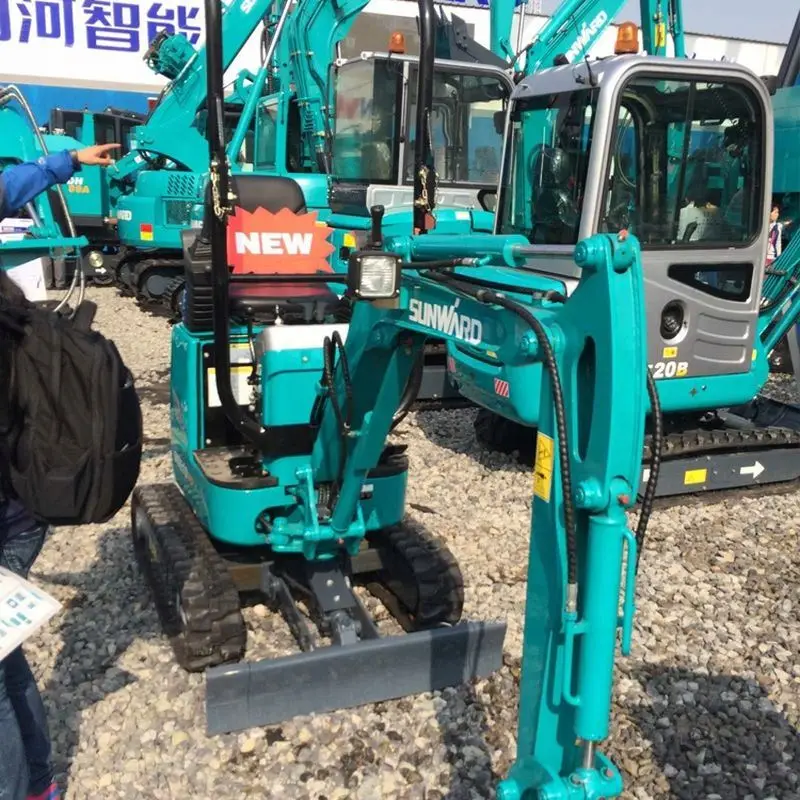

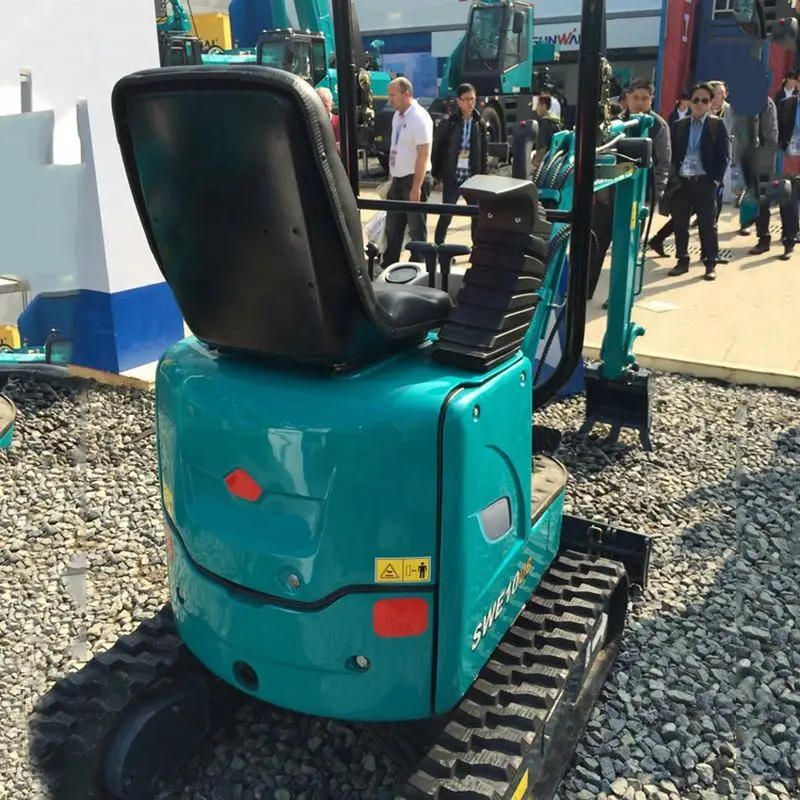

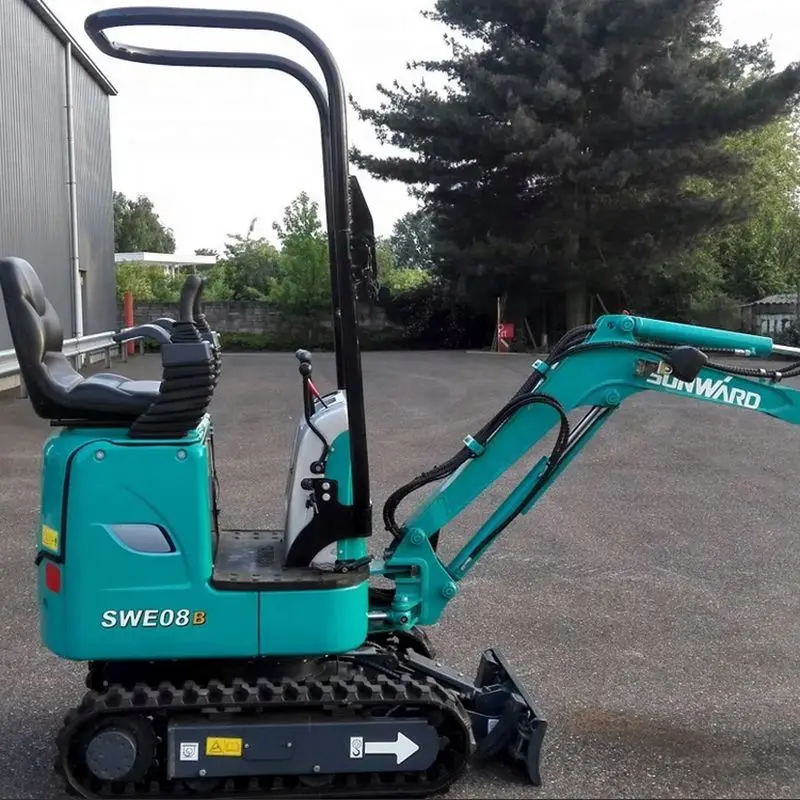

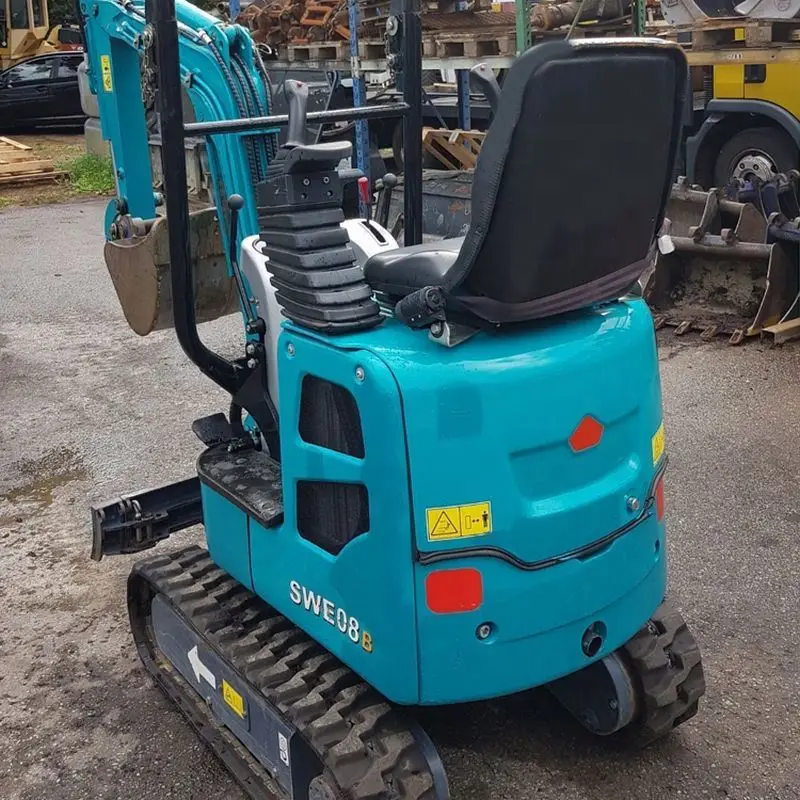

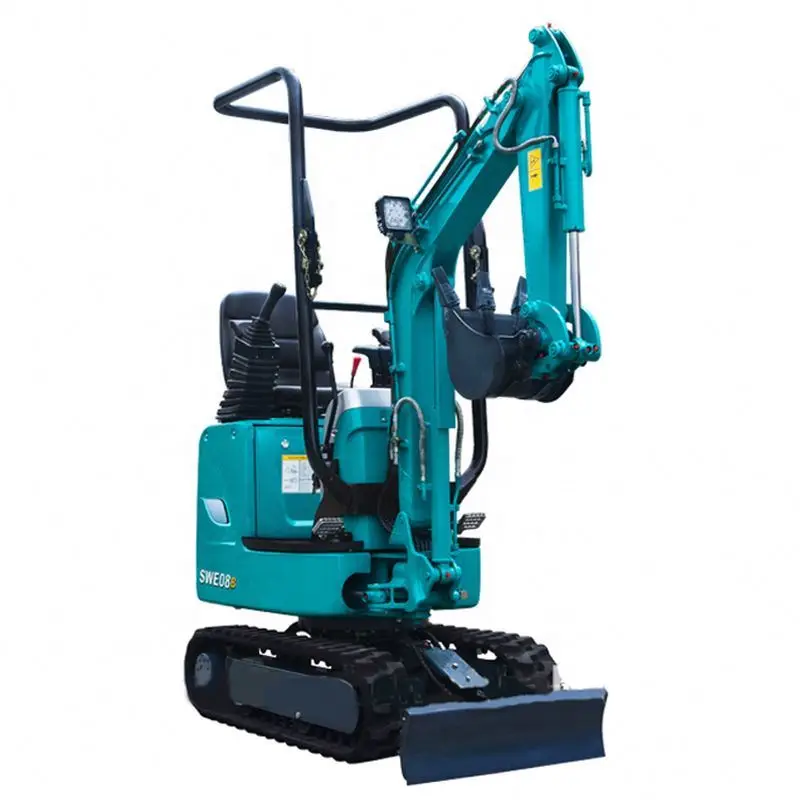

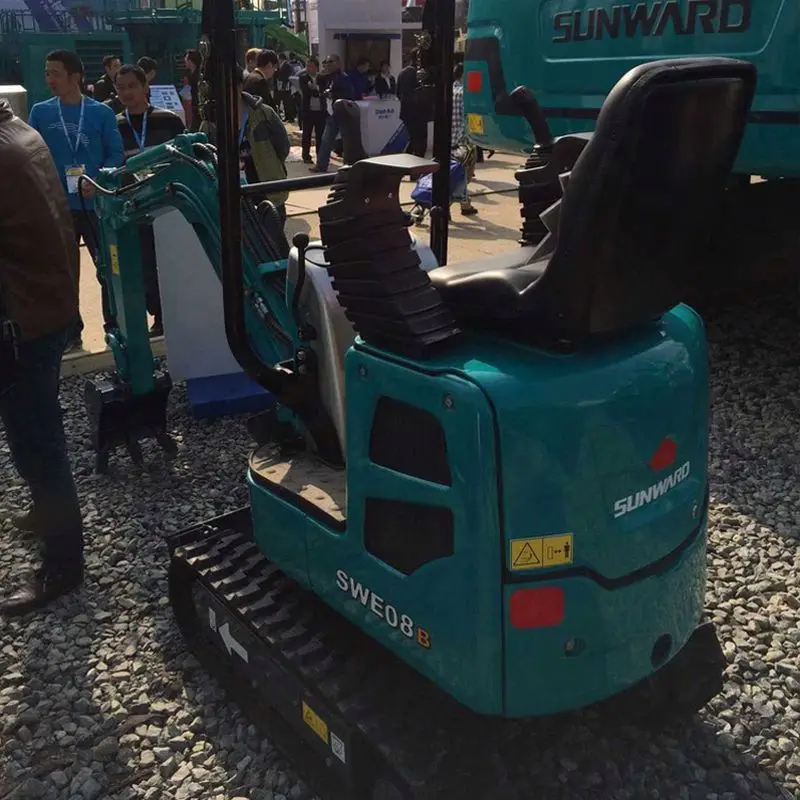

Product pictures
