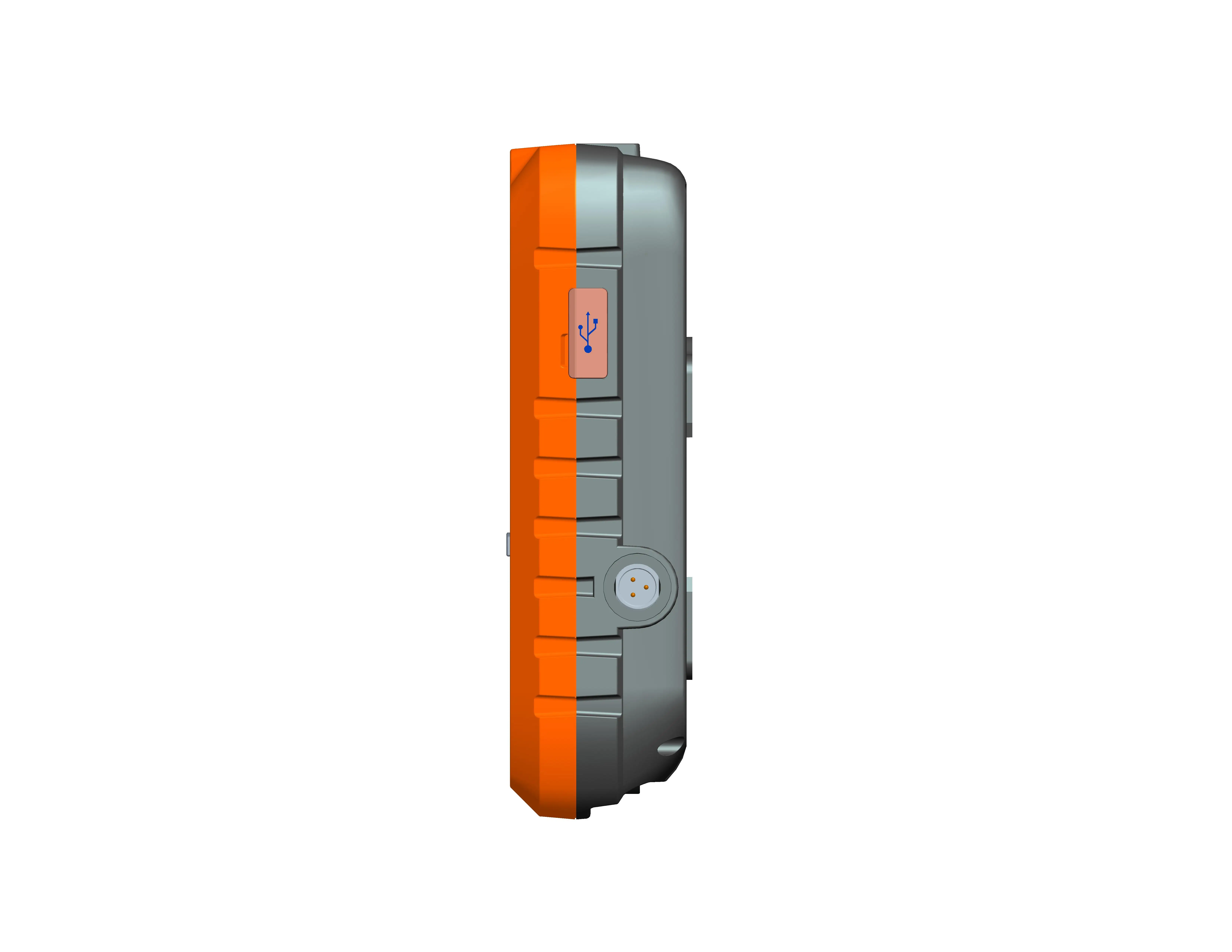

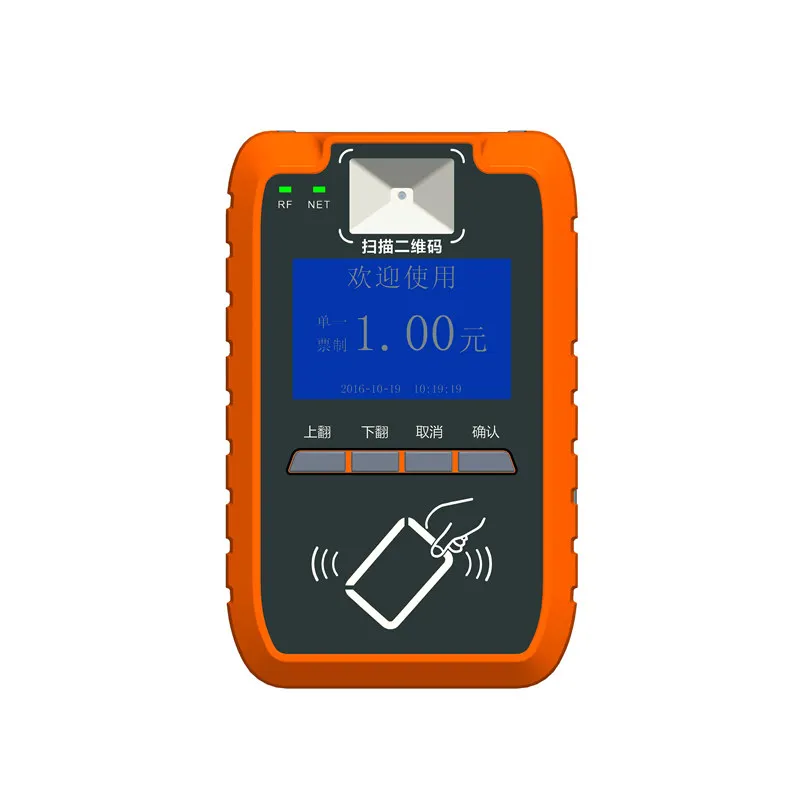

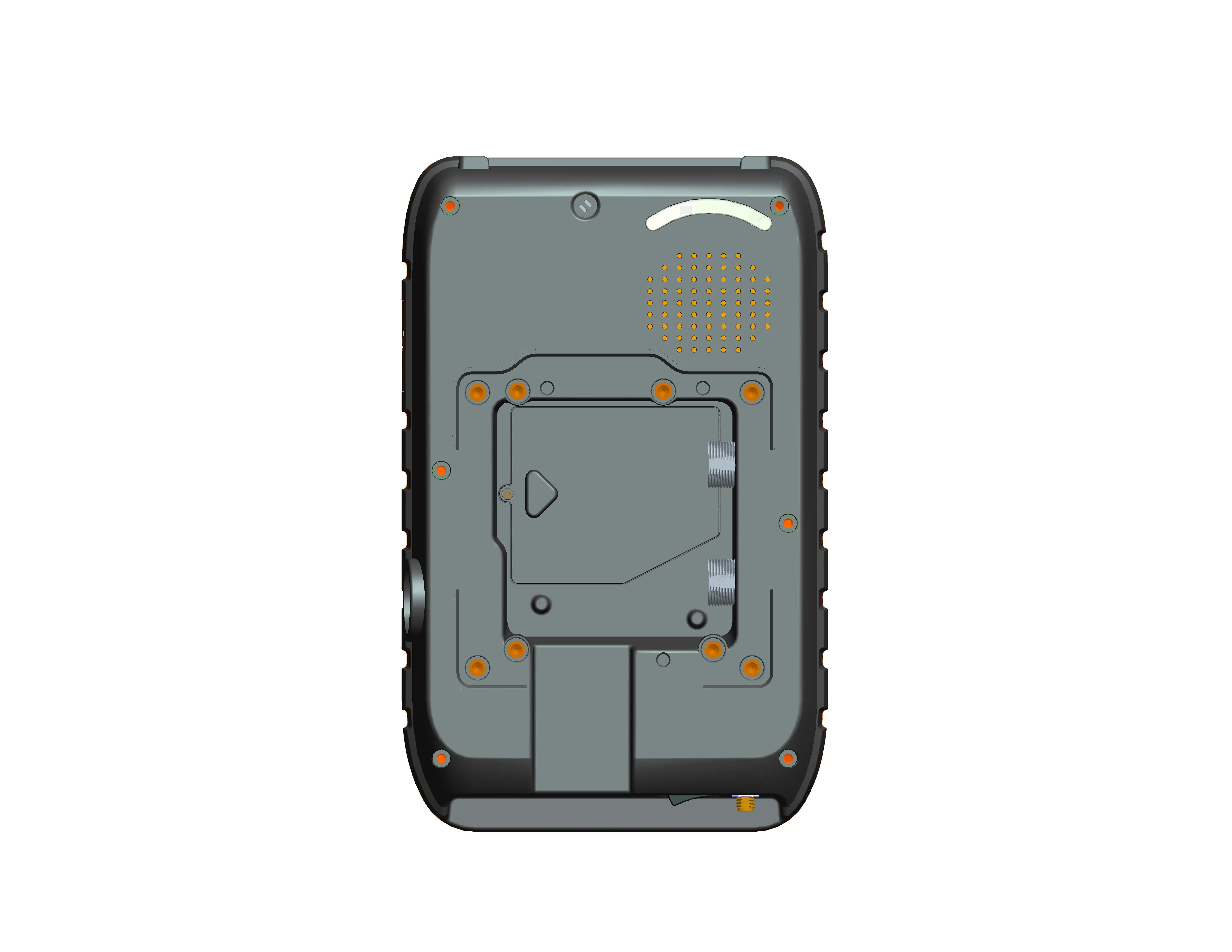

Смарт-проверка шины CV90 NFC
Смарт-проверка шины CV90 NFC
Смарт-проверка шины CV90 NFC
Смарт-проверка шины CV90 NFC

Смарт-проверка шины CV90 NFC


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.70 $* 0.82 $*
Aug-16-2025 0.40 $* 0.47 $*
Jul-16-2025 0.45 $* 0.53 $*
Jun-16-2025 0.84 $* 0.97 $*
May-16-2025 0.37 $* 0.75 $*
Apr-16-2025 0.88 $* 0.42 $*
Mar-16-2025 0.82 $* 0.78 $*
Feb-16-2025 0.96 $* 0.42 $*
Jan-16-2025 0.27 $* 0.4 $*

Характеристики


Product Description
ITEM
TECHNICAL SPECIFICATION
CPU
High-performance 32-bit security CPU
Memory
FLASH: Capacity 16MB+16MB
RAM: Capacity 1024KB+128KB
Record no less than 50,000 (64 bytes/bar), and the number of double backups is 20,000.
Display
240*128 pixels, 4 inches, FSTN blue film dot matrix LCD with backlight
Buttons
Up, down, cancel, confirm, a total of 4 buttons
Contactless Card Reader
Supports ISO/IEC 14443 Type A&B, Mifare I logical encryption card, Mifare DesFire card, CPU card based on MIFARE PRO technology
Working Frequency
13.56MHz
Swipe Transaction Speed
Transaction processing process is less than 0.3S
Credit Card Transaction Distance
Trading Distance: ≤100mm
SAM Card Holder
Standard PSAM card holder
Support 1.8V, 3V or 5V cards conforming to ISO7816 specification
Real-time Clock
Built-in real-time clock, clock error less than 5 seconds / month, can be automatically corrected by manual or wireless
Buzzer
Support buzzer prompt
Voice Prompts
Supports voice prompts of more than 16 segments, the sound is clear and loud, and the volume is adjustable.
Support voice file upgrade
Indicator
Ower indicator 1 (red)
Status indicator one for each side (red and green)
One wireless status indicator (yellow)
Physical Interface
1 power interface (2-core air head)
1 RS232 (3-core aviation head), collection port
1 RS485 interface (4-core aviation head), RS485 bus communication interface
1 USB A port (USB Host), upgrade interface
Way of Communication
(Optional)
Optional GPRS, CDMA, 3G wireless communication
Optional WIFI communication
Encryption and Security
Adopt HASH, MD5, DES, AES and RSA Algorithms
Development Environment
SDK integrated development platform under WINDOWS, supporting standard ANSI C language
Font Library
Built-in GB18030 Chinese character library
Power Indicator
DC 8V～40V wide voltage, with reverse connection, overvoltage and overcurrent automatic protection and automatic recovery
Dimensions
230mm×144mm×60mm
Environment
Working temperature: -20°C～50°C
Storage temperature: -40°C～80°C
Storage humidity: 60°C, 95%R
Working Humidity
50°C, 5%~95%RH
Life
>6 years
CV80
FAQ

1. Are you manufacturing company or a trading company?
We are manufacturing company with our own factory and we could arrange a factory tour for you.

2. Can I get a sample from you?
Yes. You could contact us for a paid sample.

3. Do you have OEM/ODM services?
Yes. We have our own R&D team. Please contact us for details.

4. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. If you purchase large qty, you will get a better price.

5. Can I get some technical supports from you?
Yes! Our technical team gets ready at any time.

6. What's the payment term?
T/T, Western Union, Money gram, PayPal, etc.

7. What's the shipping way?
Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
