Китайский новый продукт новейшая технология полностью автоматическая производственная линия сухих строительных растворов 20-30 т/ч для
- Категория: Машины для сухой смеси >>>
- Поставщик: Zhengzhou,MG,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 59500.34 $* | 62475.72 $* |
| Aug-15-2025 | 59000.38 $* | 61950.7 $* |
| Jul-15-2025 | 49500.68 $* | 51975.16 $* |
| Jun-15-2025 | 58000.69 $* | 60900.70 $* |
| May-15-2025 | 50500.46 $* | 53025.59 $* |
| Apr-15-2025 | 57000.36 $* | 59850.62 $* |
| Mar-15-2025 | 56500.69 $* | 59325.86 $* |
| Feb-15-2025 | 56000.0 $* | 58800.38 $* |
| Jan-15-2025 | 55500.75 $* | 58275.34 $* |
Характеристики
Product Description
China new product latest technology 20-30T/H full automatic dry mortar production line for dry mortar production line
Product Description
MG full automatic dry mortar production line is used to produce many kinds of dry mortars, its working process is :the pretreatment raw materials will be lifted into raw material silo, then raw material is flowing through the hopper, Next, by computer ingredients, screw conveyor metering, mixing and packaging machine package to bags or in bulk or finished goods warehouse into the car storage process into the final product.
Techincal parameter of MG full automatic dry mortar production line | ||||||||||
Model | Output | Equipment height | Occupy area | Man power | Batching and packing | |||||
Simple type | 3T/H | 3-4m | 20m2 | 2-3 person | Manual batching Automatic packing | |||||
Improved simple type | 4-5T/H | 3-4m | 20m2 | 2-3 person | Manual batching Automatic packing | |||||
Semi-automatic type | 6-8T/H | 6-8m | 40-50m2 | 3-4 person | Automatic batching Automatic packing | |||||
Automatic type | 20-30T/H | 12-15m | 80-100m2 | 3-4 person | Atuomatic batching Automatic packing | |||||
Advantages of MG automatic dry mortar production line:
1) Excellent mixing performance with high efficiency and high productivity
2) Environment protection by dust collection system and anti-noise design
3) Easy to operation
4)Convenient structures for disassembly
5)Super property and low production cost;
6) Less space demand;
7).Full -automatic electric operation with PLC/PC control;
8) Electrical weighing system
1) Excellent mixing performance with high efficiency and high productivity
2) Environment protection by dust collection system and anti-noise design
3) Easy to operation
4)Convenient structures for disassembly
5)Super property and low production cost;
6) Less space demand;
7).Full -automatic electric operation with PLC/PC control;
8) Electrical weighing system
Allication of MG full automatic dry mortar production line & Dry mortars
Certifications
Detail configuration
Material storage silo
MG full automatic dry mortar plant equip100T material storage silos, the silo can be used to storage cement, sand, flyash, aggregrate. It also can equip bucket elevator to fill the silos as customer requirement.
Weighing hopper
MG full automatic dry mortar plant equip automatic weighing hopper, it can realize automatic feeding and automatic dosing of the raw material, controled by the PLC control cabinet.
Name: Double shaft paddle mixer
MG New type of double shaf paddle mixer introduce german technology, can mixer material with high efficiency and uniformally, it can mix one batch material within 3-5 minutes, it also equip fly cut system for fiber breaking.
Name: Finish product hopper
It used to storage finish product and fix under the mixer, and also it equip ribbons to realize second mixing, make sure the mixing of product more uniformally and product not block when packing.
Name: Packing machine
MG Valve port packing machine can pack dry powder material from 15-50kg per bag adjustable, It can pack one 25kg bag within 6 seconds, the accuracy is very good, it can be 99.8%
Name: Dust collector
MG Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove.

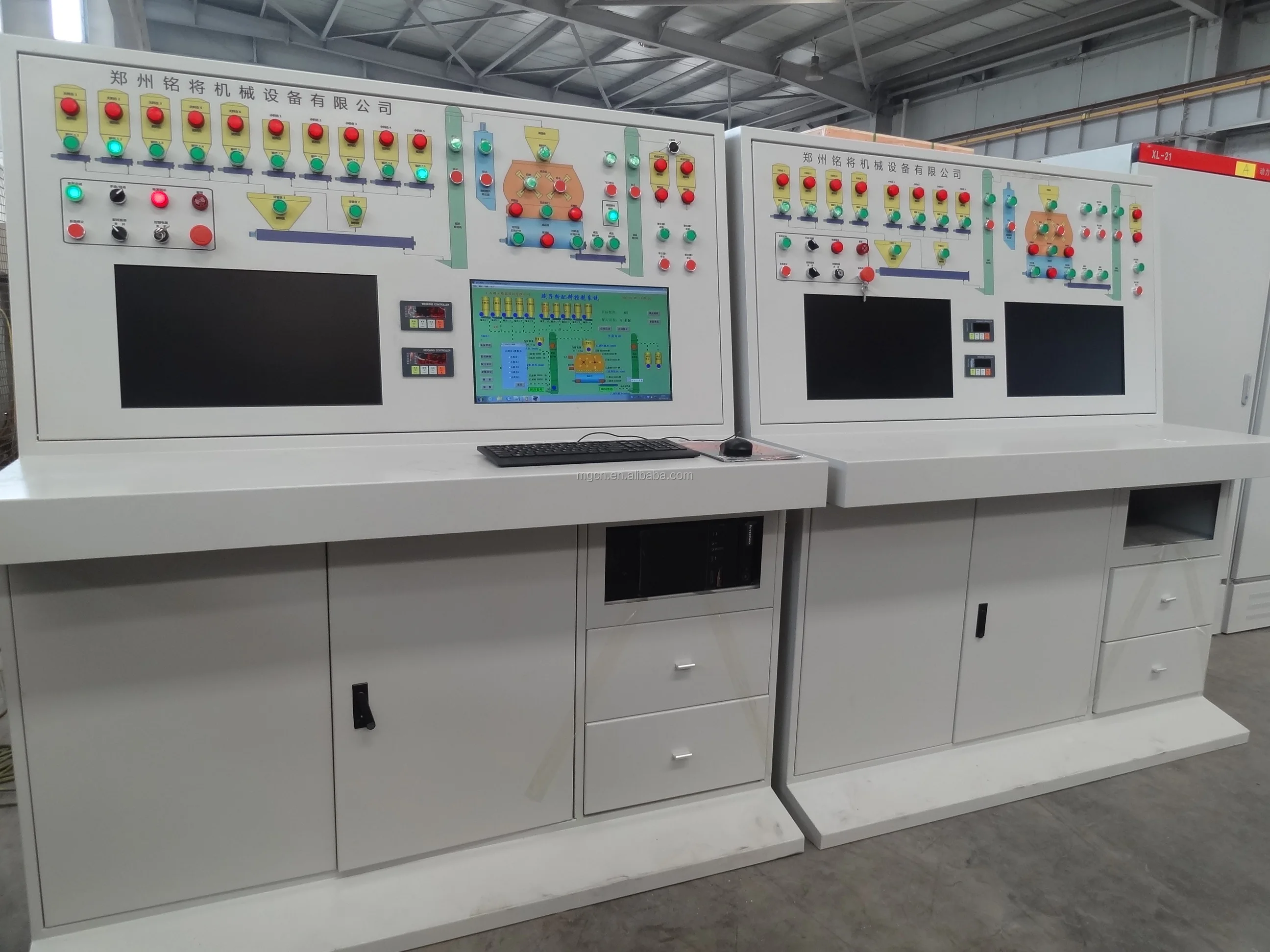

PLC Control cabinet
It use automatic PLC control system and touch screen system to realize automatic control.
Steel platform
We use tower type steel platform to make sure the machine occupy less area. The steel platform is three layers use big size channel steel and H type steel, make sure the machinery stablely when it working. This kind full automatic dry mortar plant usually equip bulk truck discharging system and the platform for it.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Introduction
Office building(Left) and Workshop(Right)
Machine production equipment in our factory
Workshop inside photos
Why choose us
We are factory and professional manufacturer of dry mortar plant machinery, we mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):
1. Over 20 years experience in this line. since 1998, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;
2. We provide to customers with combat experience of decade years of construction management and multiple efficient project solution.
3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.
We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.
Foeign customers visit our factory for the full automatic dry mortar plant
Packing & Delivery
Packaging | ||
Size | 12m(L) * 2.3m (W) * 2.5m (D) | |
Weight | 10 T | |
Packaging Details | The normal package is wooden box(Size: 1.2*1.2*1) and bubble wrap packing, If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 12m (L) * 2.3m (W) * 2.5m (D) | |
Weight | 12 T | |
Packaging Details | The normal package is wooden box(1.2m: L*W1.2m*H)1.0m. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

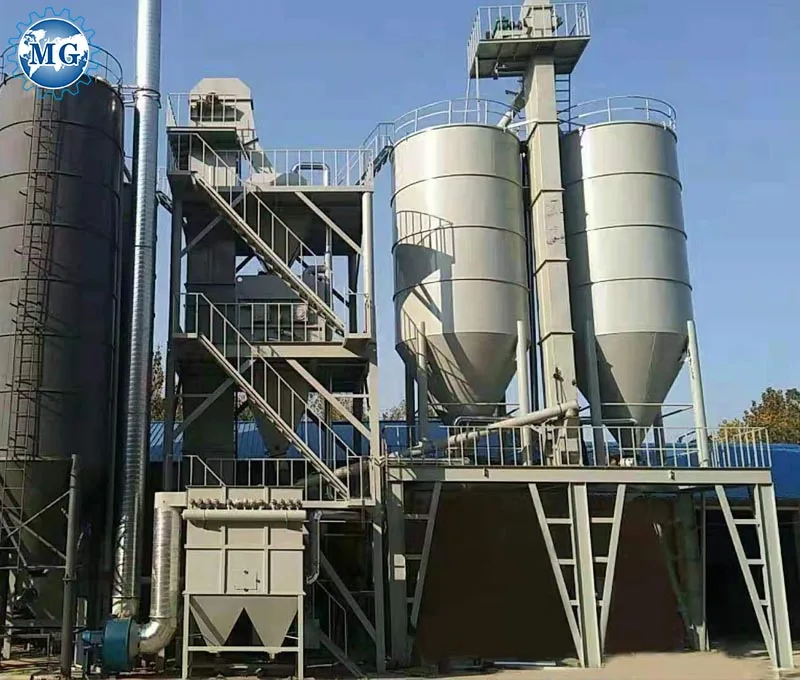

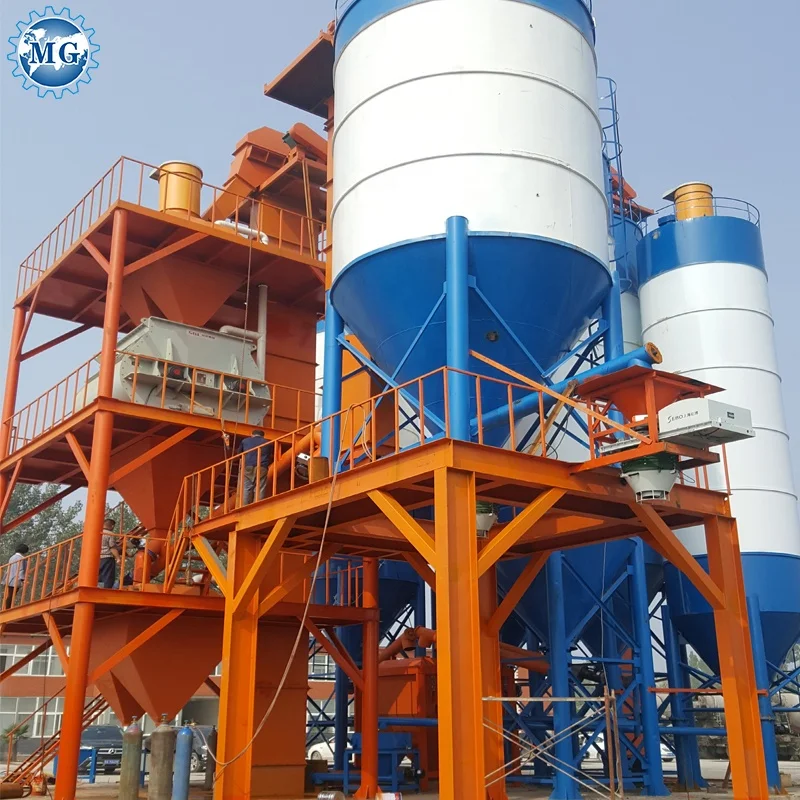

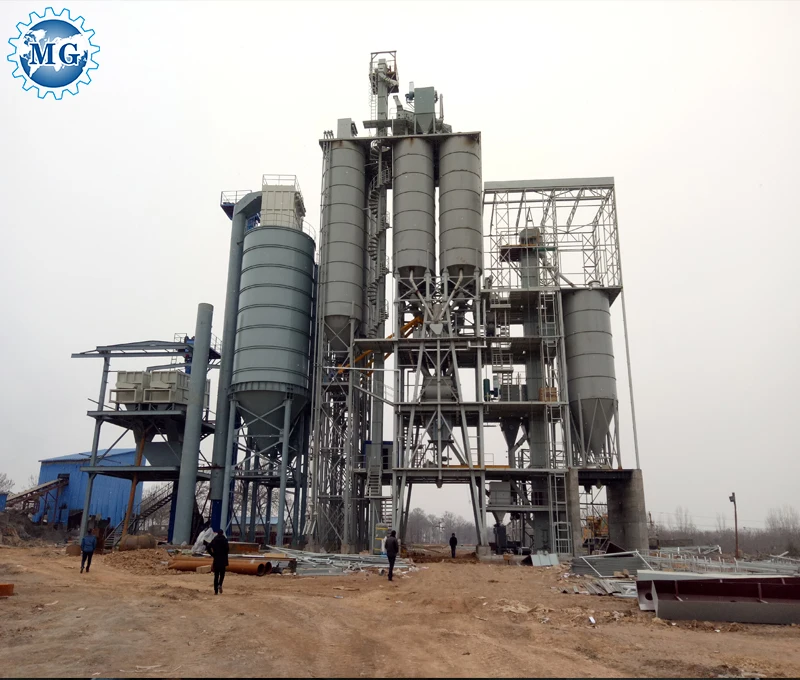

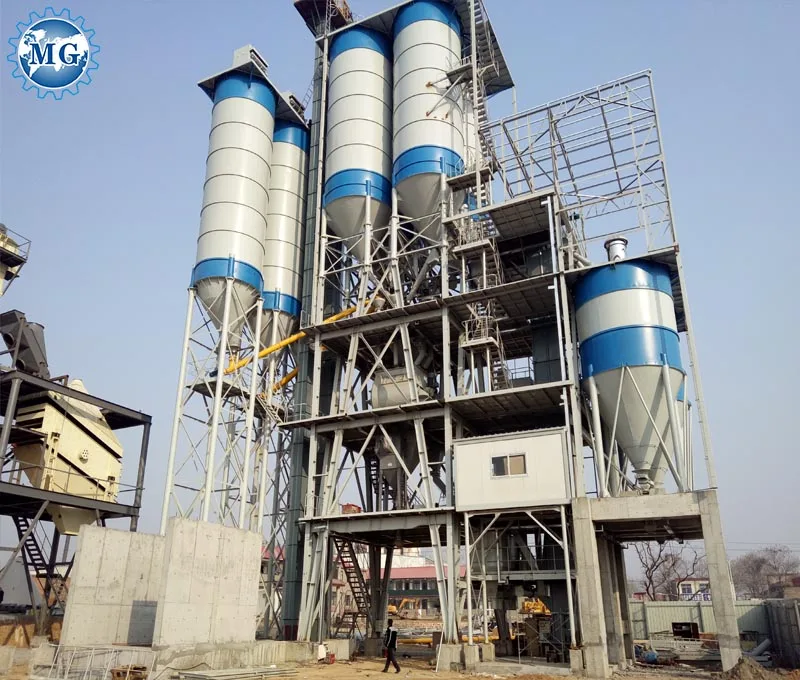

Sucessful projects
