Сухой гипсовый порошковый блендер Горизонтальный двухвальный лопастной
- Категория: Dry Mortar Machines >>>
- Поставщик: Henan,Mind,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.20 $* | 0.31 $* |
| Aug-15-2025 | 0.26 $* | 0.67 $* |
| Jul-15-2025 | 0.32 $* | 0.36 $* |
| Jun-15-2025 | 0.35 $* | 0.11 $* |
| May-15-2025 | 0.59 $* | 0.22 $* |
| Apr-15-2025 | 0.23 $* | 0.11 $* |
| Mar-15-2025 | 0.61 $* | 0.89 $* |
| Feb-15-2025 | 0.20 $* | 0.89 $* |
| Jan-15-2025 | 0.89 $* | 0.22 $* |
Характеристики

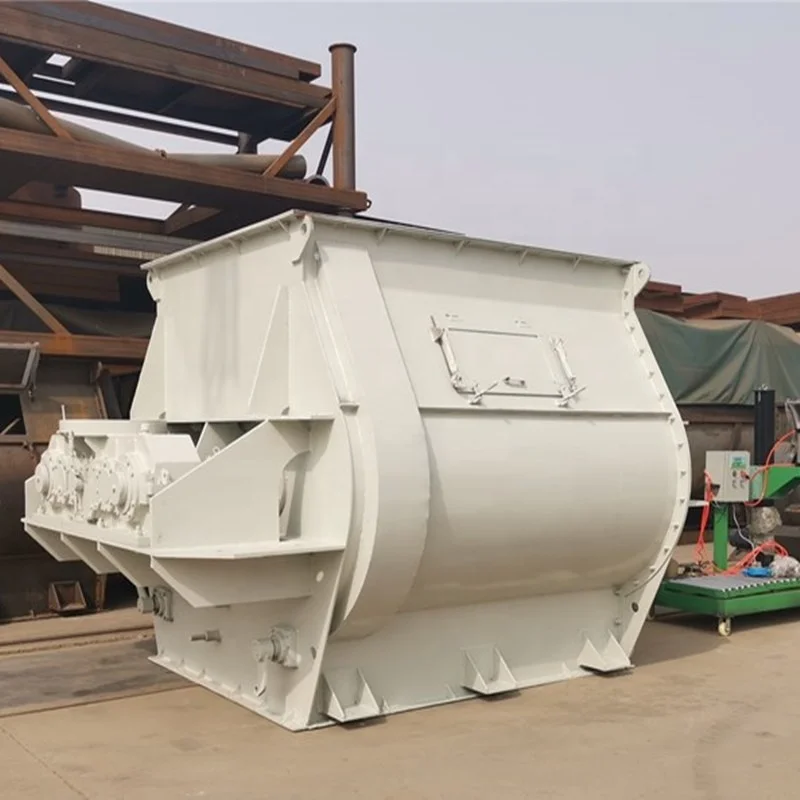

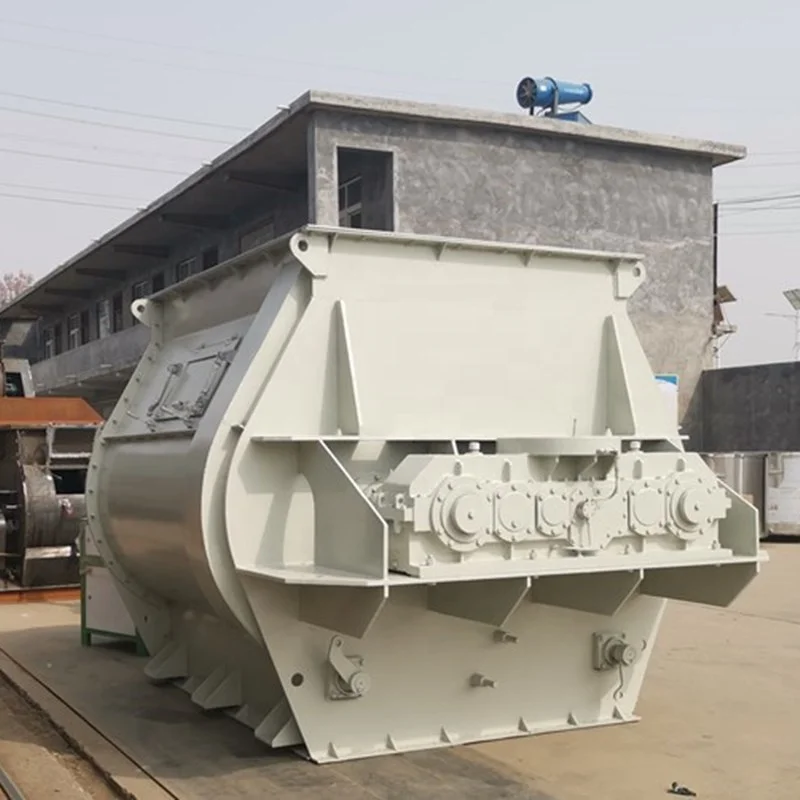

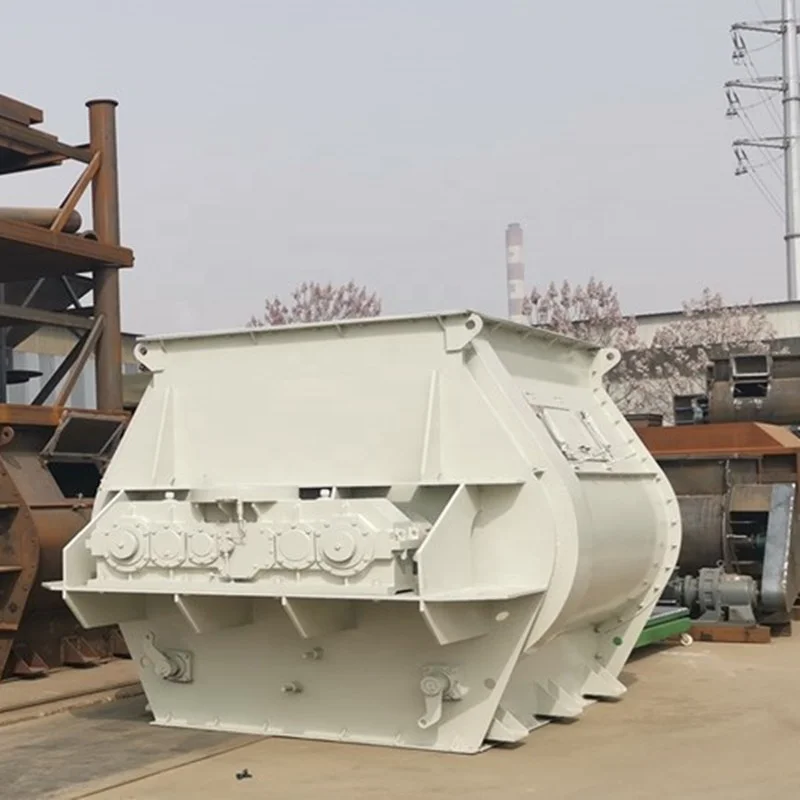

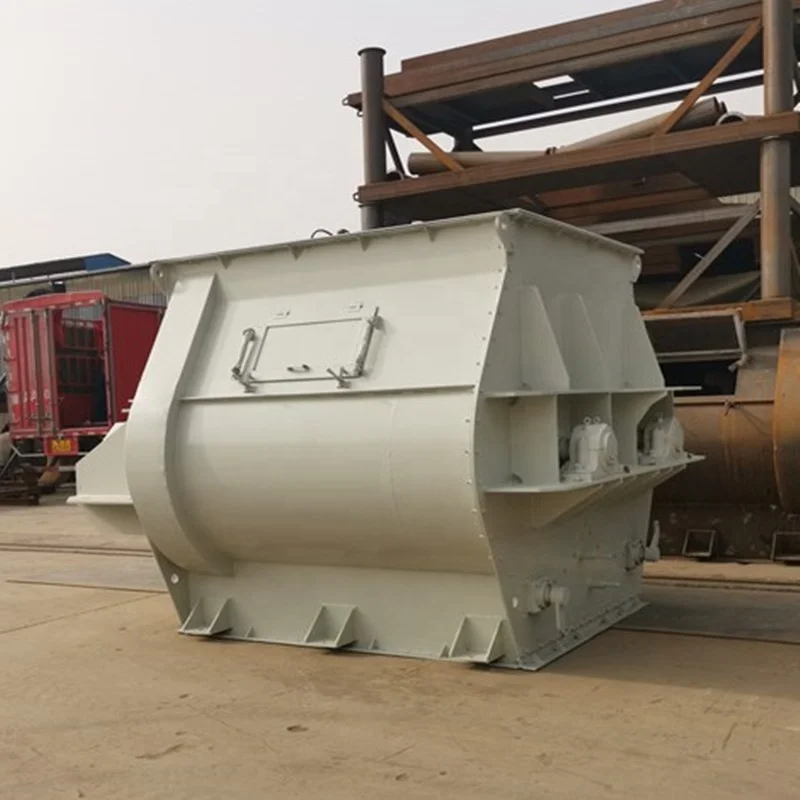

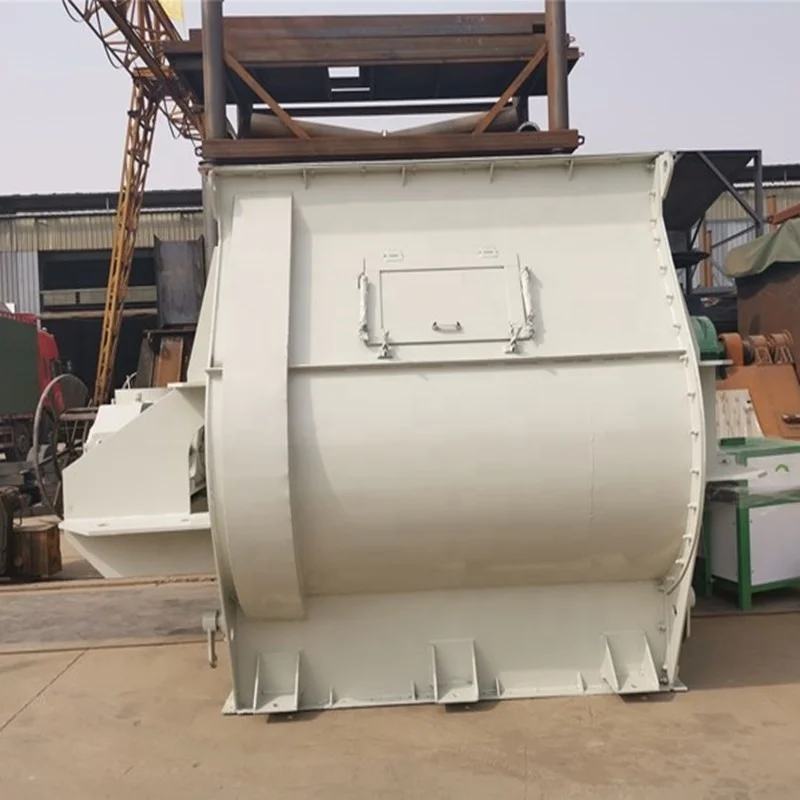

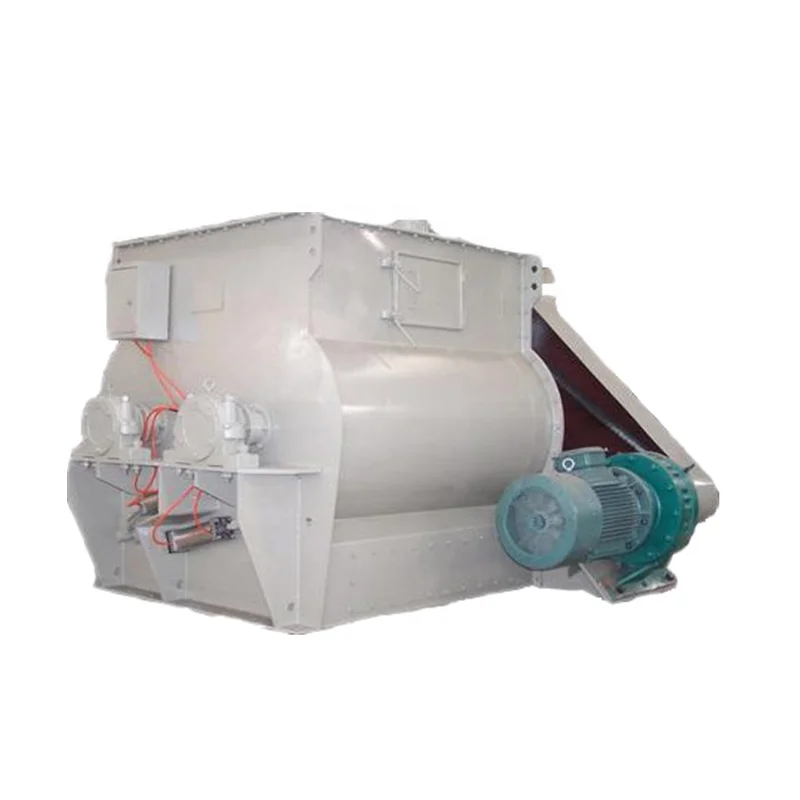

Dry Gypsum Powder Blender Horizontal Double Shaft Paddle Mixer
Product Description
Applications:
The double shaft horizontal mixer (non-gravity particle mixer or double-shaft paddle mixer) produced by our company is widely used in the processing of materials in the chemical, pesticide, dye, beverage, food additive and other industries. Can be solid-solid (powder and powder) mixing, solid-liquid (spray liquid in powder) mixing. It can also be mixed under vacuum. This machine has the characteristics of fast mixing speed, high mixing accuracy, no segregation, mild mixing and low energy consumption, large loading coefficient, stable operation, sealed operation, no environmental pollution, convenient installation, use, maintenance and repair.
Working principles of Dry Gypsum Blender:
(1)The machine is equipped with two stirring shafts with many blades on it. The blades rotate in opposite directions to force the material to make spiral movement.
(2)When the material reaches one side of the machine, the shafe will turn it over to the other side where there is another shaft making the same movement.
(3)When the crossed blades are moving, a fluidized weightlessness and rotation vortex is formed in the center of the chamber.
(4)According to the movement locus of the material in the weighelessness mixer, the space can be devided into three zones: The rotation zone, the revolution zone (circumferential movement) and the weightless zone, which will form a full cycle to achineve the rapid mixing purpose.
Features of Double Shaft Paddle Mixer:
Double shaft paddle mixer is an ideal mixing machine with low-speed, high-efficient and energy-saving characteristics. 3~8min/batch can reach uniform mixing (common material). Stable discharging, no material leaking, large adjustment range of load quantity, 60%-70% load can reach ideal mixing effect.
More Details
Specifications of Horizontal Paddle Mixer:
| Model | 2000 | 3000 | 4000 | 6000 |
| Discharge capacity (t/batch) | 1-1.5t/batch | 2-2.5t/batch | 3-3.5t/batch | 4-4.54t/batch |
| Mixer cylinder volume(m3) | 2 | 3 | 4 | 6 |
| Mixing time | 3-5min | 3-5min | 3-5min | 3-5min |
| Motor power | 18.5kw | 22kw | 37kw | 37kw |
| Shaft rotate speed | 43r/min | 43r/min | 43r/min | 43r/min |
| Coefficient of variation(CV) | <=5% | <=5% | <=5% | <=5% |
| Paddle blade quantity | 2*14=28pcs | 2*14=28pcs | 2*14=28pcs | 2*14=28pcs |
| Overall dis(mm) | 2600*1600*1650 | 3000*1600*1650 | 3000**2200*2000 | 3000*2450*2200 |
Operation requirements:
(1) Rated working pressure: 0.6-0.8Mpa. Air supply keeps the working pressure of cylinder higher than 0.6Mpa.
(2) Air seal main shaft, work pressure: 0.1-0.2Mpa.
(3) Turn on mixer and then feeding, after discharging then turn off.
(4) Metal or impurity with size over 3mm is forbidden to mixer.
(5) Feed additives after half main materials are fed inside the mixer, spray oil after all main materials within the mixer, discharge all materials after even mixing.
(6) Common mixing time is 3-8min/batch, special material mixing time can be set by customers.
(7) The fineness of mixed material is 20-400 meshs
(8) Carbon steel mixer forbidden mixing corrosive materials.
Packaging & Shipping
Delivery Time | a. If stock machine, we can send out your products within 5-7 days after receiving clients’ payment. b. If you need special molds or customized production line, the delivery time according to you machine quantity, but we will send out as soon as possible. |
Payment Terms | T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union |
Package | a. If you order single machine, it can be packed in one wooden case. |
Quality Guarantee Terms | a. Quality guarantee term is for one year. b. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. c. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Company Information
1. Henan Mind Machinery Equipment Co., Ltd. located in Henan province, Zhengzhou city - industrial hub in China.
2. The items of our company sell well throughout the country and are exported to Southeast Asia, Africa, Middle Asia, Europe, America and so on.
3. After years of hard work, the company has established a complete and effective service system, and has built an experienced service team to provide free planning for customers. Design and installation of basic diagrams and flow charts, provide professional technical training.
Certifications:
Our Services
Pre-sale service:
1. Instruct customers to choose the most suitable equipment model.
2. Can manufacture products according to special requirements.
In-sale service:
1. Professional and technical personnel install the distribution before the goods are issued.
2. The product is strictly inspected before delivery and delivered according to the contract.
After-sales service:
1. Equipment commissioning, operation, training operators.
2. Engineers available to service machinery overseas.
FAQ
1. Are you a factory or agent?
We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time you like.
2. As a oversea buyer, I wonder if you could send us engineer for installation and maintenance?
The machines are test without problem before shipping. Just connect to power the machine will work .We will always do our best to solve your problem wahtever in one year or not,and you need not to pay for unnecessary in reasonable price.
3. I worry about there is a difference of supply voltage between our countries.
Usually our power supply is 3p 220-450v 50/60HZ,and we will confirm your supply voltage when we are going on business.
4. Why choose us?
1. Specialize in packaging machinery and 10 Years of experience in packaging machinery.
2. Strict QC process to make sure each product with good quality.
3. Various equipments to meet your need.
