Высококачественные термоплавкие гранулы двухшнековый экструдер для экструдера пищевых продуктов домашних
- Категория: Pet Food Processing Machines >>>
- Поставщик: Nanjing,Cowin,Extrusion,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.9 $* |
| Aug-16-2025 | 0.94 $* | 0.94 $* |
| Jul-16-2025 | 0.53 $* | 0.12 $* |
| Jun-16-2025 | 0.72 $* | 0.33 $* |
| May-16-2025 | 0.89 $* | 0.89 $* |
| Apr-16-2025 | 0.24 $* | 0.22 $* |
| Mar-16-2025 | 0.28 $* | 0.95 $* |
| Feb-16-2025 | 0.90 $* | 0.45 $* |
| Jan-16-2025 | 0.20 $* | 0.13 $* |
Характеристики
Product Description
Water ring pelletizer is suitable for the pelletizing of most thermoplastics, including filled and reinforced products, such as:
(1) PE, EVA etc. filled with CaCO3, talc, TiO2, carbon black etc.
(2) Cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, or MDPE
(3) Radiation-crosslinkable, heat-shrinkable cable compounds
(4) PPR pipe compounds, PE compounds for crosslinked pipes; TPR, TPU, TPV thermoplastic elastomers; EVA and hot-melt adhesives
(5) Color concentrates of PE, ABS, PS, EVA, etc.
(6) Flame retardant master batches of ABS, EVA etc.
(7) Master batches with PE, PP, PS etc as carriers for degradation applications
In water ring pelletizers, the cooling and transport medium, water, does not come into contact with the die plate. The circulating knives cut the melt strands and fling the hot molten pellets into the circulating water ring. The water flow conveys the pellets out of the pelletizer hood.
SPECIFICATION
Machine model | Screw diameter (mm) | Screw speed (r/min) | Motor power (kw) | Torque (N.M) | Specific torque (T/A3) | Output (kg/h) | |
CHT-20 | A | 22 | 400 | 4 | 48 | 7.6 | 1~10 |
B | 22 | 500 | 5.5 | 52 | 8.4 | 5~15 | |
C | 22 | 600 | 7.5 | 59 | 9.6 | 10~20 | |
D | 22 | 750 | 11 | 70 | 11.2 | 15~30 | |
CHT-30 | A | 30 | 300 | 11 | 175 | 9.9 | 15~30 |
B | 30 | 400 | 15 | 180 | 10.2 | 30~50 | |
C | 30 | 500 | 18.5 | 176 | 10 | 40~60 | |
D | 30 | 600 | 22 | 175 | 9.9 | 60~80 | |
CHT-40 | A | 41 | 300 | 30 | 477 | 11.6 | 80~100 |
B | 41 | 400 | 37 | 441 | 10.7 | 100~120 | |
C | 41 | 500 | 45 | 429 | 10.5 | 120~150 | |
D | 41 | 600 | 55 | 437 | 10.6 | 150~180 | |
CHT-52 | A | 51.4 | 300 | 45 | 716 | 9 | 120~150 |
B | 51.4 | 400 | 55 | 656 | 8.3 | 150~180 | |
C | 51.4 | 500 | 75 | 716 | 9 | 250~280 | |
D | 51.4 | 600 | 90 | 716 | 9 | 280~300 | |
CHT-65 | A | 62.4 | 300 | 90 | 1432 | 10.2 | 280~300 |
B | 62.4 | 400 | 110 | 1313 | 9.3 | 300~400 | |
C | 62.4 | 500 | 132 | 1260 | 8.9 | 400~500 | |
D | 62.4 | 600 | 160 | 1273 | 9.1 | 500~600 | |
CHT-75 | A | 71 | 300 | 132 | 2101 | 9.7 | 400~500 |
B | 71 | 400 | 160 | 1910 | 8.8 | 500~600 | |
C | 71 | 500 | 220 | 2101 | 9.7 | 600~700 | |
D | 71 | 600 | 250 | 1990 | 9.2 | 800~1000 | |
CHT-85 | A | 81 | 300 | 185 | 2944 | 9.4 | 600~700 |
B | 81 | 400 | 250 | 2984 | 9.6 | 800~1000 | |
C | 81 | 500 | 315 | 3008 | 9.6 | 1000~1200 | |
D | 81 | 600 | 350 | 2902 | 9.3 | 1000~1500 | |
CHT-95 | A | 93 | 300 | 280 | 4456 | 9.4 | 900~1100 |
B | 93 | 400 | 355 | 4237 | 9 | 1000~1200 | |
C | 93 | 500 | 450 | 4297 | 9 | 1200~1500 | |
D | 93 | 600 | 550 | 4377 | 9.2 | 1500~2000 | |
CHT-135 | A | 133 | 300 | 400 | 6366 | 4.8 | 1000~1300 |
B | 133 | 400 | 550 | 6565 | 4.9 | 1100~1600 | |
C | 133 | 500 | 650 | 6207 | 4.7 | 1500~2200 | |
D | 133 | 600 | 800 | 6366 | 4.8 | 2000~3000 | |
FLOW CHART
1. high-speed mixer 2. main feeder 3. side feeder 4.twin screw extruder 5. water-ring granulator 6. centrifugal dewatering
7. vibrating sieve 8. silo
Company Information
Cowin Extruder

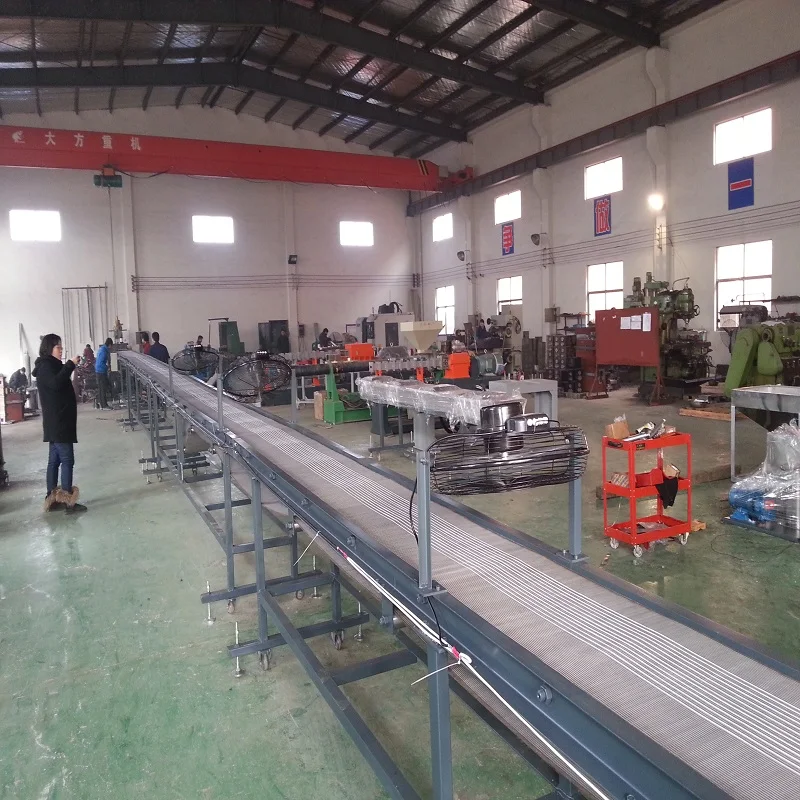

Production Line
Production Flow
Made in Cowin
Packing and delivery
Our Services
Commissioning service includes supervision of installation and start-up, on-site training. Service charges are free.
· Free technical service and technical consultation should be adhered to before, during and after sales.
· Provide a complete set of technical information (including electrical schematic diagram, wiring diagram, outsourced parts instructions, product use instructions, etc.).
· Provide unit production process layout drawing, main screw assembly drawing, transmission box overhaul drawing;
· With the change of processing materials and processes and the development of new products, the corresponding screw assembly drawing and various technical consultation are provided free of charge.
· The equipment is guaranteed free of charge for one year. After the expiration of the warranty period, we still insist on after-sales service, spare parts only charge the cost price.
