Емкостный сенсорный экран с открытой рамой
- Категория: Tablets & Presentation Equipment >>>
- Поставщик: Shenzhen,Greentouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 143.78 $* | 150.51 $* |
| Aug-15-2025 | 142.78 $* | 149.46 $* |
| Jul-15-2025 | 119.61 $* | 125.14 $* |
| Jun-15-2025 | 139.64 $* | 146.25 $* |
| May-15-2025 | 121.80 $* | 127.95 $* |
| Apr-15-2025 | 137.71 $* | 144.67 $* |
| Mar-15-2025 | 136.93 $* | 143.55 $* |
| Feb-15-2025 | 134.64 $* | 141.65 $* |
| Jan-15-2025 | 133.81 $* | 140.93 $* |
Характеристики
Product Paramenters
Product Name | Touch Screen Monitor |
Model No. | GT-TM-1012C |
Display Type | Active Matrix TFT LCD, LED Backlight |
Touch Technology | Projected Capacitive (10 Points) |
Case/ frame Color | Black |
The Diagonal Dimension | 10.1" diagonal |
Aspect Ratio | 16:10 |
Overall Dimensions | 265mm(W) x179.5 mm(H),Thickness: 45 mm) |
Active Area | 216.96mm(H) x 135.6mm(V) |
Display Colors | 16.2M |
Resolution(pixel) | 1280 x 800 @ 60Hz |
Brightness(Standard) | 330 cd/m² |
Response time | 25 ms |
View Angle(from center) | L/R:80/80;U/D:80/80 (Typ.)(CR≥10) |
Contrast Ratio | 600:1(Typ.) |
Input | VGA,DVI,HDMI(optional DP) |
Input Video Signal Connector | Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector |
OSD | Digital OSD |
User Controls | OSD Button: Menu, Up, Down, Select, Power |
Power | Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm); | |
Temperature | Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C |
Humidity | Work: 20% to 80%; Storage: 10% to 90% |

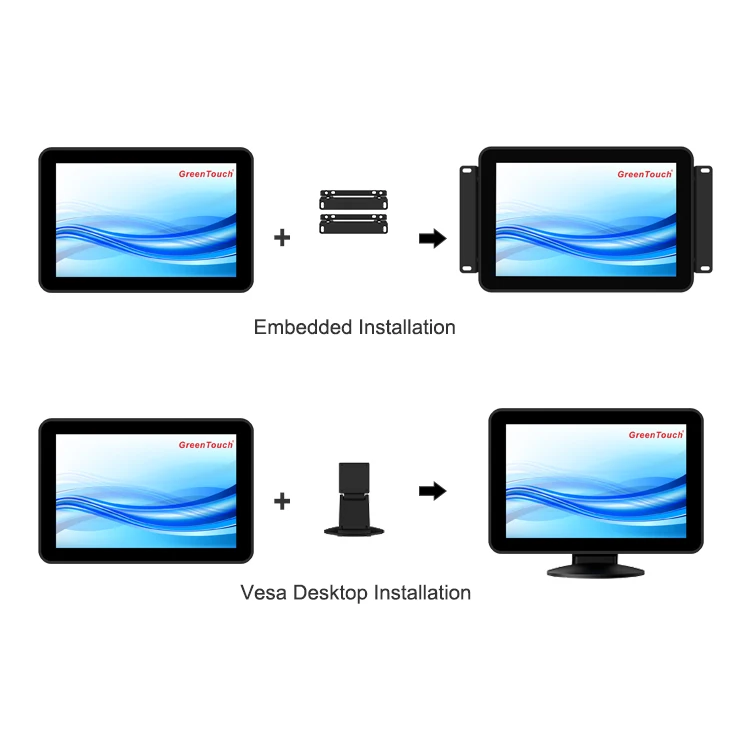

Installation options | Open Bracket Mounting,VESA Mounting; |
Warranty | 1 Year |
Certificates | FCC, CE,RoHS,CB,HDMI |
Size | Model | Ratio | Overall Dimensions （W*H*T) | Active Area | Brightness | Resolution | Net weight （approximate） | |
10.1“ | GT-TM-1012C | 16:10 | 265*179.5*45mm | 216.96*135.6mm | 330 cd/m² | 1280*800 @Hz | 2.8 kg | |
15” | GT-TM-1502C | 4:3 | 355*279*47mm | 304*228mm | 300 cd/m² | 1024*768 @Hz | 4.21 kg | |
15.6“ | GT-TM-1562C | 16:9 | 398*248*47mm | 344*193.5mm | 400 cd/m² | 1920*1080 @Hz | 3.67 kg | |
17” | GT-TM-1702C | 5:4 | 385*317*47mm | 337.9*270.3mm | 250 cd/m² | 1280*1024 @Hz | 4.97 kg | |
18.5“ | GT-TM-1852C | 16:9 | 457*281*47mm | 409.8*230.4mm | 250 cd/m² | 1366*768 @Hz | 4.98 kg | |
19” | GT-TM-1902C | 5:4 | 430*355*47mm | 376.3*301mm | 250 cd/m² | 1280*1024 @Hz | 5.9 kg | |
21.5“ | GT-TM-2152C | 16:9 | 532*319*47mm | 476.6*268.1mm | 250 cd/m² | 1920*1080 @Hz | 6.3 kg | |
22” | GT-TM-2202C | 16:10 | 527.2*350*60mm | 473.7*296.1mm | 250 cd/m² | 1920*1080 @Hz | 7.5 kg | |
23.6“ | GT-TM-2362C | 16:9 | 581.8*350.8*60mm | 521.2*293.2mm | 300 cd/m² | 1920*1080 @Hz | 7.7 kg | |
23.8” | GT-TM-2382C | 16:9 | 586*356*47mm | 527*296.4mm | 250 cd/m² | 1920*1080 @Hz | 7.55 kg | |
27“ | GT-TM-2702C | 16:9 | 655.7*396*55mm | 597.8*336.3mm | 300 cd/m² | 1920*1080 @Hz | 10.38 kg | |
32” | GT-TM-3202C | 16:9 | 749.1*452.7*65mm | 698.4*392.8mm | 400 cd/m² | 1920*1080 @Hz | 13.3 kg | |
43“ | GT-TM-4302C | 16:9 | 1007.3*596.6*69mm | 940.8*529.2mm | 400 cd/m² | 1920*1080 @Hz | 15.2 kg | |
49” | GT-TM-4902C | 16:9 | 1141.9*672.2*71mm | 1073.7*604mm | 380 cd/m² | 1920*1080 @Hz | 18.2 kg | |
55“ | GT-TM-5502C | 16:9 | 1277.7*748.5*70mm | 1209.6*680.4mm | 400 cd/m² | 1920*1080 @Hz | 20.2 kg |
Engineering Drawings GT-TM-1012C
