                              single phase transformer 30kva 220v to 110v



Why choose us:

All our voltage transformer we afford 2 years warranty(include customized one),

All our products'insulation level is H( no need add extra fees up F to H),

All our  prodducts using 200 ° high temperature resistance  material.(the best material in the market)

All our prodcuts we got CE,ROHS,ISO:9001 certificate.

All our products 10pcs can delivery within 7 work days.

We free for printed your logo on our Machine.

Storng R&D ,Customized welcome, our drawing send to your firstly,specification secondly, quotation lastly.

Welcome to enquiry and join us, we will try our best do the best for you~.~

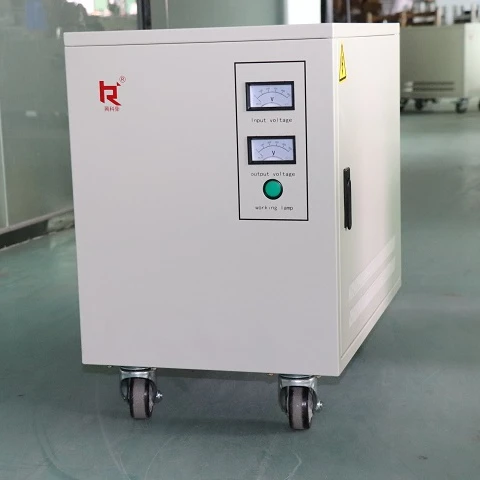

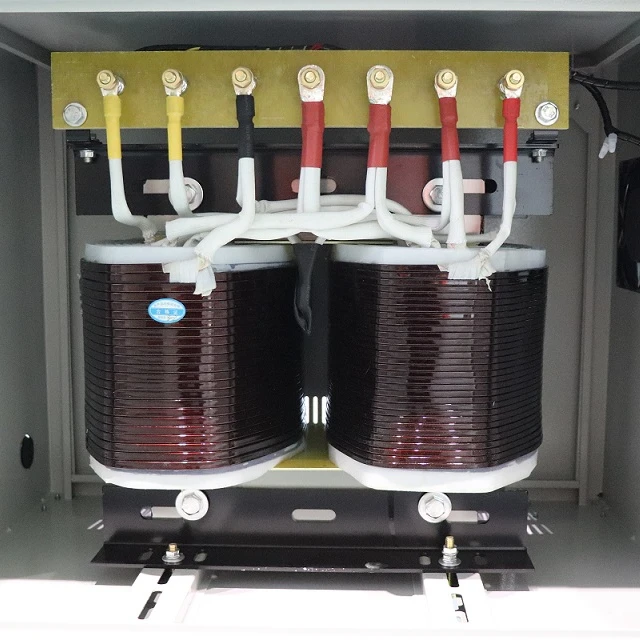

30kva isolation transformer detail pictures:



 Technical specifications:

Rated capacity	30KVA
phase number	Single PhasesInput voltage
Input voltage	220VAC
Output voltage	110VAC
Working frequency	50/60HZ
Short Circurt Impedance	4%
Voltage Resistance	2500VAc/min (does not have the puncture, no break down)
Insulation Level	Level H
Insulation Resistance	> 100MΩ/ DC500V
Material	Transformer coil adopts 200 degree high temperature copper wire or aluminum wire. Silicon steel sheet, Baosteel, B50A470 material
Main material winding	Aluminum
Connection mode	Y(Can customized as your requirement)
Environment temperature	-10℃  +40℃ ;indoor enclosure, floor-mounted
Temperature rise limit:	100K (Actual temperature minus ambient temperature)
Cooling mode	Natural cooling/Fan system cooling
Size(W*D*H)	630*400*620mm
Weight	171KG
Warranty	2 years

Our Transformer Testing Items:

Testing items
No.	Test name	Routine Test	Optional Test
1	Input voltage test	√
2	0utput voltage test	√
3	No-load loss and current test	√
4	PRI leakage sense test	√
5	Insulation resistance	√
6	Impedance voltage	√
7	Pressure test	√
8	Insulation resistance	√
9	Winding resistance test	√
10	Temperature rise test	√	√
11	Efficiency		√
12	Connection method		√
13	Inrush current test		√
14	Sound level test		√
15	Waterproof test		√



Some of quality testing machine from Xingkerong:
