IP66 закрытый Электрический изоляционный переключатель переменного тока 3P 230 В 440 для

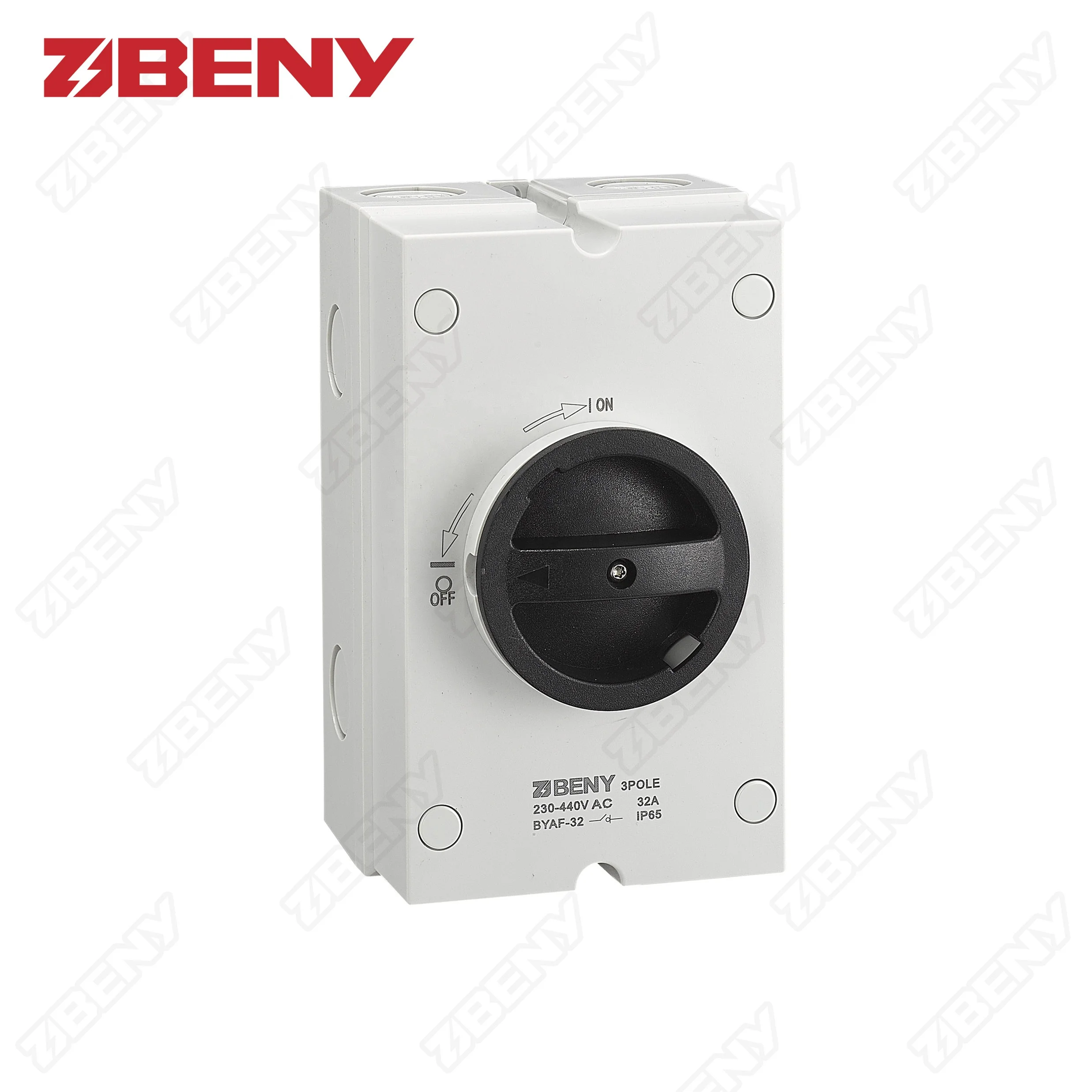

AC isolator switch BYAF-32 spec:

* 3P 4P for option

* 240VAC-440VAV 20A 25A 32A

* IP66 for any position mounting

* UV resistance and flame retardant material



* IEC 60947.3

* Lockable at off position

* 5 years warranty



Model	BYAF-32
Poles	3P  4P
Standard	IEC60947.3
Utilization Category	AC-22A
Rated Operational Voltage (Ue)	230V-440V 50HZ
Mechanical Cycle	15000
Electrical Cycle	1000
Protection Degree	IP66 enclosure/IP20 switch body
Polarity	No Polarity
Certificate	CE





On each solar PV installation including ZJBENY, we design and supply DC string level protection for solar PV safety.Thousands of solar PV installations with 0 failure.

DC components/Solar combiner box, DC safety solutions for all kinds of photovoltaic systems.

ZJBENY is located in Yueqing City, the switch city of China.

We are specialized in solar DC components for 30 years.

The first DC switch manufacturer listed by AS 60947.3:2018 and UL508i in China.

Top 1 DC components and DC string box supplier in China.
