Оптовая продажа под заказ антивандальная красная вывеска кнопка аварийного остановки водонепроницаемый кнопочный
- Категория: Other Switches >>>
- Поставщик: Ningbo,Supu,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2.51 $* | 2.96 $* |
| Aug-15-2025 | 2.6 $* | 2.12 $* |
| Jul-15-2025 | 2.50 $* | 2.16 $* |
| Jun-15-2025 | 2.44 $* | 2.37 $* |
| May-15-2025 | 2.39 $* | 2.24 $* |
| Apr-15-2025 | 2.65 $* | 2.63 $* |
| Mar-15-2025 | 2.27 $* | 2.95 $* |
| Feb-15-2025 | 2.76 $* | 2.84 $* |
| Jan-15-2025 | 2.15 $* | 2.16 $* |
Характеристики
Products Description
Standard | GB/T14048.5 IEC60947-5-1 |
Storage Ambient Temperature | -45℃~80℃ |
Usage Ambient Temperature | -25℃~55℃ |
Protection Level | IP65 IP67 |
Insulation Resistance | ≥100MΩ |
Contact Resistance | ≤50mΩ |
Power frequency withstand voltage | 2500V·1min |
Vibration resistance | 10…500Hz 5g |
Insulation Volgate | 600V |
Conventional thermal current | 10A(AC) |
Mechnical Endurance(Cycles) | - |
Electrical Endurance | AC15:100000 |
DC13:50000 | |
Contact Rated Capacity | - |
Specifications of special contact blocks | - |
Contact material | Silver alloy(AgNi) |
- | |
Impact resistance | 11ms,50g,Half wave sine |
Mounting Type | Screw connection |
Installation twisting | Max 0.8N.M |
ROHS Material | Yes |
Light Modules | - |
MTBF | More than 600000 times |

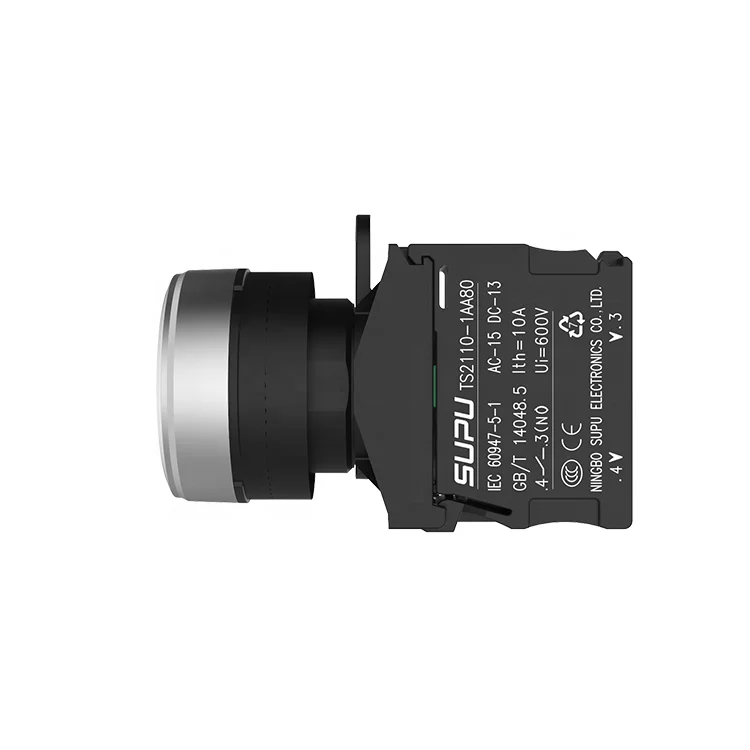

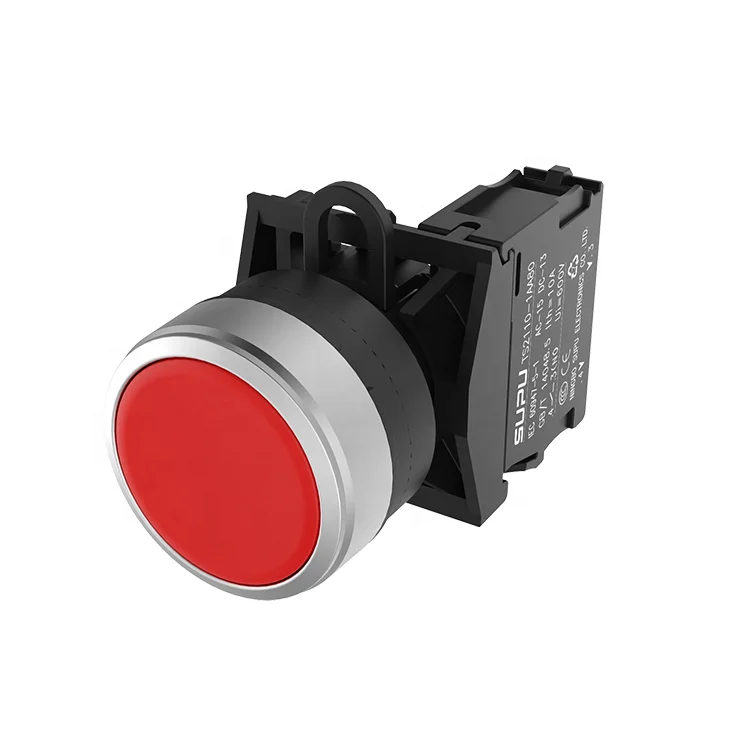

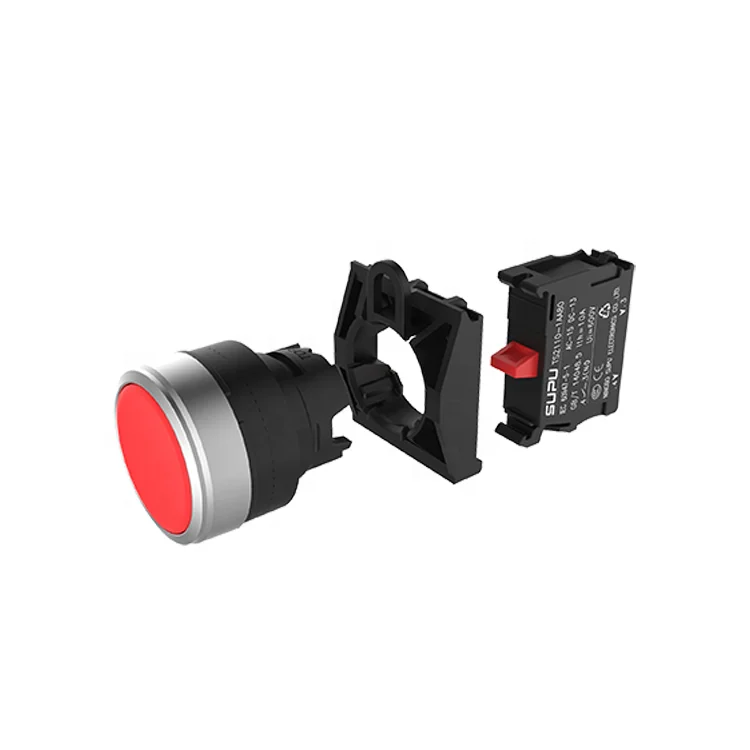

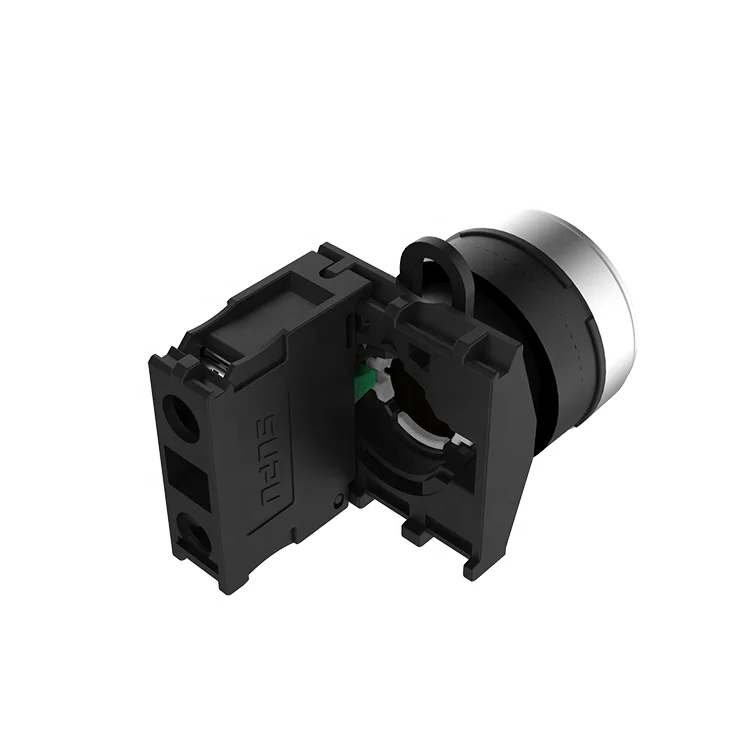

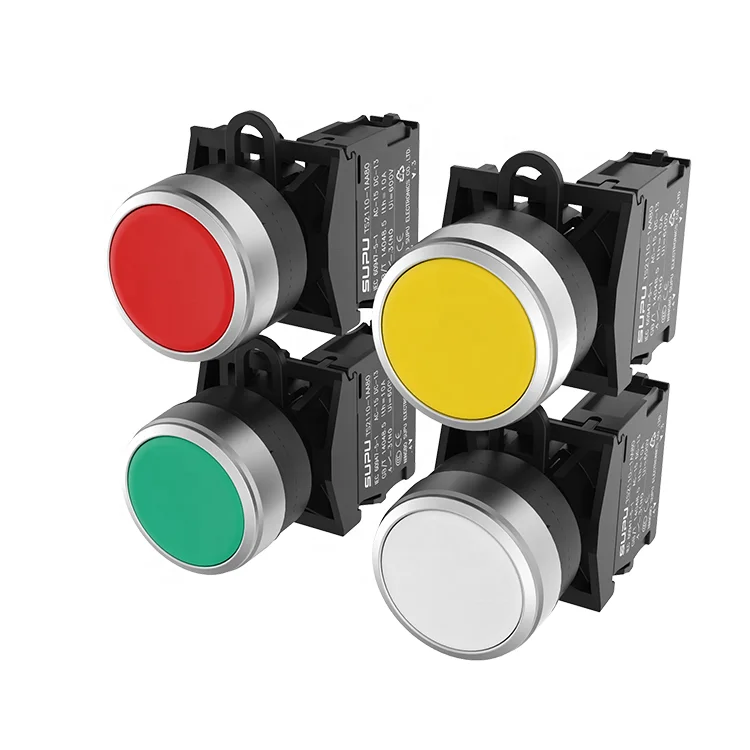

Details Images
Related Products
Company Profile
FAQ
Q1.Where is your company?
A1.Our company locates in No.625 Xingzhen Street ,Kandun , Cixi City , Zhejiang ,China . It cost 2 hours by car from here to
Shanghai Pudong airport.
Q2.How is your lead time of female Connector?
A2.We have strong production capacity . Our lead time is 3-10 working days since the confirmation of the order .The final exact lead time upon your order quantity.
Q3.How long will you reply after receiving the inquiry .
A3.We will reply our customer’s inquiry within 2 hours after we receive the inquiry.
A1.Our company locates in No.625 Xingzhen Street ,Kandun , Cixi City , Zhejiang ,China . It cost 2 hours by car from here to
Shanghai Pudong airport.
Q2.How is your lead time of female Connector?
A2.We have strong production capacity . Our lead time is 3-10 working days since the confirmation of the order .The final exact lead time upon your order quantity.
Q3.How long will you reply after receiving the inquiry .
A3.We will reply our customer’s inquiry within 2 hours after we receive the inquiry.
Packaging & Shipping
