Высокоскоростной 4g lte Wi-Fi роутер 450 Мбит/с торговый автомат POS-терминал

Product parameters

Dimensions

Length, width and height:83*66*26mm

(not include antenna interface)

Wireless interface

IEEE802.11b/g/n

Frequency band

2400-2483.5MHZ

main chip:

Ralink RT5350

Antenna

SMA external rotation hole

Transmission rate

150Mpbs

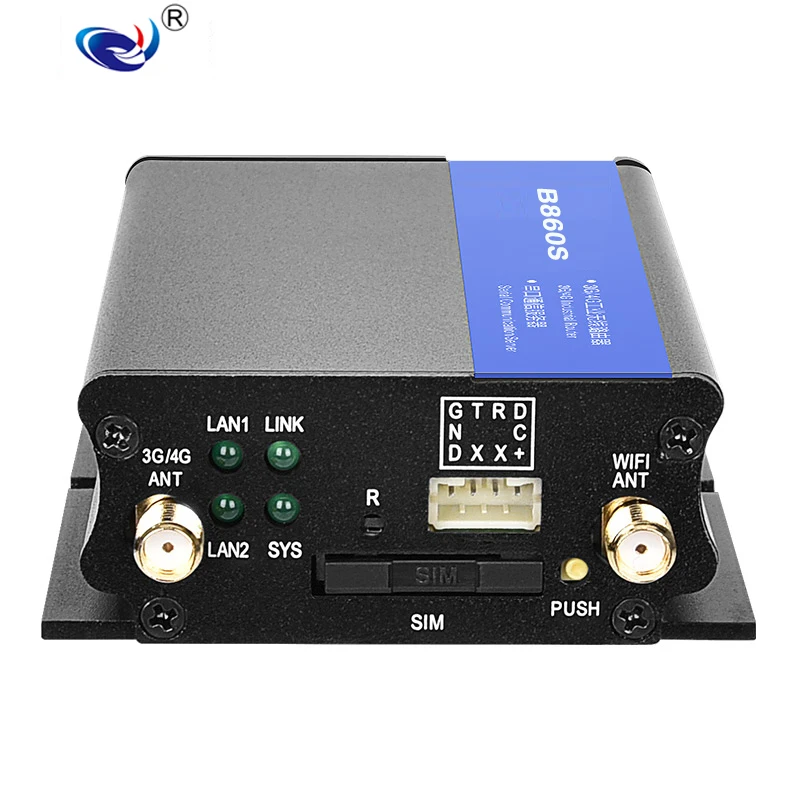

External Interface:

Lan port:2         RS232 interface:1

Sim card slot:1     antenna interface:2

light:4            DC power interface:1    reset button:1

Transmit power

11n HT40 MCS7:+13.5dBm

11b CCK:+18 dBm  11g OFDM:+13.5dBm

Receiving sensitivity

-66dBm at 150Mpbs -73dBm at 54Mpbs  -86dBm at 11Mpbs

Power:

DC power supply:6-35V 3A

Power consumption

less than 400mA

working environment

working temperature:-40 degree -+75 degree

store temperature

-40 degree -+80degree,

Humidity

5%-95% without condensation

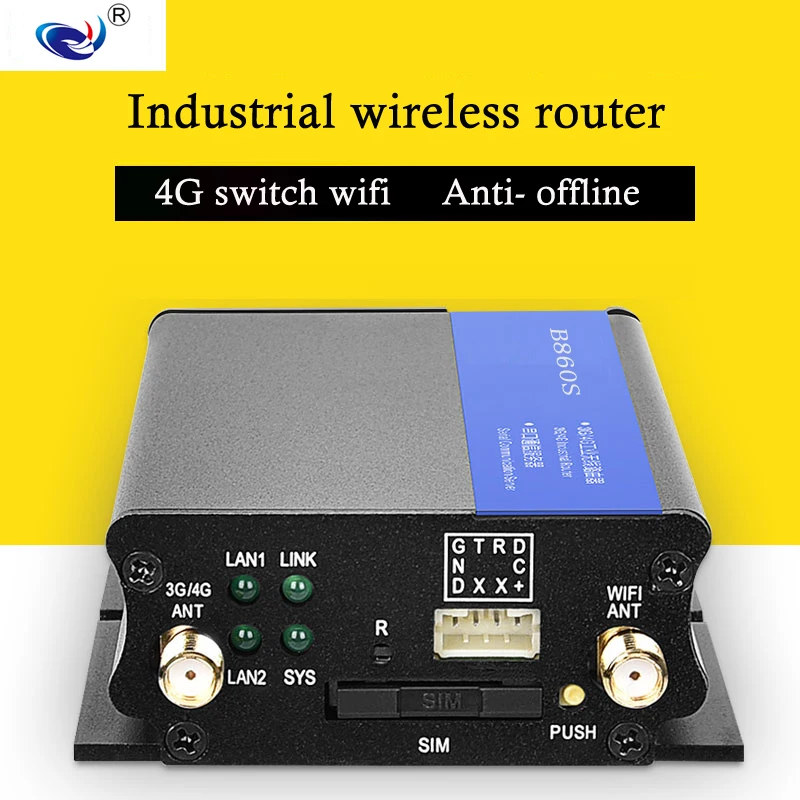

l  Adopt high grade industrial wireless module.

l  Support 3G(WCDMA/CDMA/TD-SCDMA),4G(FDD-LTE/TD-LTE).

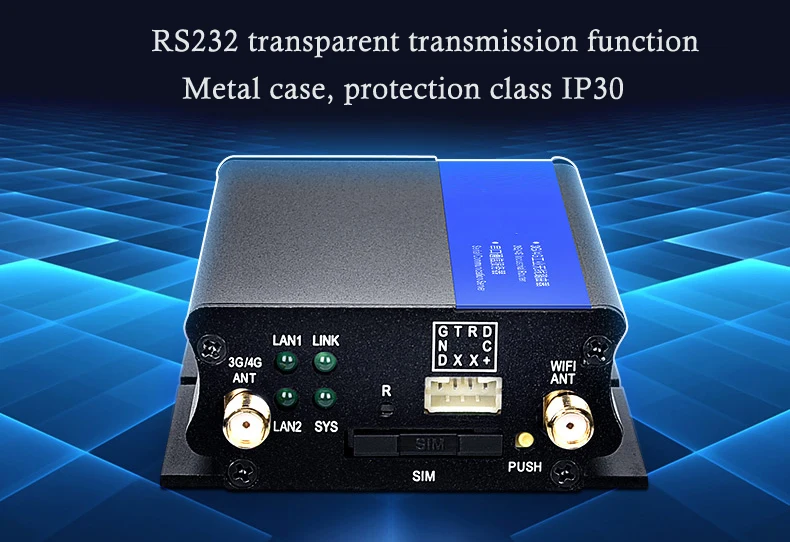

l  Adopt metal case, IP30 protection grade.

l  Wide voltage and current input: DC6-35V/3A;

l  Anti-reverse power connection protection, surge protection, ESD   protection .

l  Software and hardware watch dog design, support anti-crash functions. protect equipment work stable and reliable.

l  Automatic detection when network disconnects, automatically restart when dialing fails, scheduled reboot etc.

l  Serial transparent transmission function, It can access to order control mode by serial port , control router and other equipment .

l  SMS control dialing , offline and restart function

l  Support socket server and customer end mode.

l  Support different types of DDNS service.

l  Port mapping ,DMZ host function

l  Support VPN, PPTP client,L2TP client

l  Support ads pushing function by customer end verification.

Connection way

3G/4g connection, DHCP/Static IP/ PPPOE

User quantities

Wire:253,Wireless:30

Operation system

Windows XP/VISTA Linux 2.6 Windows 7

MAC OS : 10.3.7and above

S Browser

IE:6.0 and above Safari:1.2.4 and above

Firefox:2.0.0.8 and above

Security Management

Firewall setting: Protect the computer in the local area network purposed attacking  from Internet

MAC filtration: Prohibition MAC address already added

Access control: control the right of access to computer in LAN.

Port restriction: Stop some virus according to some port from connection at one time .

Stop DOS attack.

Server

Virtual server: set inner service server and provide user to access

DMZ :when you need set the opening port of  virtual server is not sure, you can set it into DMZ host.

Port trigger: it can realize WIFI router open to the inner service port automatically by accessing  to the port of Internet

Serial port service: realize the serial port transit transparently ,AT order control and so on.

Message service: it can control connection, hanging off and restarting by message.

Ads verification/pushing: Customer end verified management by WIFI Dog Protocols.

Equipment management

Area setting

NTP Server setting

Copy and storage system setting

Recovering the setting information from files

Recovery to default setting

Software updating

Remote management

Restart

Reset password

WLAN security mode

Open System

WPA-PSK

WPA2-PSK

WPAPSK

WPA2PSK(combine WPA-PS with WPA2-PSK mode)

WPA1WPA2(combine WPA with WPA2 mode )

Wireless connector

IEEE802.11b/g/n

Operation frequency

2400-2483.5M

Main core chip

Ralink RT5350

Antenna

SMA (outer part is spiral, inner part is hole)

WIFI transmission speed

150Mbps

Outer connector

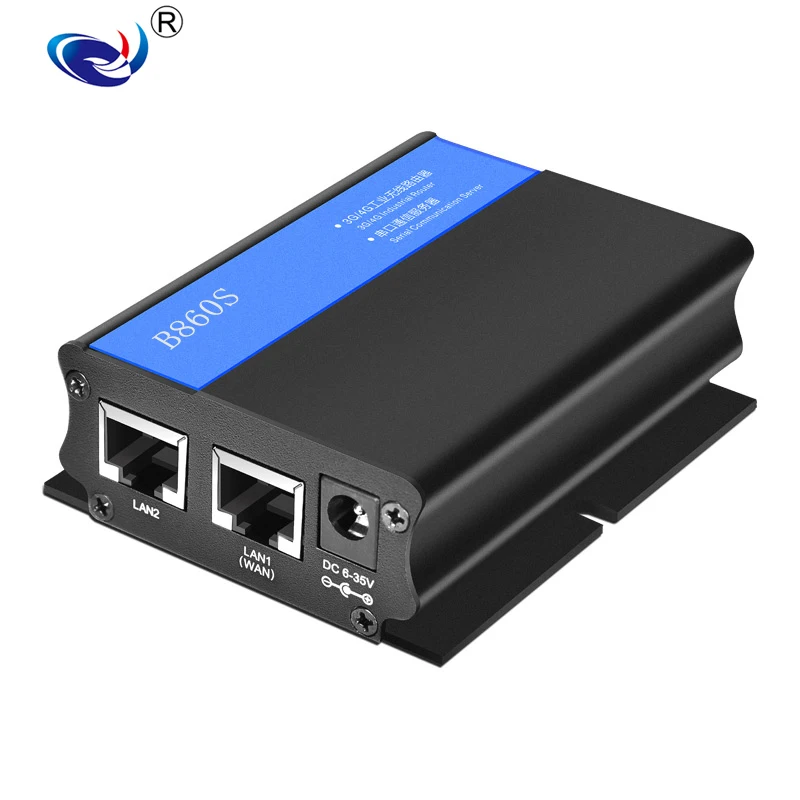

LAN connector:2 pcs(LAN1 is the self adjustive of WAN/LAN port )

RS232connector:1pcs
SIM card slot:1pcs

antenna connector:2 pcs

indicator:4pcs
DC power supply connector:1 pc

reset button:1pcs

Data speed

802.11n:upto150Mbps
802.11b:1,2,5,5,11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

Transmission power

11nHT40MCS7:+13.5dBm
11bCCK:+18dBm
11g OFDM: +13.5dBm

Receive sensitivity

-66dBmat150Mbps
-73dBmat54Mbps
-86dBm at 11Mbps

Dimension

Long*width*Height:83*66*26mm(excluding antenna interface)

Power

DC supply power:6-35V 3A

Consumption (current)

Smaller than 400mA

Work environment

Work temperature:-20°C ~ +75°C

Storage temperature:-40°C ~ +80°C

Humidity: 5%~95%,No condensation

Type

Frequency in use

Country /Territory

B860S-A1

(3G)

WCDMA/HSDPA/HSUPA/HSPA+:

900/2100M

GSM/GPRS/EDGE: 850/900/1800/1900M

Europe,the Middle East,Asia Pacific, Australia, Russia, China and so on

B860S-A2

(3G)709s-6

WCDMA/HSDPA/HSUPA/HSPA+:

850/ 1900/ 2100M

GSM/GPRS/EDGE: 850/900/1800/1900M

Europe, Latin America, Asia Pacific, Australia, Russia and China and so on

B860S-B1

(3G)MI660

CDMA/EVDO:800M/1900M

China, southeast Asia, South America and so on

B860S-DE1(4G)630

FDD-LTE:B1/3/7

TDD-LTE:B38/39/40/41

WCDMA:B1/2/5

TD-SCDMA: B34/39

GSM: Band5/8/3/2

GPS L1: 1575.42 MHZ

Africa, Asian,Middle east and so on

B860S-DE2

(4G)630B

FDD-LTE:B1/3/7

TDD-LTE:B38/39/40/41

WCDMA: B1/2/5

TD-SCDMA: B34/39

EVDO: BCO

CDMA20001X:BCO

GSM: Band5/8/3/2

GPS L1:1575.42 MHZ

Africa, Asia,Middle east

and so on

B860S-D

(4G) 730

FDD-LTE:B1/3/5

TDD-LTE:B38/39/40/41

WCDMA: B1

TD-SCDMA: B34/39

GSM: Band8/3

Europe, Asia Pacific ,Latin America, China and so on

B860S-E

(4G) 730B

FDD-LTE:B1/3/5

TDD-LTE:B38/39/40/41

WCDMA: B1

TD-SCDMA: B34/39

EVDO: BC0

CDMA20001X:BCO

GSM: Ban:8/3 9X07

Europe, Asia Pacific ,Latin America, China and so on

B860S-GW1

(4G)

Huawei909s-120

FDD-LTE: B1/2/4/3/5/7/8/20

WCDMA/HSDPA/HSPA+:

B1/2/5/8

GSM/GPRS/EDGE: 850/900/1800/1900M

Europe, Asia Pacific ,Latin America, China and so on
