Разблокированный 5G Внутренний CPE модем AX1800 WiFi6 беспроводной широкополосный мобильный доступ Sim-карта сотовый Wi-Fi
- Категория: Routers >>>
- Поставщик: Shenzhen,OLAX,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 184.7 $* | 188.31 $* |
| Jul-15-2025 | 149.59 $* | 152.65 $* |
| Jun-15-2025 | 181.3 $* | 185.15 $* |
| May-15-2025 | 180.19 $* | 184.98 $* |
| Apr-15-2025 | 144.88 $* | 147.54 $* |
| Mar-15-2025 | 177.22 $* | 181.47 $* |
| Feb-15-2025 | 175.92 $* | 179.4 $* |
| Jan-15-2025 | 174.69 $* | 177.17 $* |
Характеристики
Product Description

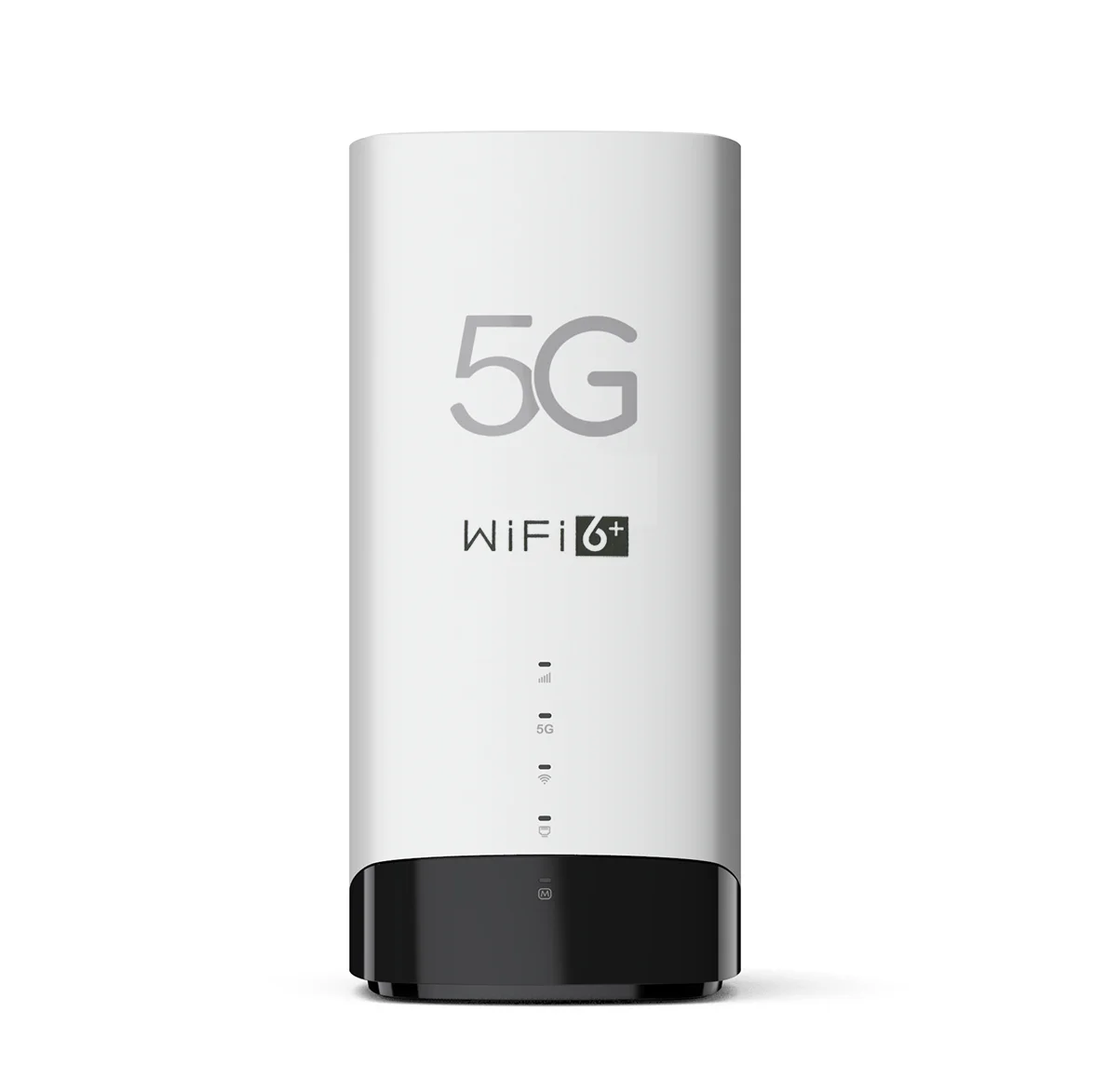

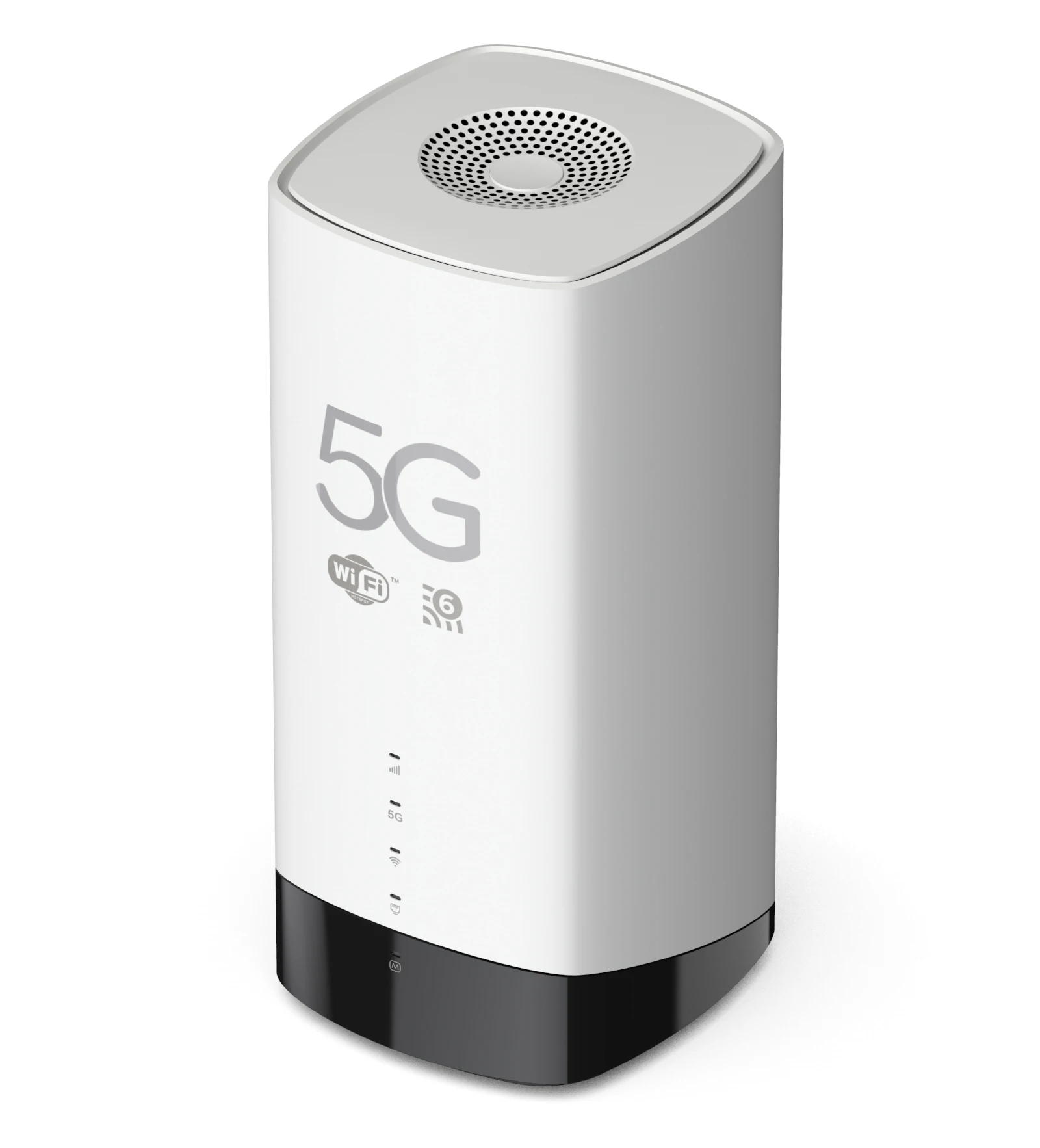

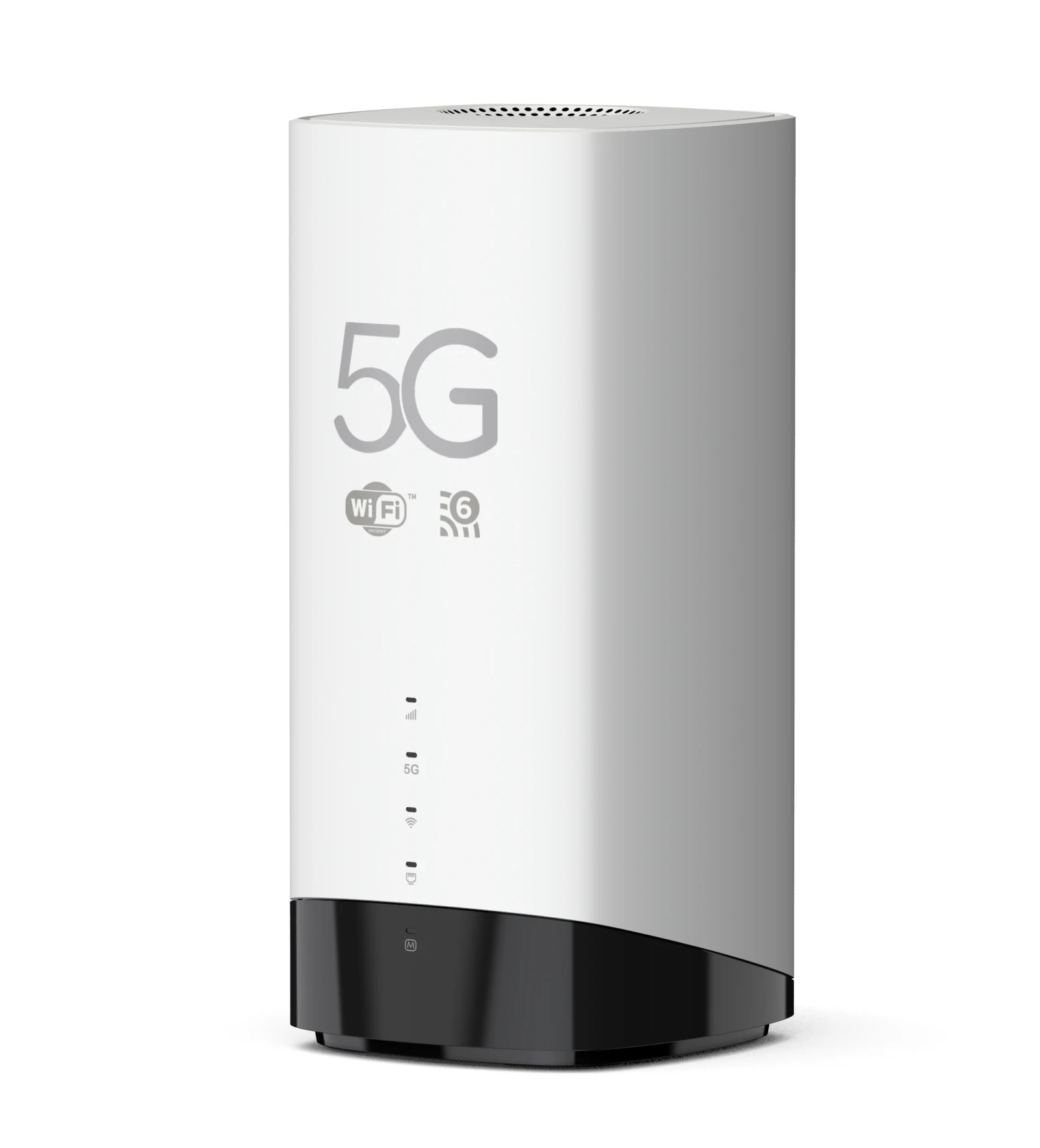

Unlocked 5G Indoor CPE Modem AX1800 WiFi6 Wireless Broadband Mobile Hotspot 5G Sim Card Cellular Wifi 6 Router
5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.
The 5g indoor CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.
The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
5G Cellullar:
1) 5G Baseband: Qualcomm Snapdragon X55 Modem-RF System
2) 5G Network Modes: SA (standalone), NSA (non-standalone)
3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5) 5G Standards:3GPP Release 15
6) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
7) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
4G Cellular:
1) LTE Category:Down Cat 16/ UP Cat 18
2) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
3) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
4) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
5) WCDMA:B1/B2/B3/B4/B5/B8/B19
6) LTE : Down 1.0 Gbps;UP 200 Mbps
Wi-Fi 6 (802.11ax):
1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2) Coding Technology:1024-QAM / OFDMA
3) Peak Connections:>100+ Clients
4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.
Data Switching:
1) Mobile 4G/5G Connection (Support APN)
2) Giga Ethernet Connection
3) MESH: MESH+ hybird
4) 2.4G/5Ghz WiFi
5) Advanced Firewall
6) MAC Filter
7) WiFi Sercurity
8) VPN Passthrough and VPN Client (L2TP PPTP)9) IPV4/IPV6
10) WEB / APP Mangement
11) Firmware upgrade
tes.

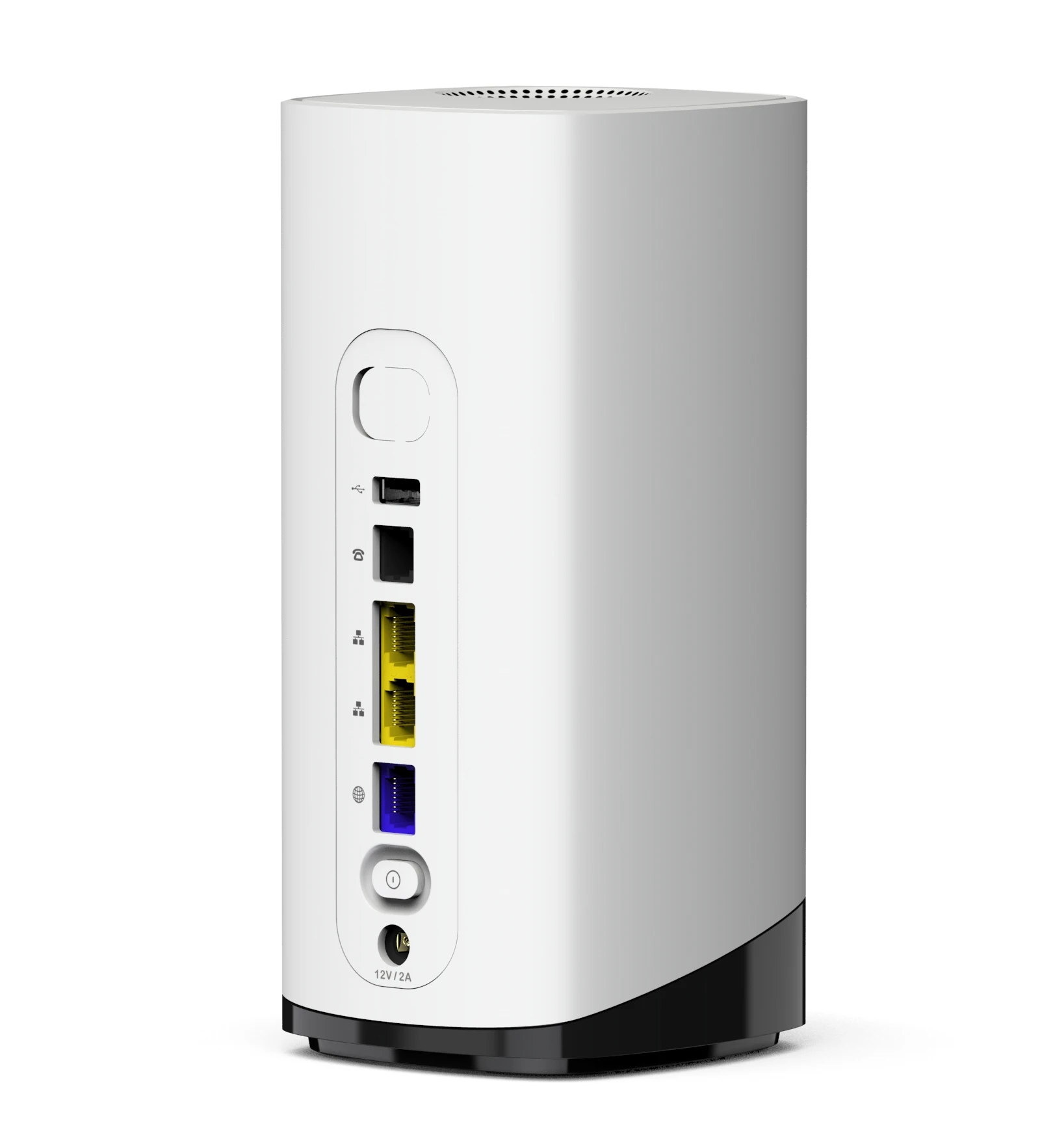

| Power button | Press and Release Power on/off |
| Power Source | DC 12V/2A |
| Functional button | Press and start enabling WPS feature |
| LAN port | 2 x 1GE LAN Ports (RJ45) |
| 1 x 1GE WAN port (RJ45) | |
| USB port | USB 2.0 high speed for external Disk |
| External Antenna | 1 x TS-9 connector for Tx |
| 1 x Tx-9 connector for Rx | |
| Tel | 1 x RJ11 port for Tel |
| LED display | – Signal strength indicator |
| – 5G network status | |
| – Wi-Fi Status | |
| – LAN Port status | |
| – Mode to indicate Power status or FOTA status | |
| Card slot | One 3FF (Micro) UICC/USIM card slot |
| Reset button | One reset button hole (Hidden beside SIM slot) |
| RF functions | Cellular 5G/LTE |
| Chipset | Qualcomm Snapdragon X55 |
| Standard compliant: | 3GPP Release 15(both LTE and 5G) |
| Band support: | 5G NR SA&NSA: |
| N78; | |
| 4G LTE: | |
| B3、B38、B20、B41、B28; | |
| ENDC: | |
| 41C_N78; | |
| 3C_N78; | |
| 28A_N78; | |
| 20A_N78; | |
| 3A_28A_N78; | |
| 3A_41A_N78; | |
| 28A_41A_N78; | |
| LTE CA: | |
| CA B3_B38; | |
| Modulation： | Sub-6 UL: 256QAM, DL: 256QAM LTE DL:256QAM, UL:256QAM |
| MIMO: | Sub-6 DL: 4×4, UL:2×2/1X1 LTE DL:4X4, UL:1X1 |
| Antenna (both LTE and 5G): | 7 internal antennas |
| Peak data rate: | Sub-6 DL: 2.3Gbps（100MHz）/4.6Gbps（200MHz）, UL:450Mbps |
| Output power class: | 22 +/-1 dBm (class 3) |
| Wi-Fi | QCA6391 |
| Standard compliant: IEEE 802.11 a/b/g/n/ac/11ax | |
| 2.4 GHz (2×2 MIMO) +5.8G band (2×2 MIMO) | |
| AX1800 | |
| Temperature Environment | Operating: 0°C to 40°C |
| Storage: -20°C to 60°C | |
| Humidity Environment | Operating Humidity: 5 to 95% RH |
| Storage Humidity: 5 to 95% RH | |
| Non-condensing | |
| Packaging Items | Casing Dimension (WxDxH): 95*100*205mm |
| Weight: ~830g | |
| Packaging Accessories | DC 12V/2A Power adaptor |
| System Features | Web UI/Multiple language supported |
| SMS/Quota/APN/PIN Management | |
| Network Selection | |
| Data Usage / Statistic | |
| DHCP Server | |
| NAT | |
| IP Firewall | |
| Proxy DNS | |
| Parental control – Parental controls designed to allow control of Internet access on all devices connected to your home network. | |
| Self-Check – Self-examination when it can’t connect to the network | |
| Port Settings – Port forwarding, including single port, multiple ports or a range of ports | |
| Security – SIM Lock and Secure boot features. | |
| Firewall – DMZ/MAC Filter/IP Filter/URL Filter/Port Filter | |
| Wi-Fi AP Features | 802.11 a/b/g/n/ax/ 2.4GHz+5.8GHz |
| MU-MIMO | |
| Auto Channel Select (ACS) | |
| Hidden SSID | |
| Maximum number of connections：32 | |
| Security Modes : WPA/WPA2 PSK, & WPA/WPA2/WPA3 mixed mode | |
| Access Control : STA blacklist/white list | |
| WPS : Pin and PBC, WPS2.0 |
