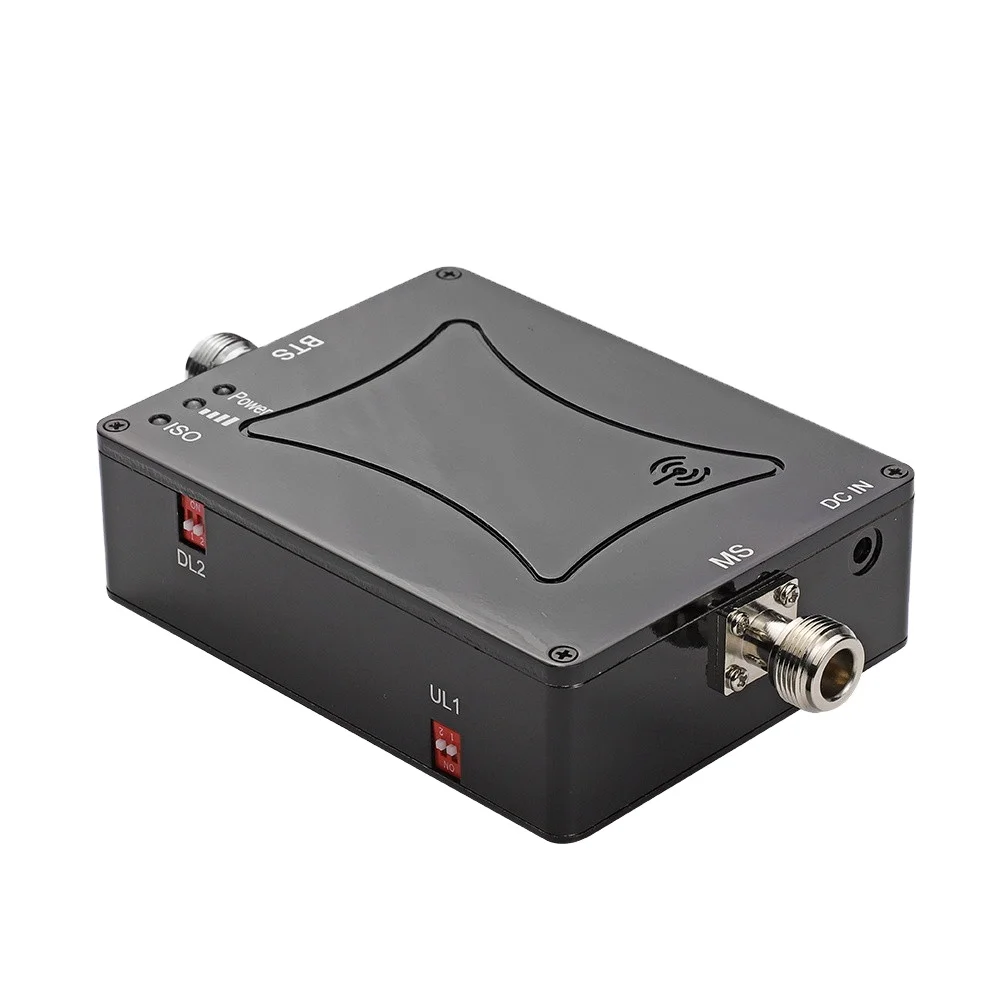

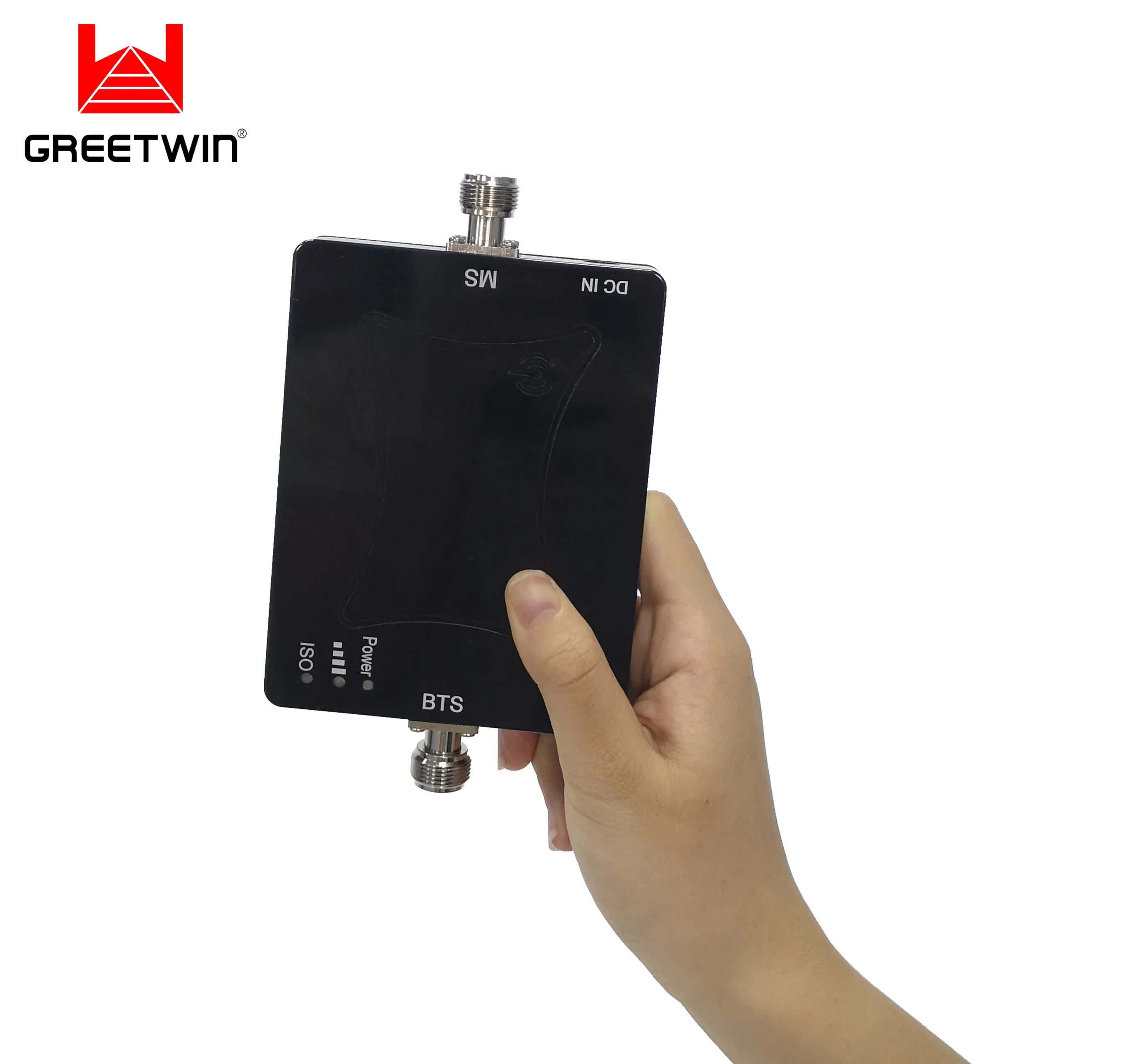

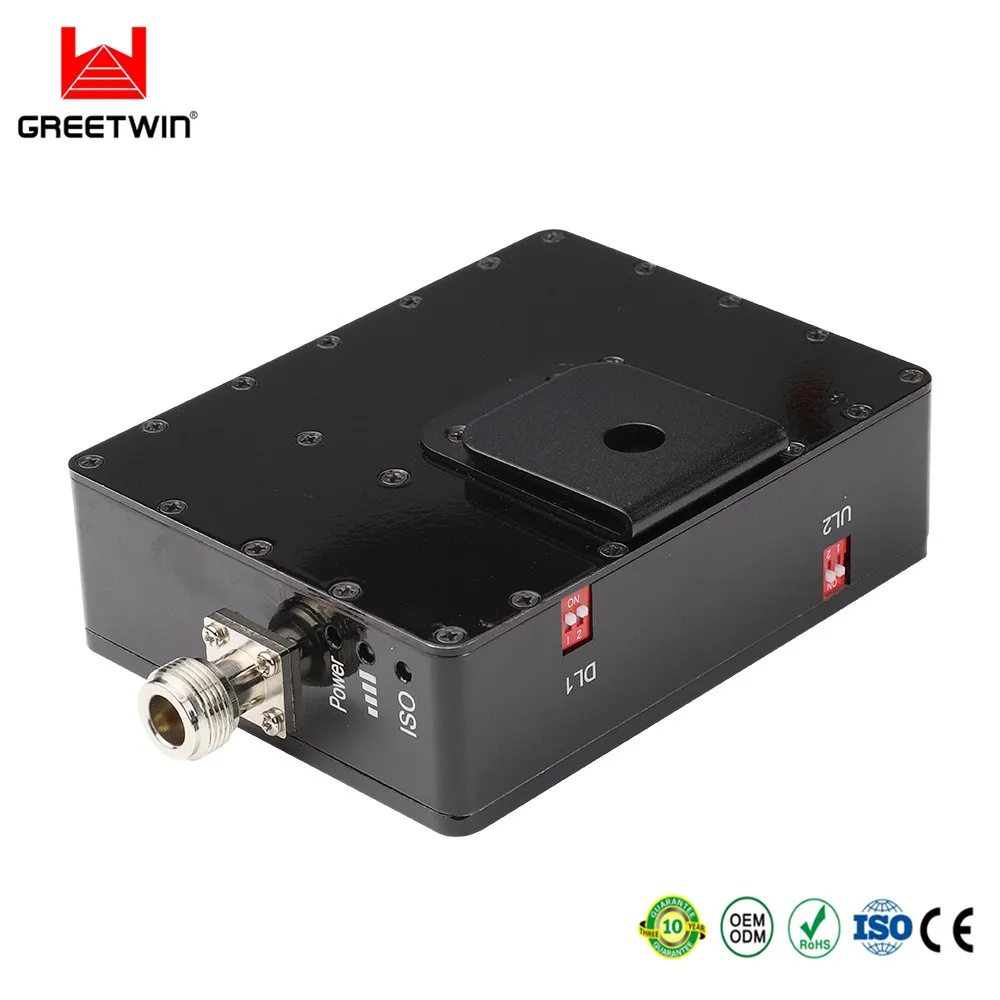

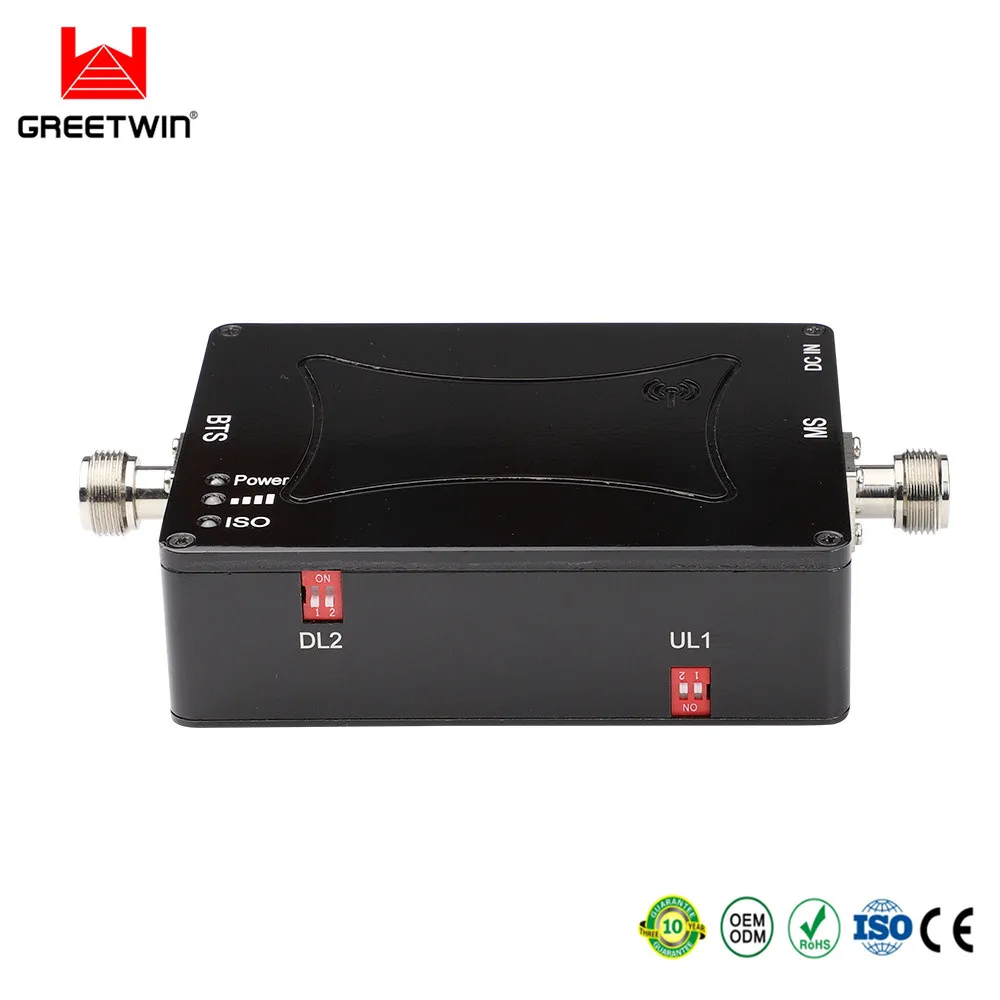

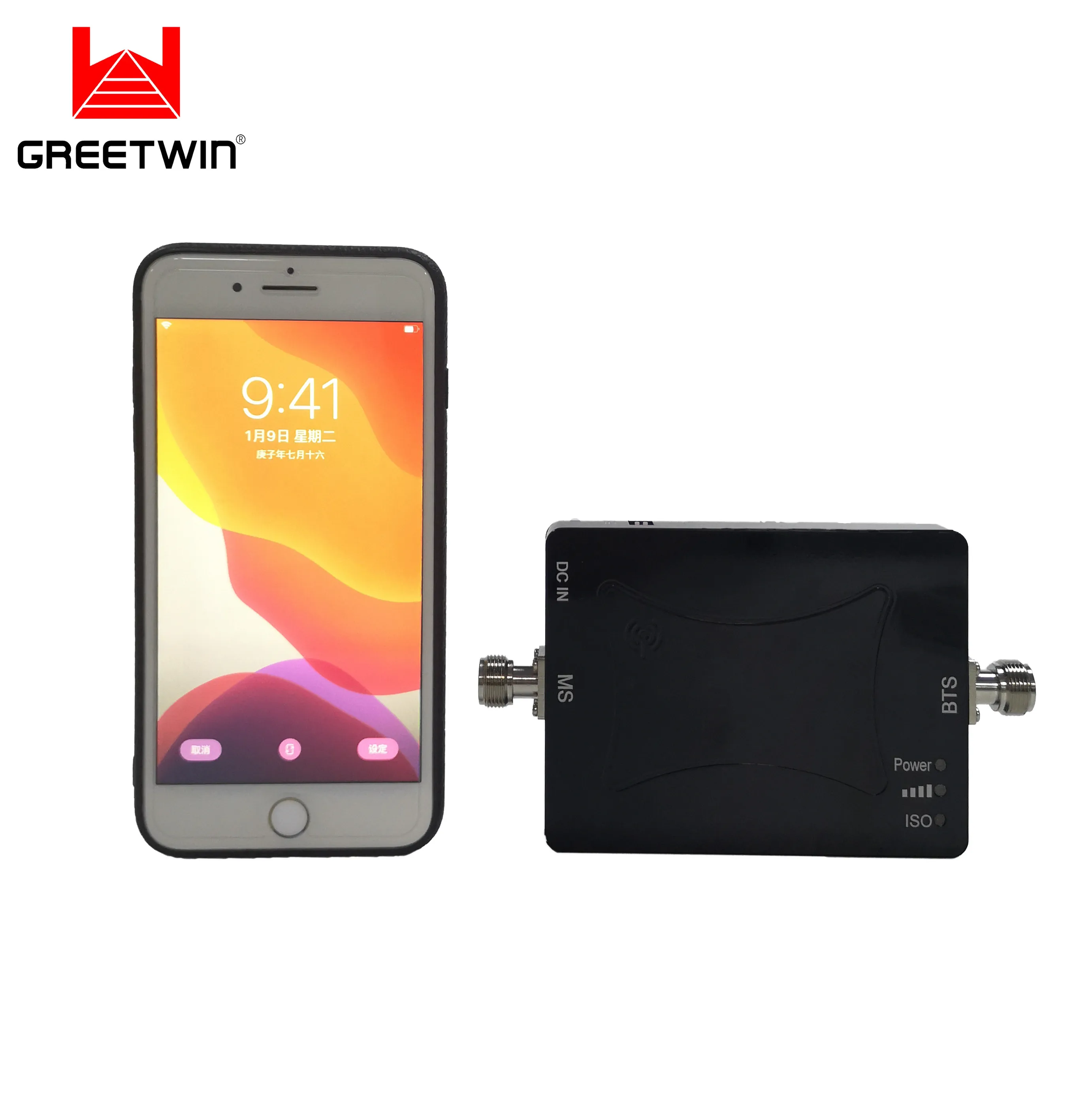

23dBm IDEN AWS 1700 МГц Dual Band автомобиля сотовый телефон gsm повторитель Автомобильный усилитель сигнала


Поделиться:


Цена:65,70 $ - 109,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 83.64 $* 85.0 $*
Jul-16-2025 67.87 $* 68.80 $*
Jun-16-2025 81.4 $* 83.73 $*
May-16-2025 81.51 $* 83.7 $*
Apr-16-2025 64.84 $* 65.40 $*
Mar-16-2025 79.24 $* 81.42 $*
Feb-16-2025 79.43 $* 81.81 $*
Jan-16-2025 78.55 $* 80.36 $*

Характеристики



Product Description


1,Product Details.jpg


23dBm IDEN AWS 1700MHz Dual Band Vehicle Cellular Cell Phone Signal Booster for Car














































































































































Frequency Range



Uplink



Downlink



IDEN



806 - 824MHz



851 - 869MHz



AWS 1700MHz



1710 - 1755MHz



2110 - 2155MHz



Gain



70dB±2dB



75dB±2dB



Output Power



20dBm±2dBm



23dBm±2dBm



Band width



Wide Band



Manual Gain Control



15dB



ALC



>25dB



Ripple in Band



8dB



Noise Figure



≤ 6dB



VSWR



≤ 2.0



Intermodulation Products



≤ -40dBc



Spurious Emission



9KHz~1GHz



≤ -36dBm



1~12.75GHz



≤ -30dBm



Time Delay



≤ 1.5 μs



Frequency stability



≤ 0.01ppm



MTBF



> 50000 hours



Impedance



50 ohm



Power Supply



AC 90-264V,DC 6V/3A



Power LED



Power indicator



ISO(Alarm LED)



Red



Self oscillation or Strong input signal



Green



Normal



Mechanical Specification



RF Connector



N-Female



Switch



Power Switch



Cooling



Heatsink Convection cooling



Humidity



< 90%



Operating Temperature



-20°C ~ +55°C



Environment Conditions



IP40



Installation Type



Wall Installation



Size



182*118*18mm



Weight



< 1.2 Kg







.jpg





User's Manual


user's manual.jpg


Features:
1. Coverage up to 500 m²
2. ALC Function
3. Simple in connection and installation
4. An optimal cooling with aluminum shell
5. Led indicators show working status and ISO alarm.
6. Support any cellular devices (voice & data & video)





Application:


.jpg





Product Recommended


4,Product Recommended.jpg



























Company Information


5,Company Information.jpg








6,Exhibition and customers.jpg





Certifications







Payment and Shipping







FAQ




      Q1. Why is there still no signal after installing the equipment?


            1. Check the power on booster and power supply.


            2. Check the connector of outdoor antenna is tight or not.


            3. Check the connectors of RF cable are tight or not.


            4. Check the outdoor signal is strong enough or not.


            5. Check to make sure the antenna is installed correctly.


            6. Check the connector of indoor antenna is tight or not.


            7. Check the cable type is suitable or not.





      Q2. Why the signal strength is too weak on the edge of area?


            1. Check the outdoor signal and antenna direction.


            2. Check booster is full gain or not.


            3. Check all of the connectors are tight.


            4. Change the location of outdoor/indoor antenna.


            5. Check the cable type is suitable or not.


            6. Deploy more indoor antennas.





      Q3. After running booster, why the signals are not stable?


            1. Checking the distance between donor antenna and server antenna are too close to each other? Check LED


                of booster to make sure alarms are green.


            2. Checking the signals from donor antenna whether to be stable or not?


            3. Connect the system again if it is incorrect connection.





      Q4. Why the booster power LED is not bright?


            1. Checking the input AC power range indicated on power adapter whether is corresponding to the local


                power system.


            2. Checking the power adapter whether connect the equipment correctly and stably or not.


            3. Checking the power adapter whether damage or not. To test output voltage whether be corresponding to


                that indicated on power adapter or not by multimeter
