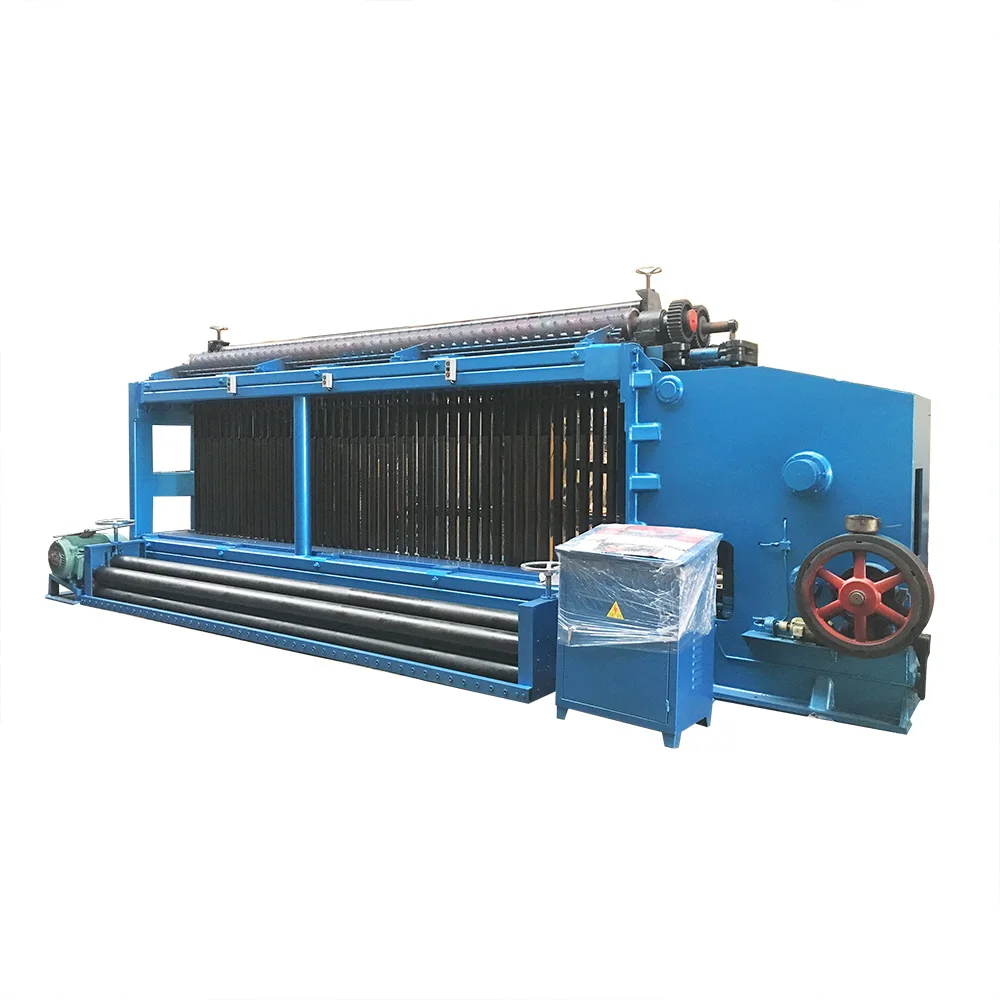

Шестигранная сетчатая вязальная машина полностью автоматическая габионная в новом

Описание и отзывы

Трекер стоимости

Характеристики

Quick Details

Place of Origin: Jiangsu,China(Mainland)

Brand Name: JINLIDA

Model Number: LNWL43-80-2

After-sales Service: Engineers avaailable to service machinery overseas



Supply Ability

Supply Ability: 200 Set/Sets per Year



Packaging & Delivery

Packaging Details: Nude packing and will be fixed in the container by wire

Port: Shanghai

Lead Time: 50days



Specifications:

1.Mesh sizes:80×100mm

2.Twist:double twist

3.Max.netting width:4300mm

4.Max.galvanized wire diameter:3.0mm

5.Max PVC wire diameter:4.0mm

6.Spindle Speed:25r/min

7.Power:22kw

8.Size:7200×1400×2400mm

9.Weight:15t

10.Theoretic output:195m/hr

11.Automatic stop system(option):when the coiling finished or wire broken,the machine will stop automatically

12.Infrared ray safety protection system(option)

13.Automatic oil system



Application:

The gabion box machine is widely used in oil,comstruction,raising,chemical industry,warming piping and etc.It is used in fence,apartment and greeting.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge and civil engineering.It is one of the best against flooding materials.



Competitive Advantage:

1.JINLIDA company invented the first special equipment of double twisted wire netting making machine in China(patent number:ZL99229381.2 and ZL00267066.5).And until now,we have persevered in this area od gabion machine making for 15 years.

2.All the parts of gabion machine are processed by our own factory;no parts were send to outside to process,so the quality can be ensured.

3.We can provide 12 months guarantee for all the equipments,and if customer need,we will arrange our technician to help install the machines in your country,and also could supply all the spare parts with cost price if customer need.



Pictures for hexagonal mesh knitting machine working:

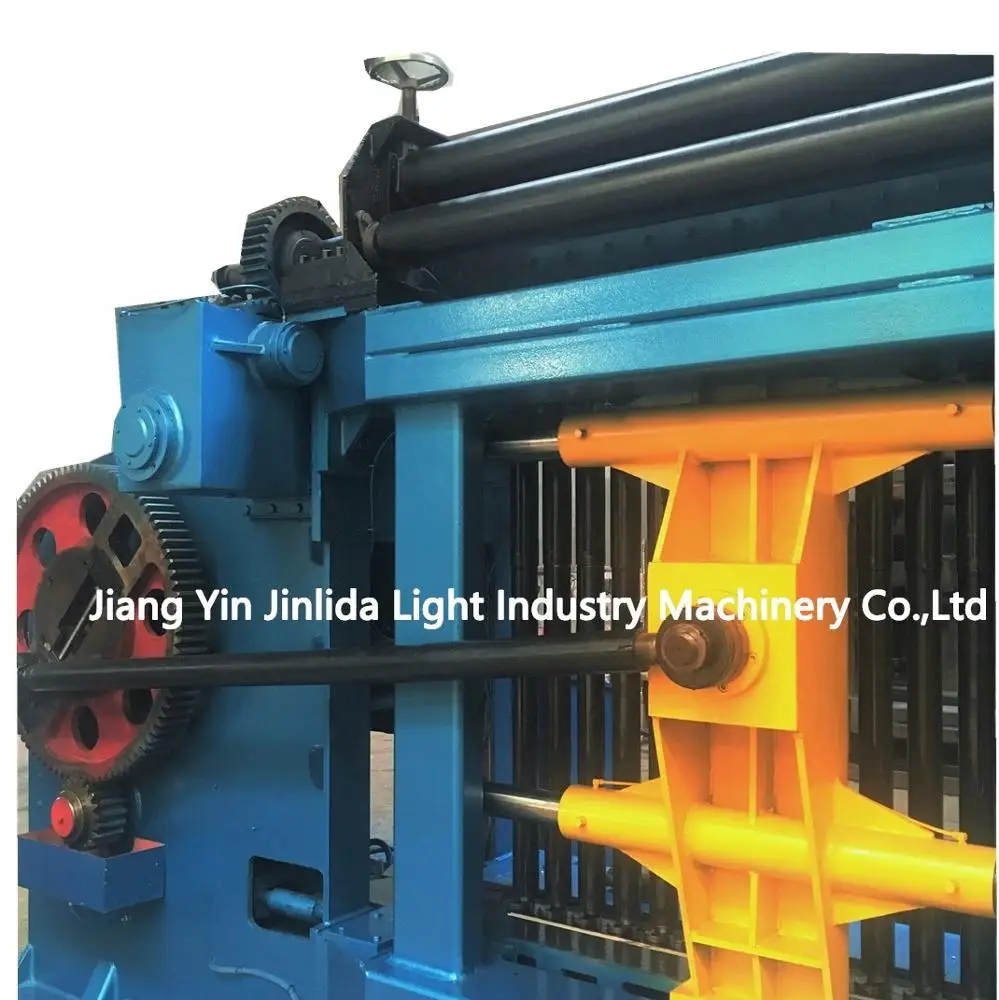

1.Mesh machine weaving mesh

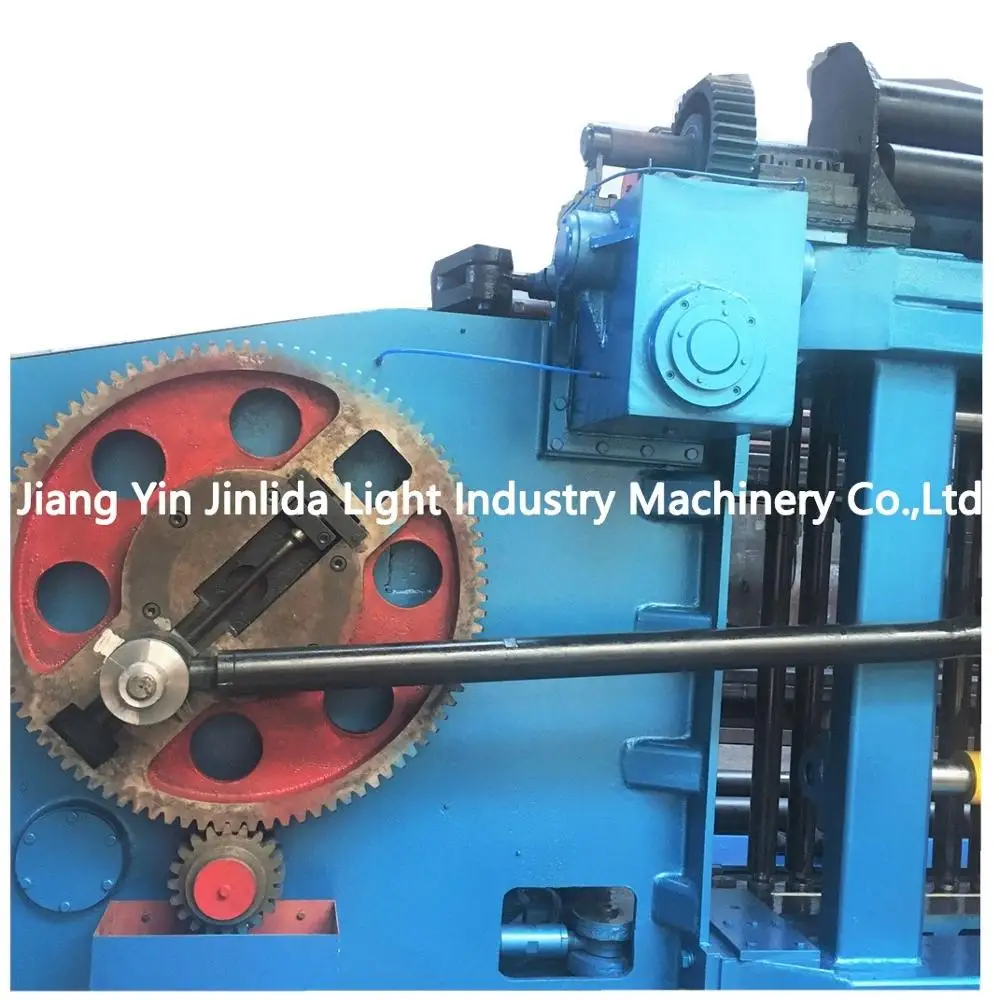

2.Wire Pay Off System & Wire Tension Roller Working

3.Spring coiling machine working
