Высокоэффективное рабочее устройство для сварки проволочной сетки
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Hebei,Meirun,Wire,Mesh,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2261.35 $* | 2374.24 $* |
| Aug-19-2025 | 2242.69 $* | 2354.13 $* |
| Jul-19-2025 | 1881.36 $* | 1975.27 $* |
| Jun-19-2025 | 2204.24 $* | 2314.25 $* |
| May-19-2025 | 1919.99 $* | 2015.40 $* |
| Apr-19-2025 | 2166.65 $* | 2274.92 $* |
| Mar-19-2025 | 2147.47 $* | 2254.42 $* |
| Feb-19-2025 | 2128.99 $* | 2234.39 $* |
| Jan-19-2025 | 2109.30 $* | 2214.46 $* |
Характеристики
Products Description
Hot sales 358 fence welding machine
Anti-climb anti-cut fence mesh welding machine with CE and ISO9001 Certifiaction adopts PLC control program with good quality and competitive price.
Details Images

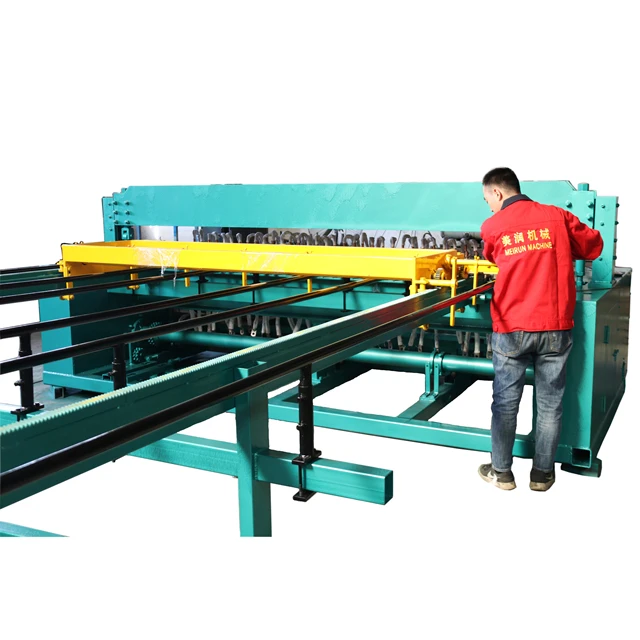

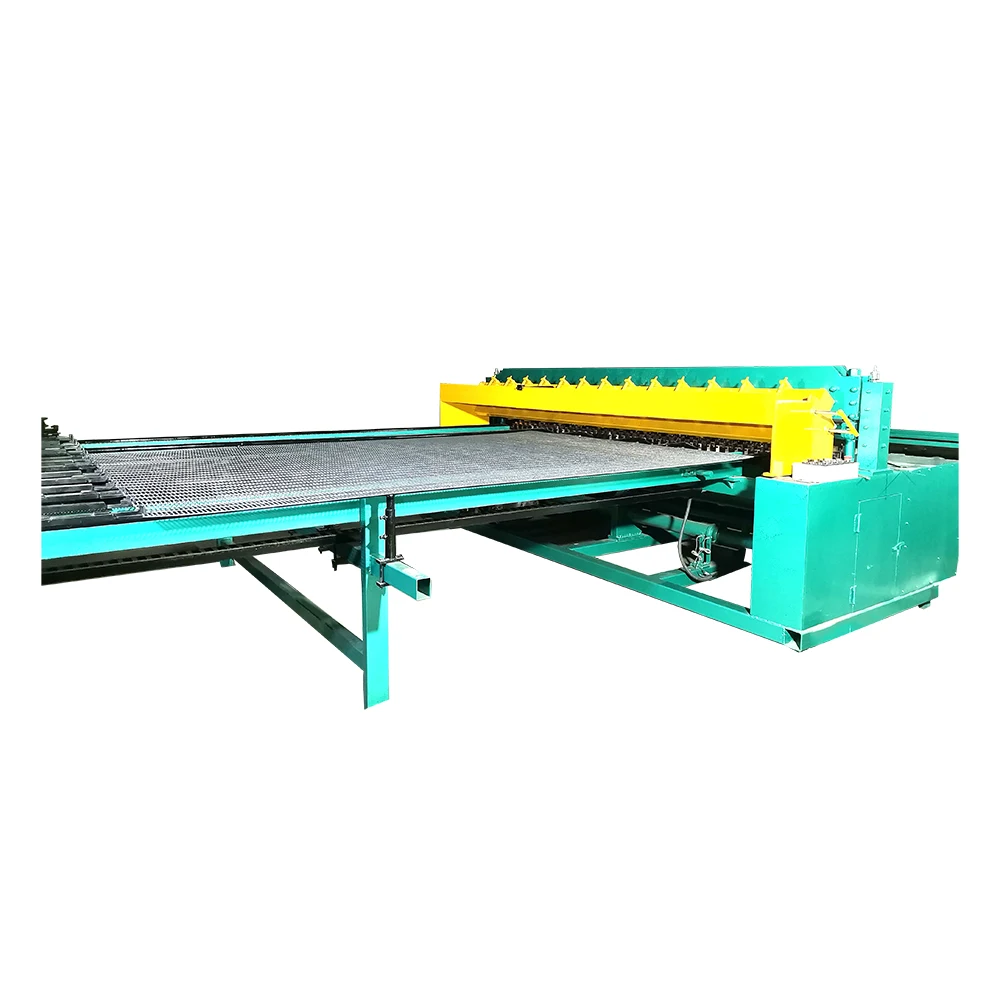

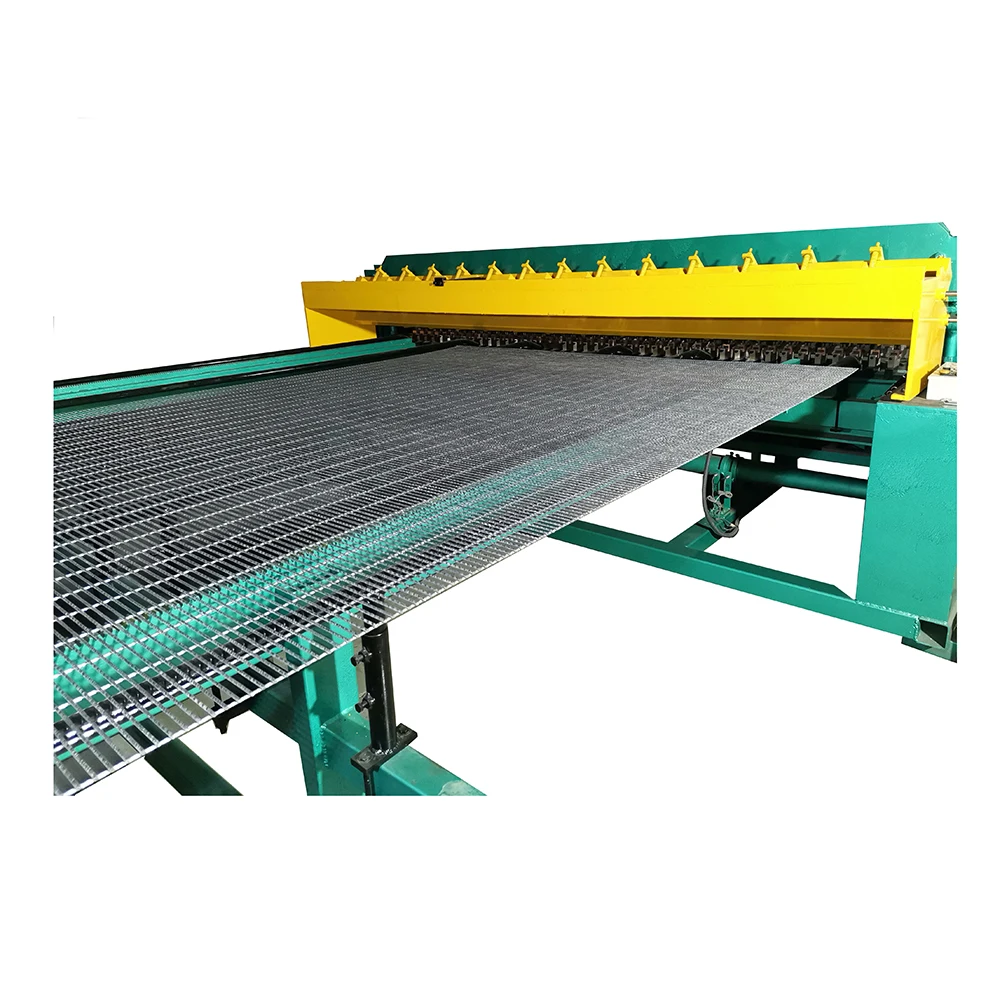

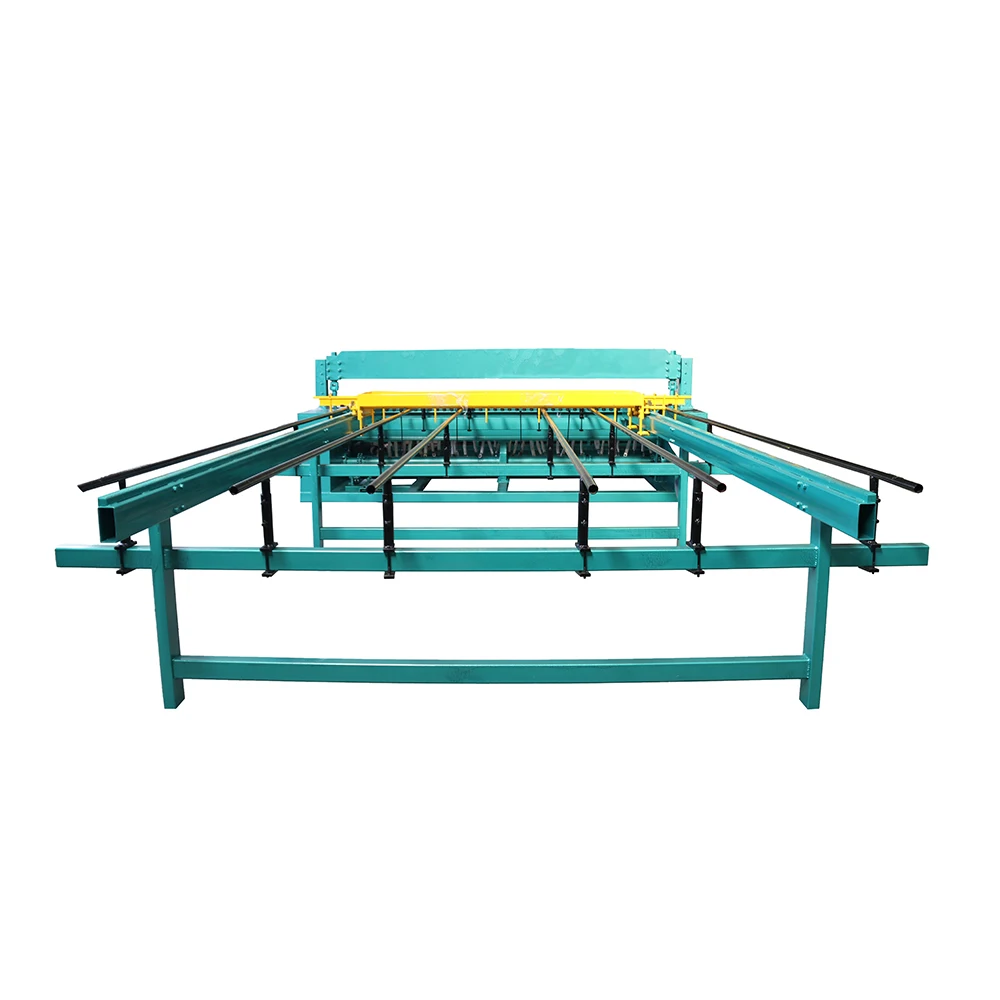

358 wire mesh fence high security machine:
1) This machine is our latest development, which adopts mechanism pressing principle with low cost , not cylinder.
2) This machine adopts synchronous control technique.
The cent-control and welding time are composed of PLC program system .
The input front-panel has two forms, touch screen and keyboard
That makes the machine more intelligent and reasonable and it could press at one time, times welding .
3) Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate.
The hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor .
4) The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
1) This machine is our latest development, which adopts mechanism pressing principle with low cost , not cylinder.
2) This machine adopts synchronous control technique.
The cent-control and welding time are composed of PLC program system .
The input front-panel has two forms, touch screen and keyboard
That makes the machine more intelligent and reasonable and it could press at one time, times welding .
3) Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate.
The hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor .
4) The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
Model | MW - 358 |
Width | 1m-3.2m |
Wire diameter | 3mm-4mm |
Mesh size | 75.6 mm x 12.7 mm |
Length | 2000mm -4000mm |
Dimension | 7300mm x 3500mm x 1600mm |
Capacity | 40-55 times /min |
Voltage | 380V 50HZ |
Power | 5KW |
Weight | 4--5.5T |
Drive type | PLC |
Corollary equipment | Straightening Machines x2 |

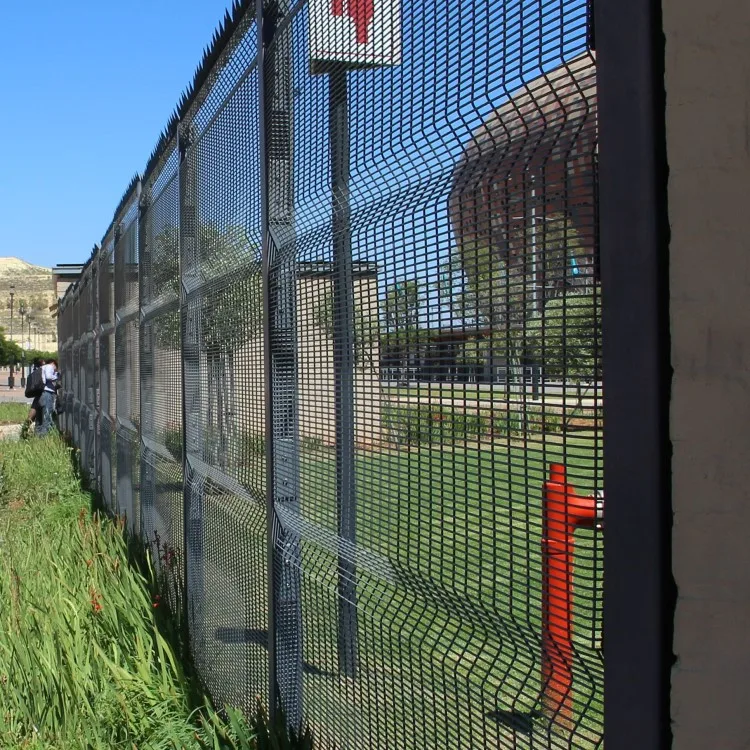

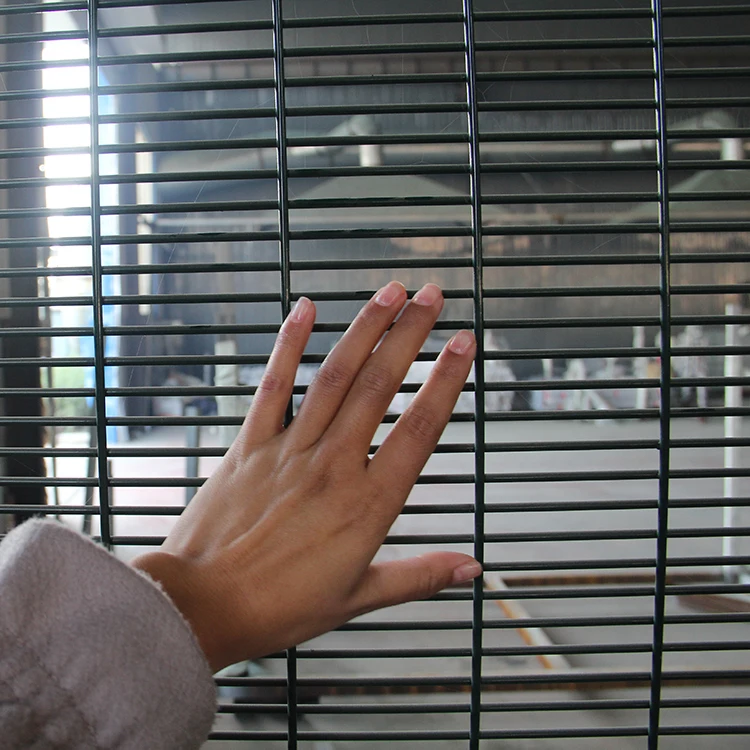

358 fence detailed
Characteristics of the 358 wire mesh fence high security fence:
Flat surface
Uniform mesh hole
No burn marks
High precision
Anti-climb
Beautiful appearance
Anti-cut
Height of security fence | 1m-3m |
Width of security fence | 2.0m, 2.2m, 2.5m, 3.0m |
Mesh opening | 75.6mm x 12.7mm |
Wire diameter | 3mm-- 4mm |
Material | low carbon steel wire, galvanized wire |
Finished | hot dipped galvanized, polyester painting |
Polyester painting color | any RAL color (dark green, black,ect.) |
Auxiliary Equipments
Straightening and cutting machine
Bending machine
