Бездымная печь для непрерывного карбонизации древесины древесных опилок
- Категория: Деревообрабатывающее оборудование >>>
- Поставщик: Gongyi,Xiaoyi,Mingyang,Machinery,Plant
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 41234.56 $* | 43296.66 $* |
| Aug-19-2025 | 40887.70 $* | 42931.19 $* |
| Jul-19-2025 | 34304.68 $* | 36019.3 $* |
| Jun-19-2025 | 40194.30 $* | 42204.66 $* |
| May-19-2025 | 34997.73 $* | 36747.49 $* |
| Apr-19-2025 | 39501.17 $* | 41476.39 $* |
| Mar-19-2025 | 39155.67 $* | 41113.38 $* |
| Feb-19-2025 | 38808.0 $* | 40748.8 $* |
| Jan-19-2025 | 38462.7 $* | 40385.21 $* |
Характеристики

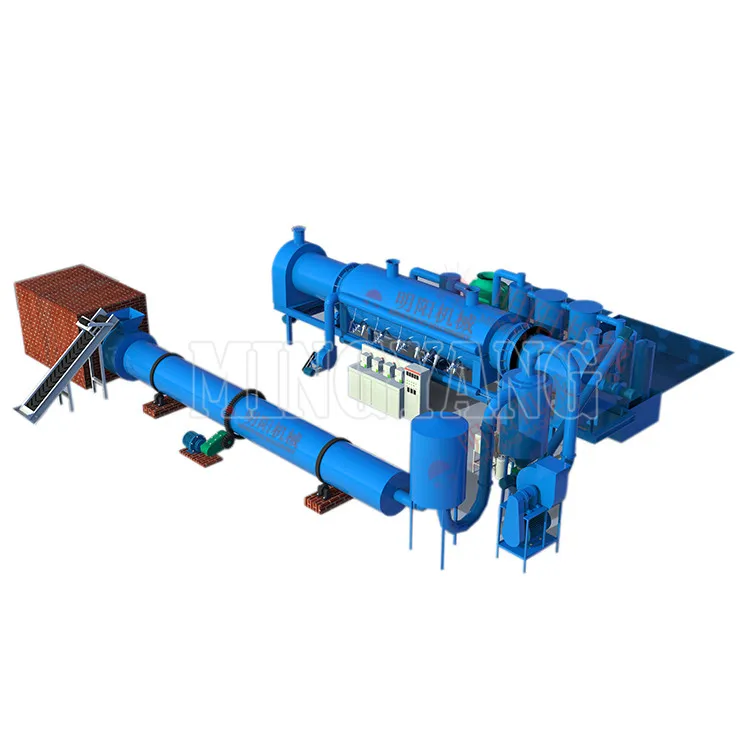

Production Line
1.Crushing Process: The raw material diameter:3-5mm
2.Drying Process:moisture less than 12%
3.Carboniztion Process
4.Charcoal Briquette Forming
This machine is the most ideal milling equipment for all kinds of wood piece, straw, grass bamboo, peanut shell, tree branches, wheat shell, which are less than 50mm thick into grains and to create proper condition for maamade charcoal, wood crusher is the
first step of making charcoal.
first step of making charcoal.
2.Sawdust Dryer
Drying is important before briquetting process, To get the superior quality of biomass briquettes with high density, it is necessary to control the moisture of material at 8-12% exactly. The selection of drying plant models depends on the original moisture content of raw materials.
3.Continuous Rotary Carbonization Furnace
1.carbonization ratio from88% to 99%
2.Capacity:800-1000kg/h
3. Shorten the carbonizing time
4.With Automatic feeding device,Flue gas recovery device,Cooling system.etc. It can save energy,time and protect environment.
5.Get Charcoal Powder directly
Wood sawdust carbonization stove is energy-saving type which includes furnace body, inner pot, cover, top of inner pot and smoke recycling pipe and etc.
The main raw material: sawdust, olive, peanut shells and other particles granular materials. Make raw materials into charcoal directly.
Working principle:
1) Use screw conveyor to transfer material.
2) Use coal gas or natural gas ignite to make hot gas.
3)Then hot gas will enter inner furnace, start working.
4)Rotary drum twirl speed can be adjusted by control cabinet.
5)Gas can use recycling.
6)Output screw conveyor also have cooling function, delivery the material through screw conveyor.
1) Use screw conveyor to transfer material.
2) Use coal gas or natural gas ignite to make hot gas.
3)Then hot gas will enter inner furnace, start working.
4)Rotary drum twirl speed can be adjusted by control cabinet.
5)Gas can use recycling.
6)Output screw conveyor also have cooling function, delivery the material through screw conveyor.
Main Features
1.Size: Diameter 1500 mm, length 11 m (also can be customized according to the customer demand)
2. The hot spot in the middle of the cylinder, the host has simple structure, convenient operation, compared with the previous generation of vertical tube
3.The feed size of the host machine increases by more than 20-30mm.
4.With Automatic feeding device,Flue gas recovery device,Cooling system.etc.Please contact me for detailed information

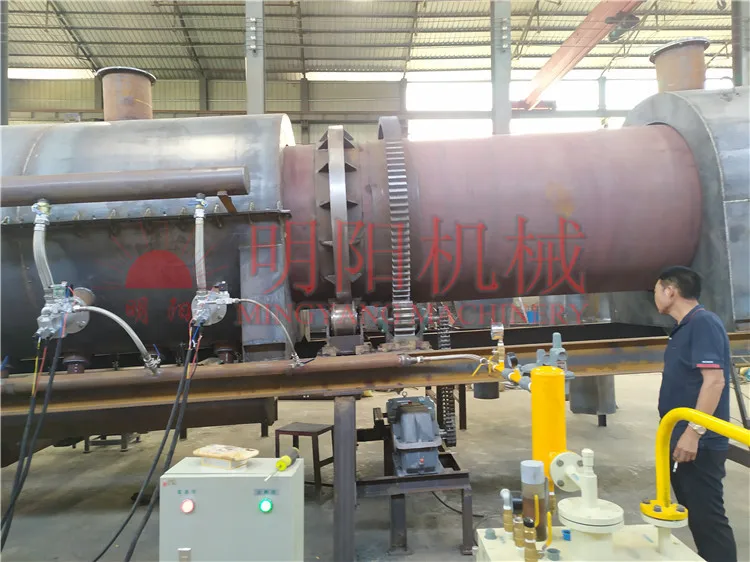

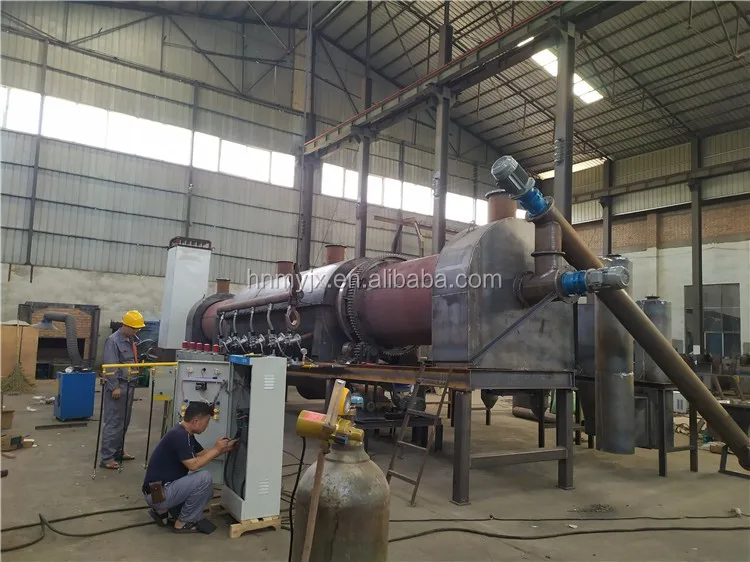

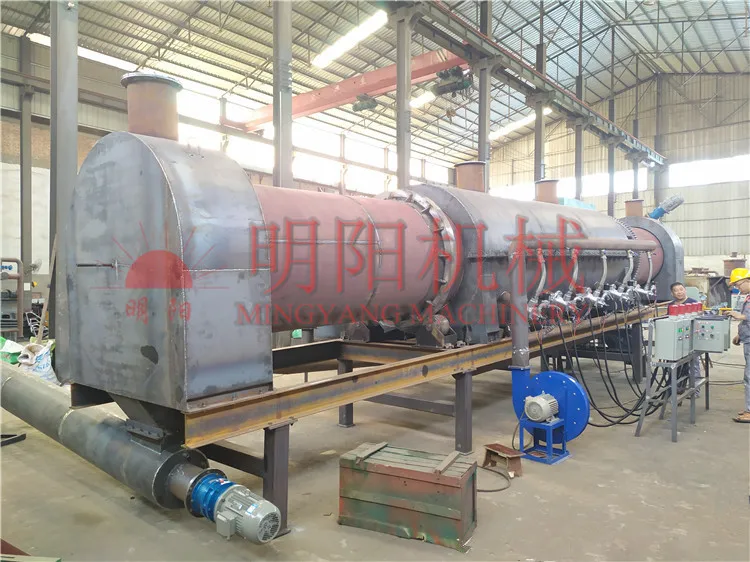

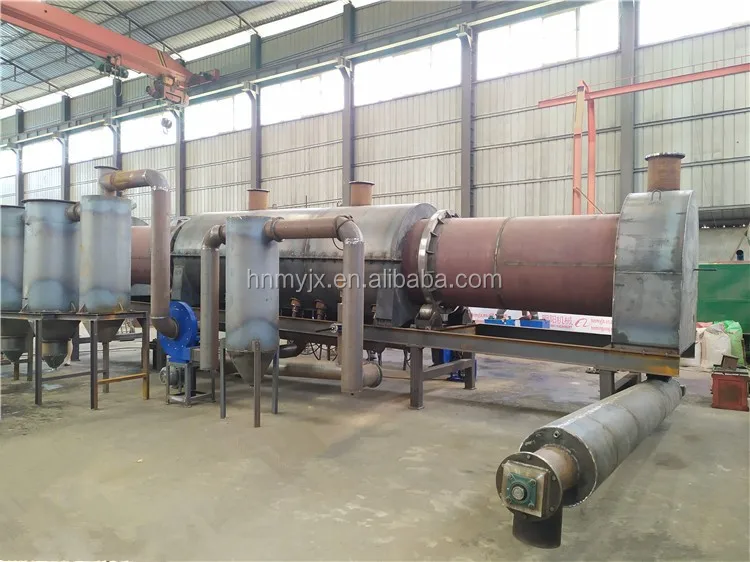

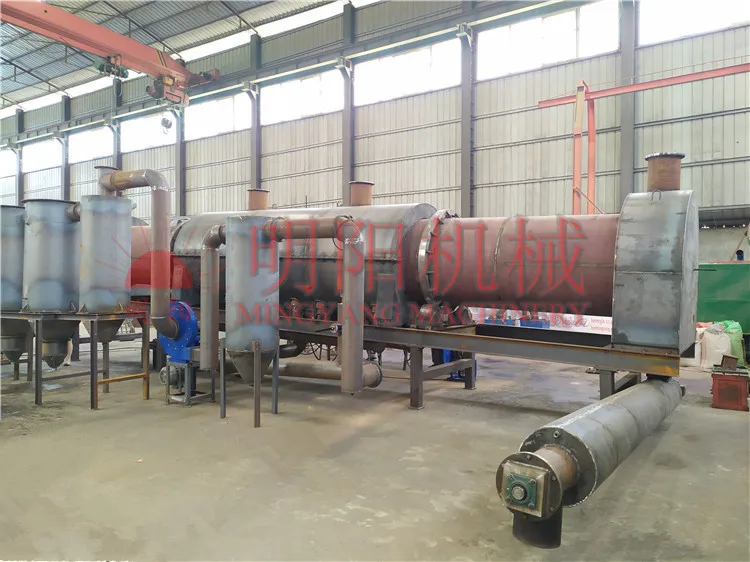

Detailed Images
The machine is made of our factory. It use most experienced engineer in this line, experienced workers,high quality raw materials and superb technology. You can contact me to get more detailed information.
Packing&Shipping
Company Information
Gongyi Xiaoyi MingYang Machinery Plant which was founded in 1988, is a manufacture of new energy-saving environmental protection equipment.In the twenty years of development, our factory brings together elte of this field, and use professional technics to build the
equipment. "Ming Yang Machinery" from a single charcoal machine and equipment to production equipment series, with three series of more than 30 machinery products. Have exported to britain, Russia, Sweden, Malaysia, Indonesia,Vietnam and other countries, more than 30 countries and regions. Manufacturing quality products for industy, and create value for society!
Gongyi MingYang Machinery warmly welcome new and regular customers to visit and guidance.
equipment. "Ming Yang Machinery" from a single charcoal machine and equipment to production equipment series, with three series of more than 30 machinery products. Have exported to britain, Russia, Sweden, Malaysia, Indonesia,Vietnam and other countries, more than 30 countries and regions. Manufacturing quality products for industy, and create value for society!
Gongyi MingYang Machinery warmly welcome new and regular customers to visit and guidance.
FAQ
1.Are you factory or trading company?
We are machinery with 31 years experience.
2.Where are your fctory?
Our factory located in Gongyi city,Zhengzhou city,Henan Province,China.
3.How can I visit your factory?
You are welcome to visit our factory. We can pick up you at Xinzheng International Airport or high rail station at Zhengzhou or Gongyi.
