Характеристики

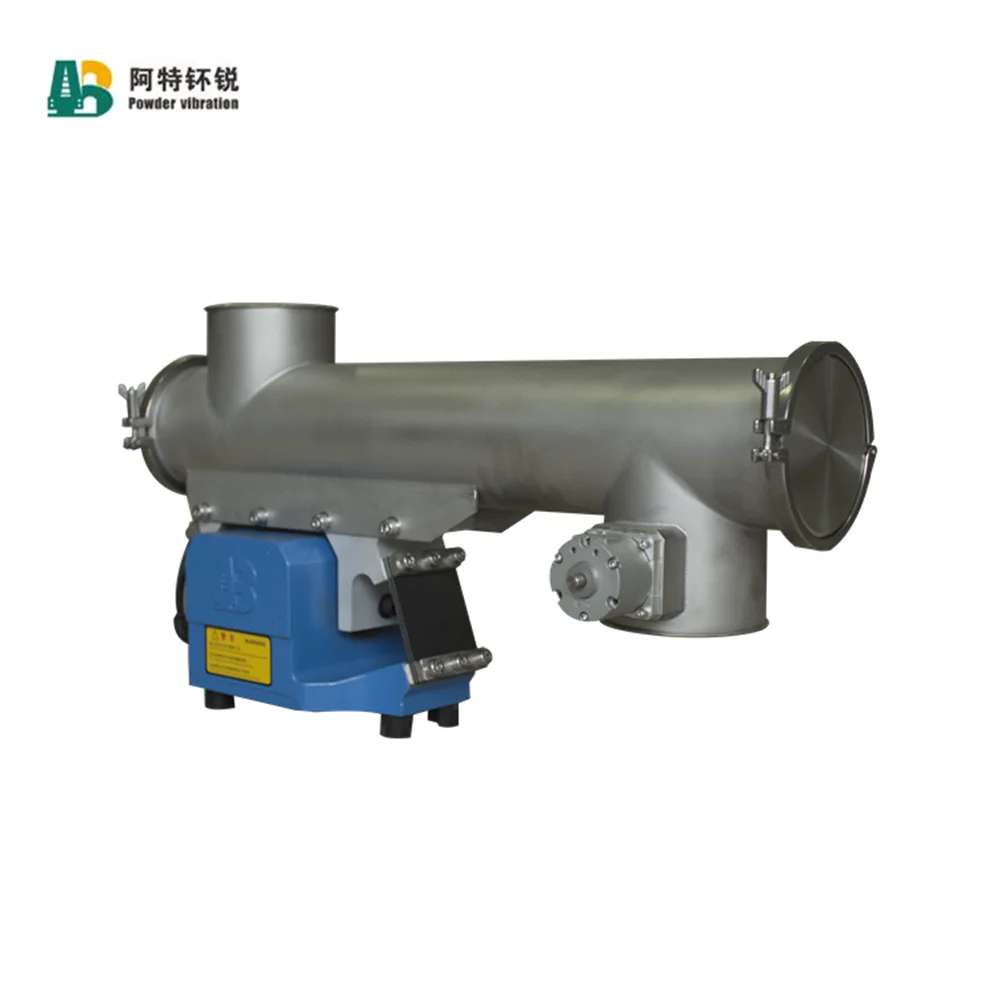

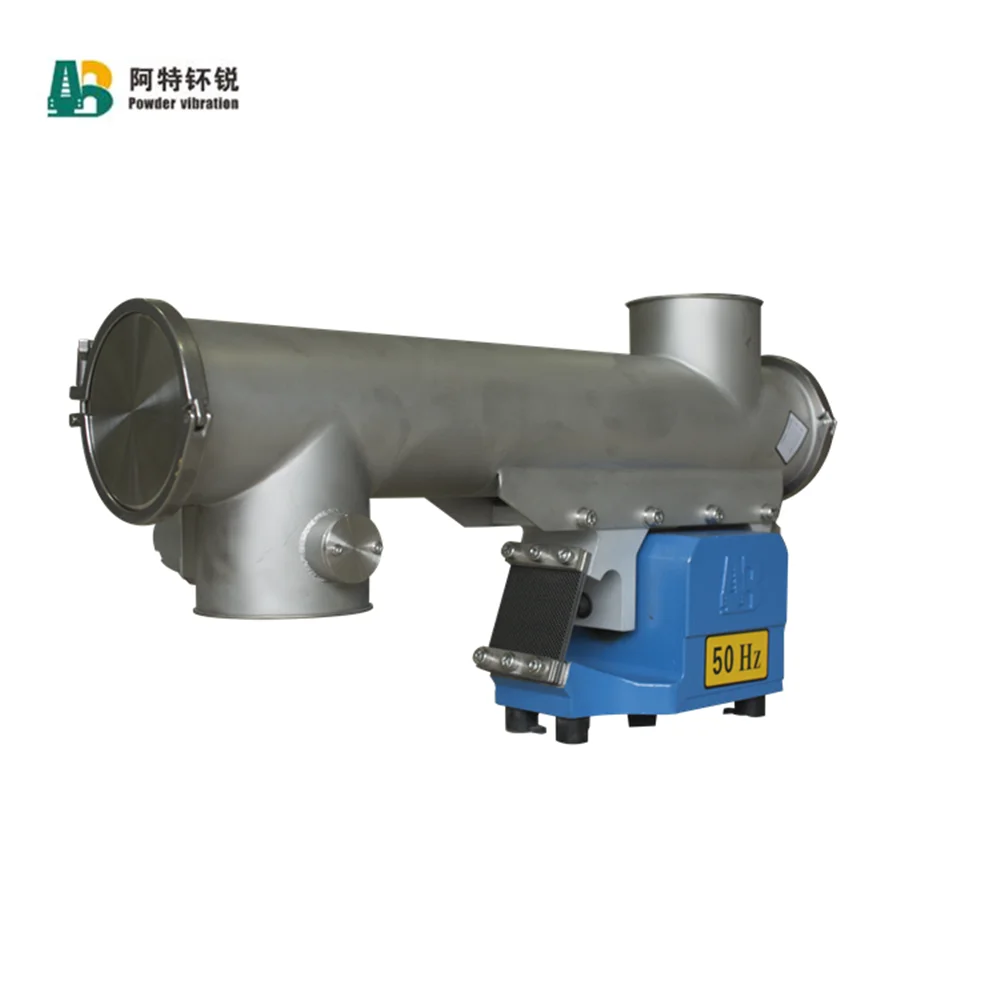

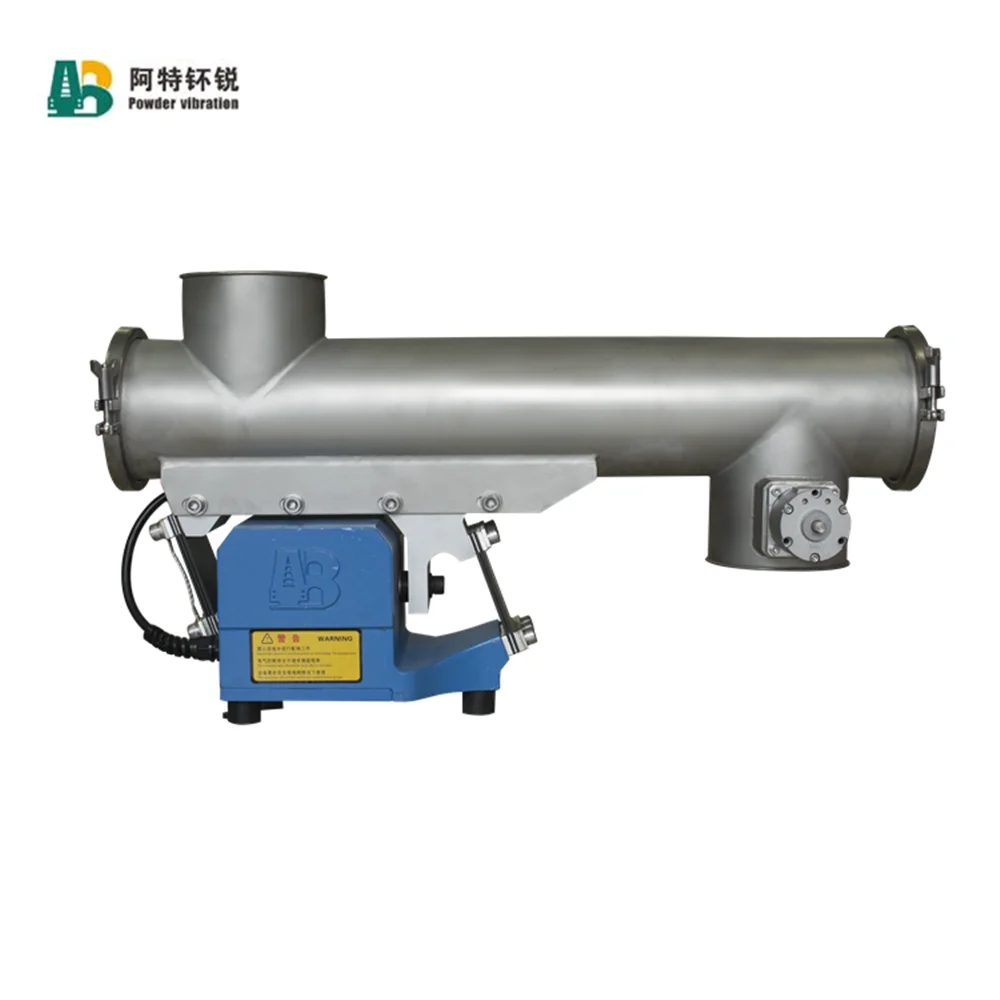

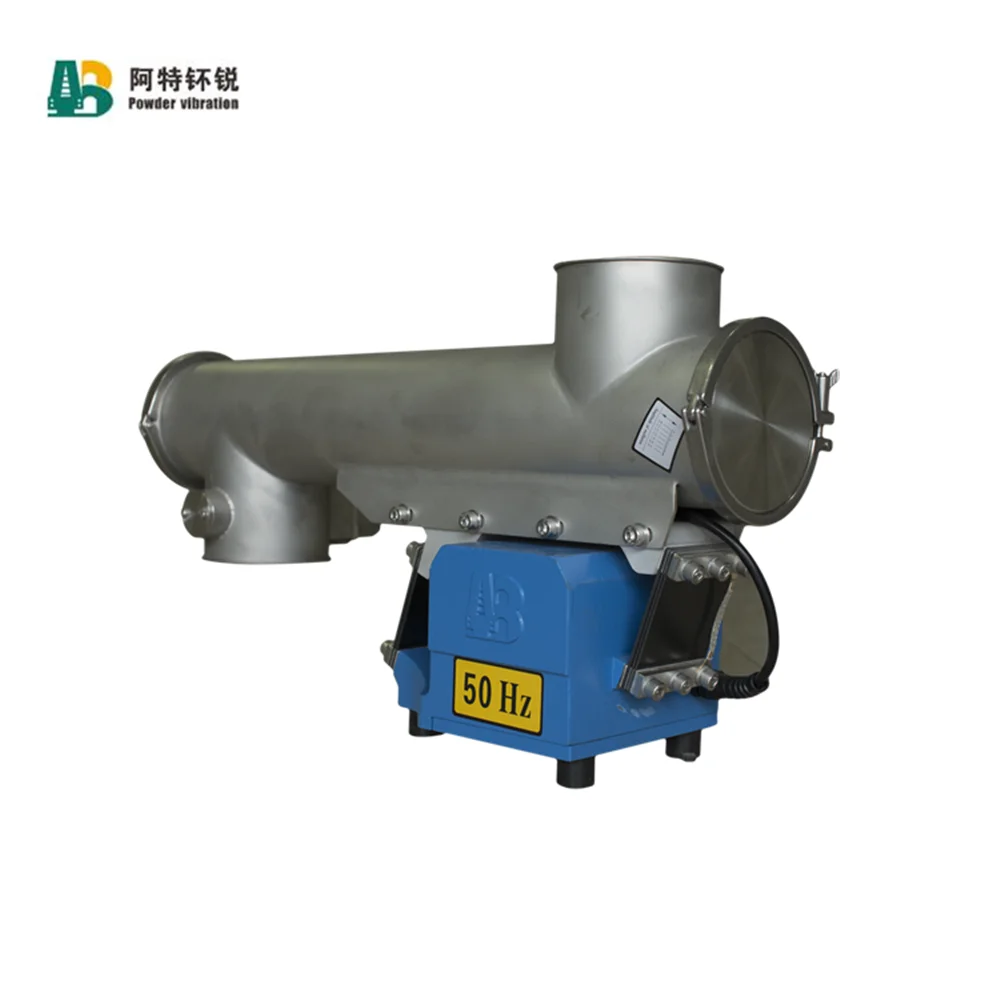

FZL Tube Electromagnetic vibrating feeder
Product Description

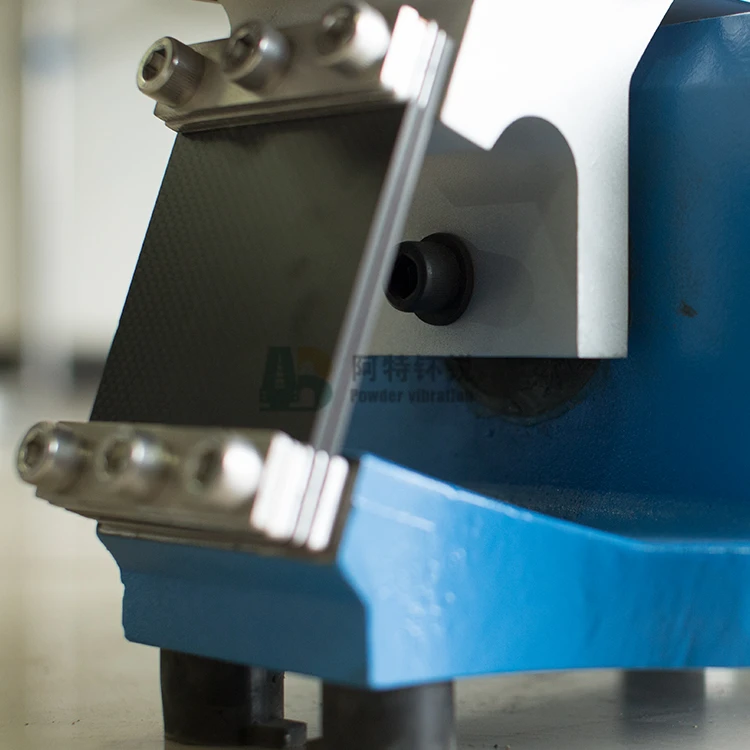

FZL series electromagnetic vibration feeder is a new type of equipment using carbon fiber spring. It is more used in rubber, lithium, food and other ingredients industries. Our feeder has compact structure, light weight, smooth operation, low noise, low energy consumption, easy installation and maintenance. The whole machine body can be washable.
Drive Design and Selection
Model | Voltage(V) | Current(A) | Frequency(HZ) | N.W(kg) | Tray weight(kg) | Controller |
FZL-08S | 220/110 | 1 | 50/60 | 23 | 3-6 | FZE-21S/34M |
FZL-12 | 220/110 | 2 | 50/60 | 31 | 5-9 | FZE-21S/34M |
FZL-18/18L/18S | 220/110 | 2.5 | 50/60 | 40 | 10-13 | FZE-21S/34M |
Unit: mm
Unit: mm
Common machines and conveying capacity
Tray size | 100*50 | 120*60 | 160*70 | 200*80 | 240*100 | 280*120 |
Capacity(T/H) | 2 | 3 | 5 | 8 | 12 | 15 |
Unit: mm
- Cooperate with special controller
- Tray size can be customized
- The theoretical transport capacity is based on the cross-section area of the transmission device and the bulk density of the bulk material transported. The bulk sand material density is 1.6t/m_, the particle size is 1-10mm, the moisture content is 8%, the particle is close to the cube shape, and the equipment is installed horizontally.
Controller model
Model | Voltage(V) | Output current (A) | Output power(VA) | Control model | Slow start | Regulatory function |
FZE-21S | 85-260V | 5 | 1100 | 1-5V 4-20mA | Yes | Voltage or frequency regulation |
FZE-34M | 85-260V | 3 | 660 | 1-5V 4-20mA | Yes | Voltage or frequency regulation |
Related Products
Packaging Delivery
Company Information
FAQ
1. I want to transport 20kg / h powder material. Which feeder should I use?
The cross-sectional area of the tank body and the stacking density of materials determine the conveying capacity. So please provide the bulk density (or false density) of your materials and your transportation distance. We are here to help you with your selection and quotation. Our customer service can also provide you with the user demand form, which will be sent to us after filling in. Your careful filling in will let our engineers choose a more suitable model for you.
2. Could we customize the shape of the tray (tank)?
Our tray have tube, open square tank and closed square tank. The tank size is designed according to the customer's requirements. In addition, the tank can be sprayed with ECTFE, ETFE, PE lining plate or hardfacing plate.
3. Is there controller for the electromagnetic vibration feeder ?
Yes , there are the controller for the electromagnetic vibration feeder. Control model have 1-5V or 4-20mA. To control different speed.
4. How long does the delivery time?
After both parties have determined the drawings, the delivery period is 20 working days for less than 50 sets.
5. Can you carry it with angle?
It is often used for horizontal conveying. Up no more than 7 degrees mounting angle.
6. Could the feeder with the hope?
It can be customized
