КВт Коммерческая промышленность широко используемый бесщеточный дизельный генератор самопусковой двигатель
- Категория: Дизельные генераторы >>>
- Поставщик: Jiangsu,Haut,Mechanical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12019.10 $* | 12620.8 $* |
| Aug-19-2025 | 11918.29 $* | 12514.2 $* |
| Jul-19-2025 | 9999.96 $* | 10499.89 $* |
| Jun-19-2025 | 11716.97 $* | 12302.73 $* |
| May-19-2025 | 10201.34 $* | 10711.1 $* |
| Apr-19-2025 | 11514.44 $* | 12090.22 $* |
| Mar-19-2025 | 11413.67 $* | 11984.43 $* |
| Feb-19-2025 | 11312.19 $* | 11878.45 $* |
| Jan-19-2025 | 11211.6 $* | 11772.19 $* |
Характеристики
Technical Parameters
| Diesel Generator Technical Data | |||
| Genset | HT-200 | Prime Power (KW) | 200 |
| Rated frequency(Hz) | 50/60 | Prime Power (KVA) | 250 |
| Rated speed(Rpm) | 1500/1800 | Phase | 3 Phase |
| Voltage | 220/380V,230/400V, 240/415V,120/240V | N.W (KG) | 2500 |
| Rated Current | 360A | Size (L*W*H) mm | 2600*970*1500 |

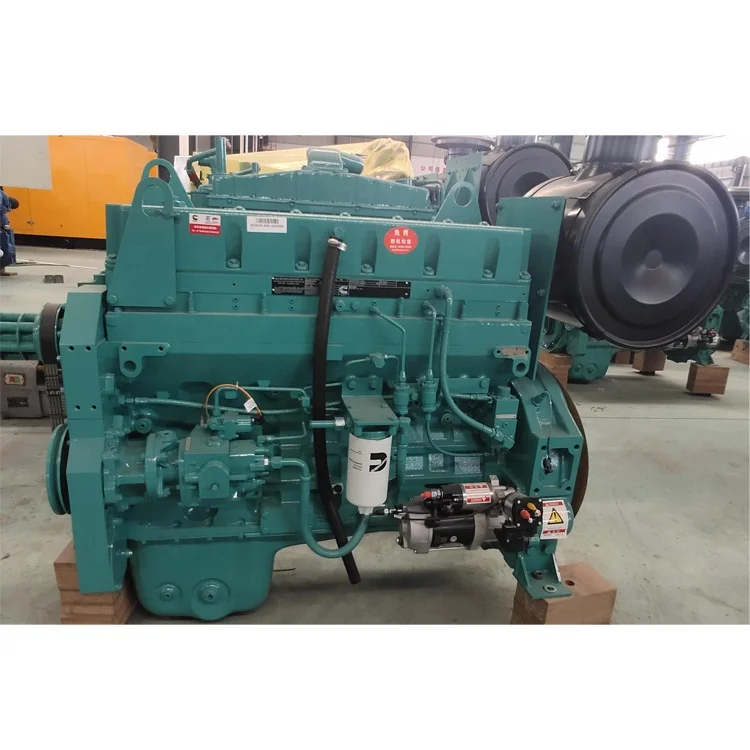

| Diesel Engine Technical Data | |||
| Brand/Original | 6LTAA8.9-G2 | Type | Water Cool, Electric start |
| Engine Item No. | 6LTAA8.9-G2 | Cylinder No. | 6 |
| Displacement (L) | 8.9 | Bore and Stoke (MM) | 114*135 |
| Prime Power (KW) | 220 | Fuel Consumption | 206(g/kw.h) |
| Standby power (KW) | 240 | Combustion | Direct Injection |
| Governor | Electronic | Aspiration Type | Turbocharged and air intercooled |
| Alternator Technical Data | |||
| Brand/ Original | Stamford copy/ Stamford original/Marathon/Leroy-Somer | ||
| Alternator Model | HT-200D | Protection | IP23 |
| Alternator Type | Brushless sel-excited | Insulation | Class H |
| Phase / wire | 3-phase& 4 line | Factor | 0.8 |
Control Module Specifications | |||
| Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. | |||
| The control module gives digital readouts of: | |||
| Generator voltage | Output frequency | Engine hours run | |
| Engine speed | Battery voltage | ||
| The control module has indicators for failure information: | |||
| High water temperature | Failure to start | Battery charger failure | |
| Automatic shutdown occurs under: | |||
| Low engine oil pressure | High engine water temperature | ||
| Over speed/Low speed | Failure to start after three attempts | ||
You May Like
Please click here for more power segments: ↓
1. 100KW/125KVA 2. 200KW/250KVA 3. 300KW/375KVA 4. 400KW/500KVA 5. 500KW/625KVA 6. 600KW/750KVA 7. 700KW/875KVA 8. 800KW/1000KVA 9. 900KW/1125KVA 10. 1000KW/1250KVA
Optional

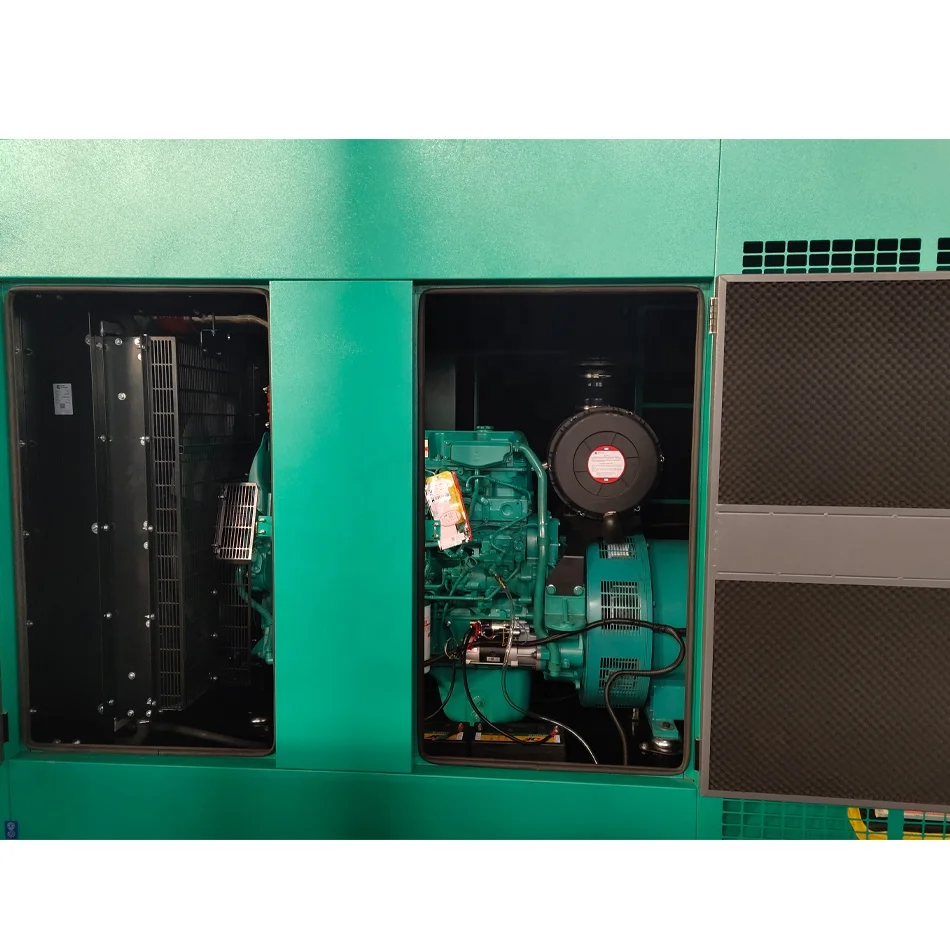

Soundproof/Silent/Mobile trailer Box:
1. Silent box: Acid pickling and phosphating treatment, anti-rust, anti-corrosion 2. Noise Level@7m: 72dB(A) 3. Color optional 4. Oil tank mounted on base frame for 8-12 Hours working
5. Excellent ventilation 6. Security and Safety
Factory pictures
Jiangsu Haut Mechanical Co., Ltd, is located in Yangzhou City.Jiangsu Province . Adjacent to Shanghai Port. With convenient transports access.For more than 20 years.
Our Advantages:
1. Solve technical problems and provide international warranty service for the engine within 24 hours
2. Design customized products according to customer requirements
3. Polyester varnish, anti-corrosion, protect the appearance and prevent rain
4. Test for two hours before delivery 5. ISO9001 and CE certification, strictly guarantee the quality
Delivery standard configuration:
1. Generator Set Distributor Random Technical Documents
2. Diesel engine, radiator / Muffler / Unit manual
3. Alternator / connection elbow / unit product quality certificate
4. Steel structure chassis / Battery and cable / Control screen
5. MCCB air protection switch / Damping pad / Engine original quality file
6. Generator original quality documents
Certifications
FAQ
1.What's your power range of diesel generators?
Answer: We can offer the range from 10kva~3000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T, L/C,and 30% T/T as the deposit,the balance payment should bepaid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty or 1500 hours which comes first.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6.What’s the frequency of diesel generators?
Answer: 50/60HZ
