GERMANY DEUTZ GENERATOR 25KV SPECIFICATION



*Powered by heavy duty industrial diesel engine, Cummins/Deutz/Perkins or China brand engines

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

* Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110% and all protection function  (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

*Certificate: ISO9001:2000, CE (ESC/070119), BV



Genset model	HF20GF
Prime power  (KW/KVA)	20/25
Standby power  (KW/KVA)	22/27
Frequency & voltage	400V, 50HZ
No. of  Phase	3
Genset type	Open skid type
Reference Dimension & Weight (W*H, mm)/KGS	1650*780*1300;780kgs
DIESEL ENGINE
Engine brand & Model	DEUTZ brand, D226B-3D
Rated output	30KW
Rated Speed	1500RPM
Engine Type	In-line, direct injection, four stroke
No. of cylinder	3
Bore*stroke	105*120mm
Aspiration method	Naturally
Governor	Mechanical/Electrical
Starting method	Electric starting
Cooling method	Forced water cooled
Displacement	3L
Fuel consumption	208g/kw.h
Rotation direction of crankshaft	Counter clockwise(face to flywheel end)
ALTERNATOR
Alternator brand & model	Stamford/Leroy Somer/China reputed brand
Type	Brushless & self-excited
No. of phase	3
Volatage	400V
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m



FACTORY  SHOW





  GERMANY DEUTZ GENERATOR 25KV PRODUCTION LINE



CERTIFICATES



 BUSINESS PARTNER

GERMANY DEUTZ GENERATOR 25KV CONFIGRATION

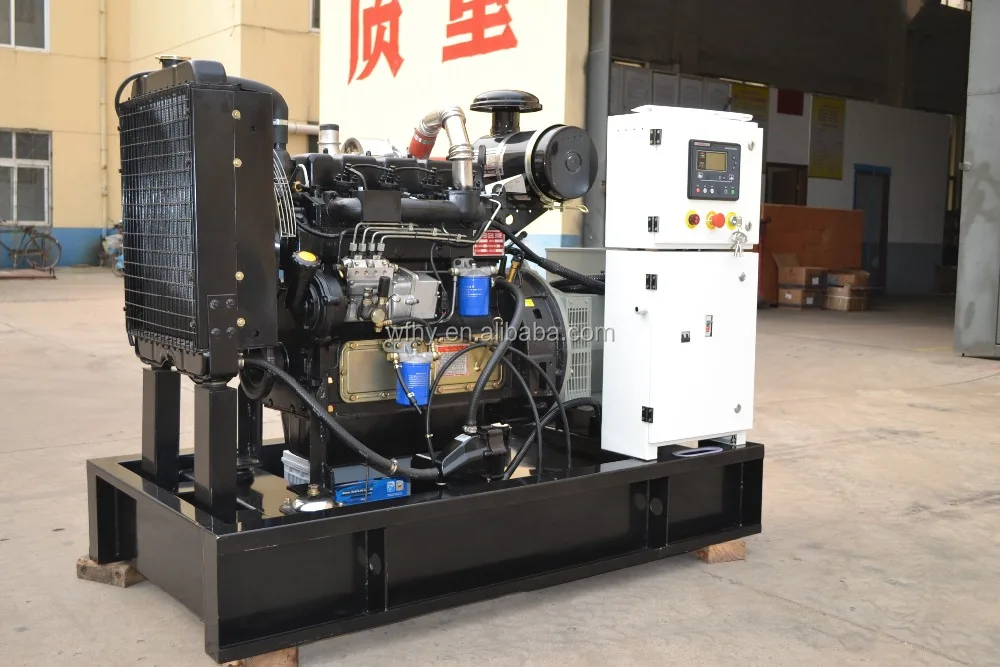

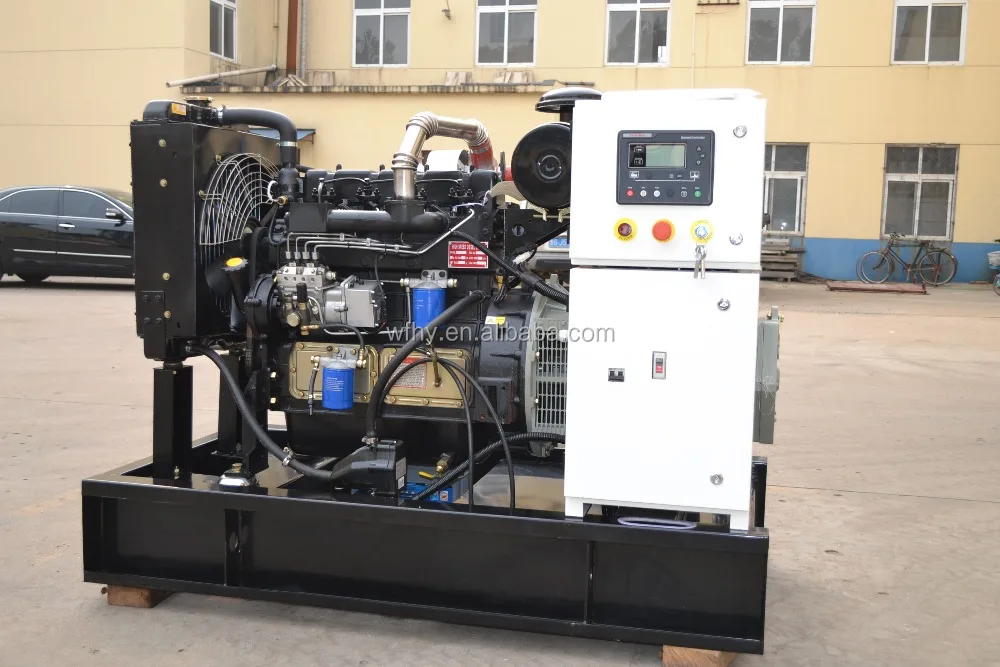

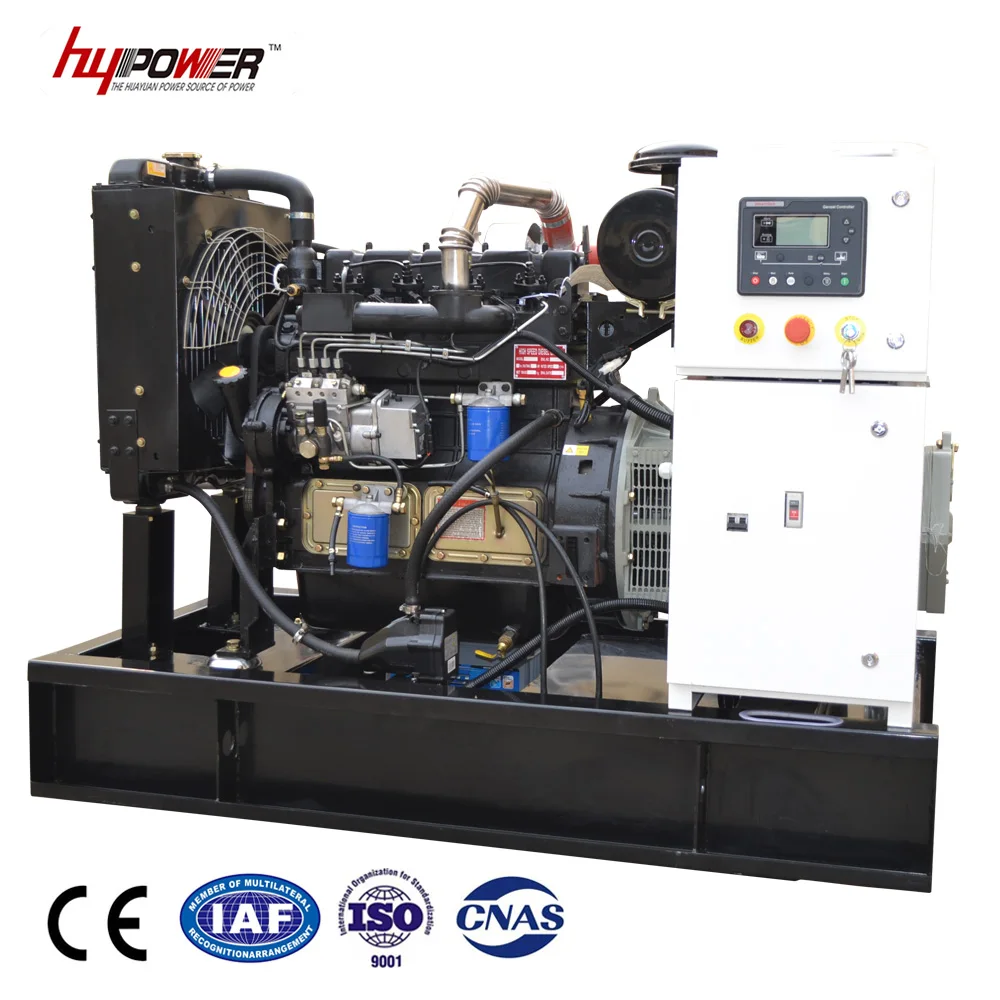

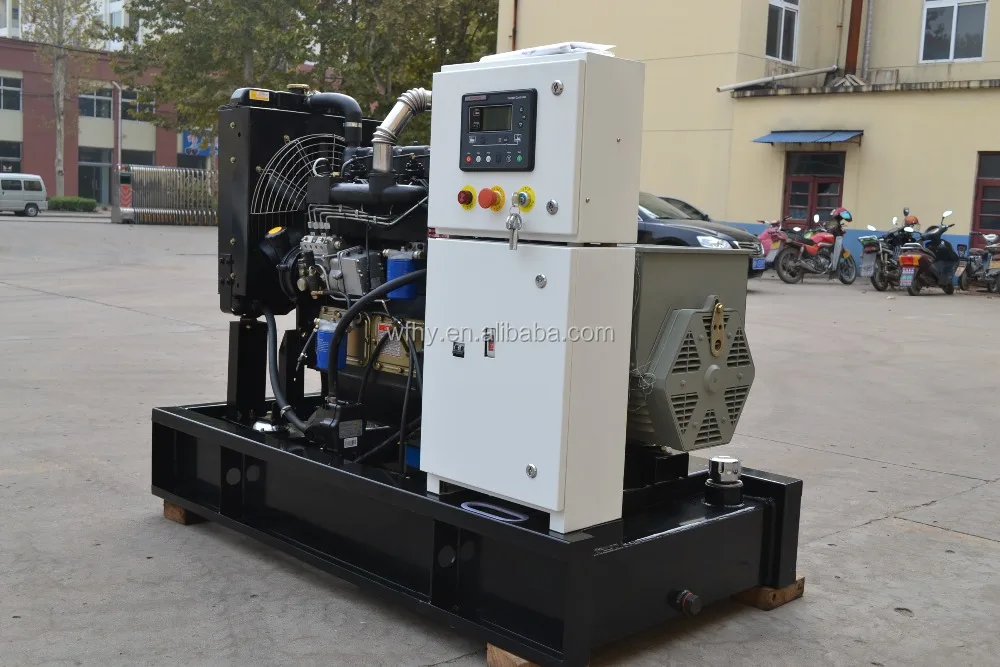

GERMANY DEUTZ GENERATOR 25KV SHOW











*Reply your enquiry in 24 working hours

*Offer customers the lowest price with highest quality

*Dliver the goods to our customer all over the world with speed and precision

*Supply one year guarantee for whole machine from daye of bill of loading or 1000 hours of running or 12 months from date of bill of loading.
