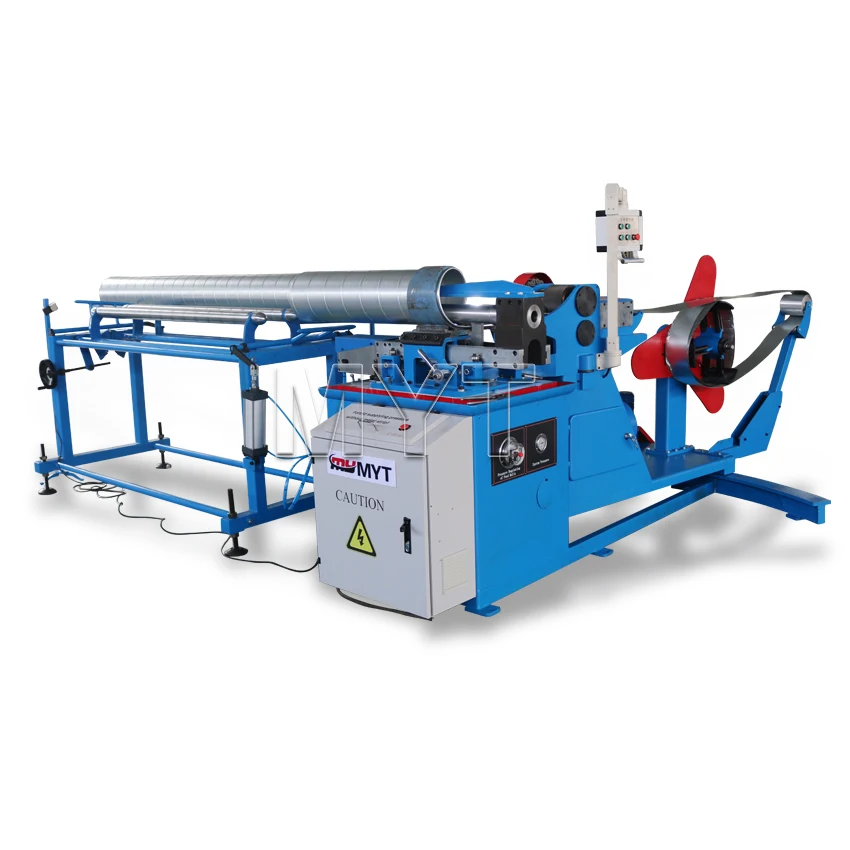

MYT бренд MYTF-1600 спираль трубочно формировачные машины для вентиляции и кондиционирования круглых воздуховодных делая
- Категория: Building Material Machinery >>>
- Поставщик: Myt(shanghai),Machinery,Equipment,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2172112.46 $* | 2280718.77 $* |
| Aug-19-2025 | 2153859.3 $* | 2261552.41 $* |
| Jul-19-2025 | 1807051.77 $* | 1897404.32 $* |
| Jun-19-2025 | 2117353.27 $* | 2223221.59 $* |
| May-19-2025 | 1843557.35 $* | 1935735.81 $* |
| Apr-19-2025 | 2080847.92 $* | 2184889.42 $* |
| Mar-19-2025 | 2062594.92 $* | 2165724.36 $* |
| Feb-19-2025 | 2044340.19 $* | 2146557.85 $* |
| Jan-19-2025 | 2026087.67 $* | 2127391.20 $* |
Характеристики
Product Overview
Performance Features:
1. Uncoiler: vertical type.
2. Sealing & locking: out surface of the pipe.
3. Cutter: rolling type cutting.
4. Forming head mould: made of steel (aluminum alloy casting optional).
5. Power system: pneumatic power for cutting & turning material; hydraulic power for discharge &
roller compression.
1. Uncoiler: vertical type.
2. Sealing & locking: out surface of the pipe.
3. Cutter: rolling type cutting.
4. Forming head mould: made of steel (aluminum alloy casting optional).
5. Power system: pneumatic power for cutting & turning material; hydraulic power for discharge &
roller compression.
Detail images

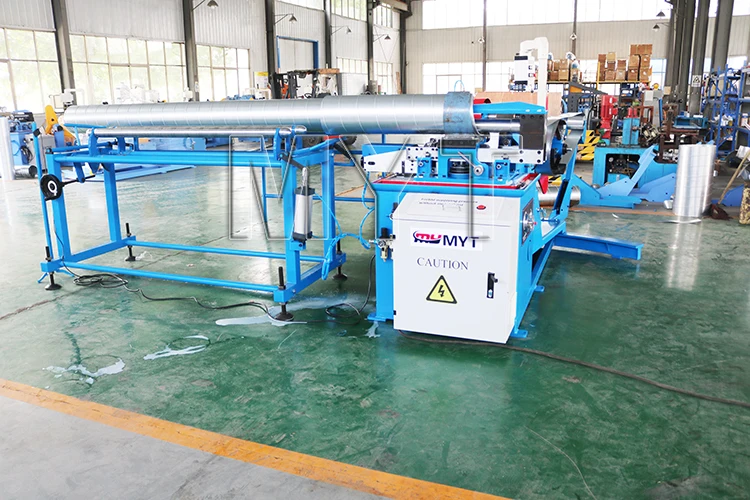

Front side of spiral duct machine

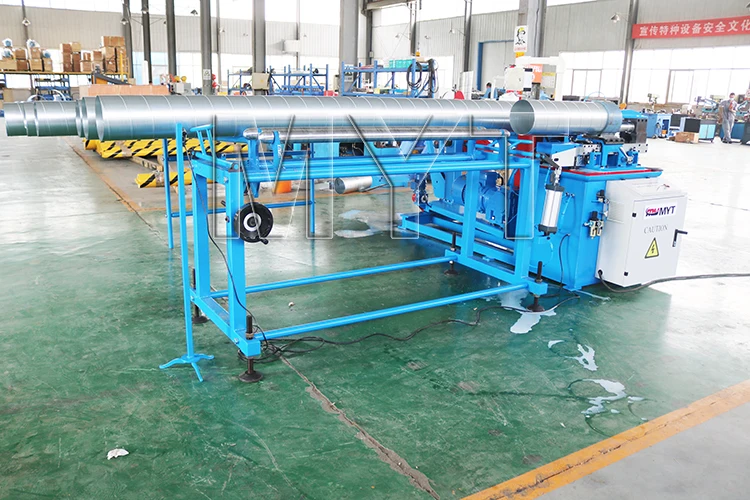

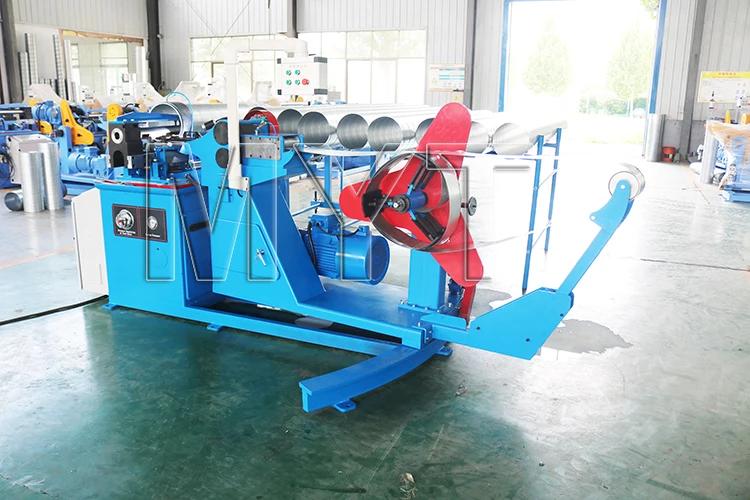

Back side of spiral duct machine

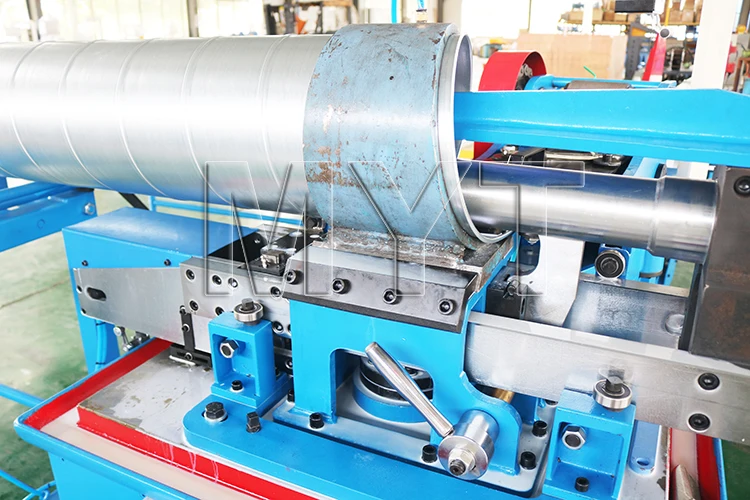

Roller shear part
Finished spiral tube
Schneider electrics
Control box
PLC control for feeding material
Customized molds
Roll shear part
Pneumatic rack
PRODUCT SPECIFICATIONS
Type | MYT-1600 spiral tubeformer |
Diameter range | Φ100-φ1500mm |
Tube length | 125-6000mm |
Strip width | 137-140mm |
Lock seam | Outside tube,on the inside on request |
Material | Galvanization 0.4-1.2mm |
Strip speed | Max:38m/min |
Dimensions | 2650x1550x2000mm |
Weight | 2200kg |
Control system | PLC automatic control |
Main motor power | 5.5KW |
The power of cutting motor | 4KW |
Electrical | 380V/50Hz/3PH Customizable voltage |
Working pressure | 0.5-0.7Mpa |
