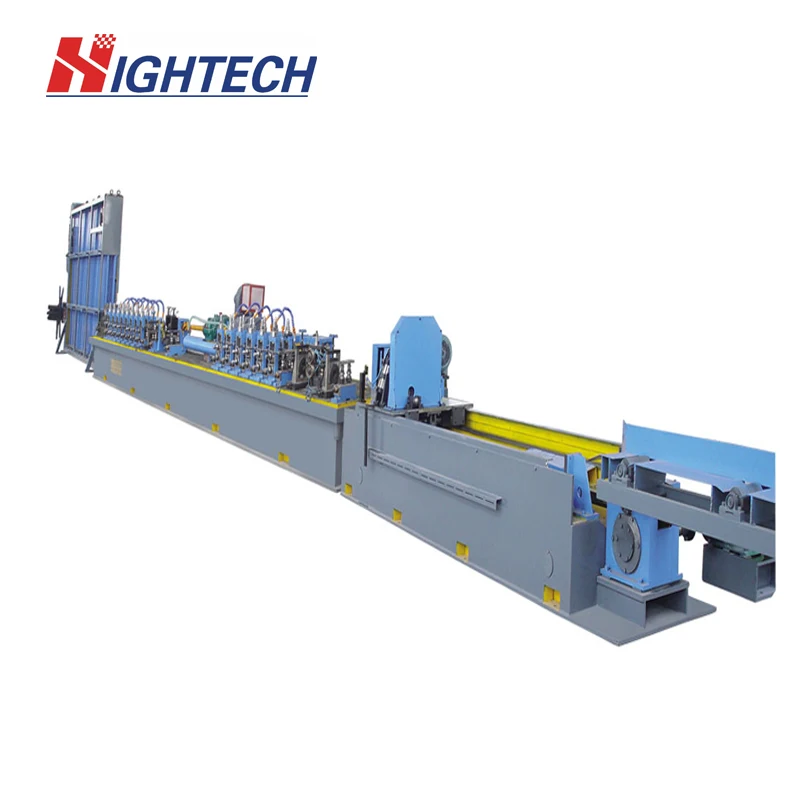

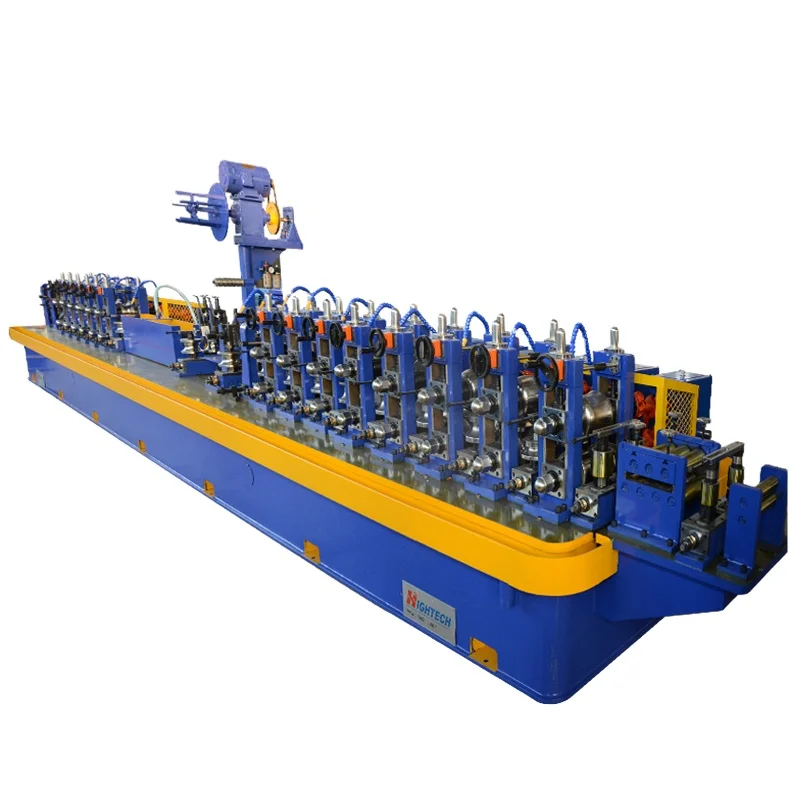

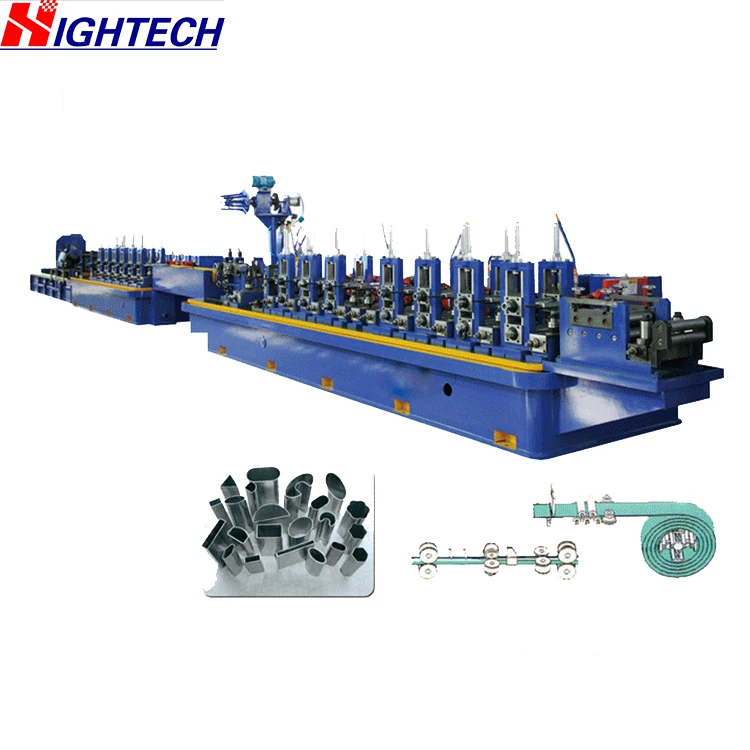

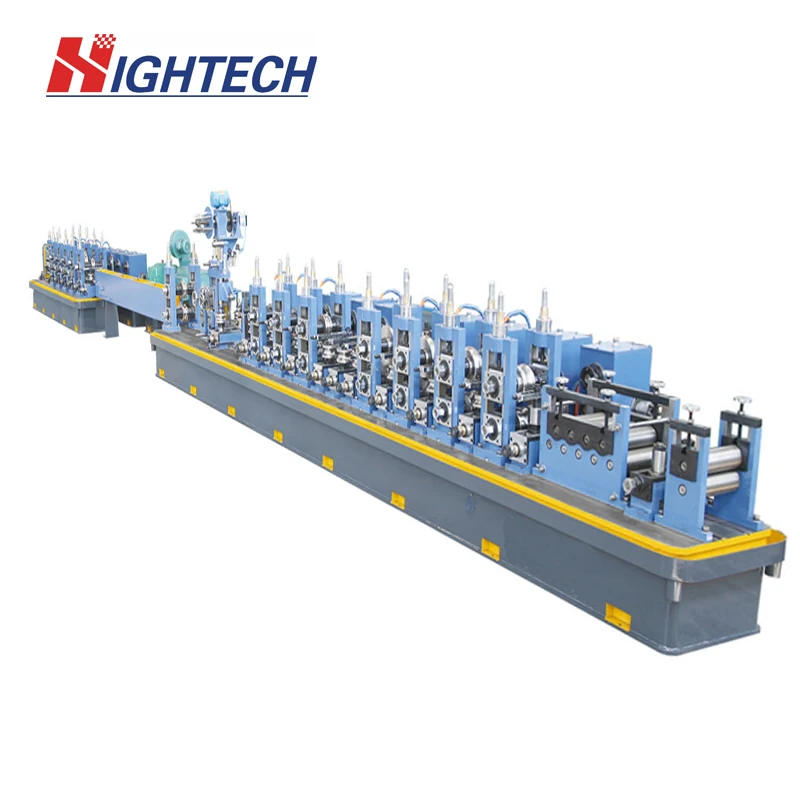

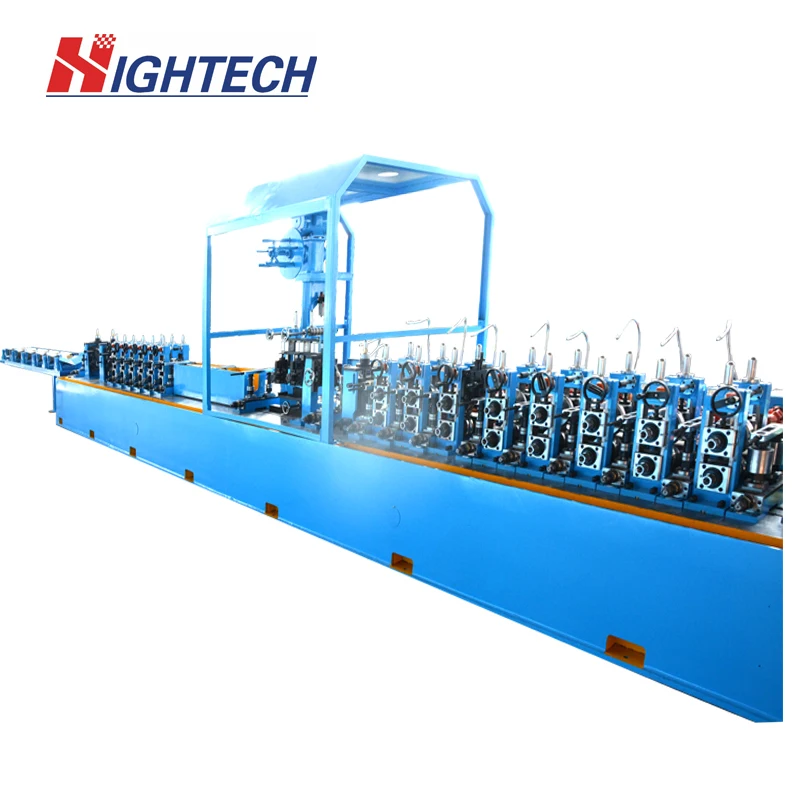

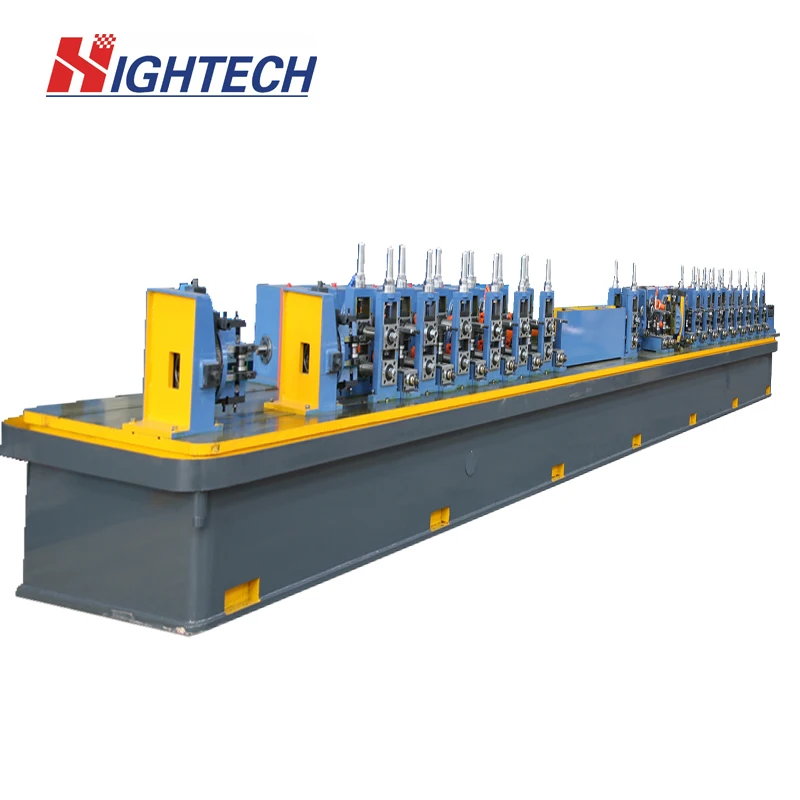

Линия по производству стальных труб под заказ круглая квадратная машина для изготовления ss
- Категория: Building Material Machinery >>>
- Поставщик: Taizhou,Hitech,Nc,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.25 $* | 0.32 $* |
| Aug-15-2025 | 0.0 $* | 0.22 $* |
| Jul-15-2025 | 0.54 $* | 0.56 $* |
| Jun-15-2025 | 0.78 $* | 0.16 $* |
| May-15-2025 | 0.47 $* | 0.24 $* |
| Apr-15-2025 | 0.81 $* | 0.46 $* |
| Mar-15-2025 | 0.15 $* | 0.3 $* |
| Feb-15-2025 | 0.84 $* | 0.70 $* |
| Jan-15-2025 | 0.7 $* | 0.45 $* |
Характеристики
Product Description
Model | Diameter of welded tube(mm) | Wall thickness of welded tube(mm) | Speed of tube welding(m/min) | Power of main motor(kw) | High frequency power(kw) |
ZG16 | 8-25 | 0.25-1.0 | 30-100 | 30 | 60 |
ZG25 | 8-32 | 0.35-1.3 | 30-100 | 45 | 100 |
ZG32 | 13-50.8 | 0.5-2.0 | 30-90 | 110 | 150 |
ZG50 | 20-63.5 | 0.6-2.5 | 30-90 | 160 | 200 |
ZG60 | 25-63.5 | 0.8-3.0 | 20-80 | 185 | 250 |
ZG76 | 25-80 | 1.2-4.0 | 20-70 | 200 | 300 |
ZG90 | 32-90 | 1.5-4.5 | 20-60 | 110x2 | 400 |
ZG115 | 38-115 | 2.0-5.0 | 20-60 | 160x2 | 400 |
ZG165 | 80-165 | 2.0-6.0 | 15-50 | 200x2 | 500 |
ZG219 | 90-219 | 3.0-8.0 | 15-50 | 250x2 | 600 |
ZG273 | 185-273 | 4.0-10.0 | 15-40 | 250x1 185x2 | 800 |
ZG300 | 165-355 | 4.0-12.0 | 15-30 | 250x2 200x2 | 1200 |
UNCOILER
360°rotary hydraulic-pressure expanding tight，which insure steel coil feeding alternatively and make steel strip go into accumulator freely
ACCUMULATOR
Overview：it has two kinds of accumulator for optional.usually big line use horizontal type,and small line use vertical type.
Forming part
Mainly roughly mill-forming steel strip and controlling weld seam
Sizing part
Mainly fine shaping pipe after welding and controlling size accuracy
Turkey’s head
mainly used for straightening of finished pipe roughly online
Cold saw cutting
This numerical control cold cutting flying saw, with internationally advanced performance and all servo control, is suitable for online moving high-speed cutting of various pipes.
Application tubes
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Related Products
Company Profile
HITCH,YOUR PROFESSIONAL EQUIPMENT CONSULTANT
Our comapny specializes in researching,manufacturing and selling precision machines.Ourproducts include metal cutting machines,metal forging machines,special EDM machines,and complete set of machine for metallurgy industry,coving 14kinds of machines,such as vertical CNC maching centers,horizontal CNC machining centers,CNC planer-type(gantry-type)machining centers,floor type boring and milling machining centers,turning lathes series,grinding machine series,plate shearing series,press brake series,plate rolling series,press machine series,EDM machine series,deep holo processing series,pipe production lines,slitting line,steel coil uncoiler andleveling line,stc.
Workshop
Czech SKODA Floor-type Boring Machine
Gantry Type Milling Machine
CNC Machine Center from Taiwan
Horizontal Boring Machine
Packing and Delivery
We Are Toogether With Our Customer
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer of ERW pipe making machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Pipe Material,Pipe Size,Pipe Thickness
Q:What should I do to start a new business in pipe producing area?
A:Please contact us immediately,we provide free pre-sales consultant service with rich experience in factory layout and workshop
design.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 30 years.Certified by ISO and CE.
Our ERW pipe making machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
