Оборудование для бетонной плиты EPS/сборный

Категория: Board Making Machinery >>>
Поставщик: Dezhou,Haitian,Electromechanical,Technology,Co.,Ltd.

Цена:20 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	23800.31 $*	24990.85 $*
Aug-17-2025	23600.0 $*	24780.47 $*
Jul-17-2025	19800.86 $*	20790.28 $*
Jun-17-2025	23200.81 $*	24360.62 $*
May-17-2025	20200.78 $*	21210.51 $*
Apr-17-2025	22800.47 $*	23940.0 $*
Mar-17-2025	22600.85 $*	23730.77 $*
Feb-17-2025	22400.95 $*	23520.64 $*
Jan-17-2025	22200.3 $*	23310.82 $*

Характеристики

Product Description

Product Application

The HLJ model horizontal type EPS concrete plate machine designed by Haitian company is mainly used to produce three different types panels:

1. CLC hollow core wall panel
2. Gypsum wall panel
3. MGO wall panel

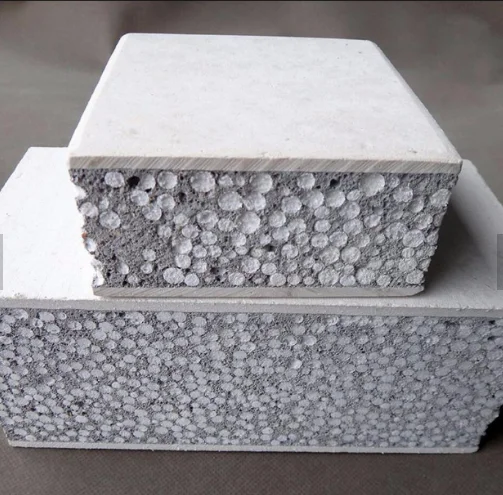

4. EPS cement sandwich wall panel

*The thickness and length can be adjusted, thickness (60, 90, 120, 150, 180, 200mm) can be produced. Length 2.4-3.0m.

Production line advantage of flexible investment, one set of machinery can produce various panels, It is suitable for both small and large manufacturing on production.

Name	HLJ model horizontal type EPS concrete plate machine
Production capacity	3000x600x90mm 20pcs/mould
		3000x600x120mm 15pcs/mould
		3000x600x150mm 12pcs/mould
Power of hydraulic system	4KW
Hydraulic working pressure	8Mpa
Max. Hydraulic working pressure	16Mpa
Quantity of labor	3 workers/5 sets of machine
Overall dimension of the mould	3100x3200x1300mm
Machine weight	7500KG
Automatic level	Full/Semi-automatic

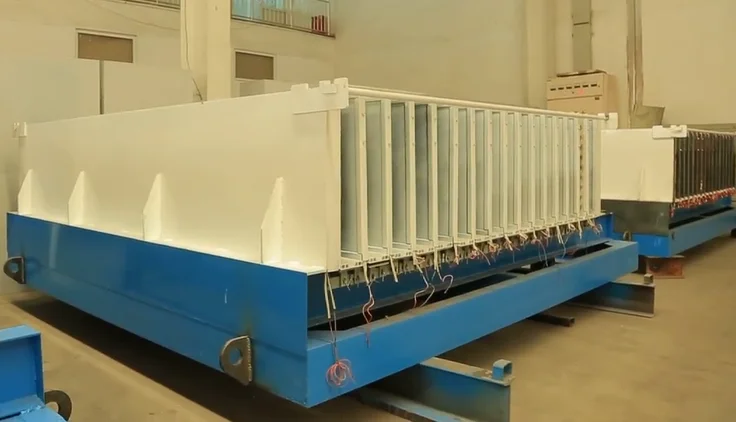

Mould car type	Two types:mobile or fixed.

Details of the production line

Mixing platform&Mixer

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring
scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We
adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production
efficiency.

Double shaft mixing machine ,fully stirring and no blocking,fully sealed design.
Adopt famous electric appliance such as Schneider.

Puming system

Pumpm mixing material into the mold car, it can avoid the air holes.

MOVABLE/FIXED FEEDING SYSTEM

The feeding machine can be moveable or fixed, matched well with mold car, easily operate

Automatic de-molding&tilting system

→Pull out the panels automatically, it can pull out 20 panels at one time

→turn over the board make it horizontally for stacking

Application

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	3.5 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
