Характеристики

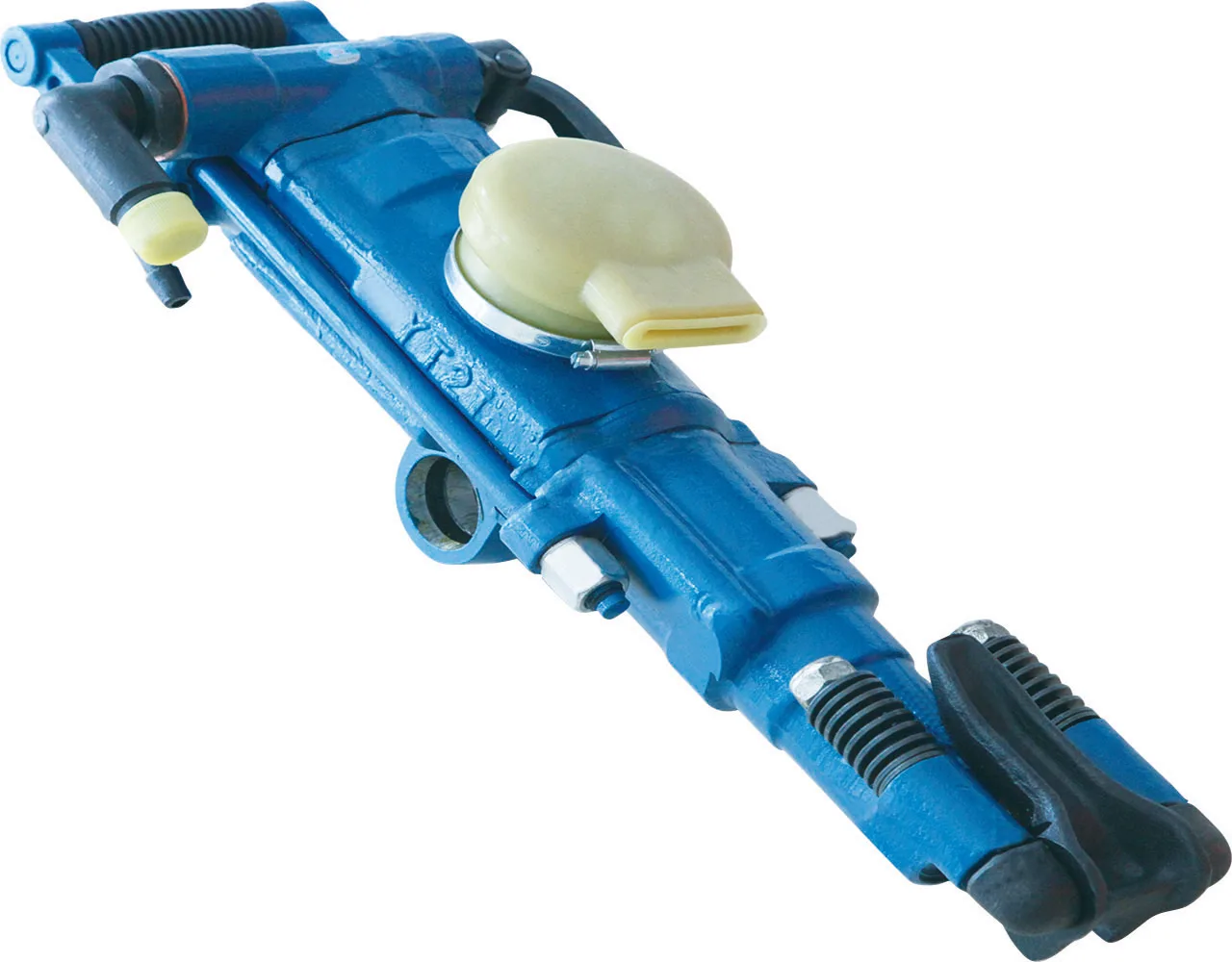

Pusher leg rock drill YT27 spare parts
Product Description
The product is mainly used in drilling operation of mine tunneling,and it's widely used drilling tools in railways, water conservancy construction and national defense construction areas,and it can be matched with FY250 model oil injector and FT160A (OR FT160B, FT160C, FT170 ) model air leg,can do wet rock drilling for medium hard and high hard,level of rock drilling and tilt boreholes.Unloaded air leg also be used on trolley.
Pusher leg rock drill YT27 spare parts
| YT27 air leg pneumatic rock drill | |
| Weight | 27 Kg |
| External Dimensions(L W H) | 668x248x202 mm |
| Working Air Pressure | 0.4 ~ 0.63 MPa |
| Cylinder Diameter | 80 mm |
| Piston Stroke | 60 mm |
| Working Water Pressure | 0.3 MPa |
| Working Temperature | -30 ~ 50 ℃ |
| Air Pipe Inner Dameter | 25 mm |
| Water Pipe Inner Dameter | 13 mm |
| Drilling Hole Diameter | 34 ~42 mm |
| Drilling Hole Depth | 5 m |
| Shank Size | H22x108 mm |
| Acceptance Of Air Pressure | 0.63MPa 0.5MPa 0.4MPa |
| Impact Frequency | ≥40Hz ≥39Hz ≥37Hz |
| Impact Energy | ≥70J ≥64J ≥48J |
| Noise | ≤127Db/(A) ≤126Db/(A) ≤125Db/(A) |
| Drilling Speed | ≥480mm/min ≥400mm/min ≥300mm/min |
Pusher leg rock drill YT27 spare parts
| FY250 Oil Lubricator | |
| Weight | 1.2 Kg |
| Oil Capacity | 0.25 L |
Pusher leg rock drill YT27 spare parts

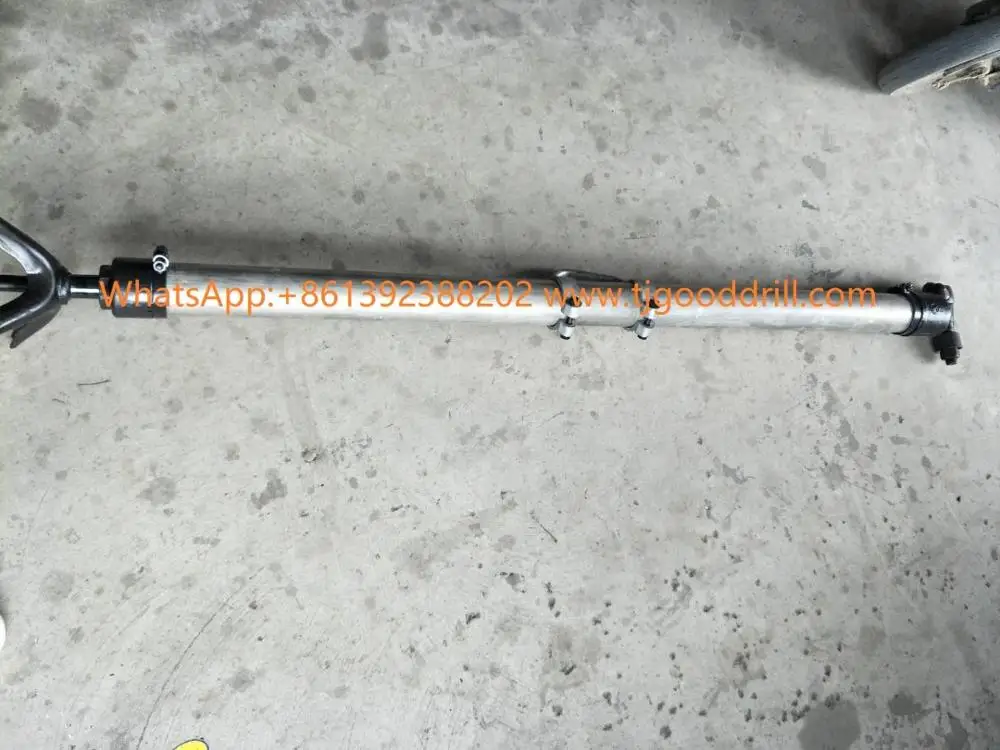

| Air Leg Model | FT160A | FT160B | FT160C |
| Weight | 17 Kg | 15 Kg | 18 Kg |
| Length | 1668 mm | 1428 mm | 1820 mm |
| Propulsion Stoke | 1338 mm | 1098 mm | 1490 mm |
| Cylinder Inner Diameter | 65 mm | 65 mm | 65 mm |
Pusher leg rock drill YT27 spare parts
Pusher leg rock drill YT27 spare parts
Productive Process
Related Products
 |  |  |
| Button bit | Hex. drill rod | Integral drill rod |
| Pusher leg rock drill YT27 spare parts | ||
 |  |  |
Certifications
Our services
1.Pre-sale service:
Act as a good adviser and assistant of clents enable them to get rich and generous returns on their investments.
a.Response within 24 hours.
b.Select equipment model as your request.
c.Design and manufacture products according to client's special requirement.
2.Services during the sale:
Strict control products before delivery.
3.After-sale services:
Provide considerate services to minimize client's worries.
a.Professional engineers available to service machinery at home or overseas.
b.Warranty for 6 months if the products have quality problems.
c.Provide perfect spare parts and accessories service and support.
Pusher leg rock drill YT27 spare parts
