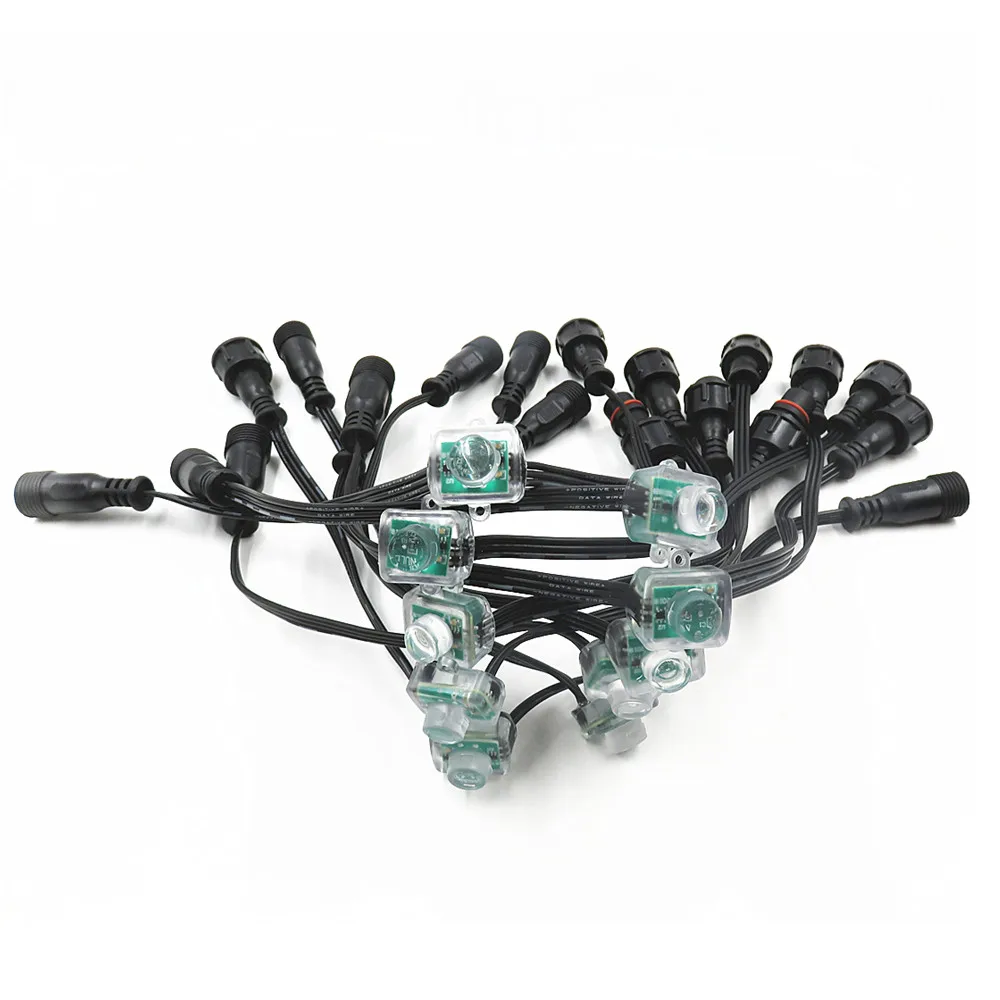

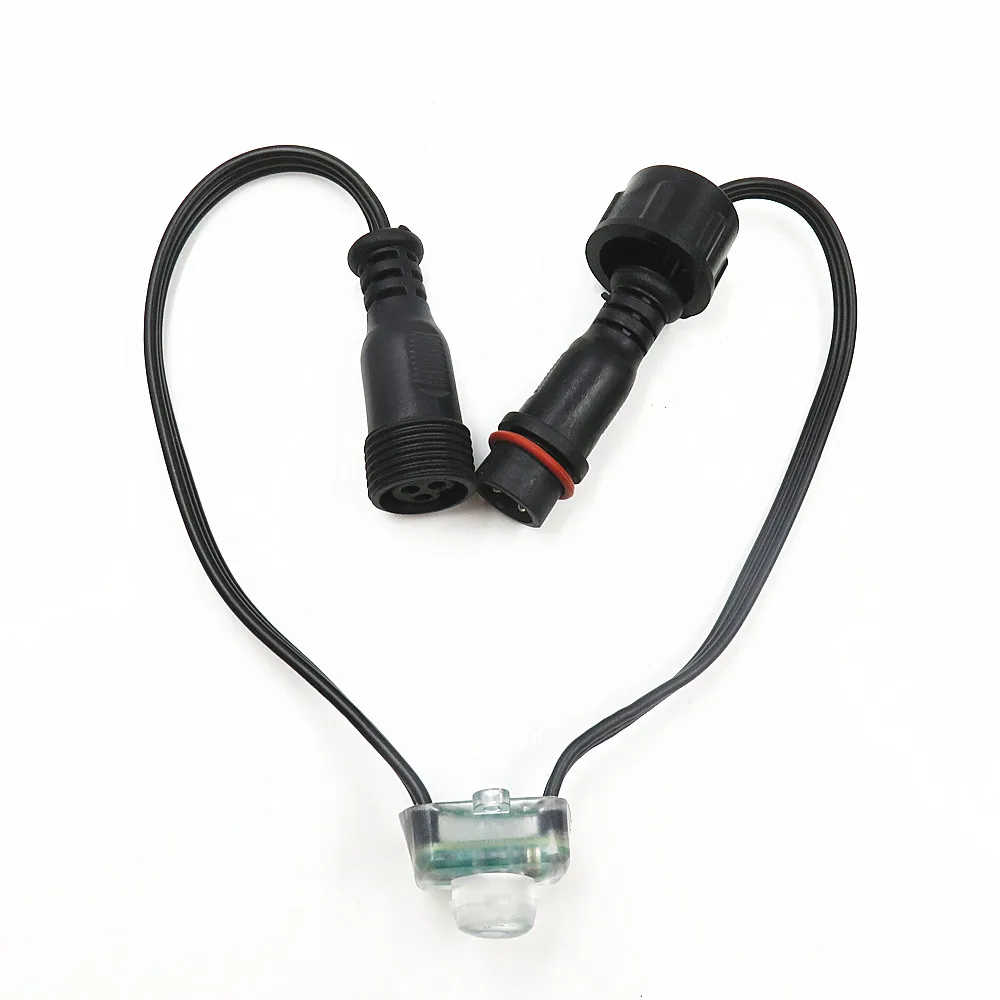

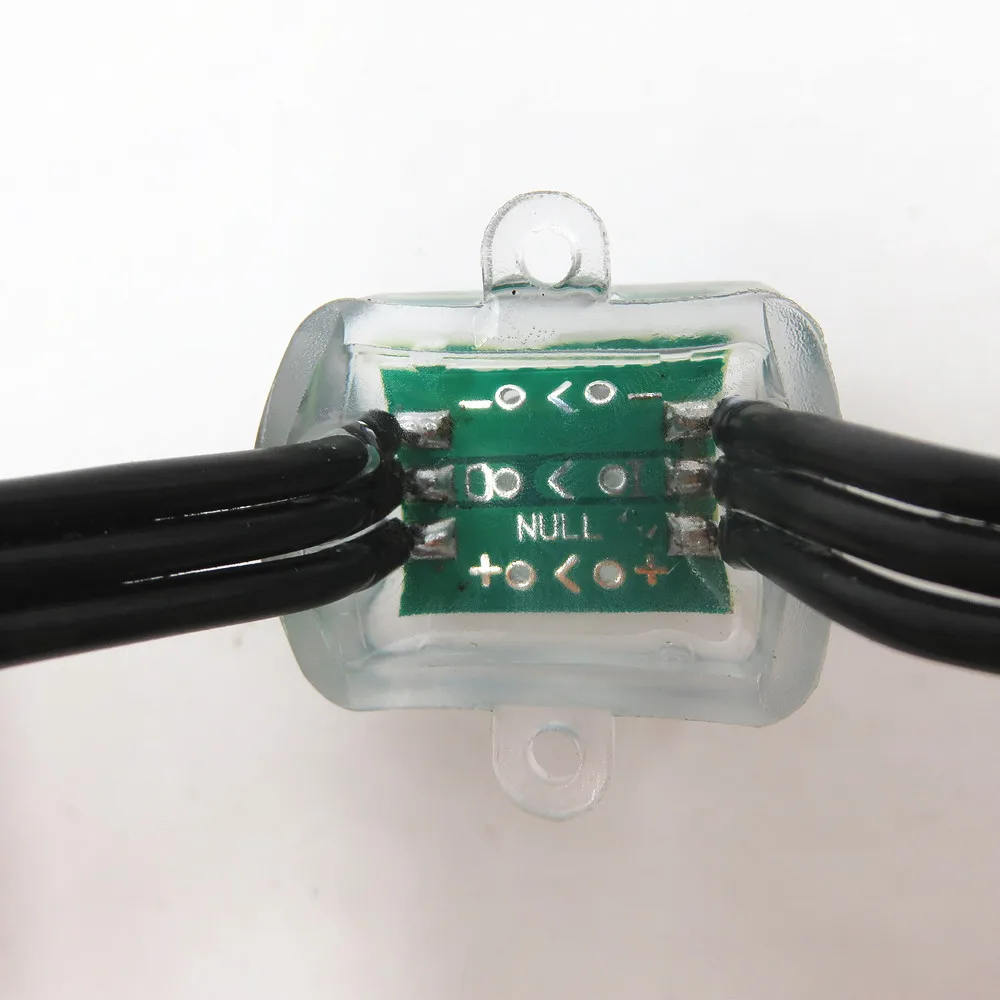

The pixel buffer is used to "clean up" or "regenerate" data from the controller or last pixel to allow a much longer stretch of wire to the next pixel.Coming with a male input connecor and a female output connector.Encased in epoxy in a square node shell.Can be used with 5 or 12V 3-wire pixels.



For extending distance to first pixel:

Controller ->—3-10m—>-Pixel String
Controller ->—3-10m—>-“Null buffer”->—up to 30m cable—>-Pixel String
Controller ->—3-10m—>-“Null buffer”->—up to 30m cable—>-“Null buffer”->—up to 30m cable—>-Pixel String

For extending distance between pixels:

Controller ->—3-10m—>-Pixel String->—up to 3m cable–>-Pixel String
Controller ->—3-10m—>-Pixel String->—up to 3m cable–>-“Null buffer”->—up to 30m cable—>-Pixel String
Controller ->—3-10m—>-Pixel String->—up to 3m cable–>-“Null buffer”->—up to 30m cable—>-“Null buffer”->—up to 30m cable- –>-Pixel String

Note: the distances shown are approximations. Your actual distance will vary depending on the type and quality of the cable used and the pixel controller
