Характеристики
Product Description

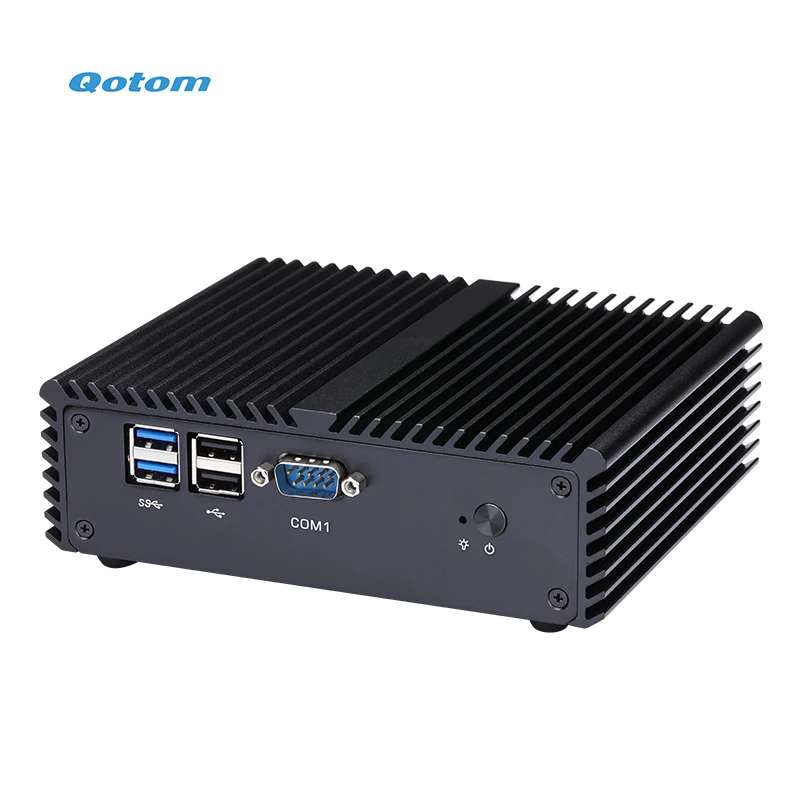

Front I/O
• Power Button
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x Power LED
• 1 x Serial Port (RS-232)

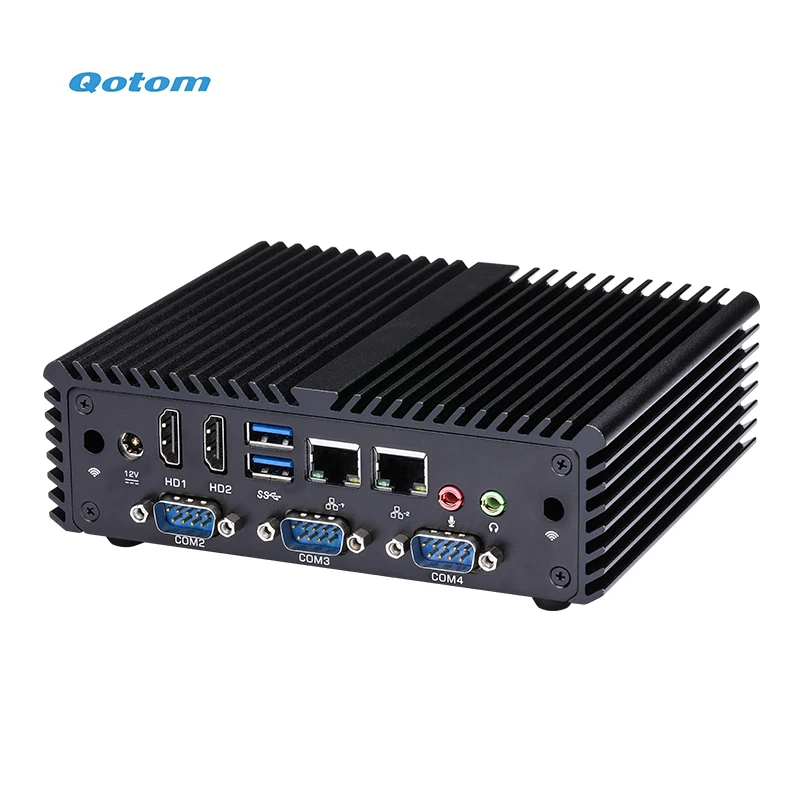

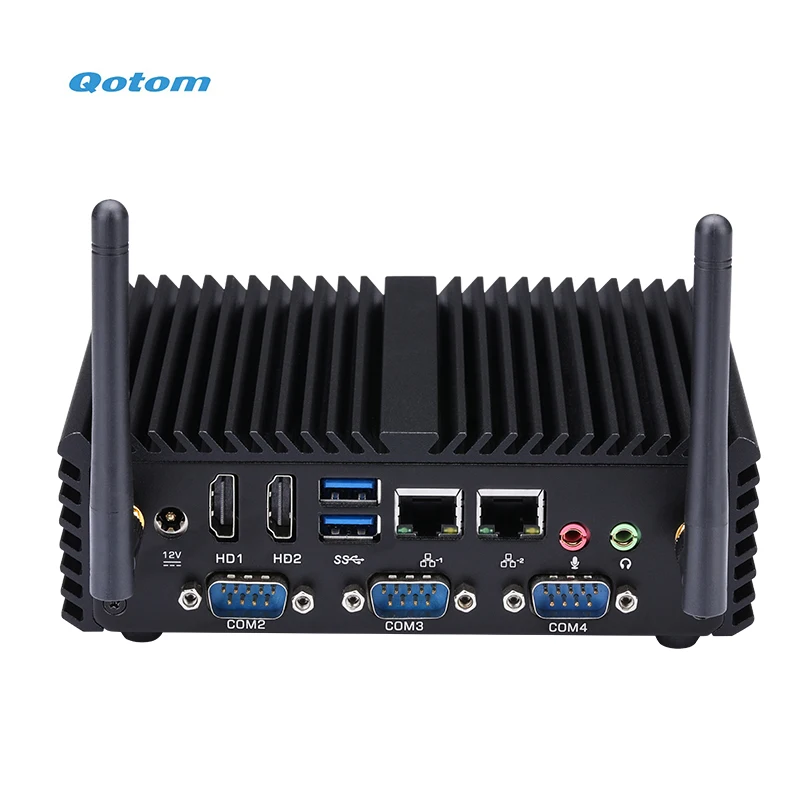

Rear I/O
• 1 x DC Jack
• 2 x HD Video Ports
• 2 x Realtek RTL8111E Gigabit LAN
• 2 x USB 3.0 Ports
• 3 x Serial Ports (RS-232)
• Mic-in, Line-out

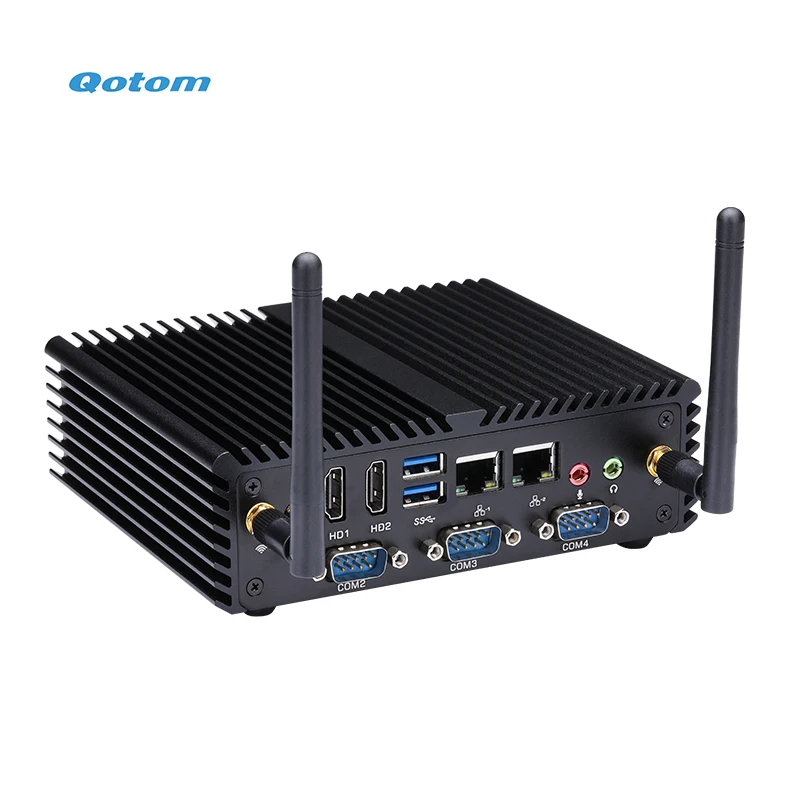

• Wi-Fi (Optional)

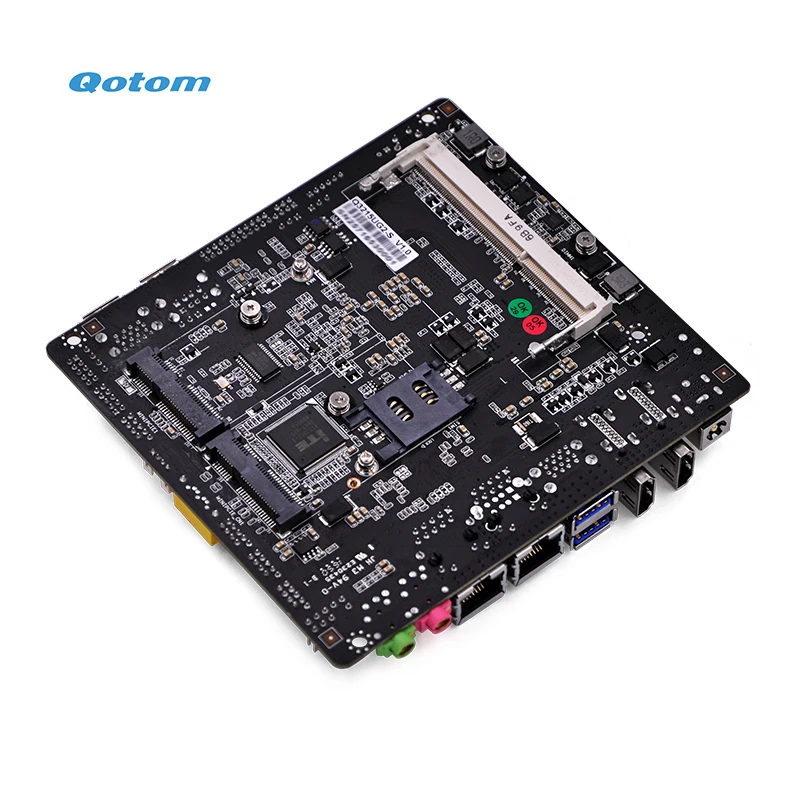

Qotom Fan-less Mini Motherboard
CPU: Intel Core i5-4200U
3M Cache
Dual core 1.6 GHz, up to 2.6 GHz
CPU TDP: 15 W
Integrated graphics: Intel HD Graphics 4400
Integrated graphics: Intel HD Graphics 4400
Memory:
1 x DDR3 DIMM Memory Slot
Support DDR3L 1333/1600 MHz, 1.35V
Max: 8GB
Non-ECC

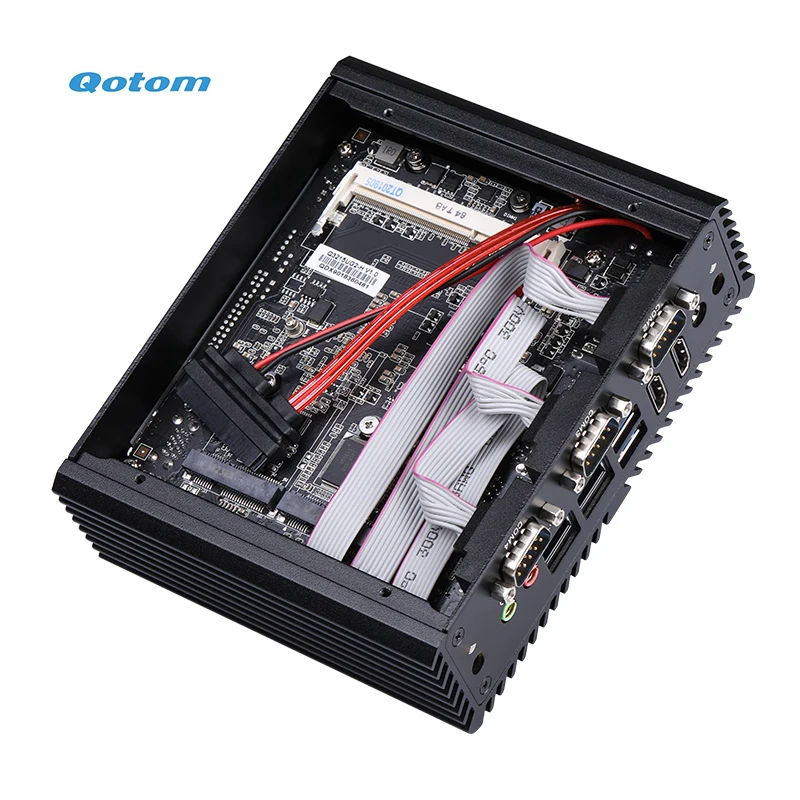

Storage:
Support SSD (MSATA / SATA)
Support HDD (2.5 inch SATA HDD)
Support HDD (2.5 inch SATA HDD)
Wi-Fi:
1 x Half mini pcie slot for Wi-Fi
Interface: PCIE
Operating System
• Preinstall inactive Windows 10 for test and Qotom do not provide any Windows license.
• Supports Windows 7/ 8/ 10, Linux, etc.
• Buyer can reinstall operating system.
• F11 key boot from USB Drive. Delete key enter BIOS.
SIM & 4G LTE Module
* A Full mini pcie slot on motherboard for 3G/ 4G Module.
* A SIM card slot onboard.
* Qotom do not supply any SIM card and LTE module. * When you buy LTE module, please get details like drivers from the supplier.
* Q400P Series only have dual antennas holes for WI-Fi by default. If you wanna install LTE module at the same time, please contact us in advance to get PC case with 4x Antennas holes.
Qotom Q400P Series
* Qotom Mini PC Q400P Series contains below models, they are same except processor onboard.
* You can choose CPU according to demand.
* CPU has been integrated on motherboard, it's impossible to replace it.
Model | CPU |
Q401P | Intel Celeron 2955U (Haswell) |
Q430P | Intel Core i3-4005U (Haswell) |
Q450P | Intel Core i5-4200U (Haswell) |
Q430PY | Intel Core i3-4020Y (Haswell) |
Q450PY | Intel Core i5-4210Y (Haswell) |
Q435P | Intel Core i3-5005U (Broadwell) |
Q455P | Intel Core i5-5200U (Broadwell) |
Wide application
• Running 24/7
• Fan-less design, quite working.
• The frame is simple , maintain easily.
• Small size, only 155*127*48mm, save space and easy to move.
• With VESA Bracket, it can be hung.
• Attaching monitor, keyboard, mouse, it's your new personal computer, excellent POS terminal, mini server, etc.
• Support two monitors to display same or difference.
• Operating temperature: -10~ 50 degrees Celsius
Related Mini PC
Q400S Series
If you don't need any COM ports or just need 1 COM ports, Q400S series is optional. It has same motherboard and PC size with Q400P series.
Q300P Series
If you need 6x COM ports or a VGA or a RS-485, please contact us to get documents for Q300P series.
Our Advantages
Custom service
1. Laser printing LOGO for free.
* MOQ: 5 units
* For free
* Only white
* Buyer provide LOGO in PDF format
2. Label
* MOQ: 5 units
* For free
* Buyer list label contents
* Only white background and black text
3. Change Startup Picture
* MOQ: 5 units
* For free
* Buyer provide new picture
4. Pre-set BIOS
* For free
5. Customize packing box based on Qotom packing box
* MOQ: 100 units
* Buyer will be charged extra fees
* Buyer should provide available new design.
6. Remove or add some ports
* This service is based on quantity and models.
Please contact us to list your requirements.
Product packaging
Packing
1 x Mini PC
1 x Power supply (adapter and cord)
1 x VESA bracket & screws
1 x color box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
Shipment
All customs duties, taxes, to be collected on the territory of the Buyer, are to be paid by the Buyer.
Standard export packing
All Qotom products are well packed by standard export packing box.
* No shipping mark by default.
Ship by International express
Most of goods are shipped by international express like DHL/ Fedex/ TNT/ UPS, especially for small orders. Buyer can receive goods very soon.
* All goods will be transferred in Hong Kong.
Air logistics & transport by sea
For bulk order, air logistics charge lower freight.
* Buyer have to pick up the goods at airport.
If prefer to transport by sea, please contact seller.
If Buyer has forwarder/ agent in China
Seller can deliver goods in China.
* Important: There is a lithium metal battery on motherboard that some forwarders can not arrange shipment.
Contact us for free if you have any questions about the shipment.
