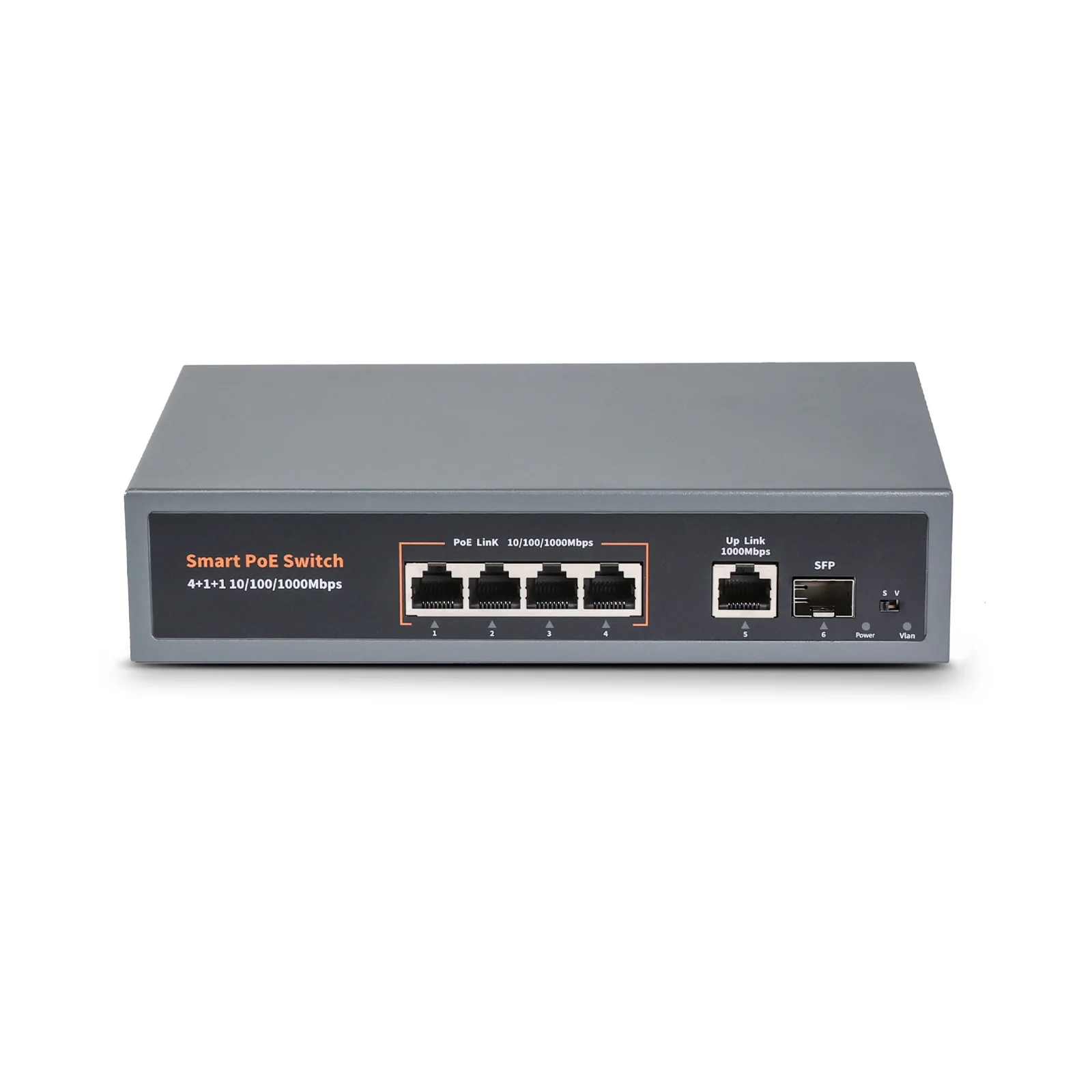

6-портовый 4-портовый коммутатор 1000 м PoE 4x10/1000 Мбит/с порт POE 1x10/1000 Порты восходящего канала
- Категория: Computer Hardware & Software >>>
- Поставщик: Shenzhen,6COM,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.49 $* | 0.12 $* |
| Aug-15-2025 | 0.59 $* | 0.97 $* |
| Jul-15-2025 | 0.1 $* | 0.6 $* |
| Jun-15-2025 | 0.5 $* | 0.22 $* |
| May-15-2025 | 0.78 $* | 0.14 $* |
| Apr-15-2025 | 0.27 $* | 0.67 $* |
| Mar-15-2025 | 0.87 $* | 0.19 $* |
| Feb-15-2025 | 0.2 $* | 0.87 $* |
| Jan-15-2025 | 0.64 $* | 0.42 $* |
Характеристики
Products Description
Features
• 250m Distance
• Support IEEE802.3AF/AT
• Whole Power:78W(52V 1.5A)
• All port supported by MDI/MDIX auto flip and self negotiation
• Supply 4 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
• Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
• Each port max. power supply reached 30W.
• Support IEEE802.3AF/AT
• Whole Power:78W(52V 1.5A)
• All port supported by MDI/MDIX auto flip and self negotiation
• Supply 4 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
• Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
• Each port max. power supply reached 30W.
Application
Equipped with 4×100/1000Mbps POE ports, 1×100/1000Mbps UpLink ports and 1x 1G SFP, this switch can connect up to 4 PoE devices and 1 non-PoE devices simultaneously. It supports MDI/MDIX auto flip and self-negotiation, making installation and configuration a breeze. The switch also supplies 4 100/1000Mbps adaptive high-speed forwarding data packet non-lost ports, ensuring smooth and seamless data transmission.
The switch features IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode, ensuring stable and efficient data transfer. Each port can supply a maximum power of 30W, making it perfect for powering PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.
The switch features IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode, ensuring stable and efficient data transfer. Each port can supply a maximum power of 30W, making it perfect for powering PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.
Specification
Model | 6C-G0411GA | Data Distance | ≤250m |
POE Port | 1 to 4 support IEEE802.3AF/AT Standard | Switch Capability | 12Gbps |
Output Power | 15.4W/30W IEEE802.3af/at | Forwarding Mode | Store and forward |
Power Pin | Both 1/2+、3/6- | Forwarding Rate | 100BASE-tx：14800pps/port 1000BASE-T: 1488095pps/port |
Whole Power | ≤78W | MAC Address | MAC address table 1K |
POE Protocol | IEEE 802.3af/IEEE 802.3at | Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
POE Type | End-span | LED Indicator | LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender |
Power Distance | ≤250m | Working Environment | Working temperature：-10°– 55°C |
Network Standard | IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at | Weight | 1kg |
Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair | Size | 200mm*118mm*40mm(L*W*H) |
Compatibility Test
Category Navigation
Our Company
FAQ
Q1.Can I have a sample order? What is your MOQ?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center, and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock, ready to ship. some higher-value and specialized optics have a short lead time.
Payment term: Western Union, T/T, Aliexpress escrow, money gram, cash payment.
Warranty: 3 years.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5.Could I use our own logo, label, and package?
A5: Yes, we could provide an OEM service and according to your requirements, design products label, logo, PN, SN, package.
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center, and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock, ready to ship. some higher-value and specialized optics have a short lead time.
Payment term: Western Union, T/T, Aliexpress escrow, money gram, cash payment.
Warranty: 3 years.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5.Could I use our own logo, label, and package?
A5: Yes, we could provide an OEM service and according to your requirements, design products label, logo, PN, SN, package.
